ZXFV302N16TA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> ZXFV302N16TA

ZXFV302N16TA: DescriptionSingle-Ended Multiplexer, 1 Func, 4 Channel, PDSO16, SO-16; CategoryAnalog mixed-signal IC The signal circuit; File Size274KB，12 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

ZXFV302N16TA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZXFV302N16TA	-	-	View	Buy Now

ZXFV302N16TA Overview

Single-Ended Multiplexer, 1 Func, 4 Channel, PDSO16, SO-16

ZXFV302N16TA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
Parts packaging code	SOIC
package instruction	SSOP,
Contacts	16
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G16
JESD-609 code	e3
length	4.9 mm
Humidity sensitivity level	1
Maximum negative supply voltage (Vsup)	-5.25 V
Negative supply voltage minimum (Vsup)	-4.75 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of channels	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Maximum disconnect time	22 ns
Maximum connection time	45 ns
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	3.9116 mm

ZXFV302N16TA Preview

ZXFV302

4:1 HIGH SPEED MULTIPLEXER

DEVICE DESCRIPTION

The ZXFV302 is a 4:1 high speed analog switch

designed for use as a buffered video multiplexer and

other high-speed applications.

It features low different gain and phase distortion. The

high speed high output current capability provides 75

cable drive for use in high performance video

applications.

The input channel is selected by means of two logic

lines using an internal decoder. An output enable line

allows expansion to eight channels using two devices

ZXFV302 as shown in the example application figure 1.

An alternative device, ZXFV301 provides the same

functionality and pin-out as the ZXFV302 but with four

separate logic lines controlling the switch channels

directly.

FEATURES AND BENEFITS

•

3dB Bandwidth 300MHz

•

Slew rate 450V/ s

•

Differential gain 0.01%

•

Differential phase 0.04

•

Output current 40mA

•

Stable up to 100pF load

•

5 Volt supply

•

Supply current 17mA

•

16 pin SO package

APPLICATIONS

•

Video routing and switching

•

CCTV switching

•

Video distribution selection

•

RGB multiplexing

Connection Diagram

•

High frequency instrumentation Data acquisition

•

Data acquisition

IN 1

IN 2

V+

OUT

IN3

IN 4

V-

ZXFV302

Ordering information

Part Number

ZXFV302N16TA

ZXFV302N16TC

Container

Reel 7″

Reel 13″

Increment

500

2500

Fig.1:Typical Application for 8 channel CCTV

ISSUE 4 - NOVEMBER 2002

ZXFV302

ABSOLUTE MAXIMUM RATINGS

Supply voltage V

Analog inputs to ground

Digital inputs to ground

Outputs to ground*

Output current, max continous

Operating Ambient Temperature Range

Operating Junction temperature T

JMAX

-0.5V to +6V

-6V to +0.5V

-0.5V to V

+0.5V

-0.5V to V

+0.5V

-0.5V to VCC +0.5V

40mA

-40 C to 85 C Storage -65 C to 150 C

150 C**

**The thermal resistance from the semiconductor die to ambient is typically 120 C/W when the SO16 package is

mounted on a PCB in free air. The power dissipation of the device when loaded must be designed to keep the

device junction temperature below T

JMAX

*During power-up and power-down, these voltage ratings require an appropriate sequence of applying and

removing signals and power supplies.

ELECTRICAL CHARACTERISTICS

5V power supplies, T

amb

= 25 C unless otherwise stated. R

= 150 , C

= 10pF

Characteristics apply to channel selected, and EN input HIGH unless otherwise stated

Test level:

P = 100% production test

C = characterised only

CONDITIONS

TEST

MIN

4.75

-5.25

All channels held at 0V

Active channels held at 0V

Disabled (EN low)

2V pk-pk

logic input voltage = 5V

logic input voltage = 0V

0.8

-70

1.5

300

450

4.5

MHz

V/ s

-10

-25

0.99

TYP

-5

1.000

+11

-11

+30

MAX

5.25

-4.75

1.01

UNIT

V/V

PARAMETER

Supply Voltage V+

Supply Voltage V-

Positive supply current

Negative supply current

Voltage gain DC

Input Common mode Voltage

Input resistance

Output offset Voltage

Input bias current

Output Voltage swing

Output drive current

Output resistance

Positive PSRR

Negative PSRR

Small signal bandwidth

Slew rate, 25% to 75%

Logic input HIGH V

Hmin

Logic input LOW V

Lmax

Logic input current I

INHIGH

Logic input current I

INLOW

ISSUE 4 - NOVEMBER 2002

ZXFV302

ELECTRICAL CHARACTERISTICS

5V power supplies, T

amb

= 25 C unless otherwise stated. R

= 150 , C

= 10pF

Characteristics apply to channel selected, and EN input HIGH unless otherwise stated

Test level:P = 100% production test

C = characterised only

PARAMETER

OFF

LOW

HIGH

Cross-talk, all hostile

Differential Gain

Differential Phase

Switching transients,

magnitude

Switching transients,

duration

All channels held at 0V

CONDITIONS

Vout =

2V, see timing diagram

TEST

MIN

TYP

0.01

0.04

MAX

UNIT

deg

10MHz, 0dBm in

Notes:

1. Bandwidth and cross talk measured using Zetex Evaluation Circuit Board detailed later in this datasheet.

Truth table for selection of input channel

OUT

Hi Z

IN 1

IN 2

IN 3

IN 4

Fig.2: TIMING DIAGRAM

Notes: The ‘select’ waveform represents a change in the the 2 bit control word A0 and A1.

HIGH

is equivalent to t

LOW

but , applies for a positive going transition of OUT.

ISSUE 4 - NOVEMBER 2002

ZXFV302

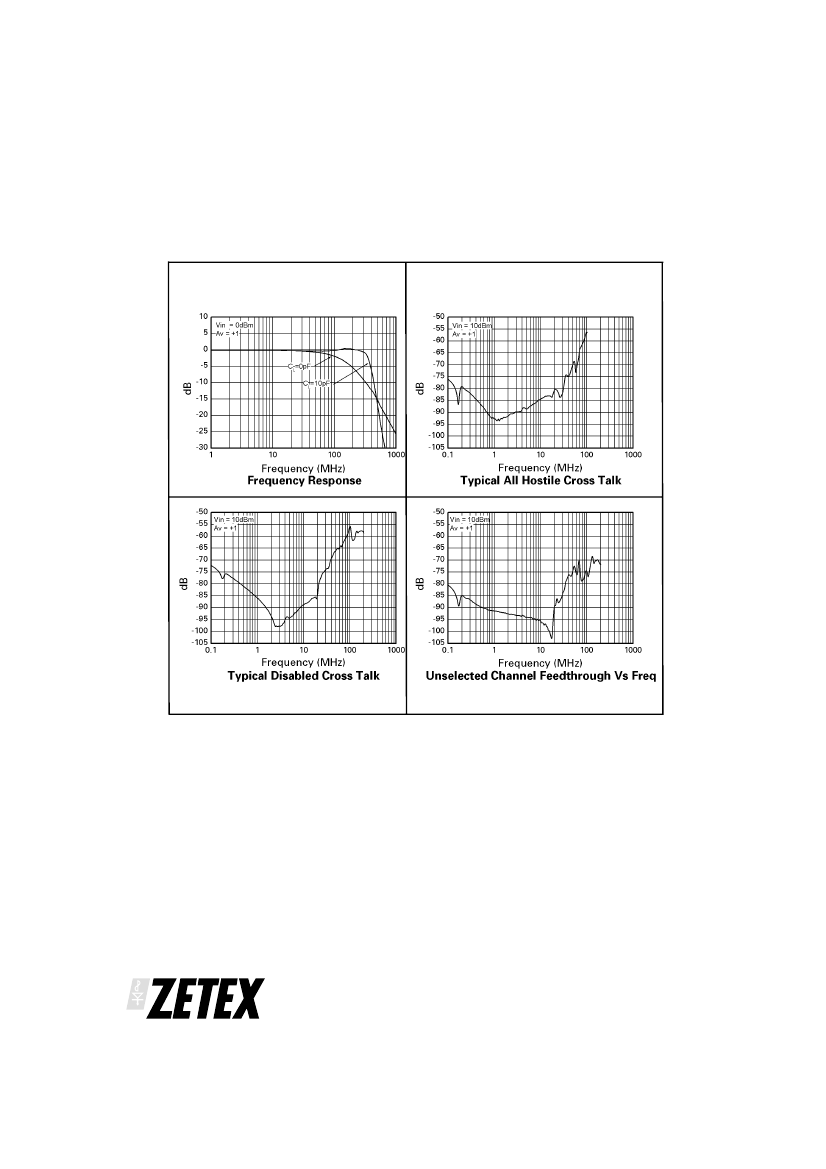

CHARACTERISTICS

ISSUE 4 - NOVEMBER 2002

ZXFV302

APPLICATIONS INFORMATION

Introduction

A typical circuit application is outlined in Figure 1,

above, where two devices are combined to provide

8-to-1 multiplexing. A more detailed basic application

circuit for 4 dc-coupled channels is given in Figure 3,

and an AC coupled circuit for 8 channels is shown in

Figure 4. These circuits are suitable for 75

transmission line connections at both the input and the

output and are useful for distribution of wide-band

signals such as video via cables. The 75 reverse

terminating resistor at the output gives the correct

matching condition to a terminated video cable. The

amplifier load is then 150 .

The wide bandwidth of this device necessitates some

care in the layout of the printed circuit. Partly for this

reason, an Evaluation Circuit board is available and is

described in a later paragraph. A continuous ground

plane is required under the device and its signal

connection paths, to provide the shortest possible

ground return paths for signals and power supply

filtering. A double-sided or multi-layer PCB

construction is required, with plated-through via holes

providing closely spaced low-inductance connections

from some components to the continuous ground

plane (some of these holes are not visible in the figures

for the Evaluation Circuit Board – artworks and NC drill

output can be provided if required).

For the power supply filtering, low inductance surface

mount capacitors are normally required. It has been

found that very good RF decoupling is provided on

each supply using a 1000 pF NPO size 0805 ceramic

surface mount capacitor, closest to the device pin, with

an adjacent 0.1 F X7R capacitor. Other configurations

are possible and it may be found that a single 0.01 F or

0.1 F X7R capacitor, size 0805 or smaller, on each

supply gives good results. However this should be

supported by larger decoupling capacitors elsewhere

on the printed circuit board. Values of 1 to 10 F are

recommended, particularly where the voltage

regulators are located more than a few inches from the

device. These larger capacitors are recommended to

be solid tantalum electrolytic or ceramic types.

Evaluation Circuit

An evaluation circuit is available, constructed on a

double-side printed circuit board. The circuit is suitable

for both the ZXFV301 and ZXFV302 and either device

may be fitted. Figures 5 and 6 show the circuit diagram,

and the layout of components and copper. A parts list

is provided below. This layout serves as a useful

example for many applications, showing the practical

implementation of the advice given above in the

Introduction.

SW1

TP1 to TP10

BNC connector sockets allow connection to test

instruments via 50 cables. The output circuit includes

a resistor matching circuit to present a load of 150 to

the device and simultaneously provide 50 output

impedance. The attenuation of this matching circuit is

15.45 dB. As the device has unity voltage gain, the

overall loss when loaded by 75 is also 15.45 dB.

EVALUATION CIRCUIT PARTS LIST:

QTY CCT-REF

VALUE

DESCRIPTION

Resistors, surface mount

R1,R2,R3,R4

R5,R6,R7,R8

R10

R11

R12 to R16

51R

22k

120R

62R

10R

47k

0805

Capacitors, surface mount

Integrated Circuits

Zetex ZXF 301N16

or ZXFV302N16

100nF

1nF

10 F

25V ceramic 0805

X7R

50V ceramic 0805

NPO

16V Tant Elec size

Miscellaneous

BNC Socket, PCB

straight flange,

e.g. Tyco

B35N14H999X99

3-way PCB screw

terminal block IMO

20.501/3SB

DIL switch, 8 way

PCB test terminal,

red, W.Hughes

100-107

ISSUE 4 - NOVEMBER 2002

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

ZXFV302N16TA Related Products

	ZXFV302N16TA	ZXFV302N16TC
Description	Single-Ended Multiplexer, 1 Func, 4 Channel, PDSO16, SO-16	Single-Ended Multiplexer, 1 Func, 4 Channel, PDSO16, SO-16
Maker	Diodes Incorporated	Diodes Incorporated
Parts packaging code	SOIC	SOIC
package instruction	SSOP,	SSOP,
Contacts	16	16
Reach Compliance Code	compliant	compliant
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G16	R-PDSO-G16
length	4.9 mm	4.9 mm
Maximum negative supply voltage (Vsup)	-5.25 V	-5.25 V
Negative supply voltage minimum (Vsup)	-4.75 V	-4.75 V
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V
Number of channels	4	4
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
Maximum disconnect time	22 ns	22 ns
Maximum connection time	45 ns	45 ns
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL
width	3.9116 mm	3.9116 mm

Recommended Resources

Detailed explanation of intelligent robot infrared transmitting and receiving circuit

Mixer circuit diagram based on LM-1496

Bidirectional thyristor AC voltage regulation circuit 02

UM3758-108A/AM decoding circuit

Ground potential isolation circuit

The most practical basic diagram circuit 30 - thyristor AC switching circuit

Using CCS to develop code structure, power-on loading and online programming of DSP applications: 1. There are three types of DSP application code structures: ○ Pure assembly; ○ Pure C language; ○ Assembly + C language. These three structures can also be inserted with DSP/BIOS API with or without ...; Aguilera Microcontroller MCU

Miscellaneous notes on SRAM, PSRAM, and SPI FLASH: [size=4] My current work is mainly to develop and design products on the RDA5981 platform. During the design process, I came into contact with SRAM, PSRAM, and SPI FLASH, so I took this opportunity to...; fish001 Analogue and Mixed Signal

MSP430 flash erase problem: Software environment: IAR for MSP430 5.5.2 Chip: MSP430F449 There is an external input pulse that triggers the microcontroller P1 interrupt, which counts in the interrupt. If the program erases the fl...; fish001 Microcontroller MCU

Air Purifier: Using Renesas' RL78/G14 evaluation board as the control...; ximliu Renesas Electronics MCUs

Light source controller closing sticker: I didn't really read the rules of the competition before, and thought it was just a normal post. Fortunately, [url=home.php?mod=space&uid=530227]@nmg[/url] reminded me to post a summary post today to ...; 908508455a GD32 MCU

How do I apply for a license?: [color=#362e2b][font=Arial]"First, you need to install Quartus (version 13.1 or above) and the corresponding SoC EDS, and apply for two licenses, one for OpenCL SDK and one for SoC EDS. Both are indis...; JerryHetty FPGA/CPLD

Shortcut: S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components
