85_QLA-01-0-2/112_NE datasheet, PDF

Datasheet> All Categories > The connector> The connector> 85_QLA-01-0-2/112_NE

85_QLA-01-0-2/112_NE: DescriptionRF Connector, Female, Board Mount, Solder Terminal, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

85_QLA-01-0-2/112_NE Overview

RF Connector, Female, Board Mount, Solder Terminal, Jack, ROHS COMPLIANT

85_QLA-01-0-2/112_NE Parametric

Parameter Name	Attribute value
Maker	HUBER+SUHNER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	VSWR MAX AT 1.4GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PFA/PTFE
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE
Installation type	BOARD
Maximum operating frequency	1.4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.2

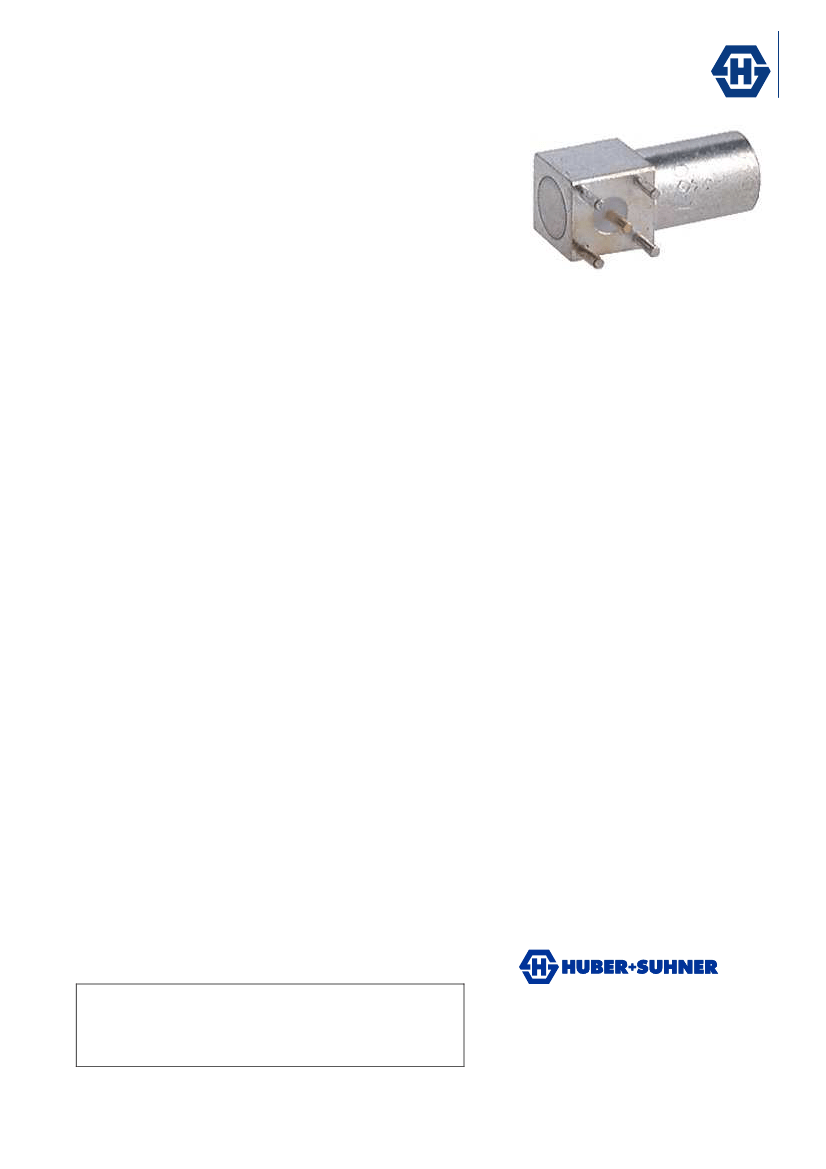

85_QLA-01-0-2/112_NE Preview

HUBER+SUHNER

DATA SHEET

Coaxial PCB Connector: 85_QLA-01-0-2/112_N

Description

Rev.: C

Right angle PCB jack

Interface Standards

NIM-CAMAC-Standard CD/N549

Technical Data

Electrical Data

Impedance

Interface frequency max.

other

Ω

1.4 GHz

through holes

0.0048 kg

-55 °C to 150 °C

compliant

Material

Copper Beryllium Alloy

Bronze

Brass

PFA / PTFE

DOU-00012841

DCA-00012843

DOU-00012844

85_QLA-01-0-2/112_NE

Surface Plating

Gold Plating (Nickel underplated)

Nickel Plating

Mechanical Data

Board mounting type

Weight

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material Data
