LFTCXO063714REEL datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> LFTCXO063714REEL

LFTCXO063714REEL: DescriptionClipped Sine Output Oscillator, 12.8MHz Nom; CategoryPassive components oscillator; File Size484KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFTCXO063714REEL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFTCXO063714REEL	-	-	View	Buy Now

LFTCXO063714REEL Overview

Clipped Sine Output Oscillator, 12.8MHz Nom

LFTCXO063714REEL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
Reach Compliance Code	compliant
Other features	TR
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	0.28%
Installation features	SURFACE MOUNT
Nominal operating frequency	12.8 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	7.0mm x 5.0mm x 2.4mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES

LFTCXO063714REEL Preview

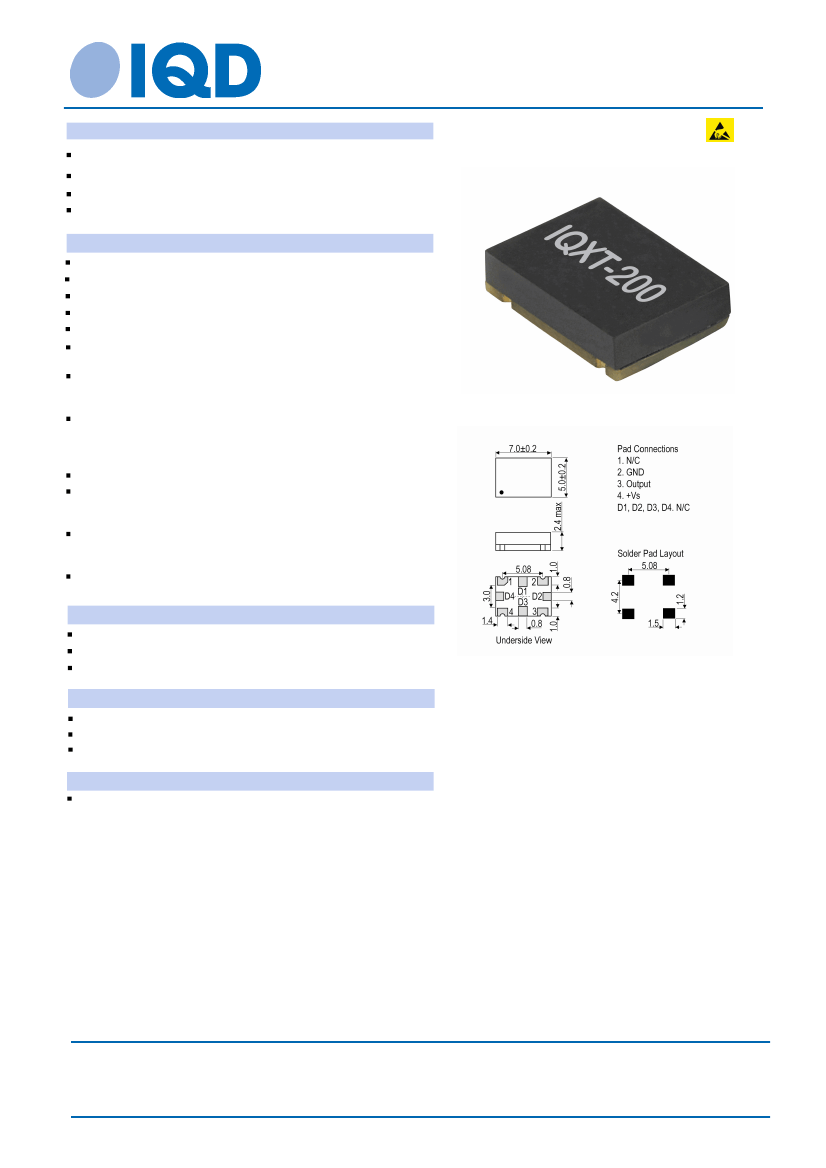

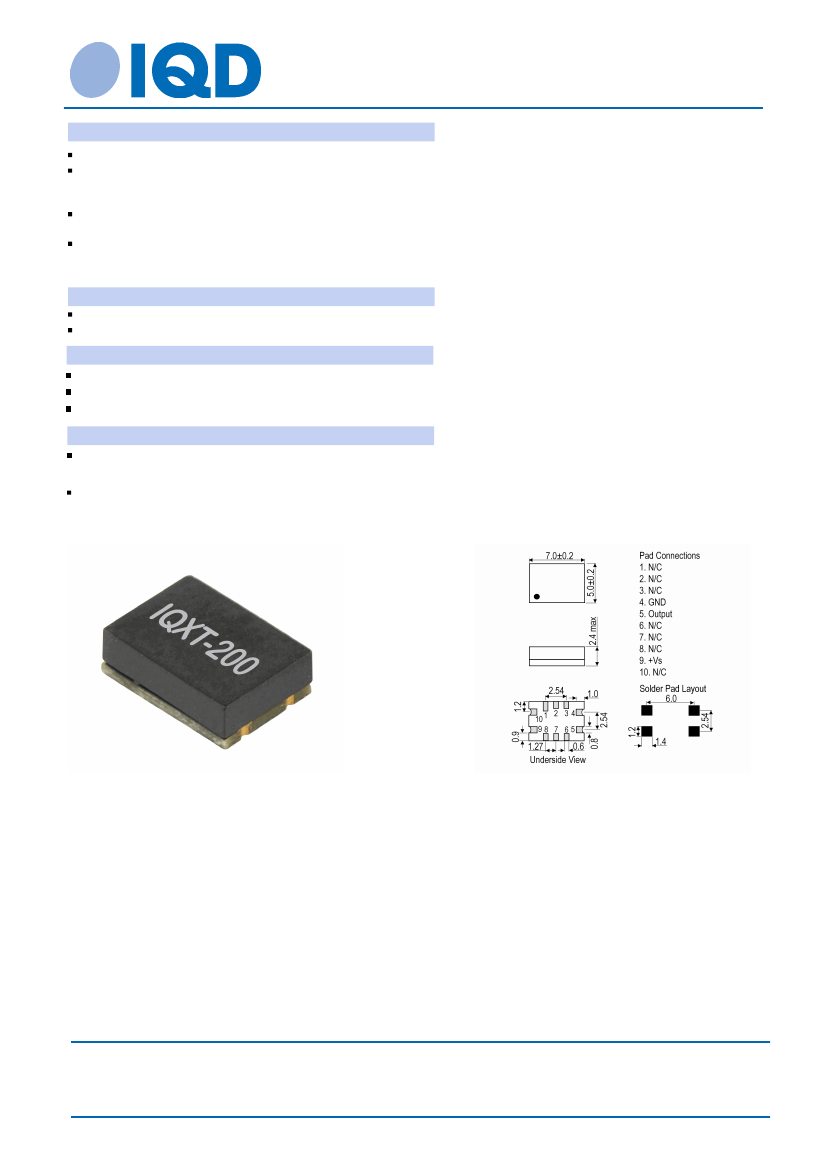

TCXO Specification

Part No. + Packaging:

LFTCXO063714Reel

Description

Temperature compensated crystal oscillator (TCXO)

8 pad version

Model

Model Issue number

Frequency Parameters

IQXT-200-2-B

Frequency

Frequency Tolerance

Tolerance Condition

Frequency Stability

Operating Temperature Range

Ageing

12.80MHz

±0.50ppm

@ 25°C & 3.3V

±0.28ppm

-20.00 to 70.00°C

±0.02ppm max per day,

±1.0ppm max per year

Frequency Tolerance (measurement referenced to frequency

observed with TA=25°C, Vs=3.3V and within 30 days after

ex-works): ±0.5ppm

Frequency Stability: TA varied over temperature, measurement

referenced to frequency observed with TA=25°C, Vs=3.3V,

load=10kΩ//10pF and temperature variable speed less than

2°C per minute.

Ageing: TA=25°C, Vs=3.3V and after 1hr of operation.

Supply Voltage Variation (measurement referenced to

frequency observed with TA=25°C, Vs varied from 3.13V to

3.47V and load=10kΩ//10pF): ±0.1ppm max

Load Variation (5% load change measurement referenced to

frequency observed with TA=25°C, Vs=3.3V and

load=10kΩ//10pF): ±0.1ppm max

Short Term Stability (@ 25°C after 10mins power on): 5E-10/s

typ @ 10MHz

Outline (mm)

Electrical Parameters

3.3V ±5%

Supply Voltage

Current Draw

10.00mA

Current: TA=25°C, Vs=3.3V and load=10kΩ//10pF

Output Details

Output Compatability

Drive Capability

Output Level: 0.8V pk-pk min

Noise Parameters

Clipped Sine

10kΩ//10pF

Phase Noise (@ 10MHz typ):

-90dBc/Hz @ 10Hz

-115dBc/Hz @ 100Hz

-135dBc/Hz @ 1kHz

-145dBc/Hz @ 10kHz

-148dBc/Hz @ 100kHz

-150dBc/Hz @ 1MHz

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

TCXO Specification

Part No. + Packaging:

LFTCXO063714Reel

Environmental Parameters

Storage Temperature Range: -55 to 105°C

ESD Level:

HBM, Class 2: 2000V to 4000V, JEDEC JS-001-2010

Machine Model, Class B: 200V to 400V, JEDEC JS-001-2010

Shock: IEC 60068-2-27, Test Ea: 100G acceleration for 6ms,

sinewave, in 3 mutually perpendicular planes

Vibration: IEC 60068-2-6, Test Fc: 10Hz-2000Hz, 0.75mm

amplitude, 10G acceleration, 30mins per cycle, in 3 mutually

perpendicular planes, test duration 2hrs

Manufacturing Details

Moisture Sensitivity Level: 2

Maximum Reflow Temperature: 260°C (30secs max)

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Pack Style: Reel

Pack Size: 600

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Outline (mm) -A = 10 pad version

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 2 of 2

Printed on 27 May 16 13:15 using Part Data Sheet V1.00014
