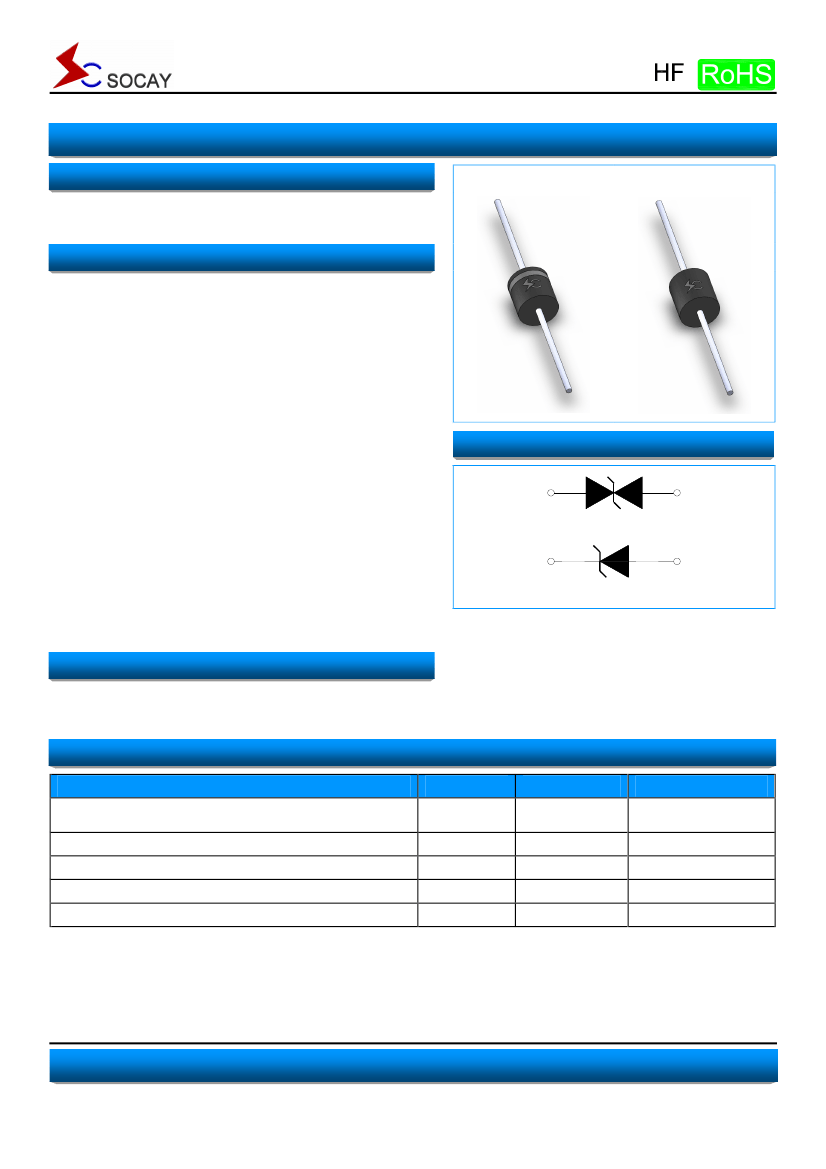

Axial Lead Transient Voltage Suppressors (TVS)
30KPA Series
Description
The 30KPA series is designed specifically to protect sensitive electronic
equipment from voltage transients induced by lightning and other transient
voltage events.
28 To 288 V
30000W
Uni-directional
Bi-directional
Features
u
u
u
u
u
u
u
u
u
u
u
u
u
u
u
u
u
Glass passivated chip junction in P600 Package
Low leakage
Uni and Bidirectional unit
Excellent clamping capability
30000W Peak power capability at 10
×
1000µs waveform Repetition
rate (duty cycle):0.01%
Fast response time: typically less than 1.0ps from 0 Volts to V
BR
min
Typical I
R
less than 2μA above 73V.
High Temperature soldering: 260°C/40 seconds at terminals
Typical maximum temperature coefficient
ΔV
BR
= 0.1%
×
V
BR
@25°C×
ΔT
Plastic package has Underwriters Laboratory Flammability 94V-0
Matte tin lead–free Plated
Halogen free and RoHS compliant
Typical failure mode is short from over-specified voltage or current
Whisker test is conducted based on JEDEC JESD201A per its table
4a and 4c
IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
ESD protection of data lines in accordance with IEC 61000-4-2
(IEC801-2)
EFT protection of data lines in accordance with IEC 61000-4-4
(IEC801-4)
Functional Diagram
Bi-directional
Cathode
Uni-direction
Anode
Applications
TVS devices are ideal for the protection of I/O interfaces, V
CC
bus and other
vulnerable circuits used in Telecom, Computer, Industrial and Consumer
electronic applications.
Maximum Ratings (T
A
=25℃ unless otherwise noted)
Parameter
Peak Pulse Power Dissipation with a 10/1000µs waveform (Fig.1)(Note
1), (Note 2)
Peak Pulse Current with a 10/1000µs waveform.(Note1,Fig.3)
Power Dissipation on Infinite Heat Sink at T
L
=75°C
Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3)
Operating junction and Storage Temperature Range.
Symbol
P
PPM
I
PP
P
M(AV)
I
FSM
T
J
, T
STG
Value
20000
See Next Table
8.0
500
-55 to +150
Unit
Watts
Amps
Watt
Amps
°C
Notes:
1. Non-repetitive current pulse, per Fig. 3 and derated above T
A
= 25°C per Fig. 2.
2. Mounted on 5.0mm x 5.0mm (0.03mm thick) Copper Pads to each terminal.
3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.
4. V
F
< 3.5V for V
BR
< 200V and V
F
< 6.5V for V
BR
> 201V.
SOCAY Electronics Co., Ltd.
Revision September 25, 2013
www.socay.com
1/5
@ SOCAY Electronics Co., Ltd. 2013
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Axial Lead Transient Voltage Suppressors (TVS)
30KPA Series
28 To 288 V
30000W
Reverse
Stand-Off
Voltage
V
RWM
(V)
28
30
33
36
39
42
43
45
48
51
54
58
60
64
66
70
71
72
75
78
84
90
96
102
108
120
132
144
150
156
160
168
170
180
198
216
240
258
260
270
280
288
Breakdown
Voltage V
BR
(V)
@I
T
MIN
31.28
33.51
36.90
40.20
43.60
46.90
48.00
50.30
53.60
57.00
60.30
64.80
67.00
71.50
73.70
78.20
79.30
80.40
83.80
87.10
93.80
100.50
107.20
113.90
120.60
134.00
147.40
160.80
167.60
174.30
178.70
187.70
189.90
201.10
221.20
241.30
268.10
188.20
290.40
301.60
312.80
321.70
50
50
50
50
20
10
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Test
Current
I
T
(mA)
Maximum
Clamping
Voltage V
C
@I
PP
(V)
50.0
55.2
58.5
61.8
67.2
72.0
73.0
77.4
81.6
86.4
91.4
92.4
102.0
104.0
107.0
109.0
111.5
114.0
119.4
129.0
139.2
146.4
156.0
165.6
175.2
194.4
213.0
223.2
233.4
245.0
252.6
272.4
275.0
290.4
319.8
348.6
387.0
416.4
416.0
436.2
464.0
469.9
Maximum
Peak
Pulse
Current I
PP
(A)
606.0
548.9
517.9
490.3
450.9
420.8
415.1
391.5
371.3
350.7
331.5
327.9
297.1
291.3
283.2
278.0
271.7
265.8
253.8
234.9
217.7
207.0
194.2
183.0
172.9
155.9
142.3
135.8
129.8
123.7
120.0
111.2
110.2
104.3
94.7
86.9
78.3
72.8
72.8
69.5
65.3
64.5
Maximum
Reverse
Leakage I
R
@V
RWM
(μA)
5000
5000
5000
5000
2000
1000
1000
250
150
50
20
20
15
10
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Part Number
Uni
30KPA28A
30KPA30A
30KPA33A
30KPA36A
30KPA39A
30KPA42A
30KPA43A
30KPA45A
30KPA48A
30KPA51A
30KPA54A
30KPA58A
30KPA60A
30KPA64A
30KPA66A
30KPA70A
30KPA71A
30KPA72A
30KPA75A
30KPA78A
30KPA84A
30KPA90A
30KPA96A
30KPA102A
30KPA108A
30KPA120A
30KPA132A
30KPA144A
30KPA150A
30KPA156A
30KPA160A
30KPA168A
30KPA170A
30KPA180A
30KPA198A
30KPA216A
30KPA240A
30KPA258A
30KPA260A
30KPA270A
30KPA280A
30KPA288A
Note:
1.
Bi
30KPA28CA
30KPA30CA
30KPA33CA
30KPA36CA
30KPA39CA
30KPA42CA
30KPA43CA
30KPA45CA
30KPA48CA
30KPA51CA
30KPA54CA
30KPA58CA
30KPA60CA
30KPA64CA
30KPA66CA
30KPA70CA
30KPA71CA
30KPA72CA
30KPA75CA
30KPA78CA
30KPA84CA
30KPA90CA
30KPA96CA
30KPA102CA
30KPA108CA
30KPA120CA
30KPA132CA
30KPA144CA
30KPA150CA
30KPA156CA
30KPA160CA
30KPA168CA
30KPA170CA
30KPA180CA
30KPA198CA
30KPA216CA
30KPA240CA
30KPA258CA
30KPA260CA
30KPA270CA
30KPA280CA
30KPA288CA
For Bi-Directional devices having V
R
of 60 volts and under, the I
R
limit is double
SOCAY Electronics Co., Ltd.
Revision September 25, 2013
www.socay.com
2/5
@ SOCAY Electronics Co., Ltd. 2013
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Axial Lead Transient Voltage Suppressors (TVS)
30KPA Series
28 To 288 V
30000W
Ratings and Characteristic Curves (T
A
=25°C unless otherwise noted)

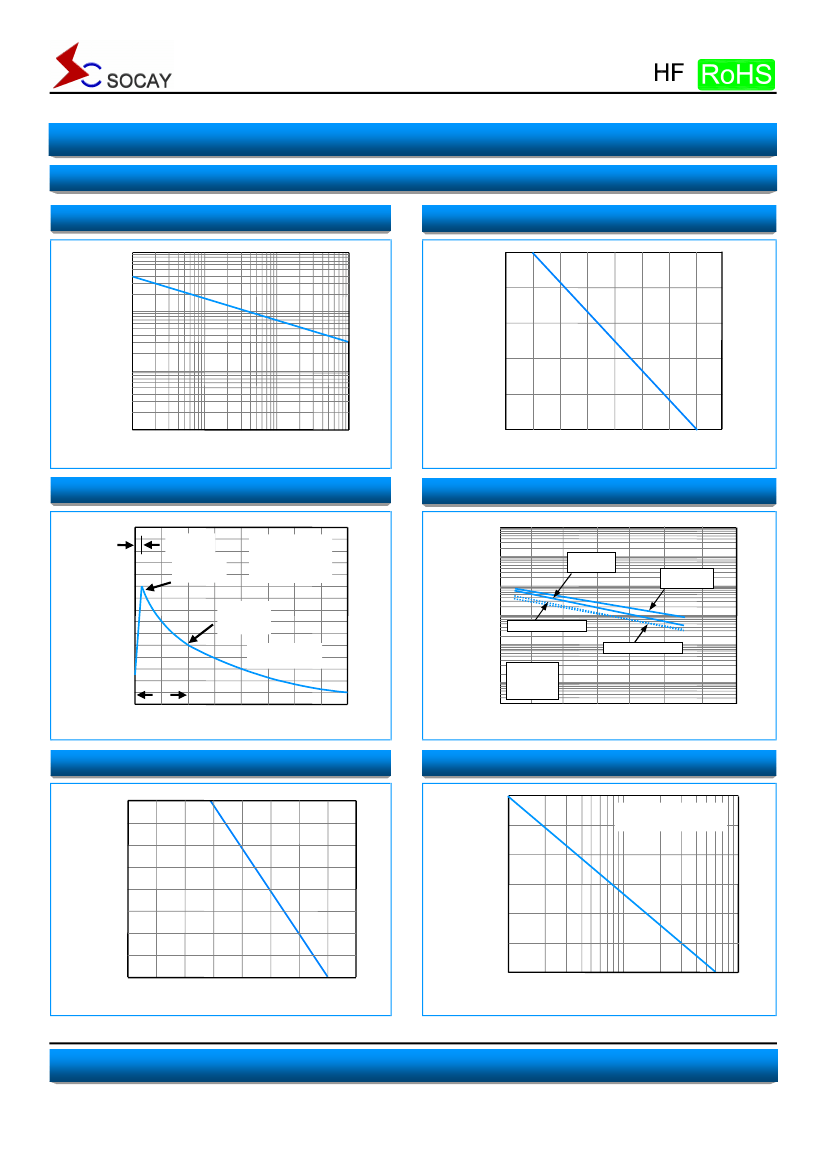

Figure 1 - Peak Pulse Power Rating Curve
1000
Figure 2 - Pulse Derating Curve
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage %
100
P
PPM
- Peak Pulse Power (kW)
80
100
60
40
10
20
0.1
0.1
10
100
t
d
- Pulse Width (μs)
1000
0
0
25
50
75
100
125 150 175
T
A
-Ambient temperature(°C)
200
Figure 3 - Pulse Waveform
150
Figure 4 - Typical Junction Capacitance
1000000
I
PPM
- Peak Pulse Current, % I
RSM
t
r
=10µsec
Peak Value
IPPM
100
C
J
–
Junction Capacitance (pF)
T
J
=25°C
Pulse Width(td) is defined
as the point where the peak
current decays to 50% of I
PPM
Bi-directional
@zero bins
10000
Uni-directional
@zero bins
Half Value
I
PPM
(I
PPM
/2)
50
10/1000µsec. Waveform
as defined by R.E.A
Uni-directional @V
RWM
100
Tj=25°C
f=1.0MHz
Vsig=50mVp-p
Bi-directional @V
RWM
0
0
t
c
1.0
2.0
t - Time (ms)
3.0
4.0
1
0
50
100
150
200
250
300
V
BR
-Reverse Breakdown Voltage (V)
350
Figure 5 - Steady State Power Derating Curve
P
M(AV)
, Steady State Power Dissipation (W)
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
0
25
50
75
100
125
150
T
L
- Lead Temperature(°C)
175
200
Figure 6 - Maximum Non-Repetitive Surge Current
500
I
FSM
-Peak Forward Surge Current
(A)
450
400
350
300
T
J
=T
J
max.
8.3 ms Single Half Sine-Wave
250
200
1
10
Number of Cycles at 60Hz
100
SOCAY Electronics Co., Ltd.
Revision September 25, 2013
www.socay.com
3/5
@ SOCAY Electronics Co., Ltd. 2013
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Axial Lead Transient Voltage Suppressors (TVS)
30KPA Series
28 To 288 V
30000W

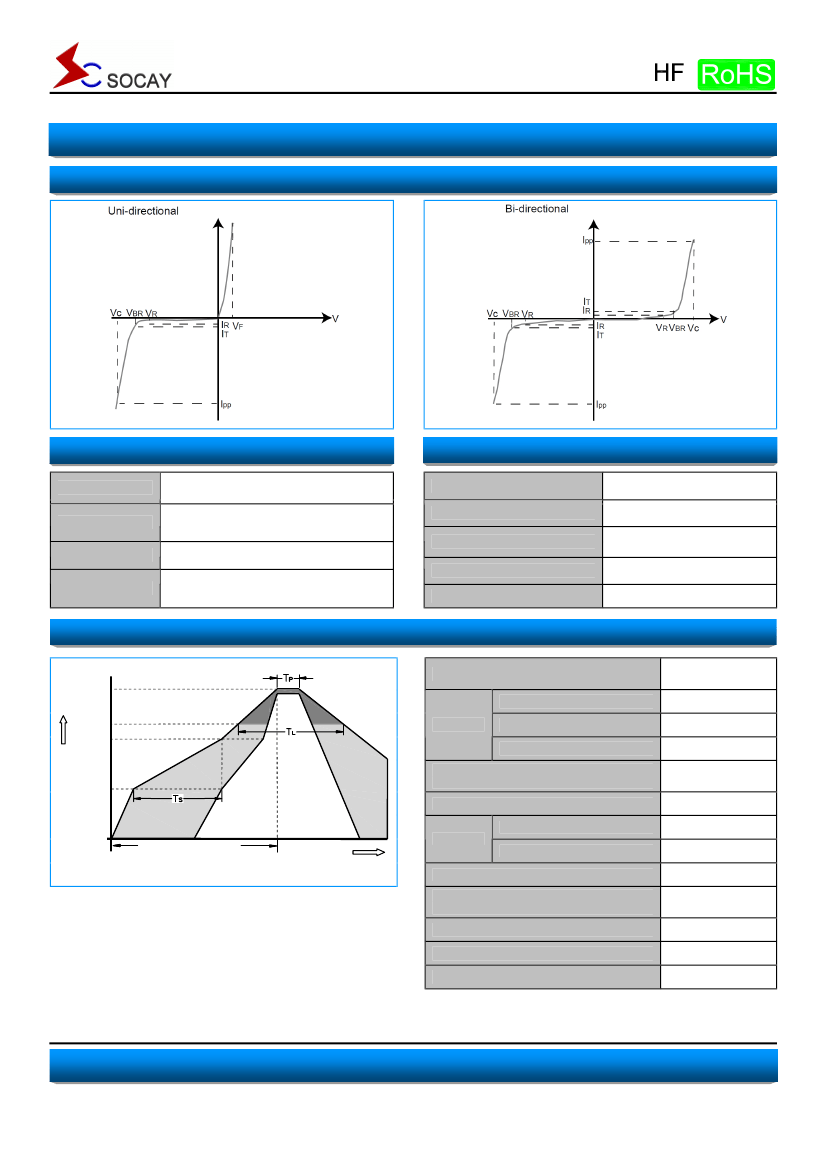

I-V Curve Characteristics
Physical Specifications
Weight
Case
Polarity
Terminal
0.07 ounce, 2.1gram
JEDEC R-6/P600 Molded Plastic over
glass passivated junction
Color band denotes cathode except
Bipolar
Matte Tin-plated leads, Solderable per
JESD22-B102D
Environmental Specifications
Temperature Cycle
Pressure Cooker
High Temp. Storage
HTRB
Thermal Shock
JESD22-A104
JESD22-A102
JESD22-A103
JESD22-A108
JESD22-A106
Soldering Parameters
Reflow Condition
T
P
Ramp-up
Critical Zone
T
L
to T
P
Lead–free assembly
150°C
200°C
60 -180 Seconds
3°C/second max
3°C/second max
217°C
60 -150 Seconds
260 +0/-5°C
of
actual
peak
20 -40 Seconds
6°C/second max
8 minutes Max
280°C
-Temperature Min (T
s(min)
)
Pre Heat
-Temperature Max (T
s(max)
)
- Time (min to max) (T
s
)
T
L
T
S(max)
Temperature
Ramp-down
T
S(min)
Preheat
Average ramp up rate ( Liquidus Temp T
L
)
to peak
T
S(max)
to TL - Ramp-up Rate
- Temperature (T
L
) (Liquidus)
25
Time to peak temperature
(t 25℃ to peak)
Reflow
Time
- Time (min to max) (
T
L
)
Peak Temperature (T
P
)
Time within 5°C
Temperature (t
p
)
Ramp-down Rate
Time 25°C to peak Temperature (T
P
)
Do not exceed
SOCAY Electronics Co., Ltd.
Revision September 25, 2013
www.socay.com
4/5
@ SOCAY Electronics Co., Ltd. 2013
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Axial Lead Transient Voltage Suppressors (TVS)
30KPA Series
Dimensions
R6/P600
Cathode Band
28 To 288 V
30000W
Inches
Dimensions
Min
A
B
C
D
1.000
0.340
0.048
0.340
Max
-
0.360
0.052
0.360
Millimeters
Min
25.40
8.64
1.22
8.64
Max
-
9.14
1.32
9.14
Part Numbering
Part Marking
30KP
×××
CA
Cathode Band
5% V
BR
VOLTAGE TOLERANCE
BI-DIRECTIONAL
V
R
VOLTAGE
SERIES
30KPXXX
Socay Logo
Product Type
Packaging
Part Number
30KPXXXXX
Component
Package
R6/P600
Quantity
200
Packaging
Option
Box
Packaging Dimensions
Unit: Inches (Millimeters)
2.56
(65.00)
0.25
(6.35)
0.40±0.020
(10.16±0.508)
SOCAY Electronics Co., Ltd.
Revision September 25, 2013
www.socay.com
5/5
@ SOCAY Electronics Co., Ltd. 2013
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
京公网安备 11010802033920号
EEWORLD
