Chip Schottky Barrier Rectifier
FM220-B THRU FM2200-B
2.0A Surface Mount Schottky Barrier
Rectifiers - 20V-200V
Package outline
Features
•
Batch process design, excellent power dissipation offers
•
•
•
•
•
•
•
•
•
better reverse leakage current and thermal resistance.
Low profile surface mounted application in order to
optimize board space.
Low power loss, high efficiency.
High current capability, low forward voltage drop.
High surge capability.
Guardring for overvoltage protection.
Ultra high-speed switching.
Silicon epitaxial planar chip, metal silicon junction.
Lead-free parts meet environmental standards of
MIL-STD-19500 /228
Suffix "-H" indicates Halogen free parts, ex. FM220-Β-H.
Formosa MS
SMB
0.213(5.4)
0.197(5.0)
0.016(0.4) Typ.
0.142(3.6)
0.126(3.2)
Mechanical data
•
Epoxy:UL94-V0 rated flame retardant
•
Case : Molded plastic, DO-214AA / SMB
•
Terminals : Solder plated, solderable per
MIL-STD-750, Method 2026
0.032(0.8) Typ.
0.075(1.9)
0.067(1.7)
0.032 (0.8) Typ.
Dimensions in inches and (millimeters)
•
Polarity : Indicated by cathode band
•
Mounting Position : Any
•
Weight : Approximated 0.09 gram
Maximum ratings and Electrical Characteristics
(AT
PARAMETER
Forward rectified current
Forward surge current
See Fig.1
CONDITIONS
T
A
=25
o
C unless otherwise noted)
Symbol
I
O
I
FSM
I
R
R
θJA
R
θJC
C
J
T
STG
-65
48
24
160
+175
MIN.
TYP.
MAX.
2.0
50
0.5
10
UNIT
A
A
8.3ms single half sine-wave superimposed on
rate load (JEDEC methode)
V
R
= V
RRM
T
J
= 25
O
C
V
R
= V
RRM
T
J
= 100 C
Junction to ambient
Junction to case
f=1MHz and applied 4V DC reverse voltage
O
Reverse current
Thermal resistance
Diode junction capacitance
Storage temperature
mA
O
O
C/W
C/W
pF
O
C
SYMBOLS
FM220-B
FM230-B
FM240-B
FM250-B
FM260-B
FM280-B
FM2100-B
FM2150-B
FM2200-B
*1
V
RRM
(V)
20
30
40
50
60
80
100
150
200
V
RMS
*2
(V)
14
21
28
35
42
56
70
105
140
*3
V
R
(V)
20
30
40
50
60
80
100
150
200
*4
V
F
(V)
Operating
temperature
T
J
, (
O
C)
-55 to +125
0.50
*1 Repetitive peak reverse voltage
*2 RMS voltage
0.70
0.85
0.90
0.92
-55 to +150
*3 Continuous reverse voltage
*4 Maximum forward voltage@I
F
=2.0A
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2010/12/16
Revision
E
Page.
7
Page 2
DS-121665

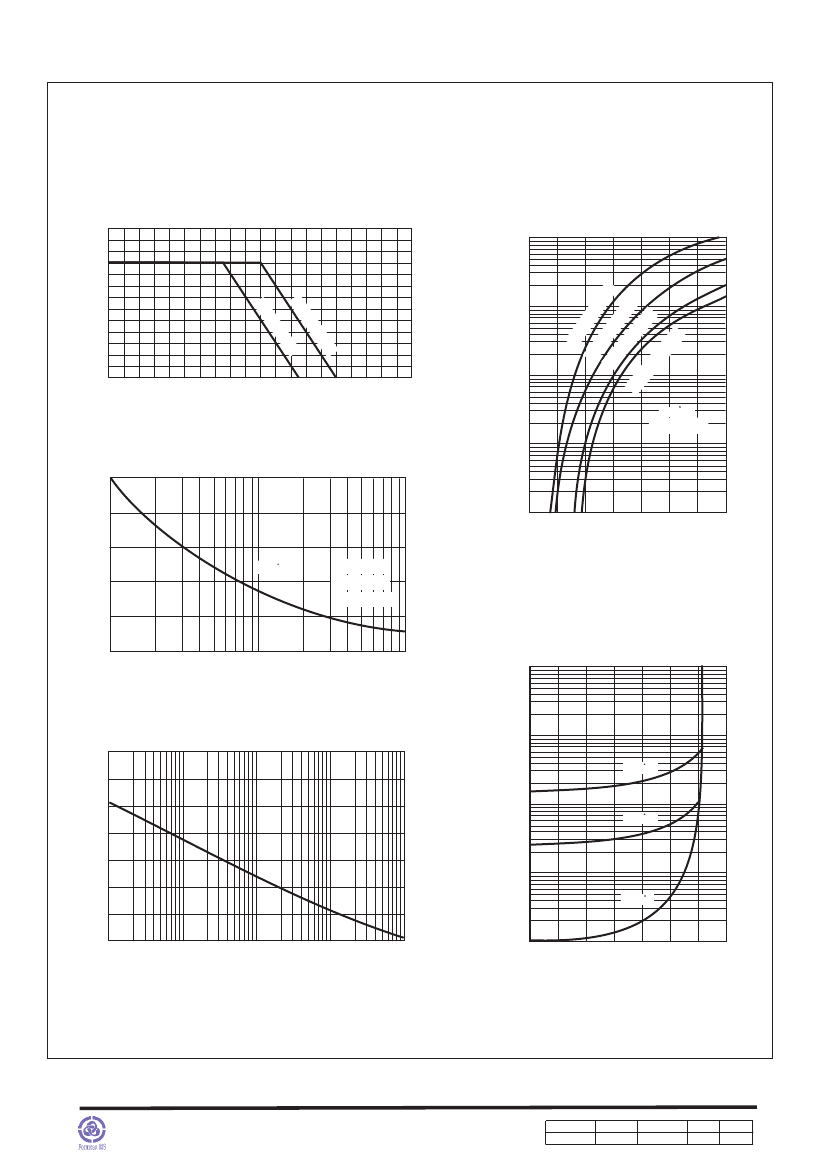

Rating and characteristic curves (FM220-B THRU FM2200-B)
FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT,(A)
FIG.2-TYPICAL FORWARD
CHARACTERISTICS
2.4
2.0
50
INSTANTANEOUS FORWARD CURRENT,(A)
~F
M2
40
-B
FM
22
0-
B
FM
25
1.6
FM
0.8
0.4
0
0
20
40
60
80
3.0
1.0
100
120
140
160
180
200
LEAD TEMPERATURE,(°C)
FIG.3-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
50
0.1
PEAK FORWARD SURGE CURRENT,(A)
40
.01
.1
.3
.5
0-
B~
FM
28
26
0-
B~
0-
B
FM
FM
21
21
00
50
-B
-B
~F
M
22
00
-B
1.2
10
FM
FM
22
0-
B~
24
FM
25
B~
0-
FM
22
00
-B
0-
B
T
J
=25 C
Pulse Width 300us
1% Duty Cycle
.7
.9
1.1
1.3
1.5
30
T
J
=25 C
8.3ms Single Half
Sine Wave
JEDEC method
FORWARD VOLTAGE,(V)
20
10
FIG.5 - TYPICAL REVERSE
0
1
5
10
50
100
CHARACTERISTICS
100
NUMBER OF CYCLES AT 60Hz
FIG.4-TYPICAL JUNCTION CAPACITANCE
700
600
500
400
300
200
100
0
REVERSE LEAKAGE CURRENT, (mA)
10
T
J
=100 C
JUNCTION CAPACITANCE,(pF)
1.0
T
J
=75 C
.1
T
J
=25 C
.01
.05
.1
.5
1
5
10
50
100
.01
0
20
40
60
80
100 120 140
REVERSE VOLTAGE,(V)
PERCENT OF RATED PEAK REVERSE VOLTAGE,(%)
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2010/12/16
Revision
E
Page.
7
Page 3
DS-121665
Chip Schottky Barrier Rectifier
FM220-B THRU FM2200-B
Pinning information
Pin
Pin1
Pin2
cathode
anode
Simplified outline
Formosa MS
Symbol
1
2
1
2
Marking
Type number
FM220-B
FM230-B
FM240-B
FM250-B
FM260-B
FM280-B
FM2100-B
FM2150-B
FM2200-B
Suggested solder pad layout
Marking code
SK22
SK23
SK24
SK25
SK26
SK28
S210
S215
S220
C
A
B
Dimensions in inches and (millimeters)
PACKAGE
SMB
A
0.142 (3.60)
B
0.059 (1.50)
C
0.118 (3.00)
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2010/12/16
Revision
E
Page.
7
Page 4
DS-121665
Chip Schottky Barrier Rectifier
FM220-B THRU FM2200-B
Packing information
P
0
P
1
d
E
F
B
W
Formosa MS
A
P
D
2
T
C
D
W
1
D
1
unit:mm
Item
Symbol
Tolerance
SMB
Carrier width
Carrier length
Carrier depth
Sprocket hole
13" Reel outside diameter
13" Reel inner diameter
7" Reel outside diameter
7" Reel inner diameter
Feed hole diameter
Sprocket hole position
Punch hole position
Punch hole pitch
Sprocket hole pitch
Embossment center
Overall tape thickness
Tape width
Reel width
A
B
C
d
D
D
1
D
D
1
D
2
E
F
P
P
0
P
1
T
W
W
1
0.1
0.1
0.1
0.1
2.0
min
2.0
min
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.3
1.0
3.81
5.74
2.24
1.50
330.00
50.00
178.00
62.00
13.00
1.75
5.50
8.00
4.00
2.00
0.23
12.00
18.00
Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above.
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2010/12/16
Revision
E
Page.
7
Page 5
DS-121665
