Z9010304PSC datasheet, PDF - EEWORLD Datasheet

Z9010304PSC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDIP40,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，36 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

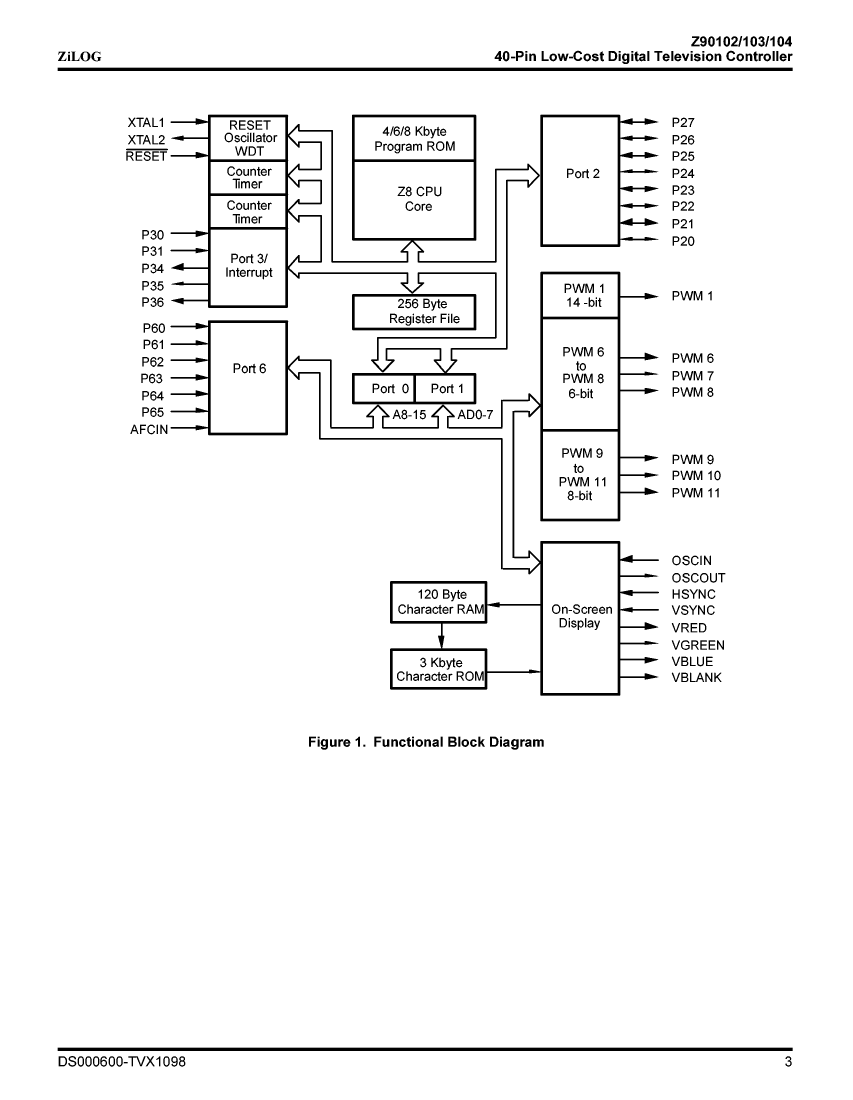

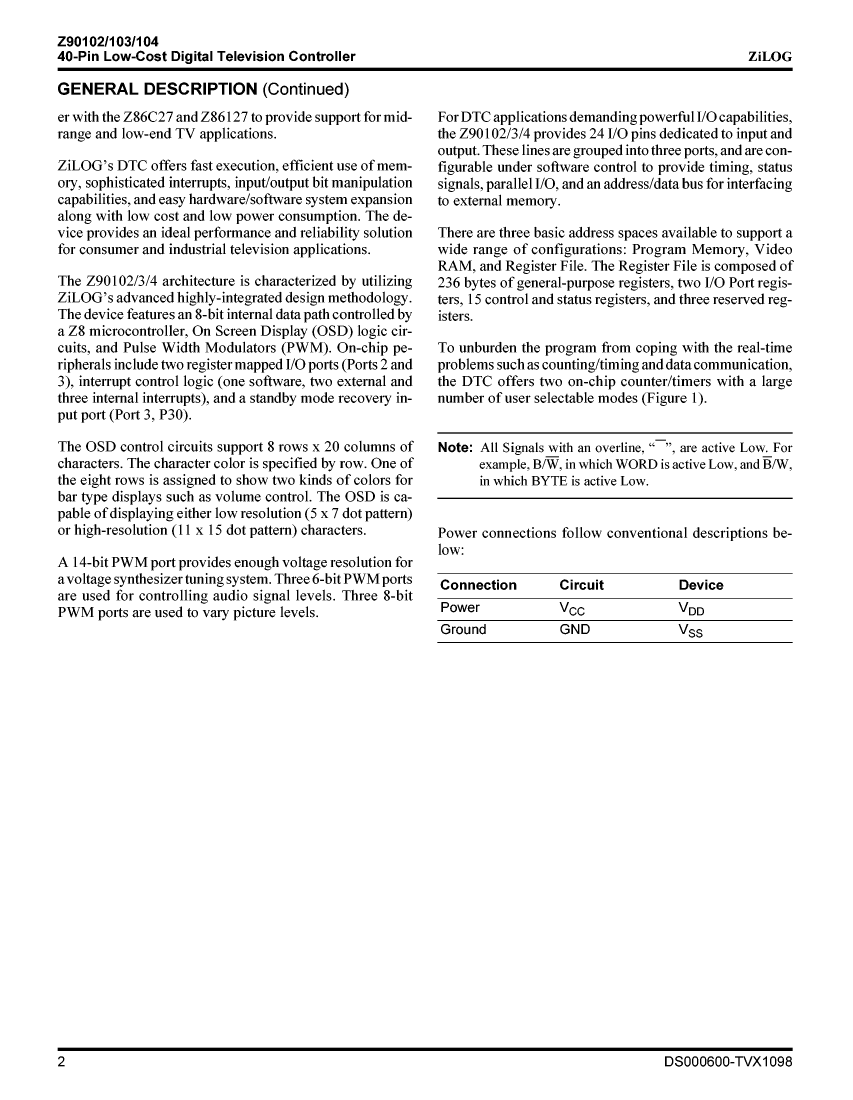

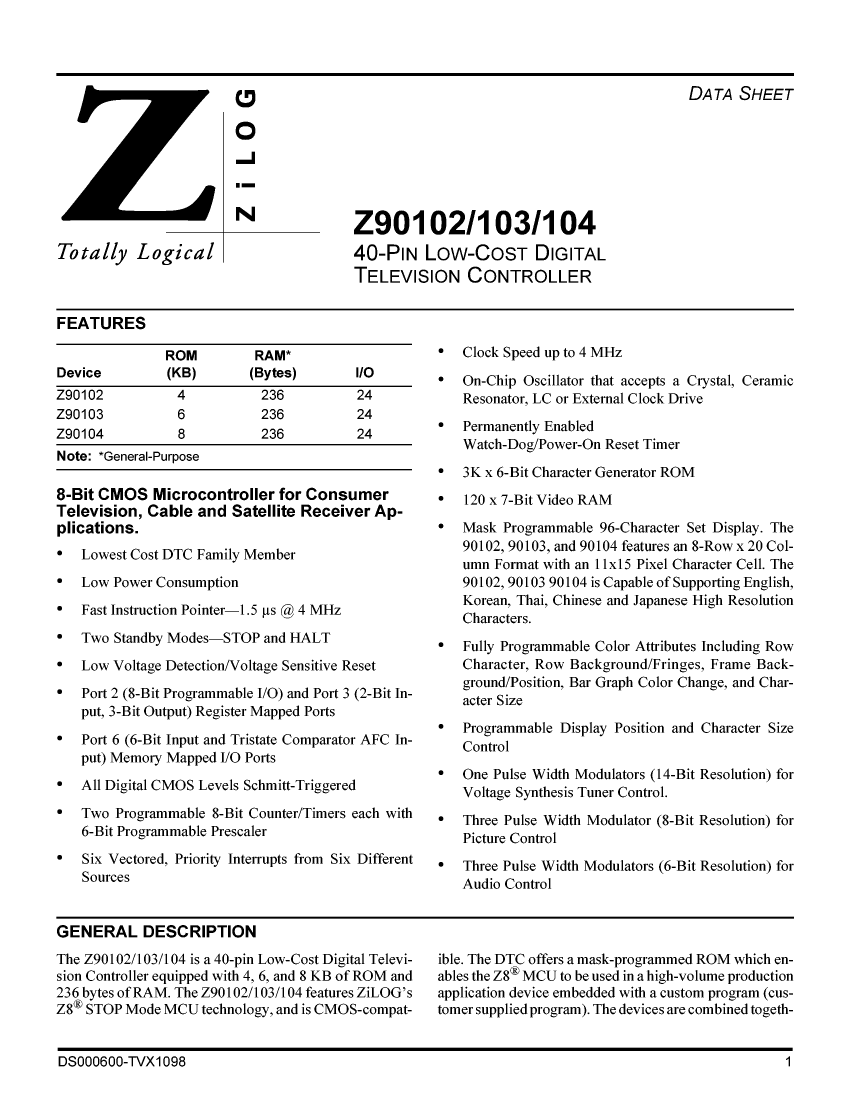

Z9010304PSC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDIP40,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IXYS
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	8
CPU series	Z8
maximum clock frequency	4 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T40
length	52.325 mm
Number of I/O lines	19

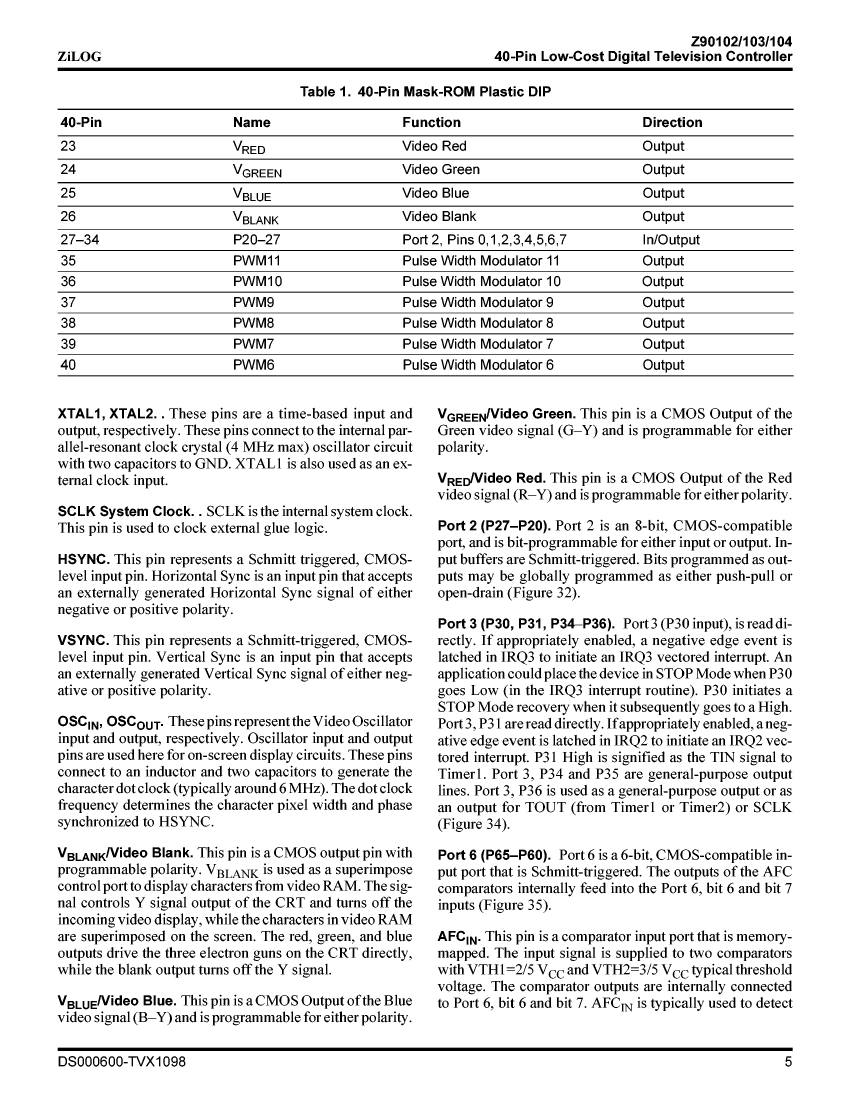

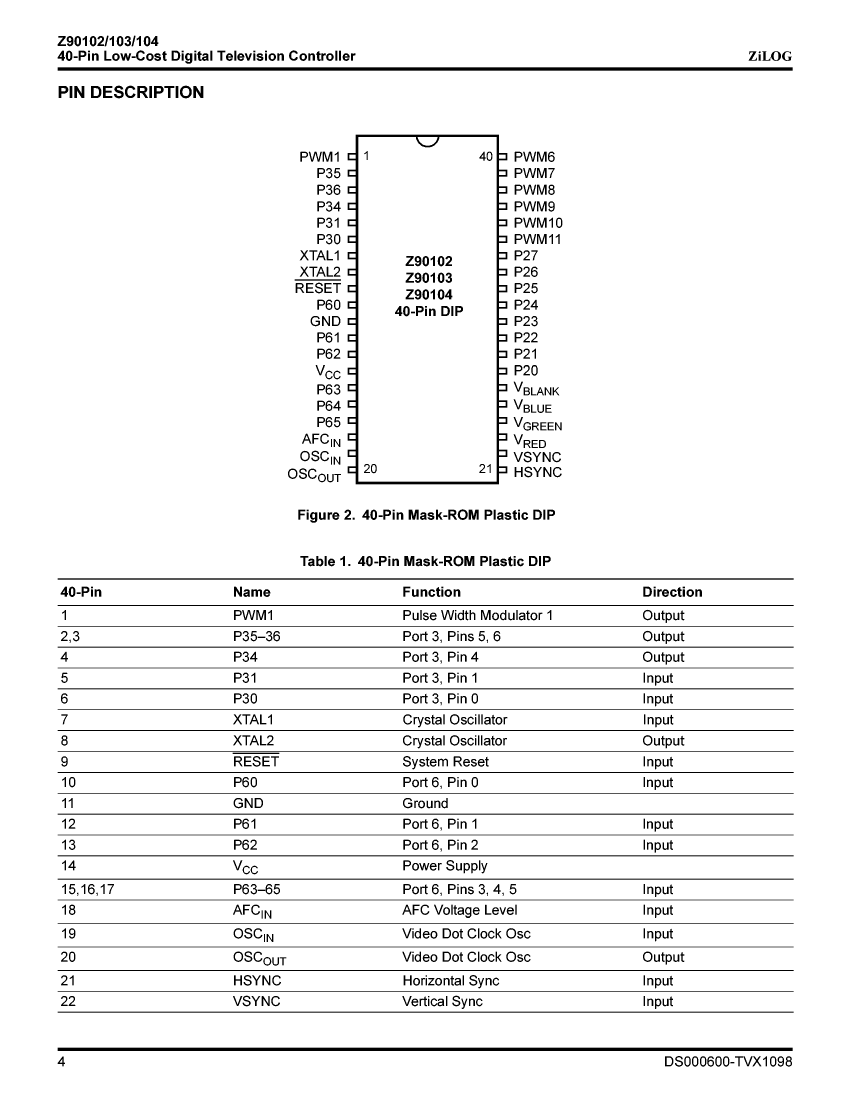

Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	236
rom(word)	6144
ROM programmability	MROM
speed	4 MHz
Maximum slew rate	20 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm

	Z9010304PSC	Z9010204PSC	Z9010404PSC
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDIP40,	Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDIP40,	Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDIP40,
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown
Has ADC	NO	NO	NO
bit size	8	8	8
CPU series	Z8	Z8	Z8
maximum clock frequency	4 MHz	4 MHz	4 MHz
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
JESD-30 code	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40
length	52.325 mm	52.325 mm	52.325 mm
Number of I/O lines	19	19	19
Number of terminals	40	40	40
Maximum operating temperature	70 °C	70 °C	70 °C
PWM channel	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP40,.6	DIP40,.6	DIP40,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	236	236	236
rom(word)	6144	4096	8192
ROM programmability	MROM	MROM	MROM
speed	4 MHz	4 MHz	4 MHz
Maximum slew rate	20 mA	20 mA	20 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm
