FI212P089208-T

Description
Ferrite Chip, 1 Function(s),
CategoryAnalog mixed-signal IC    filter
File Size3MB，14 Pages
ManufacturerTaiyo Yuden
Environmental Compliance
Download Datasheet Parametric View All

FI212P089208-T Online Shopping

Suppliers Part Number Price MOQ In stock
FI212P089208-T - - View Buy Now

FI212P089208-T Overview

Ferrite Chip, 1 Function(s),

FI212P089208-T Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTaiyo Yuden
Reach Compliance Codeunknown
ECCN codeEAR99
filter typeFERRITE CHIP
high0.9 mm
Maximum insertion loss0.55 dB
length2 mm
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
Output impedance50 OHM Ω
method of packingTAPE AND REEL
physical sizeL2.0XB1.25XH0.9 (mm)/L0.079XB0.049XH0.035 (inch)
width1.25 mm

FI212P089208-T Preview

Notice for TAIYO YUDEN products　
Please read this notice before using the TAIYO YUDEN products.
REMINDERS
■
Product information in this catalog is as of October 2013. All of the contents specified herein are subject to change
without notice due to technical improvements, etc. Therefore, please check for the latest information carefully be-
fore practical application or usage of the Products.
Please note that TAIYO YUDEN CO., LTD. shall not be responsible for any defects in products or equipment incor-
porating such products, which are caused under the conditions other than those specified in this catalog or indi-
vidual specification.
■
Please contact TAIYO YUDEN CO., LTD. for further details of product specifications as the individual specification
is available.
■
Please conduct validation and verification of products in actual condition of mounting and operating environment
before commercial shipment of the equipment.
■
All electronic components or functional modules listed in this catalog are developed, designed and intended for
use in general electronics equipment.(for AV, office automation, household, office supply, information service,
telecommunications, (such as mobile phone or PC) etc.). Before incorporating the components or devices into any
equipment in the field such as transportation,( automotive control, train control, ship control), transportation signal,
disaster prevention, medical, public information network (telephone exchange, base station) etc. which may have
direct influence to harm or injure a human body, please contact TAIYO YUDEN CO., LTD. for more detail in ad-
vance.
Do not incorporate the products into any equipment in fields such as aerospace, aviation, nuclear control, subma-
rine system, military, etc. where higher safety and reliability are especially required.
In addition, even electronic components or functional modules that are used for the general electronic equipment,
if the equipment or the electric circuit require high safety or reliability function or performances, a sufficient reliabil-
ity evaluation check for safety shall be performed before commercial shipment and moreover, due consideration to
install a protective circuit is strongly recommended at customer's design stage.
■
The contents of this catalog are applicable to the products which are purchased from our sales offices or distribu-
tors (so called
“TAIYO
YUDEN’ official sales channel”
s
).
It is only applicable to the products purchased from any of TAIYO YUDEN’ official sales channel.
s
■
Please note that TAIYO YUDEN CO., LTD. shall have no responsibility for any controversies or disputes that may
occur in connection with a third party's intellectual property rights and other related rights arising from your usage
of products in this catalog. TAIYO YUDEN CO., LTD. grants no license for such rights.
■
Caution for export
Certain items in this catalog may require specific procedures for export according to
“Foreign
Exchange and For-
eign Trade Control Law”of Japan,
“U.S.
Export Administration Regulations” and other applicable regulations.
,
Should you have any question or inquiry on this matter, please contact our sales staff.
1
4
MULTILAYER CERAMIC DEVICES / DIPLEXERS / BALUNS
■
ORDERING CODE
REFLOW
F
❶
I
△
❷
2
△＝Blank
space
1
❸
2
B
❹
B
L
C
P
T
D
2
4
❺
5
example
0
2
❻
6
ー
T
❼
❼Packaging
ーT
Tape & Reel
❶Device
code
High Frequency
FI
Devices
❷Electrode
code
△
With Plating
❸Dimensions
code
［mm½
325
3.2×2.5
212
2.0×1.25
168
1.6×0.8
105
1.0×0.5
❹Special
Code
Band Pass Type
Low Pass Type
Balance Type
Diplexer
Balun
Dual Type
❺Frequency
〔MHz〕
2450
0620
2400∼2500
470∼770
❻Spec
Code
01∼ Individual Spec
■

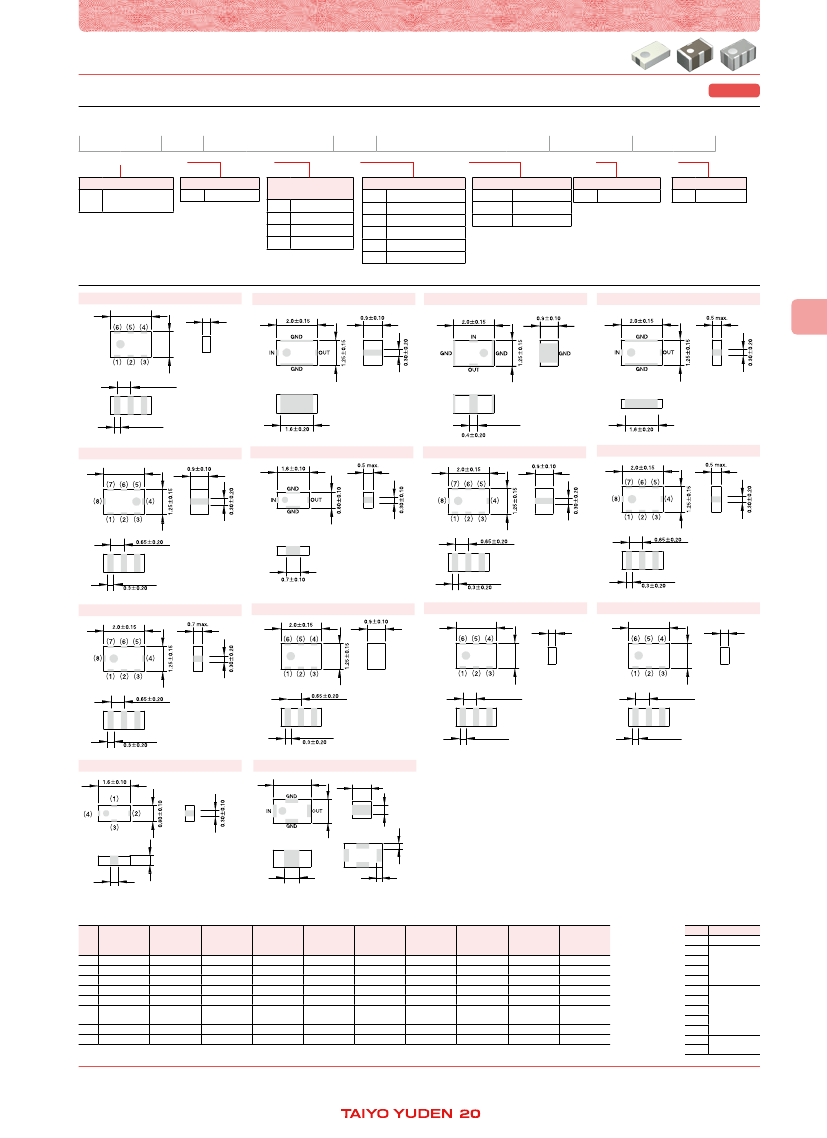

EXTERNAL DIMENSIONS/STANDARD QUANTITY
FI 325P Type
3.2±0.20
1.6±0.10
1.0max
0.45max.
0.80±0.10
2.5±0.20
FI 212B Type
FI 212B190223
FI 212L Type
HIGH FREQUENCY PRODUCTS
1.0±0.10
0.50±0.15
0.2±0.15
0.55±0.20
Unit : mm
Unit : mm
Unit : mm
Unit : mm
FI 212C245033/FI 212C245034
2.00±0.15
FI 168B/L Type
FI 212C Type
FI 212C249566/FI 212C355068
Unit : mm
Unit : mm
Unit : mm
Unit : mm
FI 212C245075
FI 212P Type
FI 168T Type
1.6±0.10
0.5max.
0.80±0.10
FI 168D Type
1.6±0.10
0.45max.
0.80±0.10
0.50±0.15
0.50±0.15
Unit : mm
Unit : mm
0.2±0.15
Unit : mm
0.2±0.15
Unit : mm
FI 168P Type
FI 105B/L Type
1.00±0.05
0.4 Max.
0.50±0.05
0.30±0.10
0.65Max
0.3±0.10
0.30±0.10
0.10±0.05
Unit : mm
Unit : mm
0.10±0.05
FI 325P Type
（1）
（2）
（3）
（4）
（5）
GND
Common
GND
High Band
GND
FI 212C2450XX
Balanced
GND
Balanced
GND
Unbalance
DC
NC
GND
FI 212C245051
Balanced
GND
Balanced
GND
Unbalance
NC
NC
GND
FI 212C249566
FI 212C355068
Balanced
GND
Balanced
GND
Unbalance
NC or DC
NC
GND
FI 212P245003/
FI212P089208/
FI212P085912
GND
Common Port
GND
High Band
GND
Low Band
ー
ー
FI 212P089213/
FI 212P085909
GND
Common Port
GND
Low Band
GND
High Band
ー
ー
FI 168T Type
Unbalance
GND
Balanced
Balanced
GND
NC
ー
ー
FI 168P245010/
FI 168P245023
GND
Low Band
Common
High Band
ー
ー
ー
ー
FI 168D087018
High Band IN
GND
Low Band IN
Low Band OUT
GND
High Band
OUT
ー
ー
FI 168P 157519
GND
High Band
Common
Low Band
ー
ー
ー
ー
（6）
Low Band
（7） ー
（8） ー
Type Standard Quantity
［pcs½
325P
2000
212B
212L
3000∼
6000
212C
212P
168B
168L
4000∼
168T
8000
168D
168P
105B
10000
105L
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
1
4
127
■
PART NUMBERS
●Multi-layer
Device band pass Type
Applications
2.4GHz W-LAN
Bluetooth
WiMAX
PHS
External dimensions
2.0×1.25×1.0 max.
1.6×0.8×0.5 max.
1.0×0.5×0.4 max.
1.6×0.8×0.5 max.
2.0×1.25×1.0 max.
Ordering code
FI 212B245026/FI 212B245027
FI 168B245001
FI 105B245024
FI 168B250065/FI168B24956D
FI 212B190223
Notes
●Multi-layer
Device low pass Type
Applications
Digital TV
WiMAX
External dimensions
1.6×0.8×0.45 max.
1.6×0.8×0.45 max.
Ordering code
FI 168L062005
FI 168L259764
FI 105L250014
FI 168D087018
Notes
Thickness 0.45 mm max.
Thickness 0.45 mm max.
Thickness 0.4 mm max.
Dual band LPF
●Multi-layer
Device balance Type
Applications External dimensions
2.0×1.25×1.0 max.
2.0×1.25×1.0 max.
2.0×1.25×1.0 max.
Bluetooth
2.0×1.25×1.0 max.
2.0×1.25×1.0 max.
2.0×1.25×0.7 max.
2.0×1.25×0.5 max.
WiMAX
2.0×1.25×0.5 max.
Ordering code
FI 212C245032
FI 212C245033
FI 212C245034
FI 212C245036
FI 212C245051
FI 212C245075
FI 212C249566
FI 212C355068
Notes
Conjugated match to CSR BC4
Conjugated match to CSR BC3
Conjugated match to CSR BC4-BGA
Conjugated match to CSR BC5
Conjugated match to STLC2500C-D
Conjugated match to CSR BC5FM, BC6ROM
Thickness 0.5 mm max.
Thickness 0.5 mm max.
2.4GHz W-LAN
1.0×0.5×0.4 max.
Bluetooth
Other
1.6×0.8×0.45 max.
●Multi-layer
diplexer
Applications
W-LAN
External dimensions
2.0×1.25×1.0 max.
1.6×0.8×0.65 max.
Ordering code
FI 212P245003
FI 168P245010
FI 168P245023
FI 212P089208
FI 212P089213
FI 212P085909
FI 212P085912
FI 168P157519
FI325P120057
Notes
●Multi-layer
Balun
Applications External dimensions Ordering code Notes
BS
1.6×0.8×0.5 max. FI 168T155021 Thickness 0.5 mm max.
HIGH FREQUENCY PRODUCTS
128
Cellular
2.0×1.25×1.0 max.
GPS/
1.6×0.8×0.65 max.
2.4GHz W-LAN
BS
3.2×2.5×1.0 max.
■

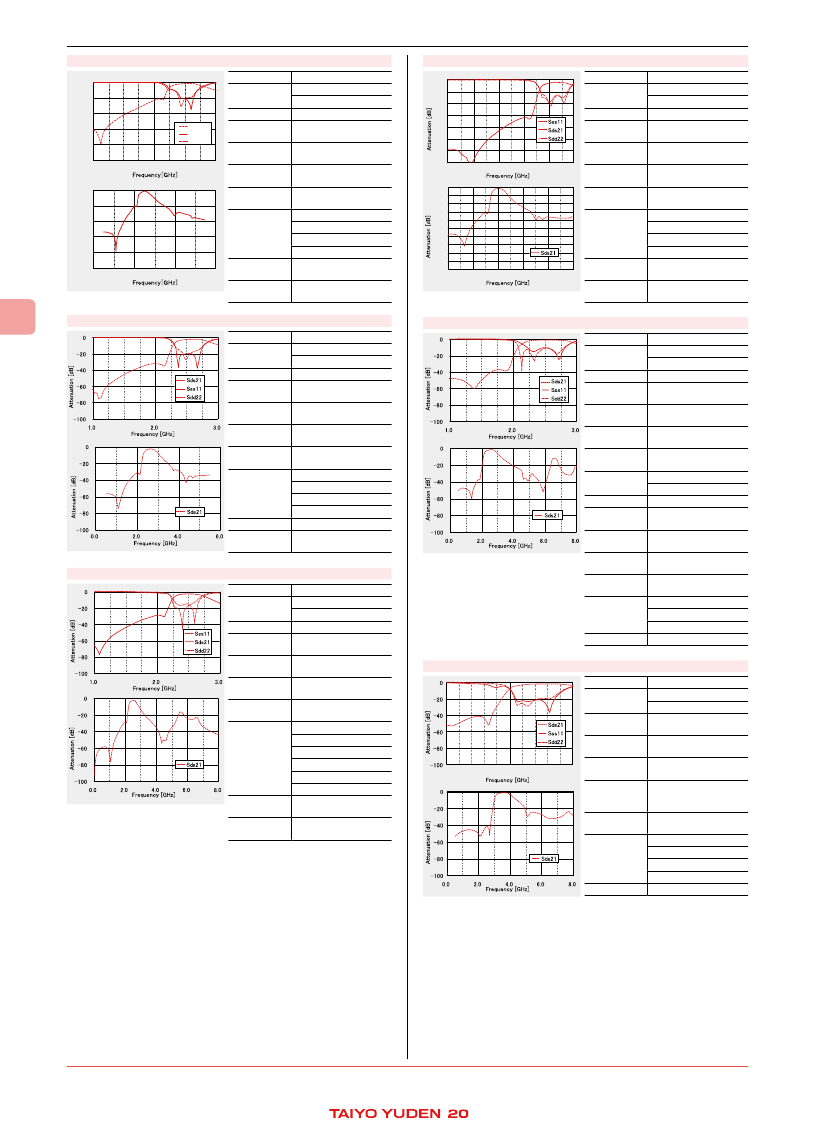

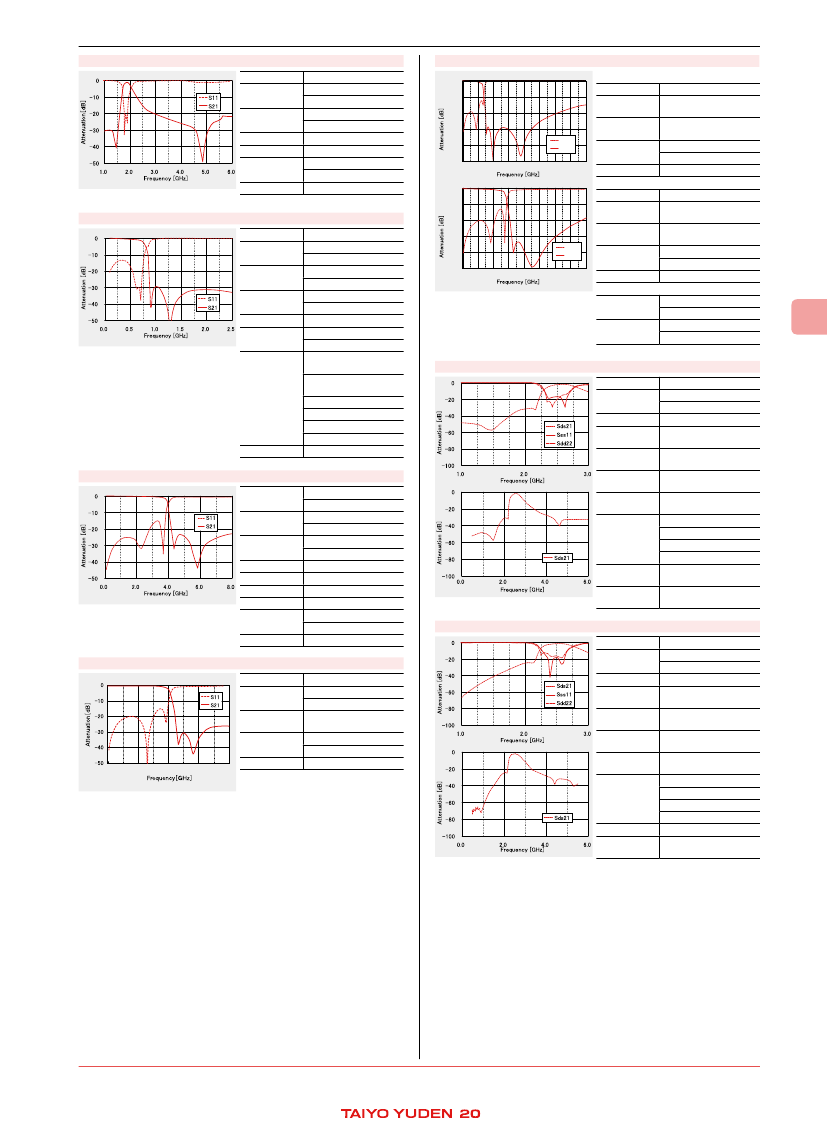

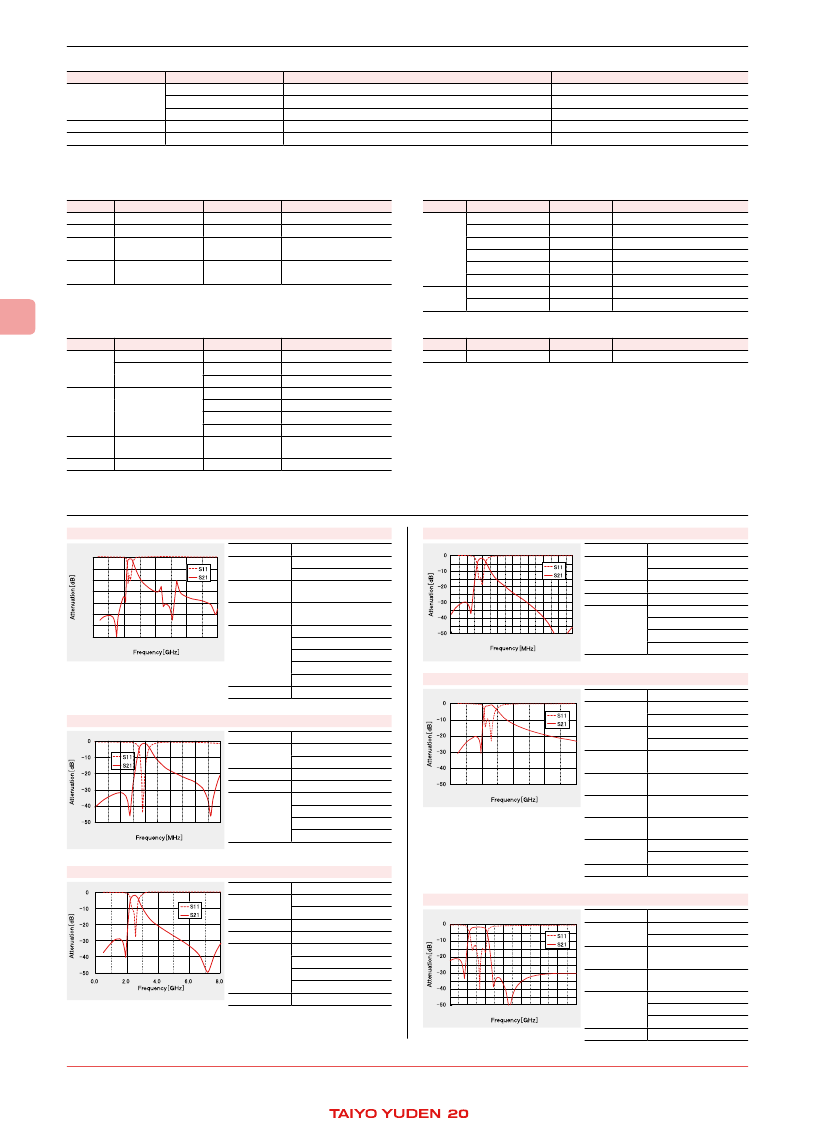

ELECTRICAL CHARACTERISTICS TYPICAL CHARACTERISTICS
・
FI 212B245026
Pass band frequency 2400 - 2500 MHz
2.6 dB max. deg-C）
（25
Insertion loss at
pass band 2.9 dB max.
（−40∼＋85
deg-C）
Ripple at
1.0 dB max.
pass band
V.S.W.R. at
2.0 max.
pass band
40 dB min.
（800
- 960 MHz）
30 dB min.
（1710
- 1990 MHz）
Attenuation
25 dB min.
（2110
- 2170 MHz）
30 dB min.
（4800
- 5000 MHz）
30 dB min.
（7200
- 7500 MHz）
Impedance
50 ohm
FI 105B245024
Pass band frequency 2400-2500MHz
3.0 dB max. deg-C）
（25
Insertion loss at
pass band
3.3 dB max.
（−40∼＋85
deg-C）
Ripple at pass band 1.0 dB max.
V.S.W.R. at pass band 2.2 max.
25 dB min.
（880
- 960 MHz）
22 dB min.
（1710
- 1910 MHz）
Attenuation
20 dB min.
（4800
- 5000 MHz）
20 dB min.
（7200
- 7500 MHz）
FI 168B250065
Pass band frequency 2300 - 2700 MHz
2.4 dB max. deg-C）
（25
Insertion loss at
2300 - 2500 MHz 2.6 dB max.
（−30∼＋85
deg-C）
2.3 dB max.
（25
deg-C）
Insertion loss at
2500 - 2700 MHz 2.5 dB max.
（−30∼＋85
deg-C）
Ripple at
1.4 dB max.
2300 - 2500 MHz
Ripple at
1.3 dB max.
2500 - 2700 MHz
V.S.W.R. at
2.4 max.
2300 - 2500 MHz
V.S.W.R. at
1.3 max.
2500 - 2700 MHz
15 dB min.
（1500
- 2000 MHz）
Attenuation
10 dB min.
（4600
- 8000 MHz）
Impedance
50 ohm
FI 212B245027
Pass band frequency 2400-2500MHz
1.4 dB max. deg-C）
（25
Insertion loss at
pass band
1.7 dB max.
（−40∼＋85
deg-C）
Ripple at pass band 1.0 dB max.
V.S.W.R. at pass band 2.0 max.
30 dB min.
（800
- 915 MHz）
30 dB min.
（1710
- 1910 MHz）
Attenuation
6 dB min.
（2110
- 2170 MHz）
20 dB min.
（4800
- 5000 MHz）
FI 168B245001
Pass band frequency 2400 – 2500MHz
2.2 dB
（25deg-C）
Insertion loss at
pass band
2.5 dB
（−30∼＋85deg-C）
Ripple at pass band 1.0 dB max.
V.S.W.R. at pass band 2.1 max.
25 dB min.
（880
– 960MHz）
25 dB min.
（1710
– 1910MHz）
Attenuation
20 dB min.
（4800
– 5000MHz）
20 dB min.
（7200
– 7500MHz）
Impedance
50 ohm
FI 168B24956D
Pass band frequency 2300 - 2690MHz
2.3 dB
（25deg-C）
Insertion loss at
pass band
2.6 dB
（−30∼+85deg-C）
Ripple at pass
0.8 dB max.
band
V.S.W.R. at pass
2.1 max.
band
15 dB min. (DC-1620MHz)
Attenuation
23 dB min. (3490-4000MHz)
25 dB min. (4490-8000MHz)
Impedance
50 ohm
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
1
4
■
ELECTRICAL CHARACTERISTICS TYPICAL CHARACTERISTICS
・
FI 212B190223
Pass band frequency 1884-1930MHz
Insertion Loss at 1.7 dB max.
（25deg-C）
1884-1920MHz 2.0 dB max.
（−30-＋85deg-C）
Insertion Loss at 1.7 dB max.
（25deg-C）
1920-1930MHz 2.0 dB max.
（−30-＋85deg-C）
Ripple at Pass band 1.0 dB max.
V.S.W.R. at Pass band 2.0 max.
30 dB min.
（1420MHz）
Attenuation
18 dB min.
（3768-3860MHz）
Impedance
50 ohm
0
-10
-20
-30
-40
-50
0.0
0
-10
1.0
2.0
3.0
4.0
5.0
6.0
S11
S21
7.0
8.0
FI 168D087018
Low band
Pass band frequency 824 – 915 MHz
Insertion loss at
0.6 dB max.
（−30
to +85 Deg.C）
824 – 915 MHz
V.S.W.R.
1.5 max.
at 824 – 915 MHz
25 dB min.
（1648-1830MHz）
Attenuation
25 dB min.
（2472-2745MHz）
Impedance
50 ohm
High band
Pass band frequency 1710 – 1910 MHz
Insertion loss at
0.6 dB max.
（−30
to +85 Deg.C）
1710 – 1910 MHz
V.S.W.R.
1.5 max.
at 824 – 915 MHz
25 dB min.
（3420-3820MHz）
Attenuation
25 dB min.
（5130-5730MHz）
Impedance
50 ohm
Isolation
27 dB min.
（824-915MHz）
In to In/Out to Out
30 dB min.
（1710-1910MHz）
30 dB min.
（824-915MHz）
In to Out
30 dB min.
（1710-1910MHz）
FI 168L062005
Pass band frequency 470 – 770 MHz
1.2 dB max.
（25
deg-C）
Insertion loss at
470-600MHz 1.3 dB max.
（−30∼＋85
deg-C）
2.2 dB max.
（25
deg-C）
Insertion loss at
600-710MHz 2.4 dB max.
（−30∼＋85
deg-C）
4.0 dB max.
（25
deg-C）
Insertion loss at
710-770MHz 4.4 dB max.
（−30∼＋85
deg-C）
Ripple at 470 – 710 MHz 1.4 dB max.
2.0 max.
（470
– 710 MHz）
V.S.W.R.
2.5 max.
（710
– 770 MHz）
25 dB min.
（888
– 925 MHz）
（25
deg-C）
21 dB min.
（888
– 925 MHz）
（−30∼＋85
deg-C）
Attenuation
25 dB min.
（940
– 960 MHz）
27 dB min.
（1429
– 1453 MHz）
26 dB min.
（1920
– 1980 MHz）
26 dB min.
（2400
– 2500 MHz）
Impedance
50 ohm
-20
-30
-40
-50
0.0
1.0
2.0
3.0
4.0
5.0
6.0
S11
S21
7.0
8.0
HIGH FREQUENCY PRODUCTS
FI 212C245032
Pass band frequency 2400-2500MHz
3.7 dB
（25deg-C）
Insertion loss at
pass band
4.0 dB
（−30∼＋85deg-C）
Ripple at pass band 1.0 dB max.
Unbalanced port
2.0 max.
V.S.W.R. at pass band
Balanced port V.S.W.R.
2.0 max.
at pass band
Amplitude Imbalance
2.0 dB max.
at pass band
Phase Imbalance
180
＋/−
10 deg
at pass band
35 dB min.
（880-960MHz）
20 dB min.
（1710-1990MHz）
Attenuation
20 dB min.
（1990-2170MHz）
20 dB min.
（4800-5000MHz）
Unbalanced Port
50 ohm
Impedance
Balanced Port
Conjugated match to CSR BC4
Impedance
FI 168L259764
Pass band frequency
Insertion loss at
470-770MHz
Insertion loss at
2300-2700MHz
Ripple at 470 – 770 MHz
Ripple at 2300 – 2700 MHz
V.S.W.R.at 470 – 770MHz
V.S.W.R.at 2300 – 2700MHz
Attenuation
Impedance
470 – 770 MHz
2300 – 2700 MHz
0.5 dB max.
（25
deg-C）
0.6 dB max.
（−30∼＋85
deg-C）
0.5 dB max.
（25
deg-C）
0.6 dB max.
（−30∼＋85
deg-C）
0.3 dB max.
0.3 dB max.
2.0 max.
2.0 max.
20 dB min.
（4600
– 5400 MHz）
20 dB min.
（6900
– 8100 MHz）
50 ohm
FI 212C245033
Pass band frequency 2400-2500MHz
Insertion loss at pass 2.7 dB
（25deg-C）
band
3.0 dB
（−30∼＋85deg-C）
Ripple at pass band 1.0 dB max.
Unbalanced port
2.0 max.
V.S.W.R. at pass band
Balanced port V.S.W.R.
2.0 max.
at pass band
Amplitude Imbalance
2.0 dB max.
at pass band
Phase Imbalance
180
＋/−
10 deg
at pass band
25 dB min.
（880-960MHz）
15 dB min.
（1710-1990MHz）
Attenuation
15 dB min.
（1990-2170MHz）
15 dB min.
（4800-5000MHz）
Unbalanced Port Impedance 50 ohm
Balanced Port
Conjugated match to CSR BC3
Impedance
FI 105L250014
Pass band frequency 2400-2500MHz
0.45 dB max. deg-C）
（25
Insertion loss at
2400 - 2500 MHz 0.55 dB max.
（−40∼＋85
deg-C）
V.S.W.R. at
1.7 max.
2400 - 2500 MHz
21 dB min.
（4800
- 5000 MHz）
Attenuation
21 dB min.
（7200
- 7500 MHz）
Impedance
50 ohm
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
1
4
129
■
ELECTRICAL CHARACTERISTICS TYPICAL CHARACTERISTICS
・
FI 212C245034
Pass band frequency 2400-2500MHz
2.7 dB max. deg-C）
（25
Insertion loss at
pass band
3.0 dB max.
（−30∼＋85
deg-C）
Ripple at pass band 1.0 dB max.
Amp. balance at
2.0 dB Max.
Passband
Phase Balance at
180
＋/−
10 deg
Passband
Unbalanced Port
2.0 max.
V.S.W.R at Passband
Balanced Port
2.0 max.
V.S.W.R at Passband
25 dB min.
（880
- 960 MHz）
15 dB min.
（1710
- 1990 MHz）
Attenuation
12 dB min.
（1990
- 2170 MHz）
15 dB min.
（4800
- 5000 MHz）
Unbalanced Port
50 ohm
Impedance
Balanced Port
Conjugated to CSR BC4-BGA,
Impedance
BC5-BGA
FI 212C245075
Pass band frequency 2400-2500MHz
3.7 dB
（25deg-C）
Insertion loss at
pass band
4.0 dB
（−30∼＋85deg-C）
Ripple at pass band 1.0 dB max.
Unbalanced port
2.2 max.
V.S.W.R. at pass band
Balanced port V.S.W.R.
2.2 max.
at pass band
Amplitude Imbalance
2.0 dB max.
at pass band
Phase Imbalance
180
＋/−
10 deg
at pass band
40 dB min.
（880-960MHz）
18 dB min.
（1710-1990MHz）
Attenuation
12 dB min.
（1990-2170MHz）
30 dB min.
（4800-5000MHz）
Unbalanced Port
50 ohm
Impedance
Balanced Port
Conjugated match to CSR
Impedance
BC5FM.BC6ROM
FI 212C245036
Pass band frequency 2400-2500MHz
3.7 dB
（25deg-C）
Insertion loss at
pass band
4.0 dB
（−30∼＋85deg-C）
Ripple at pass band 1.0 dB max.
Unbalanced port
2.0 max.
V.S.W.R. at pass band
Balanced port V.S.W.R.
2.0 max.
at pass band
Amplitude Imbalance
2.0 dB max.
at pass band
Phase Imbalance
180
＋/−
10 deg
at pass band
35 dB min.
（880-960MHz）
20 dB min.
（1710-1990MHz）
Attenuation
15 dB min.
（1990-2170MHz）
20 dB min.
（4800-5000MHz）
Unbalanced Port Impedance 50 ohm
Balanced Port
Conjugated match to CSR BC5
Impedance
FI 212C249566
Pass band frequency 2300-2690MHz
2.9 dB max.
（25
deg-C）
Insertion loss
at 2300-2495MHz 3.2 dB max.
（−30∼＋85
deg-C）
Ripple at 2300-2495MHz 1.2 dB max.
Unbalanced port V.S.W.R.
2.3 max.
at 2300-2495MHz
Balanced port V.S.W.R.
2.3 max.
at 2300-2495MHz
Amplitude Imbalance
2.0 dB max.
at 2300-2495MHz
Phase Imbalance
180
＋/−
12 deg
at 2300-2495MHz
2.3 dB max.
（25
deg-C）
Insertion loss
at 2495-2690MHz 2.6 dB max.
（−30∼＋85
deg-C）
Ripple at 2495-2690MHz 1.0 dB max.
Unbalanced port V.S.W.R.
2.3 max.
at 2495-2690MHz
Balanced port V.S.W.R.
2.3 max.
at 2495-2690MHz
Amplitude Imbalance
2.0 dB max.
at 2495-2690MHz
Phase Imbalance
180
＋/−
12 deg
at 2495-2690MHz
40 dB Min.
（824-960MHz）
Attenuation
15 dB Min.
（1710-1990MHz）
20 dB Min.
（4900-5850MHz）
Impedance
50 : 100
HIGH FREQUENCY PRODUCTS
130
FI 212C245051
Pass band frequency 2400-2500MHz
3.7 dB
（25deg-C）
Insertion loss at
pass band
4.0 dB
（−30∼＋85deg-C）
Ripple at pass band 1.0 dB max.
Unbalanced port
2.0 max.
V.S.W.R. at pass band
Balanced port V.S.W.R.
2.0 max.
at pass band
Amplitude Imbalance
2.0 dB max.
at pass band
Phase Imbalance
180
＋/−
10 deg
at pass band
40 dB min.
（824
– 960MHz）
12 dB min.
（1570-1580MHz）
27 dB min.
（1710-1785MHz）
Attenuation
25 dB min.
（1805-1880MHz）
23 dB min.
（1880-1910MHz）
20 dB min.
（4800-5000MHz）
Unbalanced Port
50 ohm
Impedance
Balanced Port
Conjugated match to
Impedance
STLC2500C-D
FI 212C355068
Pass band frequency 3300-3800MHz
2.5 dB
（25
deg-C）
Insertion loss at
pass band
2.8 dB
（-30∼+85
deg-C）
Ripple at pass
1.0 dB max.
band
Unbalanced port
2.3 max.
V.S.W.R. at pass band
Balanced port
2.3 max.
V.S.W.R. at pass band
Amplitude
imbalance at pass 2.0 dB max.
band
Phase imbalance
180
＋/−
12 deg
at pass band
40 dB min.
（1710-1990MHz）
40 dB min.
（2110-2170MHz）
Attenuation
35 dB min.
（2400-2500MHz）
15 dB min.
（4900-5850MHz）
Impedance
50:100
2.0
3.0
4.0
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
1
4
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Infrared data transmitter

Digital camera on-screen display circuit PCA8515

Tianjin ZT-2 hearing aid circuit

DBY-120 pressure transmitter wiring

555 electric fan intermittent power supply socket circuit

Set type pulse width circuit

Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. DSPIC33EP256GP504T-E/PT
  2. 240-381RP13-4SCCDMN
  3. SM6227FT931R
  4. SCR16-3833DV
  5. 239041281434L
  6. RMCF1/20.245%
  7. CB11212903L6
  8. RKC4TD273/273G
  9. 2N3906G
  10. 1N4715_B0_10001
  11. A2543WVA-12P-WH-C66D29
  12. 0402WGD9091TCE

Popular Articles

  1. AI DAY Interpretation - Tesla Autopilot's Visual Architecture
  2. PI launches SCALE-iFlex drive series optimized for wind power and traction applications
  3. iPhone 13 upgrade! You can unlock your phone even when wearing a mask
  4. SmartSens launches first 16MP image sensor based on QCell technology and 1-micron pixel unit
  5. MCU drives DS1302 clock + 1602 LCD
  6. Wireless charging pad, can be used with iPhone or Android and other Qi devices
  7. Counterpoint: Apple iPhone tops sales in China for second consecutive month
  8. How to measure the quality of capacitor on the board
  9. Tektronix TPP0502 voltage probe response test solution in power loop
  10. ITT Co., Ltd. officially authorizes PEI-Genesis' Asian factory to assemble D-Sub connector series

Technical ResourceMore

  1. Analysis of SD card working principle
  2. Multimedia system controller J650-/display/DVD cable
  3. MC9S12DG128_DP256_DG256 and other controllers minimum system schematics
  4. Working Principle of Flyback Forward Converter
  5. Transformer learning for flyback converter
  6. Experiment 1 Combinational Logic Circuit
  7. High-speed logic processing
  8. LED-200 builds LED information release system
  9. Full AD9854 Datasheet
  10. Power Trade-offs and Low Power Analog CMOS Integrated Circuits

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 279  2147  2842  1249  1663  6  44  58  26  34
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
