80Z0509RLH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 80Z0509RLH

80Z0509RLH: DescriptionDC-DC Regulated Power Supply Module, 1 Output, Hybrid, DIL-9; CategoryPower/power management The power supply circuit; File Size42KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

80Z0509RLH Overview

DC-DC Regulated Power Supply Module, 1 Output, Hybrid, DIL-9

80Z0509RLH Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Parts packaging code	MODULE
package instruction	,
Contacts	9
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.25 V
Minimum input voltage	4.75 V
Nominal input voltage	5 V
JESD-30 code	R-XDMA-P9
Number of functions	1
Output times	1
Number of terminals	9
Maximum operating temperature	70 °C
Minimum operating temperature
Nominal output voltage	-9 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal location	DUAL
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

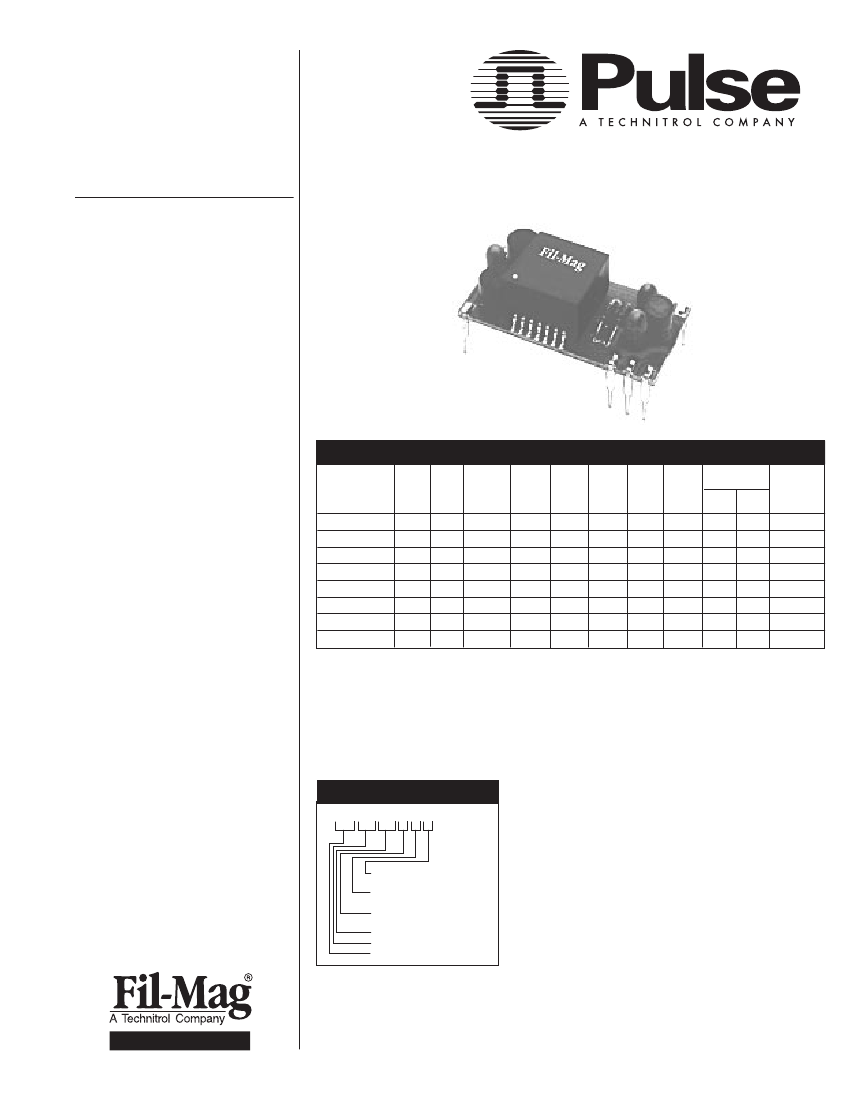

Low Power DC/DC

Converters Designed

to Provide Power for

Ethernet Applications

DC/DC Converters for Ethernet

Key Features

All Fil-Mag

components

are manufactured in ISO 9001

certified facilities to meet the

highest international standards

High MTBF due to low parts

count

100% burn-in at 70°C

100% tested on ATE

Low ripple and noise

Regulated and unregulated

available

High efficiency ratings

Operating temperature is

0° to 70°C

Fil-Mag DC/DC converters are

designed to work with Ethernet

tranceiver chips

Electrical Specifications at 25°C

Part No

80Z1209 RNB

80Z1209 RNH

80Z0509 UNH

80Z0509 UNC

80Z0509 RNH

80Z0509 RNC

80Z0509 RHH

80Z0509 RLH

*Enable:

Pkg

Typ

DIL

DIP

Open

DIP

Open

Input

VDC

Input

Voltage

Tolerance

±5%

±10%

±5%

Enable

Iso-

Func-

lation

tion

Vrms

High

Low

2000

Output

VDC

-9

Ripple

Regu- Output @ 20 MHz BW

Output

lated Current mVpp mVpp Short Circuit

Output mA max max

Protection

Typ

Yes

200

250

200

250

100

continuous

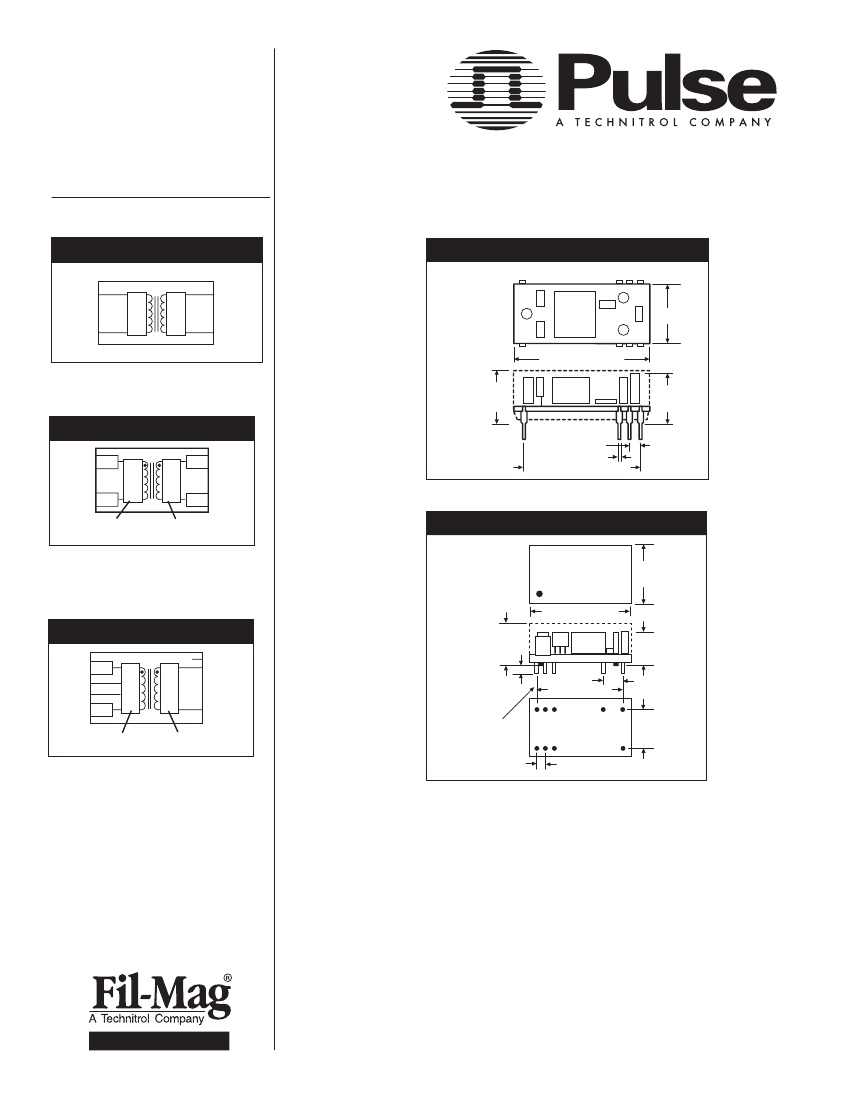

Through-Hole

24-pin compatible DIP and

DIL packages

All internal components are

completely pretested

Auto insertable

DIP

Open

DIP

DIL

Open

DIL

Open

High indicates -9 V present with TTL Logic High; low indicates -9 V present with TTL Logic Low

General Specifications

Power Ratings: Up to 2.25 Watts

Switching Frequency: 25 kHz min (60 kHz typ)

Output Voltage Accuracy: ±5%, unregulated units are tested with nominal line at full load

Efficiency: Regulated 70% typical, unregulated 77% typical

MTBF: regulated–1,300 khr typical at 40°C, unregulated–1,500 khr typical at 40°C

Part Number Key

80Z X X X X X X X

Package Type: B = DIL, C = DIP,

H = Open

Enable: N = none, H = TTL High

Enable, L = TTL Low Enable

Regulation: U = unregulated,

R = regulated

Output Voltage: 09 = 9 V

Input Voltage: 05 = 5 V, 12 = 12 V

Series Number

Fil-Mag Legacy Products

2.0100.E (2/97)

80Z0509RLH Related Products

	80Z0509RLH	80Z0509RHH	80Z1209RNB	80Z1209RNH	80Z0509RNC	80Z0509UNH	80Z0509UNC	80Z0509RNH
Description	DC-DC Regulated Power Supply Module, 1 Output, Hybrid, DIL-9	DC-DC Regulated Power Supply Module, 1 Output, 2.25W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 2.25W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, Hybrid, DIP-8	DC-DC Regulated Power Supply Module, 1 Output, Hybrid, DIP-8	DC-DC Unregulated Power Supply Module, 1 Output, 2.25W, Hybrid	DC-DC Unregulated Power Supply Module, 1 Output, 2.25W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 2.25W, Hybrid
Reach Compliance Code	compliant	unknown	unknown	compliant	compliant	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.25 V	5.5 V	12.6 V	12.6 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum input voltage	4.75 V	4.5 V	11.4 V	11.4 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal input voltage	5 V	5 V	12 V	12 V	5 V	5 V	5 V	5 V
JESD-30 code	R-XDMA-P9	R-XDIP-P9	R-XDIP-P4	R-XDMA-T8	R-XDMA-T8	R-XDIP-T8	R-XDIP-T8	R-XDIP-T8
Number of functions	1	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1	1
Number of terminals	9	9	4	8	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Nominal output voltage	-9 V	-9 V	-9 V	-9 V	-9 V	-9 V	-9 V	-9 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	IN-LINE	IN-LINE	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO
Maker	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	-	-	Pulse Electronics	Pulse Electronics
Parts packaging code	MODULE	MODULE	-	DIP	DIP	DIP	DIP	DIP
Contacts	9	9	-	8	8	8	8	8
Efficiency (main output)	-	70%	70%	-	-	77%	77%	70%
Maximum output voltage	-	-9.45 V	-9.45 V	-	-	-9.45 V	-9.45 V	-9.45 V
Minimum output voltage	-	-8.55 V	-8.55 V	-	-	-8.55 V	-8.55 V	-8.55 V
Protect	-	CURRENT	CURRENT	-	-	CURRENT	CURRENT	CURRENT
Maximum total power output	-	2.25 W	2.25 W	-	-	2.25 W	2.25 W	2.25 W
Base Number Matches	-	1	1	1	1	1	-	-
