BX2243WT: DescriptionTelecom Transformer, ROHS COMPLIANT; CategoryPower management transformer; File Size91KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

BX2243WT Overview

Telecom Transformer, ROHS COMPLIANT

BX2243WT Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TURNS RATIO: 2:1 COMPATIBLE WITH AR7; AU7; AP7
high	12.07 mm
length	14.1 mm
Manufacturer's serial number	BX2243W
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
physical size	L14.1XB13.34XH12.07 (mm)
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	13.34 mm

Preview

Download Datasheet

View All

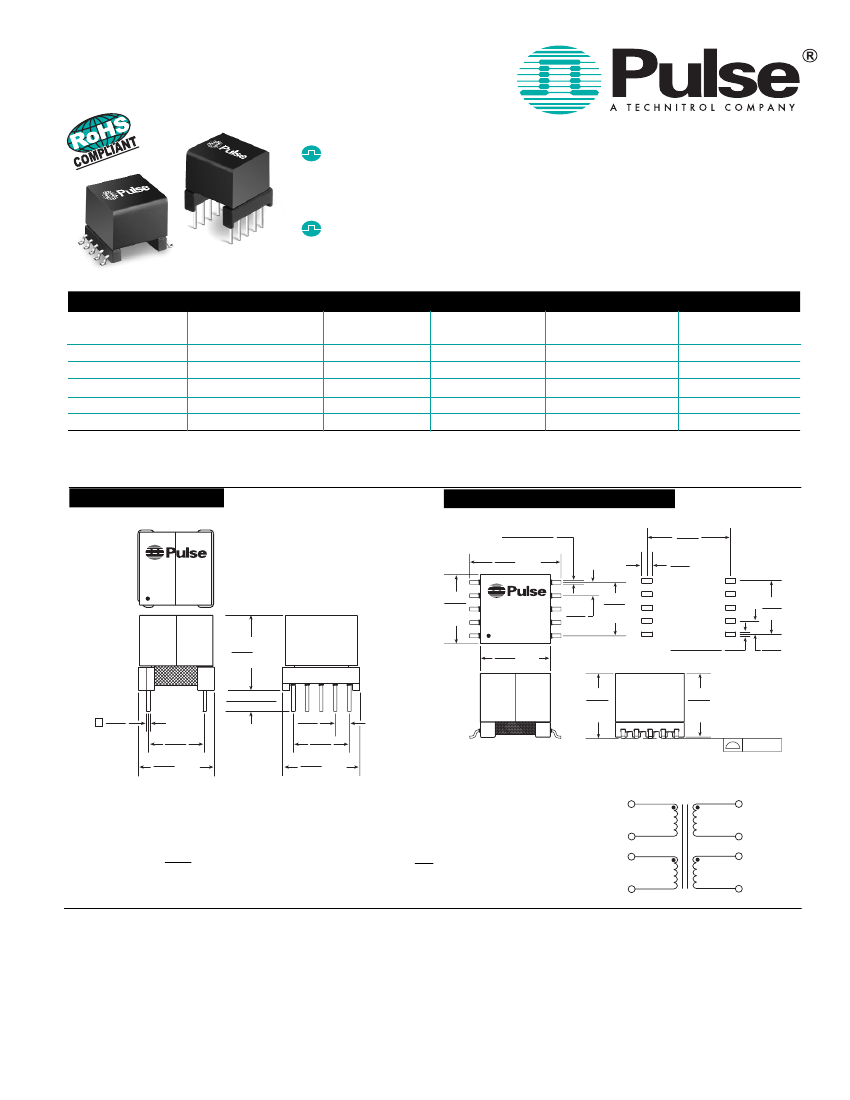

ADSL LINE TRANSFORMERS

For Texas Instruments’ CPE Chipsets

ADSL/ADSL2+ CPE Transformers for POTS and ISDN

applications, matched to Texas Instruments AR7, AU7

and AP7 chipset

Designed to meet EN60950 supplementary insulation

requirements for working voltages up to 250Vrms

Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C

RoHS-5 Compliant

Part Number

BX2479H

BX2479W

BX2243H

RoHS-6 Compliant

Part Number

BX2479HNL

BX2479WNL

BX2243HNL

OCL

(mH ±5%)

1.50

0.40

0.10

Turns Ratio

(Line:Chip)

2:1

2.1

2:1

Isolation Voltage

(Vrms)

1500

THD @ 30kHz

(dB MIN)

-85

-80

-84

BX2243W

BX2900W

BX2243WNL

BX2900WNL

NOTE: 1.

Optional Tape & Reel packaging can be ordered by adding a

"T"

suffix to the part number (ex: BX2479WT and BX2479WNLT).

Mechanicals

BX2479H / BX2243H

(and NL versions)

BX2479W / BX2243W / BX2900W

(and NL versions)

10 X .028

± .002

0,71

± 0,05

.695

17,65 MAX

.525

13,34

MAX

BX2479W / BX2243W

BX2900W

Date Code

Country of Origin

.605

15,37

.100

2,54

.394

10,00

MAX

10 X .051

± .002

1,30

± 0,05

.485

12,32

MAX

.475

12,07

MAX

.005/0,13

10 SURFACES

Date Code

Country of Mfg.

BX2479H

BX2243H

.098

2,50

.394

10,00

.098

2,50

.500

12,70MAX

.173 ± .015

4,39 ± 0,38

.394

10,00

.550

13,97MAX

.555

14,10MAX

10 X

.020

0,51

.098

2,50

.394

10,00

.547

13,89MAX

Weight

. . . . . . . . . . . . . .6.2 grams

Tray

. . . . . . . . . . . . . . . . . .60/tray

Weight

. . . . . . . . . . . . . .6.2 grams

Tray

. . . . . . . . . . . . . . . . . .65/tray

Dimensions:

Inches

2:1

CHIP

Unless otherwise specified, all tolerances are ± .010

0,25

Schematic

LINE

For More Information:

Pulse Worldwide

Headquarters

12220 World Trade Dr.

San Diego, CA 92128

U.S.A.

www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

Pulse

Europe

Einsteinstrasse 1

D-71083 Herrenberg

Germany

Tel: 49 7032 7806 116

Fax: 49 7032 7806 135

Pulse China

Headquarters

No. 1

Industrial District

Changan, Dongguan

China

Tel: 86 769 85538070

Fax: 86 769 85538870

Pulse North China

Room 1503

XinYin Building

No. 888 YiShan Rd.

Shanghai 200233

China

Tel: 86 21 54643211/2

Fax: 86 21 54643210

Pulse South Asia

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

Tel: 65 6287 8998

Fax: 65 6280 0080

Pulse North Asia

No. 26

Kao Ching Rd.

Yang Mei Chen

Taoyuan Hsien

Taiwan, R. O. C.

Tel: 886 3 4641811

Fax: 886 3 4641911

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

www.pulseeng.com

B834.D (8/06)

BX2243WT Related Products

	BX2243WT	BX2243W	BX2243WNL	BX2243WNLT
Description	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT
Maker	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	unknown	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	TURNS RATIO: 2:1 COMPATIBLE WITH AR7; AU7; AP7	TURNS RATIO: 2:1 COMPATIBLE WITH AR7; AU7; AP7	TURNS RATIO: 2:1 COMPATIBLE WITH AR7; AU7; AP7	TURNS RATIO: 2:1 COMPATIBLE WITH AR7; AU7; AP7
high	12.07 mm	12.07 mm	12.07 mm	12.07 mm
length	14.1 mm	14.1 mm	14.1 mm	14.1 mm
Manufacturer's serial number	BX2243W	BX2243W	BX2243WNL	BX2243WNL
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	TAPE & REEL	TRAY	TRAY	TAPE & REEL
physical size	L14.1XB13.34XH12.07 (mm)	L14.1XB13.34XH12.07 (mm)	L14.1XB13.34XH12.07 (mm)	L14.1XB13.34XH12.07 (mm)
surface mount	YES	YES	YES	YES
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	13.34 mm	13.34 mm	13.34 mm	13.34 mm
