BX2516W: DescriptionTelecom Transformer, CHIP; CategoryPower management transformer; File Size36KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

BX2516W Overview

Telecom Transformer, CHIP

BX2516W Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
package instruction	CHIP
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ALSO; TURNS RATIO: 0.408:1
high	10.7 mm
length	9.8 mm
Manufacturer's serial number	BX2516W
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TRAY
physical size	L9.8XB9.1XH10.7 (mm)
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	9.1 mm

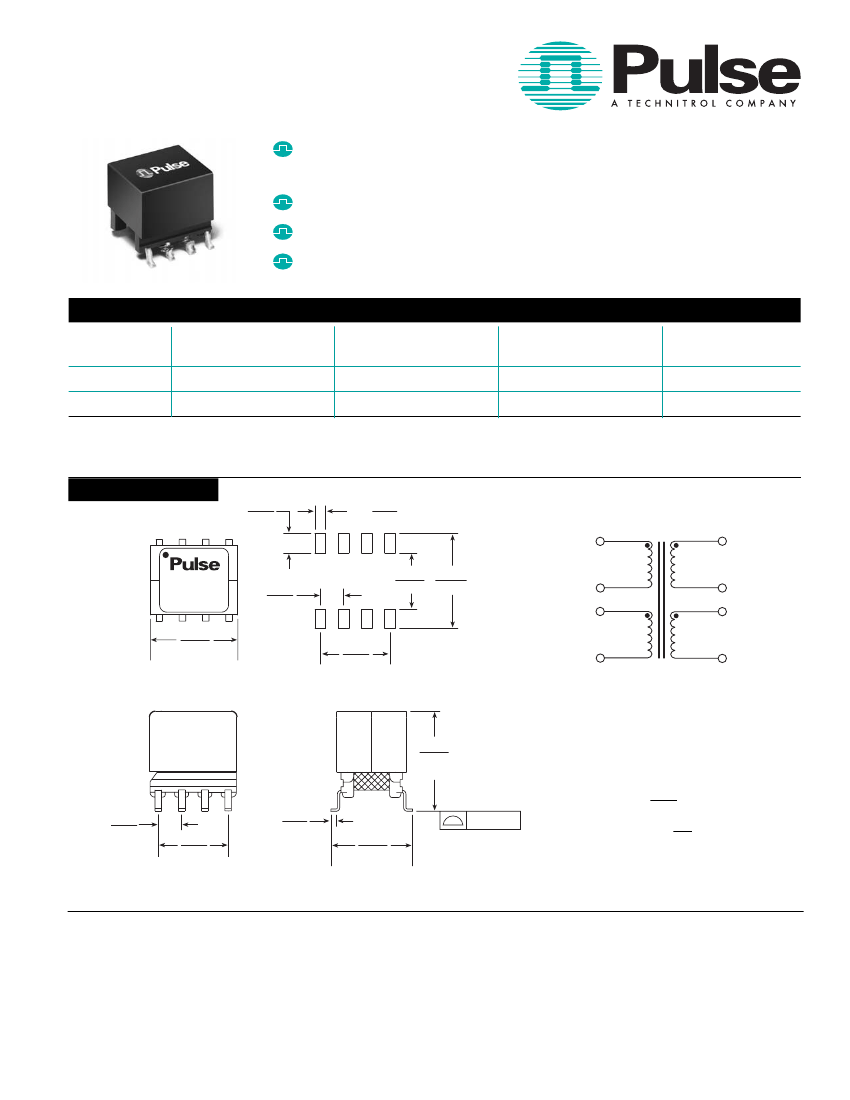

BX2516W Preview

ADSL LINE TRANSFORMER

For Conexant CO Chipset

Matched to Conexant (Globespan) 24Mbps CO chipset with

Legerity driver, Annex A and C application

Meets functional insulation requirements for lowest cost

Compact industry standard surface mount footprint

Extended temperature range

Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C

Part

Number

BX2516W

BX2510W

Turns Ratio

(Line:Chip)

0.408:1

OCL 1-4

(w/2-3 tied)

(µH ±7%)

1100

750

Working

Voltage

(Vrms)

250

Isolation

Voltage

(Vrms)

1500

®

NOTE:

Transformers are shipped in trays unless Tape & Reel packaging is specified by adding the suffix

“T”

to the part number (i.e. BX2516WT).

Mechanical

BX2516W/BX2510W

.082

2,08

.046

8 X 1,17

1

BX2516W

BX2510W

Schematic

8

5

7

6

Date Code

Country of Origin

.098

2,50

.238 .402

6,04 10,20

LINE

3

2

4

CHIP

.386

9,80

MAX

.295

7,50

SUGGESTED PAD LAYOUT

.421

10,70

MAX

.098

2,50

8X

.022

0,56

.005/0,13

8 SURFACES

Weight

. . . . . . . . . . . . . .1.8 grams

Tape & Reel

. . . . . . . . . . . .300/reel

Tray

. . . . . . . . . . . . . . . . . . .95/tray

.295

7,50

.358

9,10

MAX

Dimensions:

Inches

mm

Unless otherwise specified,

all tolerances are ± .010

0,25

For More Information :

UNITED STATES

(Worldwide)

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

http://www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

UNITED KINGDOM

(Northern Europe)

3 Huxley Road

Surrey Research Park

Guildford, Surrey GU2 5RE

United Kingdom

TEL: 44 1483 401700

FAX: 44 1483 401701

FRANCE

(Southern Europe)

Zone Industrielle

F-39270

Orgelet

France

TEL: 33 3 84 35 04 04

FAX: 33 3 84 25 46 41

SINGAPORE

(Southern Asia)

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

TEL: 65 6287 8998

FAX: 65 6280 0080

TAIWAN, R.O.C.

(Northern Asia)

3F-4, No. 81, Sec. 1

HsinTai Wu Road

Hsi-Chih, Taipei Hsien

Taiwan, R.O.C.

Tel: 886 2 2698 0228

FAX: 886 2 2698 0948

HONG KONG

(China/Hong Kong)

9/F, Phase 2, Tai Sang

Shatin Warehouse Centre

6 Wong Chuk Yeung Street

Fotan, Shatin, Hong Kong

TEL: 852 2788 6588

FAX: 852 2776 1055

DISTRIBUTOR

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

B855.C (10/04)
