BX2542LANL Overview

Telecom Transformer

BX2542LANL Parametric

Parameter NameAttribute value
MakerPulse Electronics
Reach Compliance Codecompliant
ECCN codeEAR99
Manufacturer's serial numberBX2542LANL
Transformer typeTELECOM TRANSFORMER

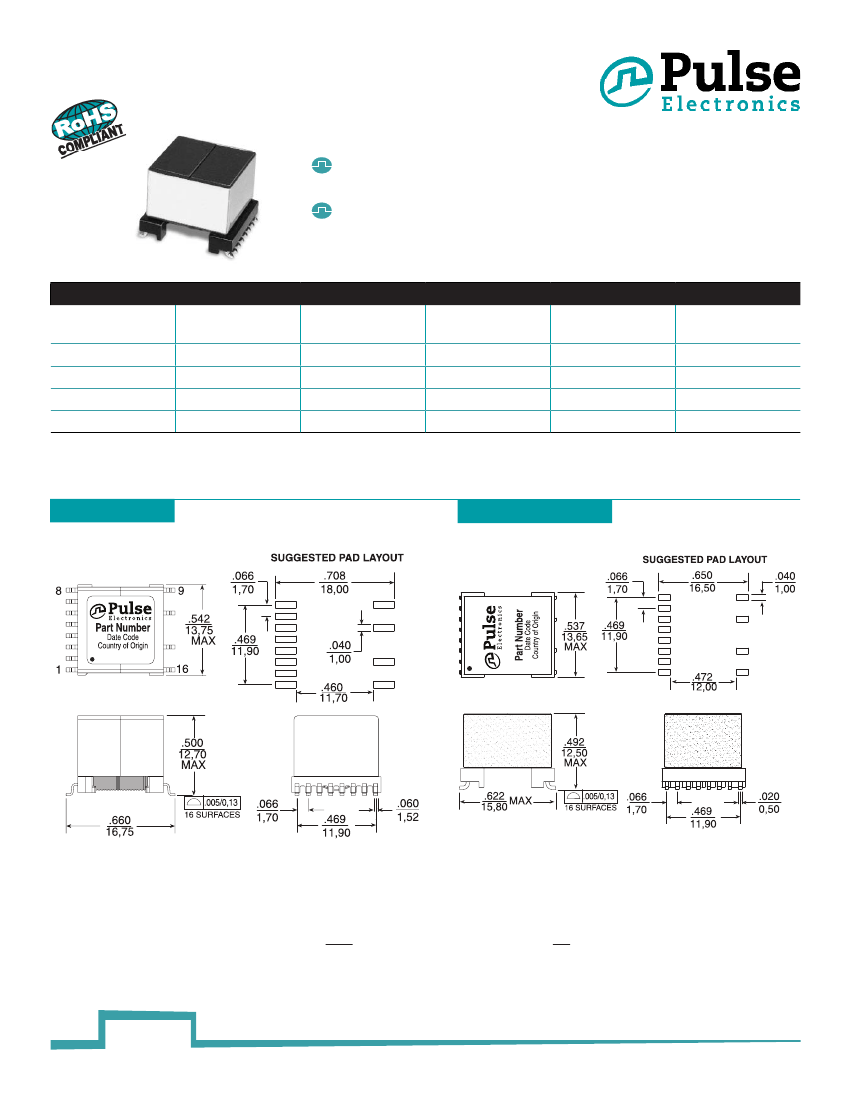

ADSL Line Transformer
For Broadcom ADSL CPE Chipsets
Matched to Broadcom 6335 and 6338 chipsets with
5V line driver (BCM6301)
Designed to meet UL1950 and EN60950 supplementary
insulation requirements
Electrical Specifications @ 25°C - Operating Temperature -40°C to +85°C
Standard Part
Number
BX2542W
BX2542L
BX2606W
BX2606L
RoHs-6 Compliant
Part Number
-
BX2542LNL
-
BX2606LNL
Turns Ratio
(Line:TX
±5%)
4.25:1
4.25:1
4.25:1
4.25:1
Turns Ratio
(Line:RX)
1:1
1:1
1:1
1:1
OCL Line
(μH
±5%)
400
400
100
100
Isolation Voltage
(Vrms)
1500
1500
1500
1500
Notes:
Transformers are shipped in trays, unless Tape & Reel packaging is specified by adding the suffix “T” to the part number (BX2516WT)
Mechanicals
BX2542W / BX2606W
BX2542L/NL / BX2606L/NL
Weight
......................6.2 grams
Tape & Reel
................300/reel
Tray
...............................95/tray
Dimensions:
Inches
Unless otherwise specified, all tolerances are
±
.010
mm
0,25
USA 858 674 8100
1
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
B848.B (02/12)
pulseelectronics.com
