TURNS RATIO: 1.33:1, COMPATIBLE WITH GEMINAX OCTAL PEB55508; PEB22720 CHIPSETS
high
9.3 mm
length
8 mm
Manufacturer's serial number
BX2569L
Installation features
SURFACE MOUNT
Maximum operating temperature
85 °C
Minimum operating temperature
-40 °C
method of packing
TAPE & REEL
physical size
L8.0XB8.0XH9.3 (mm)
surface mount
YES
Transformer type
TELECOM TRANSFORMER
width
8 mm

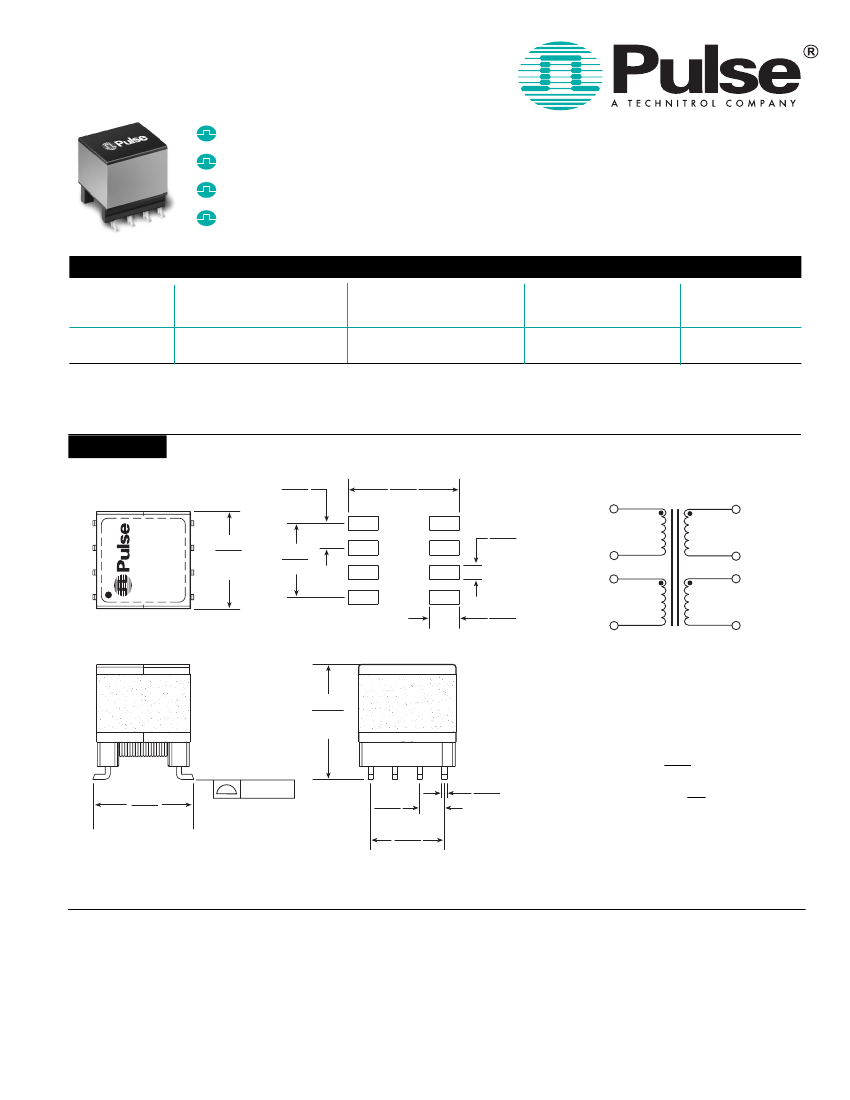

BX2569LT Preview
ADSL LINE TRANSFORMER
For Use With Infineon Chipset
Approved by Infineon for GEMINAX Octal chipsets PEB55508 and PEB22720
Designed to meet EN60950 functional isolation
Very compact EP5 footprint
Excellent longitudinal balance
Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C
Part
Number
BX2569L
Turns Ratio
(Line:Chip)
1.33:1
Inductance
(mH ±10%)
1.4
THD
@ 30kHz, 4.5Vpp
(dB MIN)
-80
Isolation
Voltage
(Vrms)
1500
NOTE:
Transformers are shipped in trays unless Tape & Reel packaging is specified by adding the suffix
“T”
to the part number (i.e. BX2569LT).
Mechanical
BX2569L
.075
1,90
Date Code
Country of Origin
Schematic
.339
8,60
.043
1,10
LINE
1
3
2
4
8
6
7
5
.315
8,00
MAX
BX2569L
.224
5,70
CHIP
.091
2,30
SUGGESTED PAD LAYOUT
.366
9,30
MAX
Weight
. . . . . . . . . . . . . .1.96 grams
Tape & Reel
. . . . . . . . . . . .300/reel
Tray
. . . . . . . . . . . . . . . . . . .95/tray
.315
8,00
MAX
.005/0,13
8 SURFACES
.075
1,90
.224
5,70
.016
SQ
0,40
Dimensions:
Inches
mm
Unless otherwise specified,
all tolerances are ± .010
0,25
For More Information:
Pulse Worldwide
Headquarters
12220 World Trade Dr.
San Diego, CA 92128
U.S.A.
www.pulseeng.com
TEL: 858 674 8100
FAX: 858 674 8262
Pulse
Europe
Einsteinstrasse 1
D-71083 Herrenberg
Germany
Tel: 49 7032 7806 116
Fax: 49 7032 7806 135
Pulse China
Headquarters
No. 1
Industrial District
Changan, Dongguan
China
Tel: 86 769 85538070
Fax: 86 769 85538870
Pulse North China
Room 1503
XinYin Building
No. 888 YiShan Rd.
Shanghai 200233
China
Tel: 86 21 54643211/2
Fax: 86 21 54643210
Pulse South Asia
150 Kampong Ampat
#07-01/02
KA Centre
Singapore 368324
Tel: 65 6287 8998
Fax: 65 6280 0080
Pulse North Asia
No. 26
Kao Ching Rd.
Yang Mei Chen
Taoyuan Hsien
Taiwan, R. O. C.
Tel: 886 3 4641811
Fax: 886 3 4641911
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product
names mentioned herein may be trademarks or registered trademarks of their respective owners.
