BX2913L: DescriptionTelecom Transformer, ROHS COMPLIANT; CategoryPower management transformer; File Size87KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

BX2913L Overview

Telecom Transformer, ROHS COMPLIANT

BX2913L Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TURNS RATIO: 4.2:1; 2:1, HEIGHT DIM INCLUDES TERMINALS ALSO
high	12.5 mm
length	15.8 mm
Manufacturer's serial number	BX2913L
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TRAY
physical size	15.8mm X 13.65mm X 12.5mm
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	13.65 mm

Preview

Download Datasheet

View All

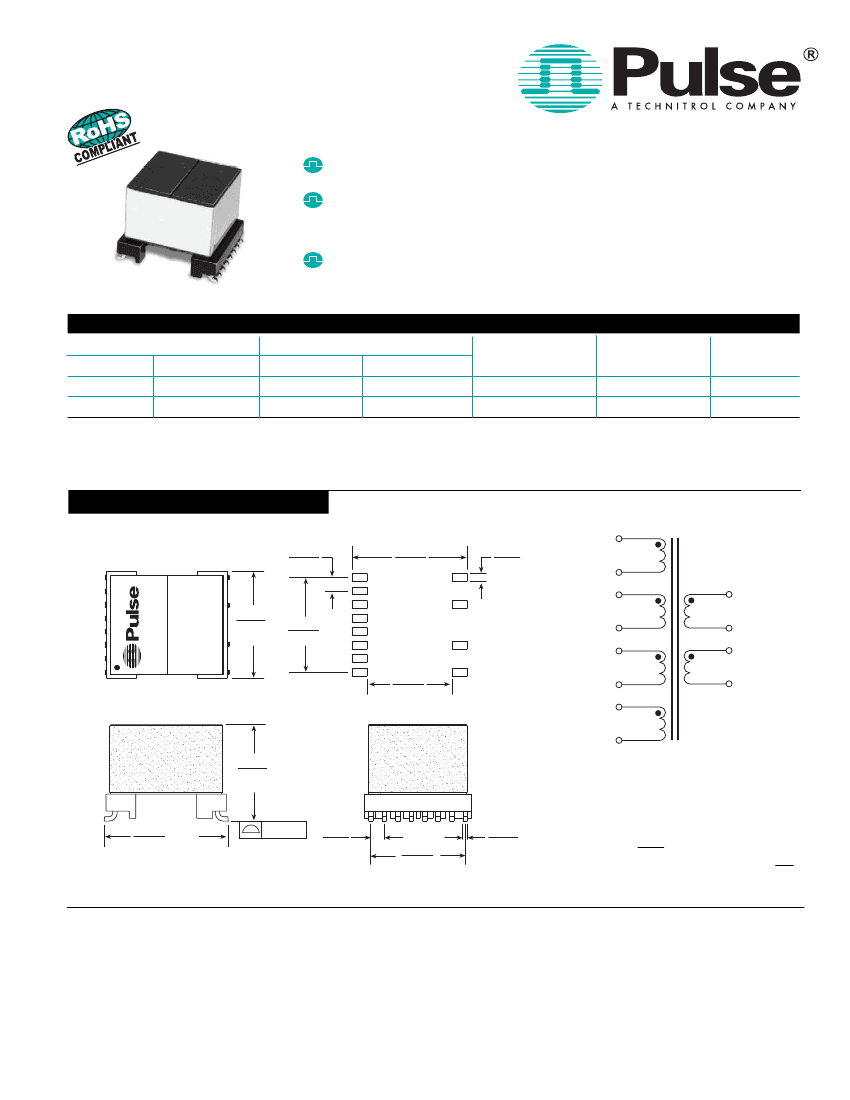

ADSL LINE TRANSFORMERS

For Infineon ADSL CPE Chipsets

Matched to Infineon’s Amazon ADSL chipset

Designed to meet IEC60950 supplementary

insulation requirements at 250V working voltage

1500V Breakdown Isolation between windings

Electrical Specifications @ 25°C — Operating Temperature -40°C to 85°C

Part Number

RoHS-5

BX2913L

_

RoHS-6

BX2913LNL

BX2917LNL

Line:TX

4.2:1

3.8:1

Turns Ratio

Line:RX

2:1

1.9:1

OCL

Primary

(mH ±10%)

1.4

0.2

THD

@ 30kHz,

(dB MAX)

-88

-95

Isolation

Voltage

(Vrms)

1500

NOTES:

Transformers are shipped in trays, unless Tape & Reel packaging is specified by adding the suffix

“T”

to this part number (Ex: BX2913LT or BX2913LNLT).

Mechanical

BX2913L / BX2913LNL / BX2917LNL

SUGGESTED PAD LAYOUT

Schematic

1

TX

3

2

4

5

.472

12,00

.066

1,70

Date Code

Country of Origin

.650

16,50

.040

1,00

Part

Number

16

11

LINE

14

9

.537

13,65

MAX

.469

11,90

RX

7

6

8

.492

12,50

MAX

.622 MAX

15,80

.005/0,13

16 SURFACES

.066

1,70

.469

11,90

.020

0,50

Weight

. . . . . . . . . . . . . .6.5 grams

Tape & Reel

. . . . . . . . . . . .150/reel

Tray

. . . . . . . . . . . . . . . . . . .60/tray

Dimensions:

Inches

mm

Unless otherwise specified, all tolerances are ± .010

0,25

For More Information:

Pulse Worldwide

Headquarters

12220 World Trade Dr.

San Diego, CA 92128

U.S.A.

www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

Pulse

Europe

Einsteinstrasse 1

D-71083 Herrenberg

Germany

Tel: 49 7032 7806 116

Fax: 49 7032 7806 135

Pulse China

Headquarters

No. 1

Industrial District

Changan, Dongguan

China

Tel: 86 769 85538070

Fax: 86 769 85538870

Pulse North China

Room 1503

XinYin Building

No. 888 YiShan Rd.

Shanghai 200233

China

Tel: 86 21 54643211/2

Fax: 86 21 54643210

Pulse South Asia

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

Tel: 65 6287 8998

Fax: 65 6280 0080

Pulse North Asia

No. 26

Kao Ching Rd.

Yang Mei Chen

Taoyuan Hsien

Taiwan, R. O. C.

Tel: 886 3 4641811

Fax: 886 3 4641911

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

www.pulseeng.com

B889.B (10/06)
