HEIGHT DIMENSION INCLUDES TERMINAL ALSO, TURNS RATIO: 4.2:1, 1:1
high
12.5 mm
length
15.8 mm
Manufacturer's serial number
BX2932LNLT
Installation features
SURFACE MOUNT
Maximum operating temperature
85 °C
Minimum operating temperature
-40 °C
method of packing
TAPE & REEL
physical size
L15.8XB13.65XH12.5 (mm)
surface mount
YES
Transformer type
TELECOM TRANSFORMER
width
13.65 mm
BX2932LNLT Preview

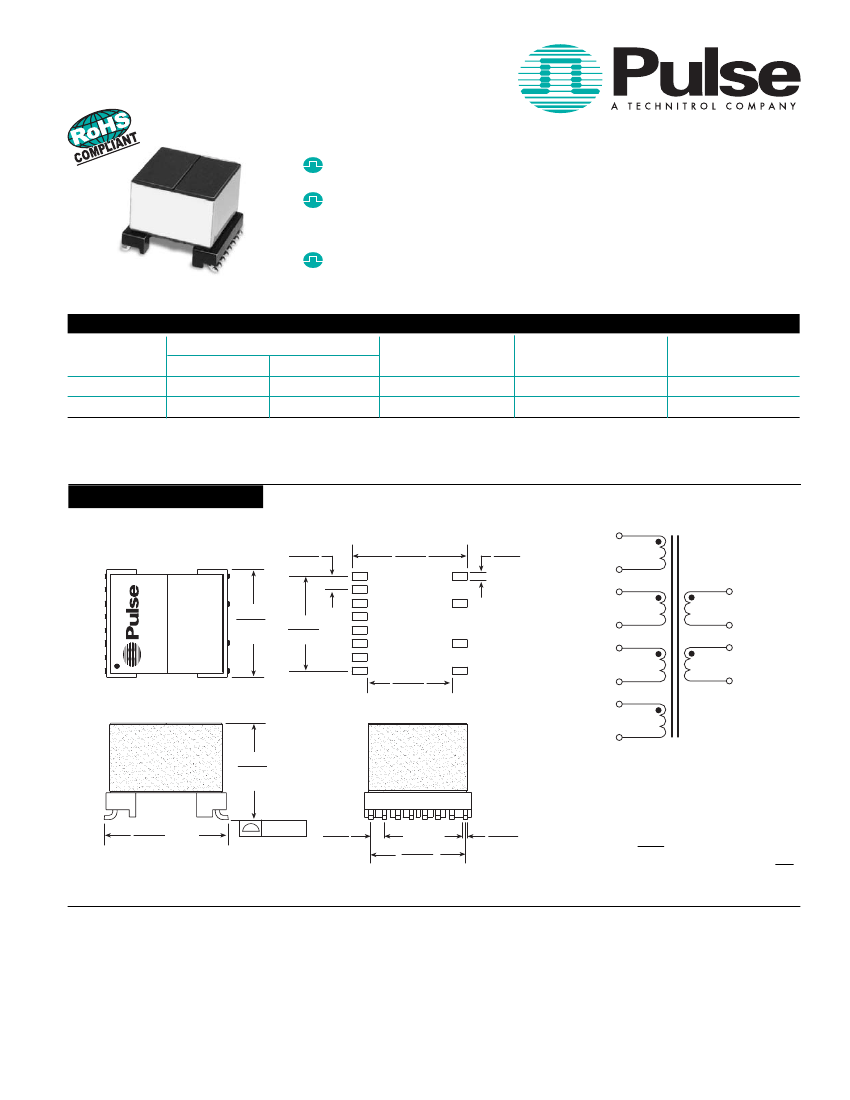

ADSL LINE TRANSFORMERS
For Infineon ADSL CPE Chipsets
Matched to Infineon’s ADSL chipset
Designed to meet IEC60950 supplementary
insulation requirements at 250V working voltage
1500V Breakdown Isolation between windings
Electrical Specifications @ 25°C — Operating Temperature -40°C to 85°C
Part Number
Turns Ratio
Line:TX
BX2932LNL
BX2933LNL
4.2:1
3.8:1
Line:RX
1:1
1:1
OCL
Primary
(mH ±10%)
1.4
0.2
THD
@30kHz,
(dB MIN)
-85
-85
Isolation
Voltage
(Vrms)
1500
1500
NOTES:
Transformers are shipped in trays, unless Tape & Reel packaging is specified by adding the suffix
“T”
to this part number (Ex: BX2932LNLT).
Mechanical
BX2932LNL / BX2933LNL
SUGGESTED PAD LAYOUT
Schematic
.066
1,70
Date Code
Country of Origin
.650
16,50
.040
1,00
1
RX
3
2
4
5
16
11
LINE
14
9
Part
Number
.537
13,65
MAX
.469
11,90
.472
12,00
TX
7
6
8
.492
12,50
MAX
.622 MAX
15,80
.005/0,13
16 SURFACES
.066
1,70
.469
11,90
.020
0,50
Weight
. . . . . . . . . . . . . .6.5 grams
Tape & Reel
. . . . . . . . . . . .150/reel
Tray
. . . . . . . . . . . . . . . . . . .60/tray
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are ± .010
0,25
For More Information:
Pulse Worldwide
Headquarters
12220 World Trade Dr.
San Diego, CA 92128
U.S.A.
www.pulseeng.com
Tel: 858 674 8100
Fax: 858 674 8262
Pulse
Europe
Einsteinstrasse 1
D-71083 Herrenberg
Germany
Pulse China Headquarters
B402, Shenzhen Academy of
Aerospace Technology Building
10th Kejinan Rd.
High-Tech Zone
Nanshan District, Shenzhen
P.R. China 518057
Tel: 86 755 33966678
Fax: 86 755 33966700
Pulse North China
Room 1503
XinYin Building
No. 888 YiShan Rd.
Shanghai 200233
China
Tel: 86 21 32181071
Fax: 86 21 32181396
Pulse South Asia
150 Kampong Ampat
#07-01/02
KA Centre
Singapore 368324
Pulse North Asia
No. 26
Kao Ching Rd.
Yang Mei Chen
Taoyuan Hsien
Taiwan, R. O. C.
32667
Tel: 886 3 4643715
Fax: 886 3 4641911
Tel: 49 7032 7806 0
Fax: 49 7032 7806 12
Tel: 65 6287 8998
Fax: 65 6280 0080
