CX2024ANL Overview

RF Transformer, ROHS COMPLIANT

CX2024ANL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pulse Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IMPEDANCE RATIO IS 1:1
high	4.06 mm
Insertion loss	1 dB
length	5.18 mm
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TRAY
physical size	L5.18XB5.13XH4.06 (mm)
surface mount	YES
Transformer type	RF TRANSFORMER
width	5.13 mm

Preview

Download Datasheet

View All

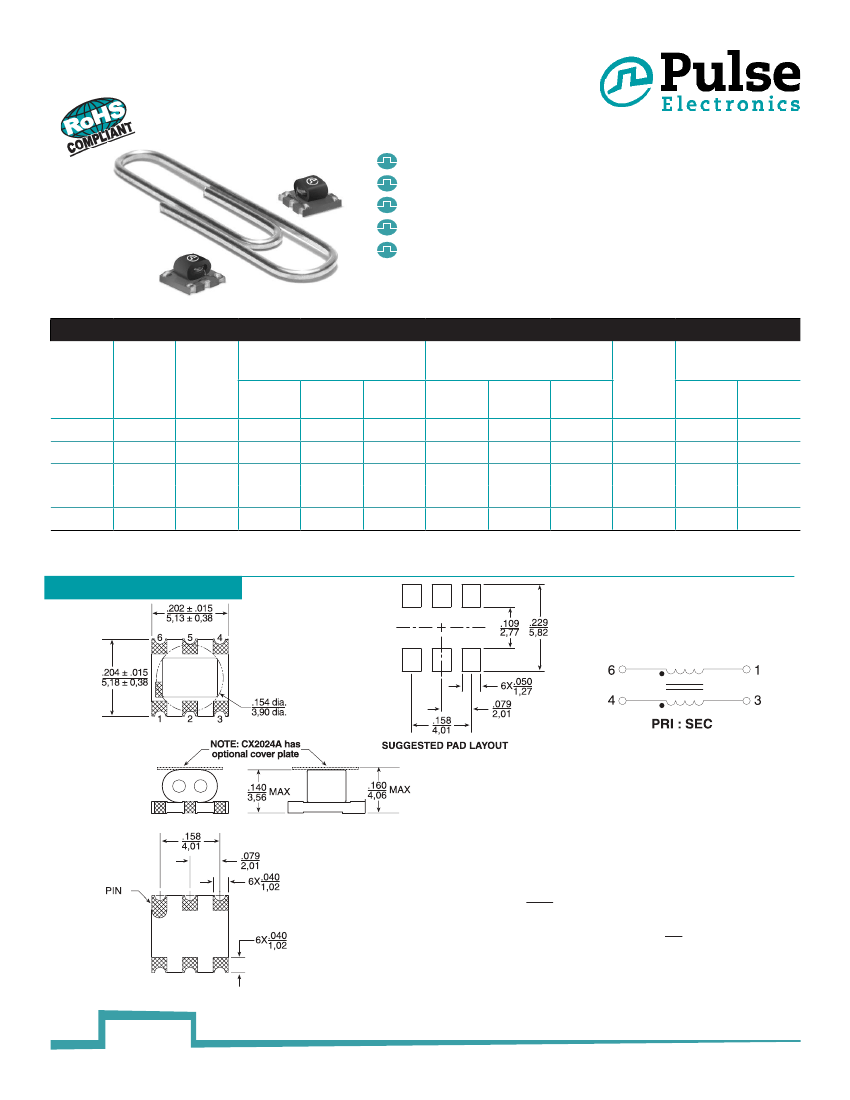

RF Balun Transformers

For Wideband RF Applications

Low cost construction

Miniature surface mount package

Excellent insertion loss

Ideal for balanced-to-unbalanced applications

Designed for: • CATV Distribution/Drop Amplifiers

• Set Top Boxes

• Residential Gateways

Electrical Specifications @ 25°C - Operating Temperature -40°C to +85°C

Standard

Part

Number

CX2024

CX2024A

RoHS-6

Compliant

Part No.

CX2024NL

CX2024ANL

Impedance

Ratio

(Pri:Sec

±2%)

1:1

Insertion Loss

10MHz

(TYP/MAX)

0.46/1.00dB

50MHz

(TYP/MAX)

CX2149

CX2149NL

1:1

0.40/1.00B

Return Loss

10MHz

(TYP/MIN)

>40/20dB

50MHz

(TYP/MAX)

>30/20dB

50-750MHz 750-1000MHz

(TYP/MAX)

0.37/0.50dB

208MHz

(TYP/MAX)

0.40/1.00B

0.48/0.60B

870MHz

(TYP/MAX)

0.6/1.0B

Phase

50-750MHz 750-1000MHz Unbalance

(TYP/MIN)

(TYP/MIN) (50/1000MHz)

>30/20dB

208MHz

(TYP/MAX)

30/20dB

30/16dB

870MHz

(TYP/MAX)

22/18dB

20½ MAX

50-870MHz

Amplitude

Unbalance

(50MHz)

1.4dB MAX

50MHz

(100-1000MHz)

1.25dB MAX

100-870MHz

1.3dB MAX

±4½

from 180½ 1.4dB MAX

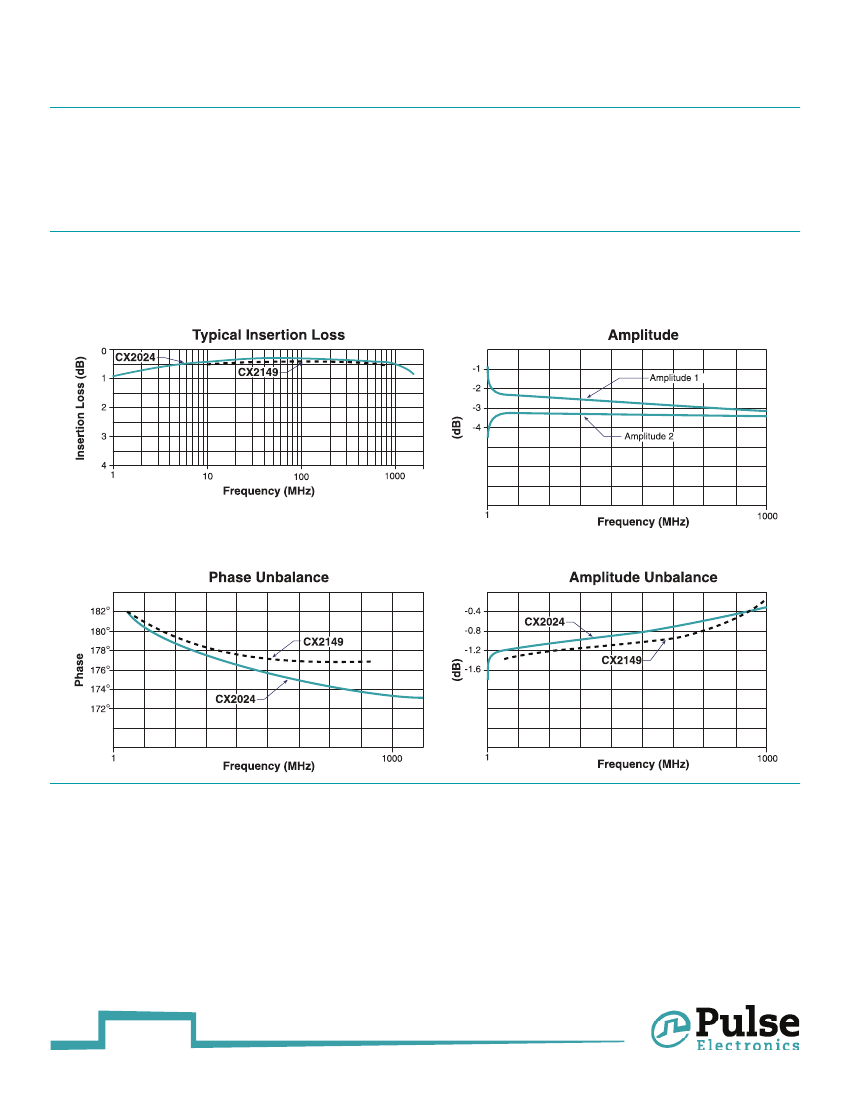

Notes:

1. Part with cover plate is designated CX2024A. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part numbe (ex: CX2024T or CX2024AT).

Mechanical

CX2024/NL, CX2024A/NL & CX2149/NL

Schematic

Tape & Reel

............................................2000/reel

Tray

...........................................................100/tray

Power Rating

................30 mA MAX; 0.25 W MAX

Inches

Dimensions:

Unless otherwise specified, all tolerances are

.010

0,25

USA 858 674 8100

Germany 49 7032 7806 0

Singapore 65 6287 8998

Shanghai 86 21 62787060

China 86 755 33966678

Taiwan 886 3 4356768

C217.C (05/12)

pulseelectronics.com

CX2024ANL Related Products

	CX2024ANL	CX2024A	CX2024ANLT	CX2024AT	CX2149	CX2149NL	CX2149NLT	CX2149T
Description	RF Transformer, ROHS COMPLIANT	RF Transformer, 1:1	RF Transformer, ROHS COMPLIANT	RF Transformer, 1:1	RF Transformer, 10MHz Max, 1:1	RF Transformer, 10MHz Max, ROHS COMPLIANT	RF Transformer, 10MHz Max, ROHS COMPLIANT	RF Transformer, 10MHz Max, 1:1
Maker	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
Reach Compliance Code	compliant	unknown	compliant	unknown	unknown	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	IMPEDANCE RATIO IS 1:1	IMPEDANCE RATIO IS 1:1	IMPEDANCE RATIO IS 1:1	IMPEDANCE RATIO IS 1:1	IMPEDANCE RATIO IS 1:1, HEIGHT DIM INCLUDES TERMINAL ALSO	IMPEDANCE RATIO IS 1:1, HEIGHT DIM INCLUDES TERMINAL ALSO	IMPEDANCE RATIO IS 1:1, HEIGHT DIM INCLUDES TERMINAL ALSO	IMPEDANCE RATIO IS 1:1, HEIGHT DIM INCLUDES TERMINAL ALSO
high	4.06 mm	4.06 mm	4.06 mm	4.06 mm	3.56 mm	3.56 mm	3.56 mm	3.56 mm
Insertion loss	1 dB	1 dB	1 dB	1 dB	1 dB	1 dB	1 dB	1 dB
length	5.18 mm	5.18 mm	5.18 mm	5.18 mm	5.18 mm	5.18 mm	5.18 mm	5.18 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	TRAY	TRAY	TAPE & REEL	TAPE & REEL	TRAY	TRAY	TAPE & REEL	TAPE & REEL
physical size	L5.18XB5.13XH4.06 (mm)	L5.18XB5.13XH4.06 (mm)	L5.18XB5.13XH4.06 (mm)	L5.18XB5.13XH4.06 (mm)	5.18mm X 5.13mm X 3.56mm	L5.18XB5.13XH3.56 (mm)	5.18mm X 5.13mm X 3.56mm	5.18mm X 5.13mm X 3.56mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Transformer type	RF TRANSFORMER	RF TRANSFORMER	RF TRANSFORMER	RF TRANSFORMER	RF TRANSFORMER	RF TRANSFORMER	RF TRANSFORMER	RF TRANSFORMER
width	5.13 mm	5.13 mm	5.13 mm	5.13 mm	5.13 mm	5.13 mm	5.13 mm	5.13 mm
Manufacturer's serial number	-	CX2024A	CX2024ANL	CX2024A	CX2149	CX2149NL	CX2149NL	CX2149
