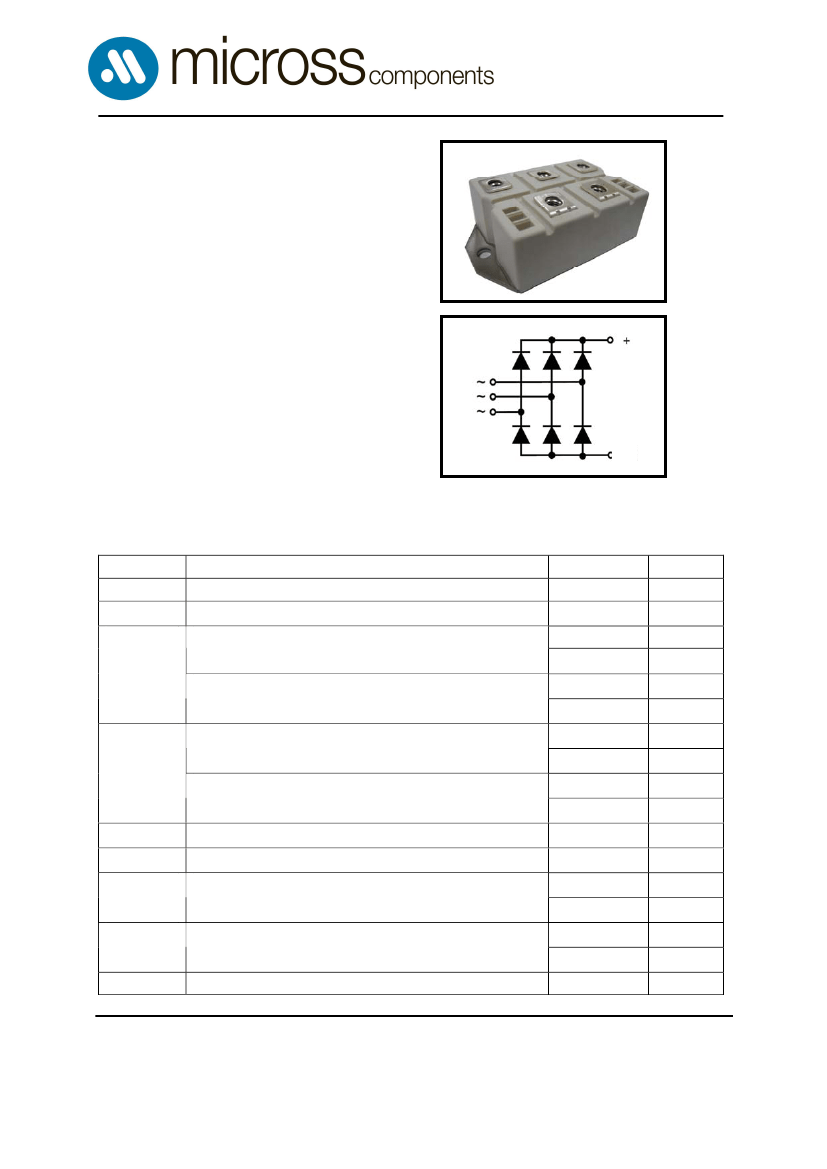

1600V 250A Rectifier Module
RoHS Compliant
MIMMD250F160X
Features
·
Package with screw terminals
·
Isolation voltage 3000 V~
·
Planar passivated chips
·
Blocking voltage up to 1600 V
·
Low forward voltage drop
·
UL registered E72873
Applications
·
Supplies for DC power equipment
·
Input rectifiers for PWM inverter
·
Battery DC power supplies
·
Field supply for DC motors
Advantages
·
Easy to mount with two screws
·
Space and weight savings
·
Improved temperature and power cycling
ABSOLUTE MAXIMUM RATINGS
Symbol
Test Condition
V
RRM
I
d(AV)
T
C
=100 , module
T
J
=45 ;
I
FSM
V
R
=0
T
J
=150 ;
V
R
=0
T
J
=45 ;
I
2
t
V
R
=0
T
J
=150 ;
V
R
=0
T
J
,T
STG
T
JM
V
ISOL
50/60Hz RMS
I
ISOL
≤1mA
Md
Weight
t=1 min
t=1 s
t=10ms (50Hz),sine
t=8.3ms(60Hz),sine
t=10ms (50Hz),sine
t=8.3ms(60Hz),sine
t=10ms (50Hz),sine
t=8.3ms(60Hz),sine
t=10ms (50Hz),sine
t=8.3ms(60Hz),sine
-
T
C
=25°C unless otherwise specified
Value
1600
250
2500
2800
2000
2250
31250
39200
20000
25300
-40 to +150
150
2500
3000
5±15%
5±15%
241
Unit
V
A
A
A
A
A
A
2
s
A
2
s
A
2
s
A
2
s
V~
V~
N·m
N·m
g
Mounting torque(M6)
Terminal connection torque(M6)
typical
MIMMD250F160X
ELECTRICAL AND THERMAL CHARACTERISTICS
Symbol
Test Condition
I
R
V
F
V
T0
R
thJC
R
thCS
d
S
d
A
a
V
R
= V
RRM
; T
J
= 25
V
R
= V
RRM
; T
J
=T
JM
I
F
=300A; T
J
=125
For power-loss calculations only
per diode
Per module
per diode
per module
Creeping distance on surface
Cree page distance in air
Max. allowable acceleration
T
C
=25°C unless otherwise specified
Value
≤0.5
≤5
1.43
0.8
0.48
0.08
0.18
0.03
10
9.4
50
Unit
mA
mA
V
V
K/W
K/W
K/W
K/W
mm
mm
m/s
2
NOTE:
Data according to IEC 60747 and refer to a single diode unless otherwise stated.

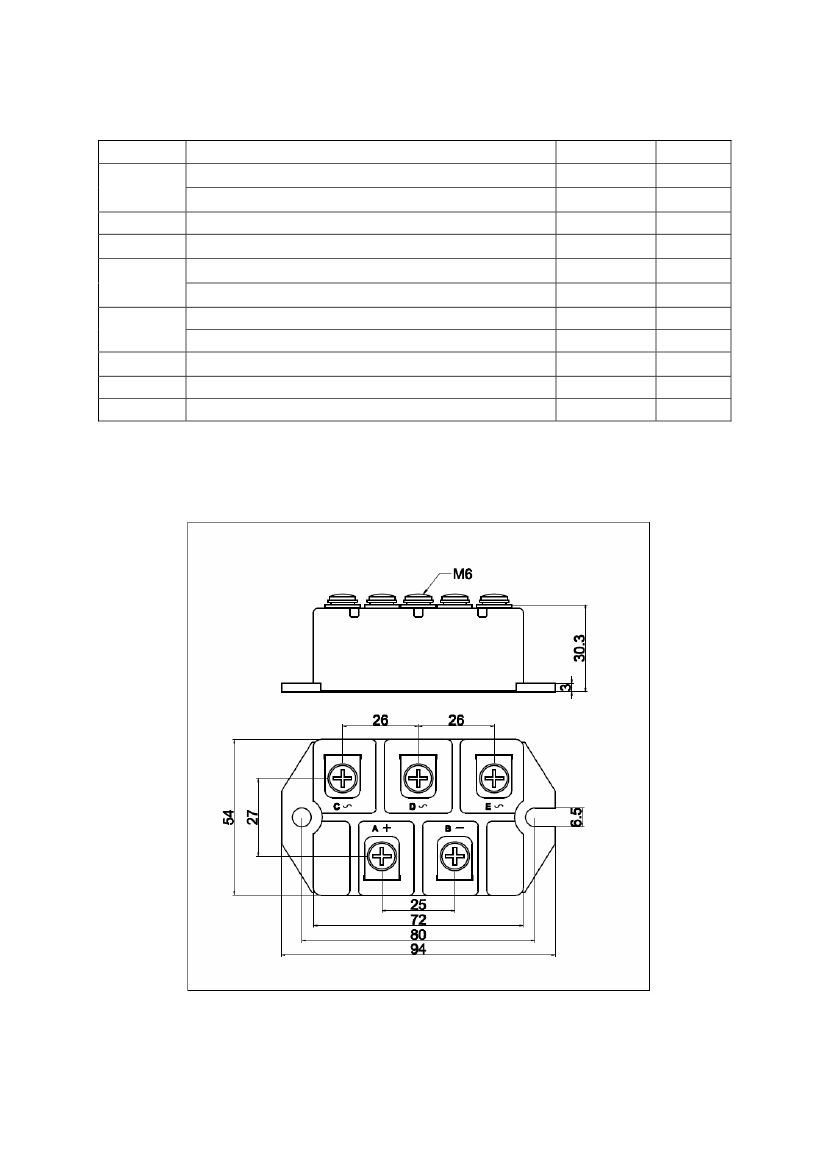

Package Outline (Dimensions in mm)
