Super FAP-E
3S
series
Features
FMP13N60ES
Outline Drawings [mm]
TO-220AB
FUJI POWER MOSFET
N-CHANNEL SILICON POWER MOSFET
Equivalent circuit schematic
Maintains both low power loss and low noise
Lower R
DS
(on) characteristic
More controllable switching dv/dt by gate resistance
Smaller V
GS
ringing waveform during switching
Narrow band of the gate threshold voltage (4.2±0.5V)
High avalanche durability
Drain(D)
Applications
Switching regulators
UPS (Uninterruptible Power Supply)
DC-DC converters
Gate(G)
Source(S)
Maximum Ratings and Characteristics
Absolute Maximum Ratings at Tc=25°C (unless otherwise specified)
Description
Drain-Source Voltage
Continuous Drain Current
Pulsed Drain Current
Gate-Source Voltage
Repetitive and Non-Repetitive Maximum Avalanche Current
Non-Repetitive Maximum Avalanche Energy
Repetitive Maximum Avalanche Energy
Peak Diode Recovery dV/dt
Peak Diode Recovery -di/dt
Maximum Power Dissipation
Operating and Storage Temperature range
Symbol
V
DS
V
DSX
I
D
I
DP
V
GS
I
AR
E
AS
E
AR
dV/dt
-di/dt
P
D
T
ch
T
stg
Characteristics
600
600
±13
±52
±30
13
471.5
22.5
4.7
100
2.02
225
150
-55 to +150
Unit
V
V
A
A
V
A
mJ
mJ
kV/µs
A/µs
W
°C
°C
Remarks
V
GS
= -30V
Note*1
Note*2
Note*3
Note*4
Note*5
Ta=25°C
Tc=25°C
Electrical Characteristics at Tc=25°C (unless otherwise specified)
Description
Drain-Source Breakdown Voltage
Gate Threshold Voltage
Zero Gate Voltage Drain Current
Gate-Source Leakage Current
Drain-Source On-State Resistance
Forward Transconductance
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Turn-On Time
Turn-Off Time
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
Gate-Drain Crossover Charge
Avalanche Capability
Diode Forward On-Voltage
Reverse Recovery Time
Reverse Recovery Charge
Symbol
BV
DSS
V
GS
(th)
I
DSS
I
GSS
R
DS
(on)
g
fs
Ciss
Coss
Crss
td(on)
tr
td(off)
tf
Q
G
Q
GS
Q
GD
Q
SW
I
AV
V
SD
trr
Qrr
Conditions
I
D
=250µA, V
GS
=0V
I
D
=250µA, V
DS
=V
GS
V
DS
=600V, V
GS
=0V
V
DS
=480V, V
GS
=0V
V
GS
=±30V, V
DS
=0V
I
D
=6.5A, V
GS
=10V
I
D
=6.5A, V
DS
=25V
V
DS
=25V
V
GS
=0V
f=1MHz
V
cc
=300V
V
GS
=10V
I
D
=6.5A
R
G
=18Ω
V
cc
=300V
I
D
=13A
V
GS
=10V
L=2.36mH, T
ch
=25°C
I
F
=13A, V
GS
=0V, T
ch
=25°C
I
F
=13A, V
GS
=0V
-di/dt=100A/µs, Tch=25°C
min.
600
3.7
-
-
-
-
5
-
-
-
-
-
-
-
-
-
-
-
13
-
-
-
typ.
-
4.2
-
-
10
0.50
10
1700
190
10
38
24
86
16
48
16
16
7
-
0.90
0.7
8
max.
-
4.7
25
250
100
0.58
-
2550
285
15
57
36
129
24
72
24
24
10.5
-
1.08
-
-
Unit
V
V
µA
nA
Ω
S
pF
T
ch
=25°C
T
ch
=125°C
ns
nC
A
V
µS
µC
Thermal Characteristics
Description
Thermal resistance
Symbol
Rth (ch-c)
Rth (ch-a)
Test Conditions
Channel to case
Channel to ambient
min.
typ.
max.
0.560
62.0
Unit
°C/W
°C/W
Note *1 : Tch≤150°C
Note *2 : Stating Tch=25°C, I
AS
=6A, L=24.0mH, Vcc=60V, R
G
=50Ω
E
AS
limited by maximum channel temperature and avalanche current.
See to 'Avalanche Energy' graph.
Note *3 : Repetitive rating : Pulse width limited by maximum channel temperature.
See to the 'Transient Themal impeadance' graph.
Note *4 : I
F
≤-I
D
, -di/dt=100A/µs, Vcc≤BV
DSS
, Tch≤150°C.
Note *5 : I
F
≤-I
D
, dv/dt=4.7kV/µs, Vcc≤BV
DSS
, Tch≤150°C.
1
FMP13N60ES

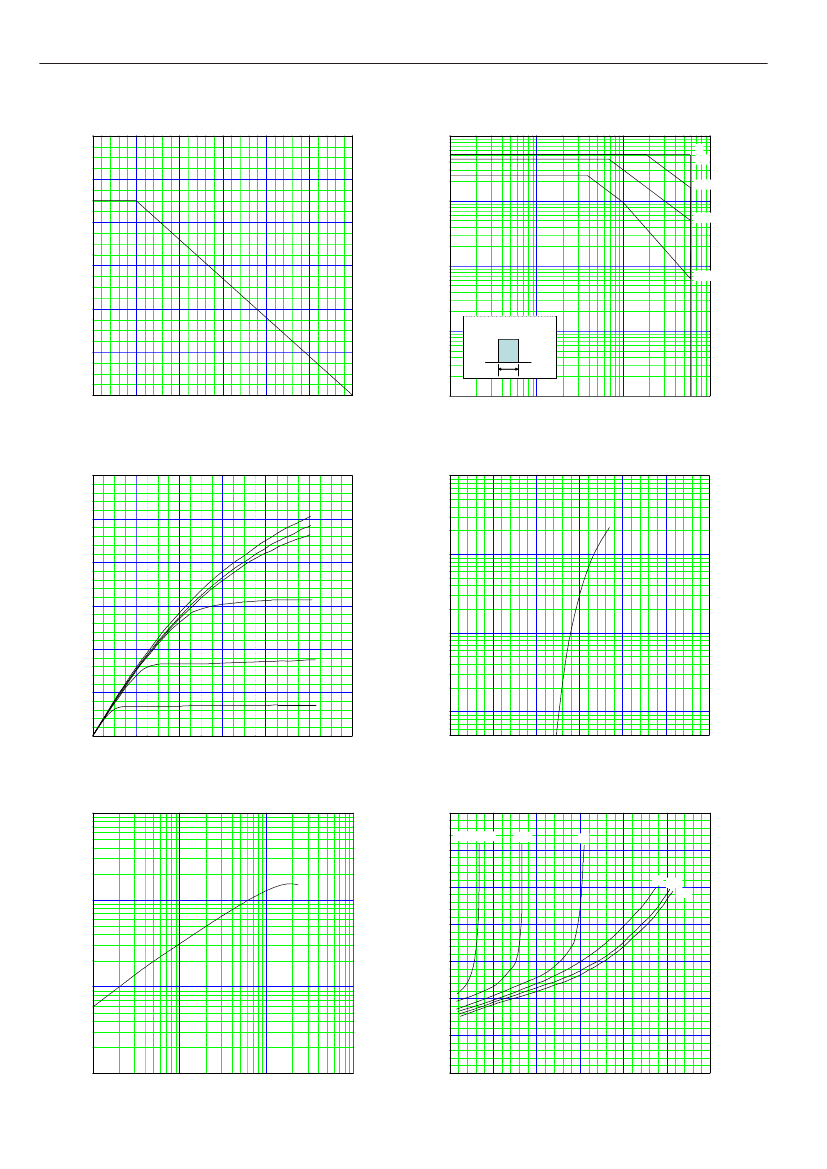

Allowable Power Dissipation
PD=f(Tc)
Safe Operating Area
I
D
=f(V
DS
):Duty=0(Single pulse),Tc=25
°
c
10
2
FUJI POWER MOSFET
300
t=
1
µ
s
250
10
µ
s
10
1
200
100
µ
s
PD [W]
100
ID [A]
150
10
0
1ms
10
50
-1
Power loss waveform :
Square waveform
P
D
t
0
0
25
50
75
Tc [
°
C]
100
125
150
10
-2
10
0
10
1
VDS [V]
10
2
10
3
Typical Output Characteristics
ID=f(VDS):80
µ
s pulse test,Tch=25
°
C
30
100
Typical Transfer Characteristic
ID=f(VGS):80
µ
s pulse test,VDS=25V,Tch=25
°
C
25
10V
8.0V
7.5V
10
20
ID [A]
15
7.0V
ID[A]
1
10
6.5V
5
VGS=6.0V
0.1
0
0
4
8
12
VDS [V]
16
20
24
0
2
4
6
VGS[V]
8
10
12
100
Typical Transconductance
gfs=f(ID):80
µ
s pulse test,VDS=25V,Tch=25
°
C
1.0
Typical Drain-Source on-state Resistance
RDS(on)=f(ID):80
µ
s pulse test,Tch=25
°
C
VGS=6.0V
6.5V
7V
0.9
0.8
10
RDS(on) [
Ω
]
8V 10V
20V
0.7
gfs [S]
0.6
1
0.5
0.4
0.1
0.1
1
ID [A]
10
100
0.3
0
5
10
15
ID [A]
20
25
30
2
FMP13N60ES

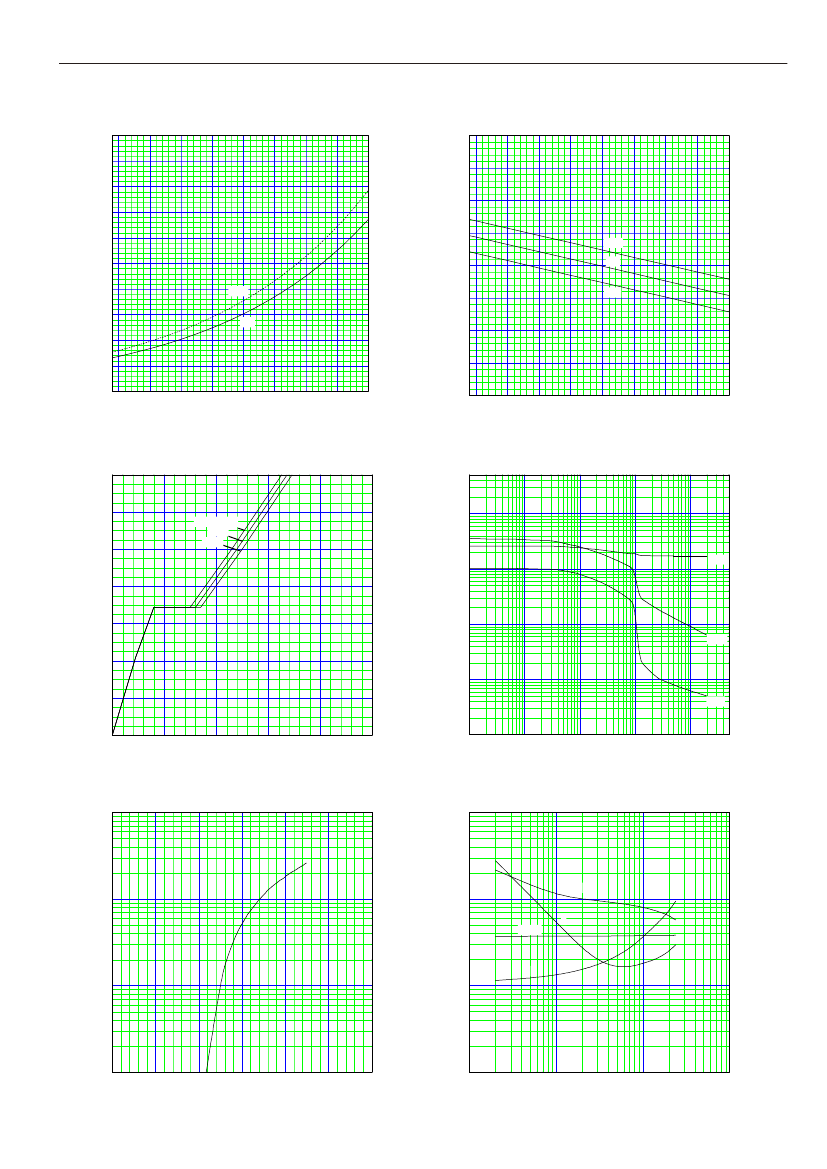

Drain-Source On-state Resistance
RDS(on)=f(Tch):ID=6.5A,VGS=10V
FUJI POWER MOSFET
2.0
1.8
1.6
1.4
RDS(on) [
Ω
]
8
7
6
5
4
3
2
1
0
Gate Threshold Voltage vs. Tch
VGS(th)=f(Tch):VDS=VGS,ID=250
µ
A
1.2
1.0
0.8
0.6
0.4
0.2
0.0
-50
-25
0
25
50
Tch [
°
C]
75
100
125
150
max.
typ.
VGS(th) [V]
max.
typ.
min.
-50
-25
0
25
50
75
Tch [
°
C]
100
125
150
Typical Gate Charge Characteristics
VGS=f(Qg):ID=13A,Tch=25
°
C
14
Typical Capacitance
C=f(VDS):VGS=0V,f=1MHz
12
10
Vcc= 120V
300V
480V
10
4
10
VGS [V]
C [pF]
3
Ciss
8
6
10
2
Coss
4
10
1
2
Crss
10
0
0
0
20
40
Qg [nC]
60
80
100
10
-2
10
-1
10
0
10
1
10
2
VDS [V]
100
Typical Forward Characteristics of Reverse Diode
IF=f(VSD):80
µ
s pulse test,Tch=25
°
C
10
3
Typical Switching Characteristics vs. ID
t=f(ID):Vcc=300V,VGS=10V,RG=18
Ω
10
10
2
td(off)
tf
IF [A]
td(on)
t [ns]
tr
1
10
1
0.1
0.00
10
0.25
0.50
0.75
VSD [V]
1.00
1.25
1.50
0
10
-1
10
0
ID [A]
10
1
10
2
3
FMP13N60ES
Maximum Avalanche Energy vs. starting Tch
E(AV)=f(starting Tch):Vcc=60V,I(AV)<=13A
Maximum Transient Thermal Impedance
Zth(ch-c)=f(t):D=0
10
1
FUJI POWER MOSFET
700
600
10
0
500
Zth(ch-c) [
°
C/W]
I
AS
=6A
EAV [mJ]
400
10
-1
I
AS
=8A
300
I
AS
=13A
10
-2
200
100
10
-3
10
-6
10
-5
10
-4
10
-3
10
-2
10
-1
10
0
t [sec]
0
0
25
50
75
starting Tch [
°
C]
100
125
150
4
FMP13N60ES
FUJI POWER MOSFET
