SP9760B datasheet, PDF - EEWORLD Datasheet

SP9760B: DescriptionSample and Hold Circuit, 1 Func, Track, 0.6us Acquisition Time, DIP-24; CategoryAnalog mixed-signal IC Amplifier circuit; File Size357KB，12 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

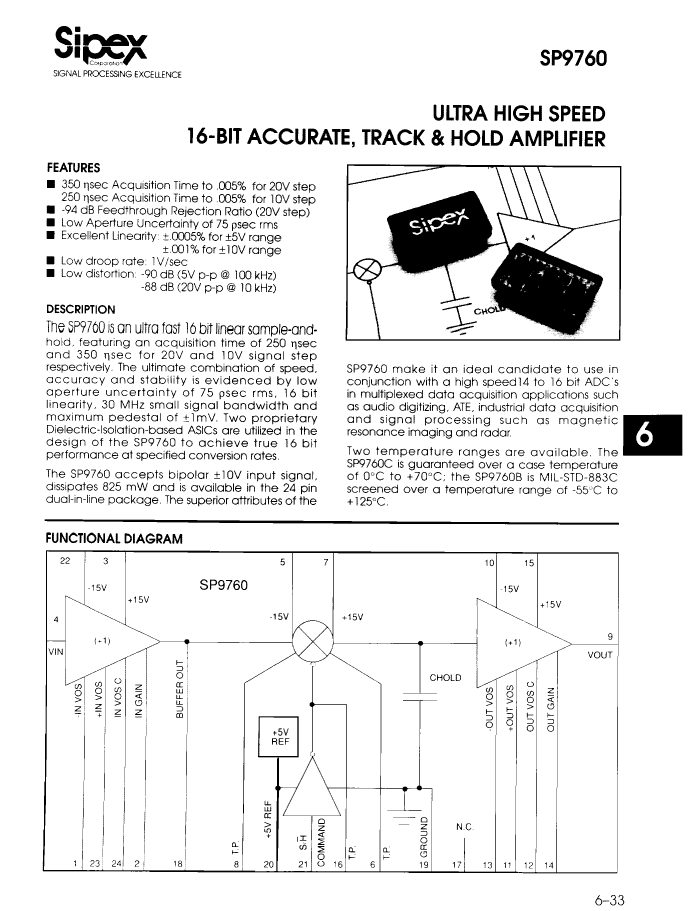

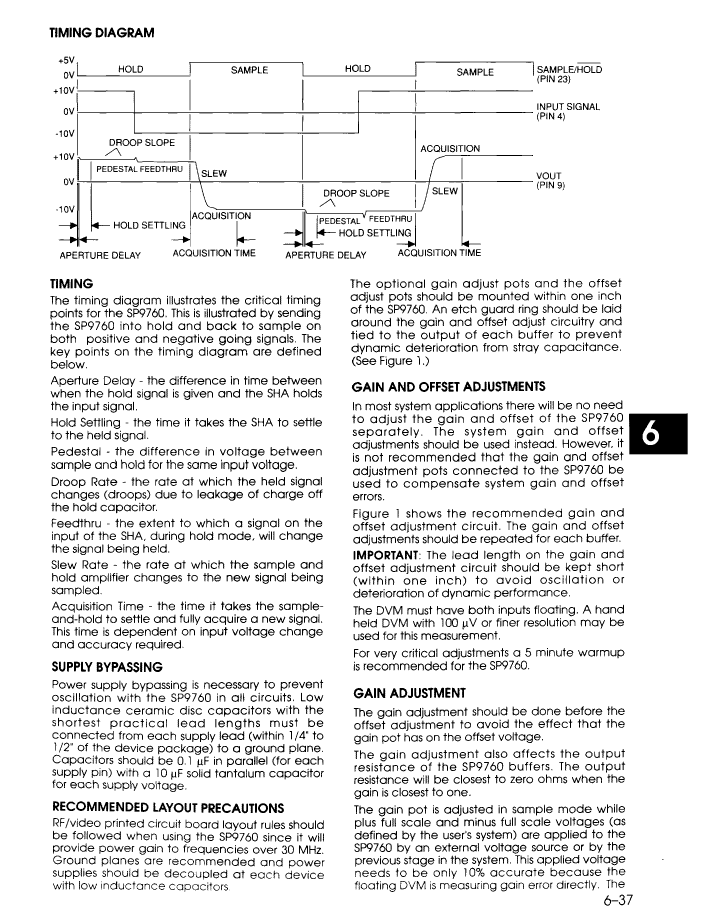

SP9760B Overview

Sample and Hold Circuit, 1 Func, Track, 0.6us Acquisition Time, DIP-24

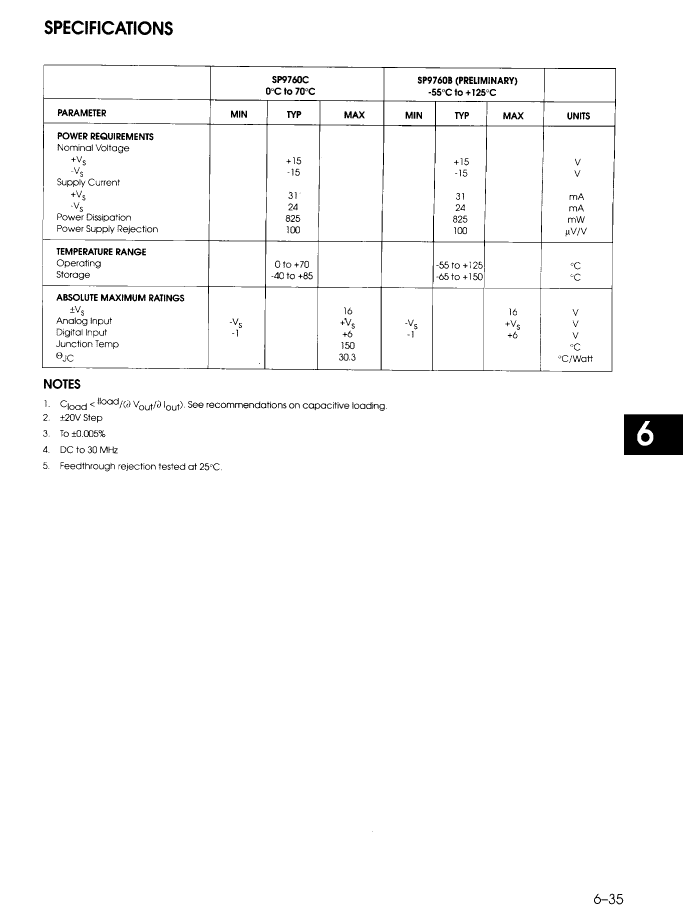

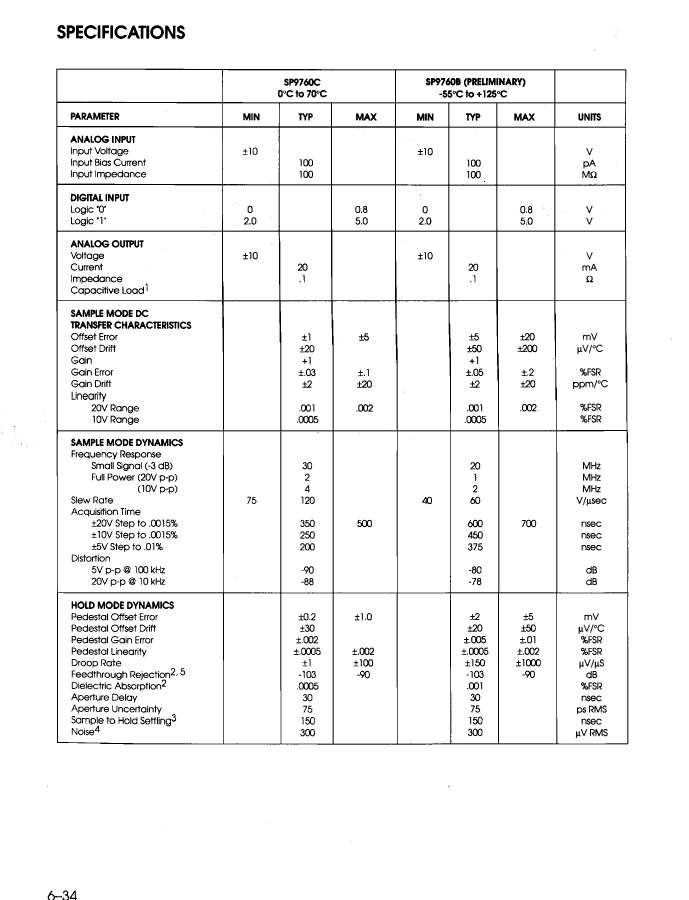

Parameter Name	Attribute value
Maker	API Technologies
package instruction	DIP,
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum acquisition time	0.7 µs
Nominal acquisition time	0.6 µs
Amplifier type	SAMPLE AND HOLD CIRCUIT
Maximum analog input voltage	10 V
Minimum analog input voltage	-10 V
maximum rate of descent	1000 V/s

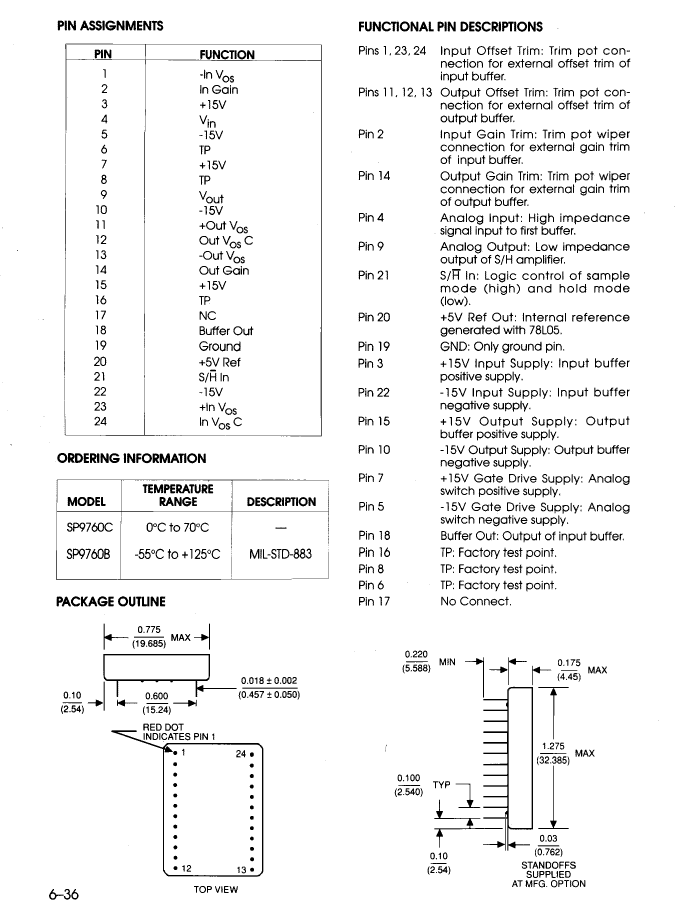

JESD-30 code	R-XDIP-T24
Negative supply voltage upper limit	-16 V
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Sample and hold/Track and hold	TRACK
Maximum seat height	5.2 mm
Supply voltage upper limit	16 V
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm

	SP9760B	SP9760C
Description	Sample and Hold Circuit, 1 Func, Track, 0.6us Acquisition Time, DIP-24	Sample and Hold Circuit, 1 Func, Track, 0.35us Acquisition Time, DIP-24
Maker	API Technologies	API Technologies
package instruction	DIP,	DIP,
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Maximum acquisition time	0.7 µs	0.5 µs
Nominal acquisition time	0.6 µs	0.35 µs
Amplifier type	SAMPLE AND HOLD CIRCUIT	SAMPLE AND HOLD CIRCUIT
Maximum analog input voltage	10 V	10 V
Minimum analog input voltage	-10 V	-10 V
maximum rate of descent	1000 V/s	100 V/s
JESD-30 code	R-XDIP-T24	R-XDIP-T24
Negative supply voltage upper limit	-16 V	-16 V
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	125 °C	70 °C
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Sample and hold/Track and hold	TRACK	TRACK
Maximum seat height	5.2 mm	5.2 mm
Supply voltage upper limit	16 V	16 V
surface mount	NO	NO
Temperature level	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	15.24 mm	15.24 mm
