FE2X03-4-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> FE2X03-4-2

Preview

FE2X03-4-2: DescriptionData Line Filter; CategoryAnalog mixed-signal IC filter; File Size62KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

FE2X03-4-2 Overview

Data Line Filter

FE2X03-4-2 Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Certification	UL
Maximum DC resistance	0.07 Ω
filter type	DATA LINE FILTER
high	25.4 mm
inductance	3300 µH
length	20.4 mm
Installation type	THROUGH HOLE MOUNT
Number of functions	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Rated current	2.5 A
Rated voltage	250 V
width	15.9 mm

Preview

Download Datasheet

View All

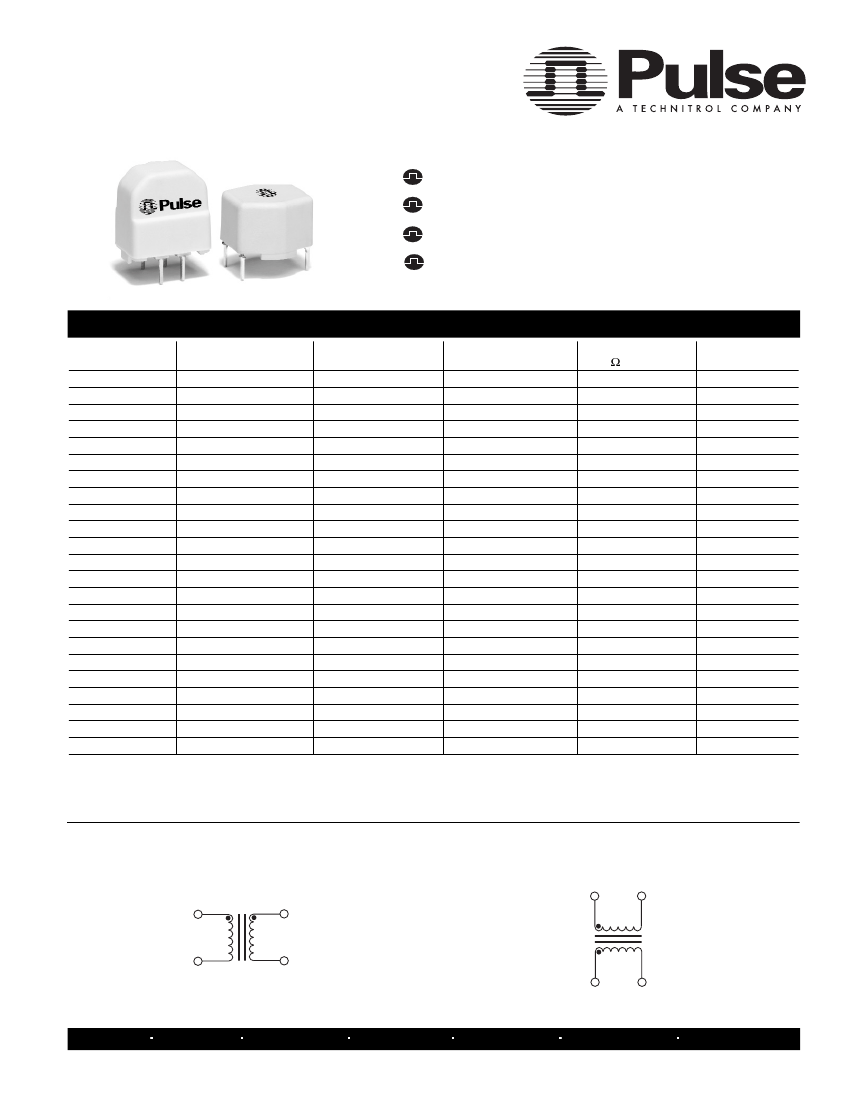

CURRENT COMPENSATED NOISE

SUPPRESSION CHOKES

FE 2X Series - 2 Phase Common Mode Choke

Complies with VDE 565-2

Materials meet UL-94V0 requirements

Rated voltage: 250 Vac

Withstanding voltage: 1500 Vac

Electrical Specifications @ 25°C — Operating Temperature 0°C to 60°C

W

Part Number

(Vertical)

Part Number

(Horizontal)

L

(mH ±30%)

Current

(A)

DCR

( ±20%)

Resonance

(kHz)

FE2X03-3-2

FE2X03-3-3

3.3

1.50

0.17

800

FE2X03-4-2

FE2X03-4-3

3.3

2.50

0.07

700

FE2X03-5-2

–

3.3

2.80

0.06

700

FE2X03-6-2

–

3.3

4.00

0.06

700

–

FE2X03-8-3

3.3

8.00

0.028

700

FE2X07-3-2

FE2X07-3-3

6.8

1.20

0.30

400

FE2X07-5-2

FE2X07-5-3

6.8

2.00

0.14

450

FE2X07-6-2

–

6.8

2.20

0.17

450

FE2X10-3-2

FE2X10-3-3

10

0.70

0.55

350

FE2X10-4-2

FE2X10-4-3

10

1.20

0.30

350

FE2X10-5-2

–

10

1.60

0.21

300

FE2X10-6-2

–

10

1.80

0.20

300

FE2X15-3-2

FE2X15-3-3

15

0.50

0.77

300

FE2X15-4-2

–

15

1.00

0.40

220

FE2X18-3-2

–

18

0.45

1.00

200

FE2X18-6-2

–

18

1.40

0.28

200

FE2X27-3-2

FE2X27-3-3

27

0.40

1.70

180

FE2X27-4-2

FE2X27-4-3

27

0.70

0.62

180

FE2X39-3-2

FE2X39-3-3

39

0.35

2.00

160

FE2X39-4-2

FE2X39-4-3

39

0.50

1.12

160

FE2X39-5-2

–

39

0.70

1.00

160

FE2X47-3-2

–

47

0.30

2.30

150

FE2X47-4-2

–

47

0.40

1.30

150

NOTE –

Part Numbering System:

FEXLV-S-P,

where

LV

is the inductance value,

S

is the size code, and

P

is package style (2 = vertical

and 3 = horizontal)

Schematics

Style 2 - Vertical Package

Style 3 - Horizontal Package

1

3

4

5

6

2

8

7

US 858 674 8100 UK 44 1483 401 700 France 33 3 84 35 04 04 Singapore 65 287 8998 Taiwan 886 2 2698 0228 Hong Kong 852 2788 6588 http://www.pulseeng.com

PRELIMINARY P538.P (3/02)

·
