PA2729.602NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PA2729.602NL

PA2729.602NL: DescriptionGeneral Purpose Inductor, 6uH, 15%, 1 Element, SMD, 8875, CHIP, 8875, ROHS COMPLIANT; CategoryPassive components inductor; File Size395KB，2 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

PA2729.602NL Overview

General Purpose Inductor, 6uH, 15%, 1 Element, SMD, 8875, CHIP, 8875, ROHS COMPLIANT

PA2729.602NL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pulse Electronics
package instruction	CHIP, 8875, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
uppercase and lowercase codes	8875
DC Resistance	0.0044 Ω
Nominal inductance(L)	6 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	130 °C
Minimum operating temperature	-55 °C
Maximum rated current	14.4 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	15%

Preview

Download Datasheet

View All

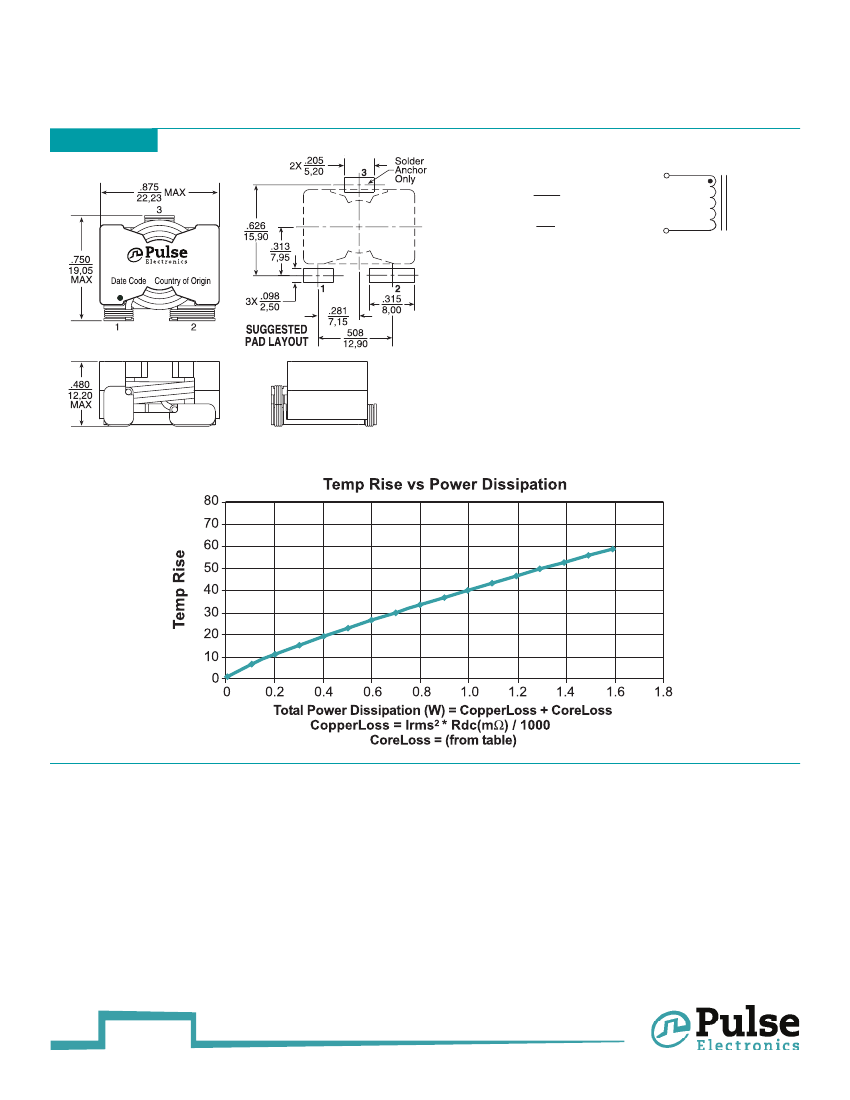

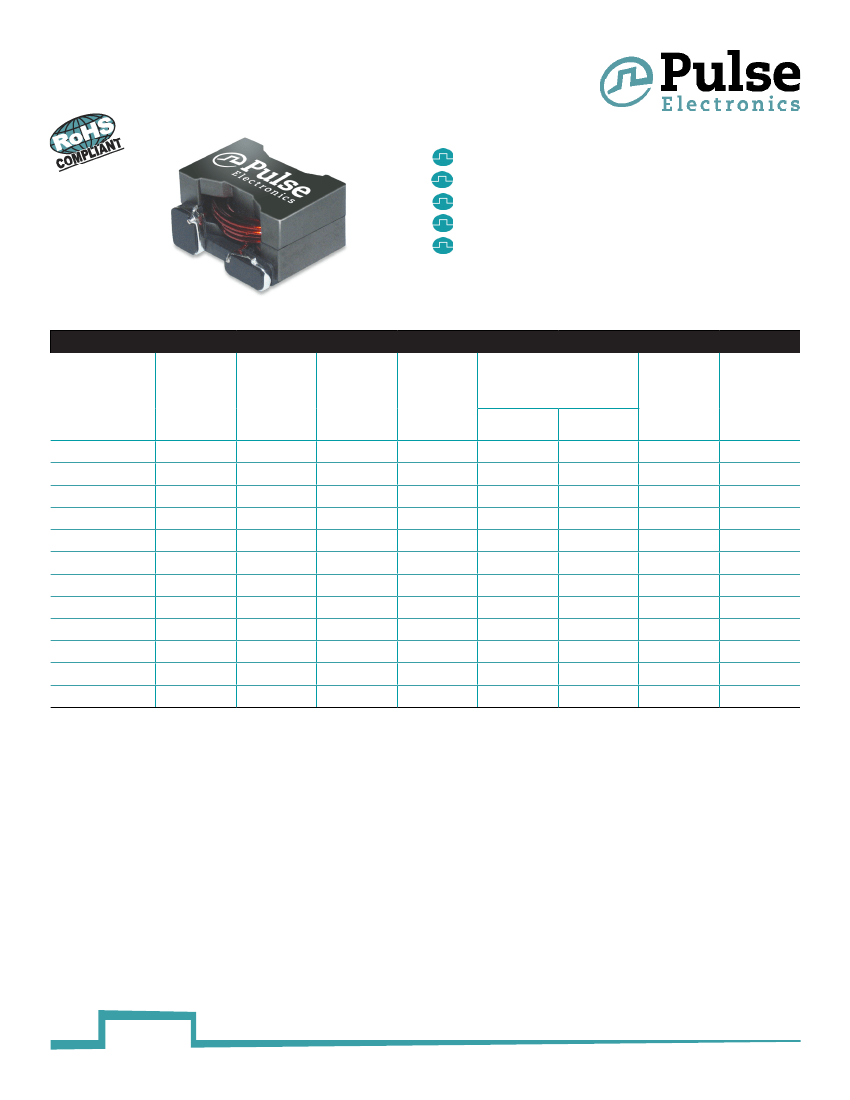

SMT POWER INDUCTORS

Wire Wound - PA2729.XXXNL Series

Height:

12.2mm Max

Footprint:

22.2 x 19.1mm Max

Current Rating:

Over 20Apk

Inductance Range:

4.7µH to 60µH

Higher Efficiency Version of PA2050.XXXNL

Series in same footprint

Electrical Specifications @ 25°C - Operating Temperature -55°C to +130°C

Saturation

Current Isat

(A TYP)

25°C

3.4

4.4

5.1

5.8

9.1

12.0

12.5

14.0

18.5

19.7

21.5

31.5

20.9

19.6

16.8

14.7

11.7

10.7

9.8

9.0

8.4

7.8

7.3

6.2

100°C

17.1

16.1

13.8

12.1

9.6

8.8

8.0

7.4

6.9

6.4

6.6

6.1

16.4

14.4

13.3

12.5

9.9

8.5

8.1

7.8

6.7

6.5

6.2

5.1

158

155

181

206

258

284

310

335

361

387

413

490

Heating

Current I

(A TYP)

Core Loss

Factor

Part

Number

Inductance

@ 0Adc

(µH

+/-15%)

4.9

6.0

8.3

10.9

17.1

20.7

24.5

28.1

32.9

38.3

44.0

60.3

Inductance

@ Irated

(µH

TYP)

4.7

5.7

7.9

10.5

16.8

20.1

23.0

27.8

31.5

37.2

42.0

57.5

Irated

)

16.4

14.4

13.3

12.5

9.9

8.5

8.1

7.8

6.7

6.5

6.2

5.1

DCR

(mΩ±10%)

PA2729.502NL

PA2729.602NL

PA2729.802NL

PA2729.113NL

PA2729.173NL

PA2729.203NL

PA2729.243NL

PA2729.283NL

PA2729.333NL

PA2729.383NL

PA2729.443NL

PA2729.603NL

Notes:

1. The rated current as listed is either the saturation current or the heating current depending

on which value is lower.

2. The saturation current is the typical current which causes the inductance to drop by 20% at

the stated ambient temperatures (25°C and 100°C). This current is determined by placing

the component in the specified ambient environment and applying a s hort duration

pulse current (to eliminate self-heating effects) to the component.

3. The heating current is the DC current which causes the part temperature to increase by

approximately 40°C.

4. In high volt*time applications, additional heating in the component can occur due to

core losses in the inductor which may neccessitate derating the current in order to limit

the temperature rise of the component. To determine the approximate total losses (or

temperature rise) for a given application, the coreloss and temperature rise formula

can be used:

ΔB

(Gauss)

= K2 *

ΔI

Core Loss (W)

= 1.5E-13 * (Freq_kHz)

1.63 *

ΔB

2.62

5. The temperature of the component (ambient plus temperature rise) must be within

the stated operating temperature range.

USA 858 674 8100

Germany 49 7032 7806 0

Singapore 65 6287 8998

Shanghai 86 21 62787060

China 86 755 33966678

Taiwan 886 3 4356768

P704.A (10/11)

pulseelectronics.com

PA2729.602NL Related Products

	PA2729.602NL	PA2729.802NL	PA2729.113NL	PA2729.333NL	PA2729.443NL	PA2729.502NL	PA2729.243NL	PA2729.283NL	PA2729.383NL	PA2729.603NL
Description	General Purpose Inductor, 6uH, 15%, 1 Element, SMD, 8875, CHIP, 8875, ROHS COMPLIANT	General Purpose Inductor, 8.3uH, 15%, 1 Element, SMD, 8875, CHIP, 8875, ROHS COMPLIANT	General Purpose Inductor, 10.9uH, 15%, 1 Element, SMD, 8875, CHIP, 8875, ROHS COMPLIANT	General Purpose Inductor, 32.9uH, 15%, 1 Element, SMD, 8875, CHIP, 8875, ROHS COMPLIANT	General Purpose Inductor, 44uH, 15%, 1 Element, SMD, 8875, CHIP, 8875, ROHS COMPLIANT	General Purpose Inductor, 4.9uH, 15%, 1 Element, SMD, 8875, CHIP, 8875, ROHS COMPLIANT	General Purpose Inductor, 24.5uH, 15%, 1 Element, SMD, 8875, CHIP, 8875, ROHS COMPLIANT	General Purpose Inductor, 28.1uH, 15%, 1 Element, SMD, 8875, CHIP, 8875, ROHS COMPLIANT	General Purpose Inductor, 38.3uH, 15%, 1 Element, SMD, 8875, CHIP, 8875, ROHS COMPLIANT	General Purpose Inductor, 60.3uH, 15%, 1 Element, SMD, 8875, CHIP, 8875, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	CHIP, 8875, ROHS COMPLIANT	CHIP, 8875, ROHS COMPLIANT	8875	8875	8875	8875	8875	CHIP, 8875, ROHS COMPLIANT	CHIP, 8875, ROHS COMPLIANT	CHIP, 8875, ROHS COMPLIANT
Reach Compliance Code	compliant	compli	compli	compli	compli	compli	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	8 weeks	8 weeks	8 weeks	8 weeks	8 weeks	8 weeks	8 weeks	8 weeks	8 weeks	8 weeks
uppercase and lowercase codes	8875	8875	8875	8875	8875	8875	8875	8875	8875	8875
DC Resistance	0.0044 Ω	0.0051 Ω	0.0058 Ω	0.0185 Ω	0.0215 Ω	0.0034 Ω	0.0125 Ω	0.014 Ω	0.0197 Ω	0.0315 Ω
Nominal inductance(L)	6 µH	8.3 µH	10.9 µH	32.9 µH	44 µH	4.9 µH	24.5 µH	28.1 µH	38.3 µH	60.3 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum rated current	14.4 A	13.3 A	12.5 A	6.7 A	6.2 A	16.4 A	8.1 A	7.8 A	6.5 A	5.1 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Tolerance	15%	15%	15%	15%	15%	15%	15%	15%	15%	15%
Base Number Matches	-	1	1	1	1	1	1	-	-	-
