WDM & Optical Transport
Datasheet

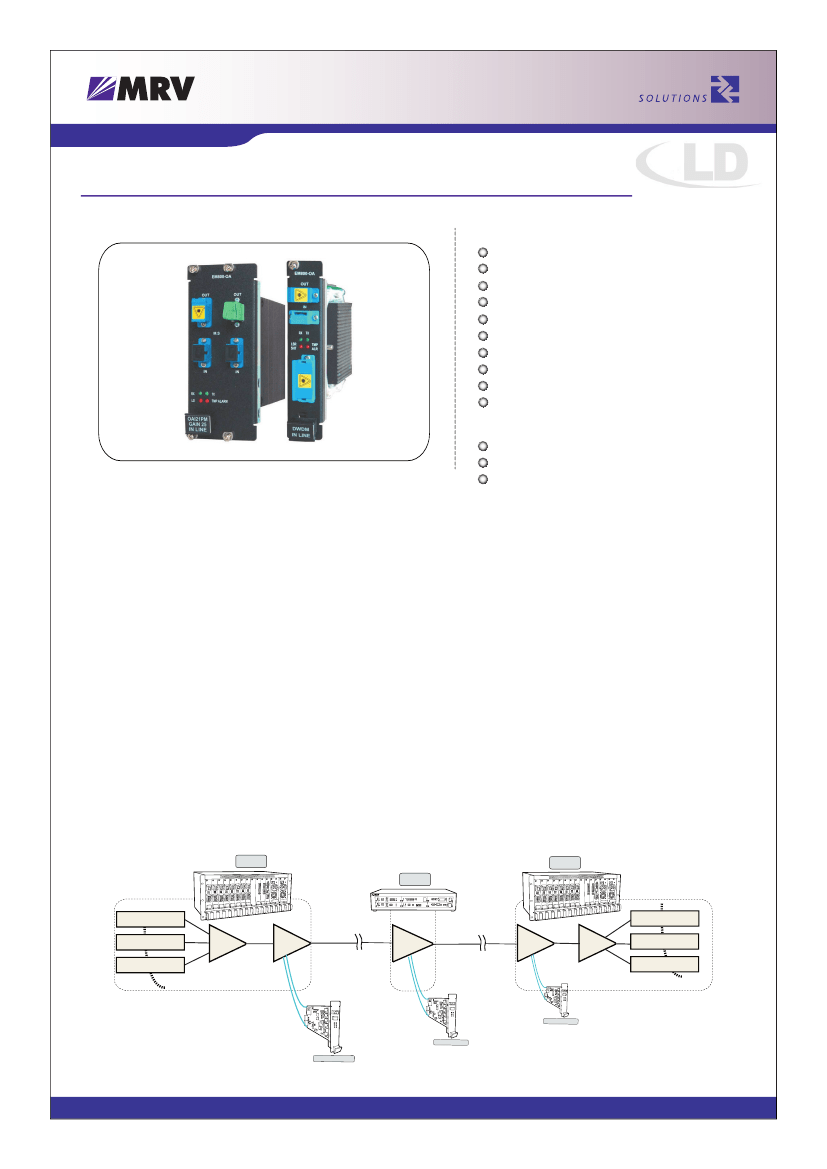

LambdaDriver® - Optical Amplifier Module (EM800-OAx/EM1600-OAx)
Features
Booster, In line and Pre-Amplifier
Up to 22dBm maximum output power
Protocol and bandwidth transparent
Gain flatness (with GFF) less than 1.0 dB
Low Noise figure
Optical power monitoring
Front panel status LEDs
Fast transient suppression time
Automatic Laser Shutdown (ALS)
Mid-stage connection
Applications
Optical Amplifier modules
DWDM networks
Single-channel amplification
Distance extention
LambdaDriver
®
Optical Amplifier modules
are a
family of low-noise Erbium-Doped Fiber Amplifiers
(EDFA) ideal for Metro and Long-Haul Dense Wavelength
Division Multiplexing (DWDM) as well as Single
Wavelength applications. The optical design, coupled
with sophisticated control circuitry, allows these
Optical Amplifiers to provide constant gain even with
wavelengths being added or dropped in the network.
Any fluctuations caused by wavelengths addition/
removal can be handled by its ultra-fast transient
suppression.
When paired with the
LambdaDriver
®
Element
Management Module , full monitoring and configuration
capabilities are supported with a local RS-232 interface
and Ethernet/Fast Ethernet interfaces for remote
network monitoring using Telnet and SNMP.
Using MRV’s MegaVision Web
®
NMS provides remote
control reducing the costly need for many infield service
calls.
The modules allow monitoring of input and output
power levels (real dBm values), temperature and signal
gain.
The modules can be operated in two modes: automatic
gain control or automatic power control. These operating
modes and their respective parameter settings are
factory pre-configured but can be changed by MRV
authorized personnel.
In AGC mode, the module maintains constant gain for
each channel according to the Gain parameter setting,
as long as the total output power does not exceed the
maximum rated value (+22 dBm). This mode is factory
pre-configured.
½½½½½
½½½½½
½½½½½
½½½½½½½½½½½
½½½½½½½½½½½
½½½½½½½½½½½
½½½½
½½½
½½½½½½½
½½ ½½½½
½½½
½½½
½½½½½½½½½½½
½½½½½
½½½½
½½½
½½½½½
½½½½½½½½½½½
½½½½½½½½½½½
½½ ½½
½½ ½½
½½½½½½½ ½½½½½½½½½
½½½½½½½ ½½½½½½½½½
Long Haul Application
½½½½½½½ ½½½½½½½½½
Not sure what solution best fits your needs? Visit www.mrv.com or e-mail us at sales@mrv.com
WDM & Optical Transport
In APC mode, the module maintains the output total
power constant at the pre-defined Output Power
settings.
Additionaly each OA module with “M” in part number
includes a special “Mid-stage” port for Optical Dispersion
Compensator.
There are 3 types of OAs: Booster, In-Line and Pre-
Amplifier. The main difference between these modules
is the Input power level that dictates the application of
the specific module and the Gain values. For example,
Booster is usually used at the beginning of the line and
therefore Input levels above 0 dBm and Gain of 9 to15
dB should be expected. On the other hand, Pre-Amplifier
Input level is very weak (down to –32 dBm/channel)
because it is positioned at the end of the line.
Multi-channel (DWDM) amplifiers are equipped with
Gain Flattening Filters (GFF) and provide flat gain
response across entire C-band and input power range.
For single channel applications GFF cost is saved.
Optical Amplifier modules provide Automatic Power
Shutdown, when input is below auto-shutdown
threshold. Power Shutdown can be also forced through
the management.
The compact, 1-slot LambdaDriver Optical Amplifier
modules install into any of the LambdaDriver
®
chassis.
Most of the standard EDFA units have maximum
+18dBm total output power. Special “High Power” EDFA
modules have maximum +22dBm total output power
that mainly serve high wavelength count (more than
32 waves) DWDM or ultra long single span applications.
These high power units are double slot size.
Each module provides visual indications of the front
panel and can be operated without management as
plug and play EDFA.
Besides DWDM networks application, LambdaDriver
®
EDFAs can be used in any Single channel application
thus providing flexible means of extending an optical
link by compensating for optical budget loss.
Environment Specifications
Operating Temperature
Storage Temperature
Relative Humidity
Dimensions (W x H x D)
EM800 + 18dBm type
EM1600 + 18dBm type
EM800 High Power
EM1600 High Power
EM800 + 18dBm type
EM1600 + 18dBm type
EM800 High Power
EM1600 High Power
-5
o
C - 45
o
C (23
o
F to 113
o
F)
-10
o
C - 70
o
C (50
o
F to 158
o
F)
85% maximum, non-condensing
Weight:
26.93 mm (1.06 in)
26.93 mm (1.06 in)
54.18 mm (2.13 in)
54.18 mm (2.13 in)
0.586 Kg (1.28Lb)
0.865 Kg (2.11Lb)
1.016 Kg (2.24Lb)
1.305 Kg (2.47Lb)
x
x
x
x
130.7 mm (5.145 in) x 227 mm (8.956 in) (1 slot wide)
263.4 mm (10.37 in) x 227 mm (8.956 in) (1 slot wide)
130.7 mm (5.14 in) x 227 mm (8.956 in) (2 slot wide)
263.4 mm (10.37 in) x 227 mm (8.956 in) (2 slot wide)
Connectors
- All
- High Power Ouput
SC
E2000APC
WDM & Optical Transport
Technical Specifications
Parameter
Wavelength Range
Output power
Booster & In-Line
With Mid-Stage
SOAB13, SOAI & Pre-Amplifier
High Power Booster
High Power In-line
Input power
Booster
In-Line
25db gain In-Line
Pre-Amplifier
High Power Booster
High Power In-line
25db gain High Power In-Line
Signal Gain *
Booster
In-line
Pre-amp
Noise Figure at rated Gain
Booster
Booster with mid-tage
In-Line
In-Line with mid-tage
Pre-Amplifier
High Power Booster
High Power Booster with mid-tage
High Power In-line
High Power In-line with mid-tage
Input Dynamic Range
Input/Output Isolation (Min)
Gain Flatness at Specified Gain with GFF
Optical Return Loss (at Input and Output ports)
Polarization Mode Dispersion
Polariziation Dependent Gain
Transient Overshoot (10 dB Drop)
Transient Suppression Time (10 dB Drop)
Management
LEDs
Monitoring
Alarm
Power Consumption:
*
*
*
Minimum
1528
Value
Typical
Maximum
1563
+18
+17
+13
+22
+21
Units
nm
dBm
-15
-25
-25
-30
-11
-22
-27
9 or 15
20 or 25
10 or 20
7,5
9
6
6
5.5
8
11.5
6
7
25
30
+/-0.5
25
0.3
+/-0.2
0.5
9
-3
-8
-7
14
3
-2
dBm
dB
dB
+/-1.0
0.5
+/-0.5
1.0
< 32
dB
dB
dB
dB
dB
dB
dB
µs
WDM transmission laser status, Temperature status,
Port reception status, Port transmission status
Input power, Output power, Gain, Temperature
Input power, Output power, Temperature
18dBm type
High Power
3.3 W
15 W
Model
dependent - see ordering information section
WDM & Optical Transport
EM800-OAIM
EM800-OAIM25
EM800-OAI
EM800-OAP
EM800-OAP10
EM800-OAB
EM800-OABM
EM800-SOAIM
EM800-SOAI
EM800-SOAI25
EM800-OAI25
EM800-SOAP
EM800-SOAB
EM800-SOAB13
EM1600-OABM
EM1600-OAIM
EM1600-OAI
EM1600-OAP
EM1600-OAP10
EM1600-OAB
EM1600-SOAIM
EM1600-SOAI
EM1600-SOAP
EM1600-SOAB
EM1600-SOAB13
High Power EDFAs
EM800-OAI21P
EM800-OAI21PM
EM800-OAI21PM25
EM800-OAB22P
EM800-OAB22PM
EM800-SOAB22P
EM1600-OAB22P
EM1600-OAB22PM
EM1600-OAI21P
EM1600-OAI21PM
EM1600-SOAB22P
Optical In Line Amplifier with Mid-stage +17dbm output and 20db gain
Optical In Line Amplifier with Mid stage +17dbm output and 25db gain
Optical In Line Amplifier + 18dbm output and 20db gain
Optical Pre-Amplifier + 13dbm output and 20db gain
Optical Pre-Amplifier +13 dbm output and 10db gain
Optical Booster Amplifier + 18dbm output and 9db gain
Optical Booster Amplifier with Mid-stage +17dbm output and 9db gain
Single channel Optical in line Amplifier with Mid-stage +13dbm output and 20db gain
Single channel Optical in line Amplifier output +13dbm output and 20db gain
Single channel Optical in line Amplifier output +17dbm output and 25db gain
Optical In Line Amplifier +18dbm output and 25db gain
Single channel Optical Pre - Amplifier +13dbm output and 20db gain
Single channel Optical Booster Amplifier +18dbm output and 15db gain
Single channel Optical Booster Amplifier +13dbm output and 15db gain
Optical Booster Amplifier with Mid-stage +17dbm output and 9db gain
Optical In Line Amplifier with Mid-stage +17dbm output and 20db gain
Optical In Line Amplifier +18 dbm output and 20db gain
Optical Pre-Amplifier +13 dbm output and 20db gain
Optical Pre-Amplifier +13 dbm output and 10db gain
Optical Booster Amplifier +18 dbm output and 9db gain
Single channel Optical in line Amplifier with Mid-stage + 13dbm output and 20db gain
Single channel Optical in line Amplifier + 13dbm output and 20db gain
Single channel Optical Pre-Amplifier + 13dbm output and 20db gain
Single channel Optical Booster Amplifier + 18dbm output and 15db gain
Single channel Optical Booster Amplifier + 13dbm output and 15db gain
Optical In Line Amplifier with +21dbm output and 20db gain
Optical In Line Amplifier with Mid-stage +21dbm output and 20db gain
Optical In Line Amplifier with Mid-stage +21dbm output and 25db gain
Optical Booster Amplifier with +22dbm output and 9db gain
Optical Booster with Mid-stage+22dbm output and 9db gain
Single channel Optical Booster Amplifier +22dbm output and 20db gain
Optical Booster Amplifier with +22dbm output and 9db gain
Optical Booster Amplifier with Mid-stage +22dbm output and 9db gain
Optical In Line Amplifier with +21dbm output and 20db gain
Optical In Line Amplifier with Mid-stage +21dbm output and 20db gain
Single channel Optical Booster Amplifier + 22dbm output and 20dB gain
MRV-LD-OA
Rev.5 11-09
Ordering Information
Copyright ©2008 MRV Communications, Inc. All Rights Reserved.
