EM316SC Overview

Passive Splitter/Combiners

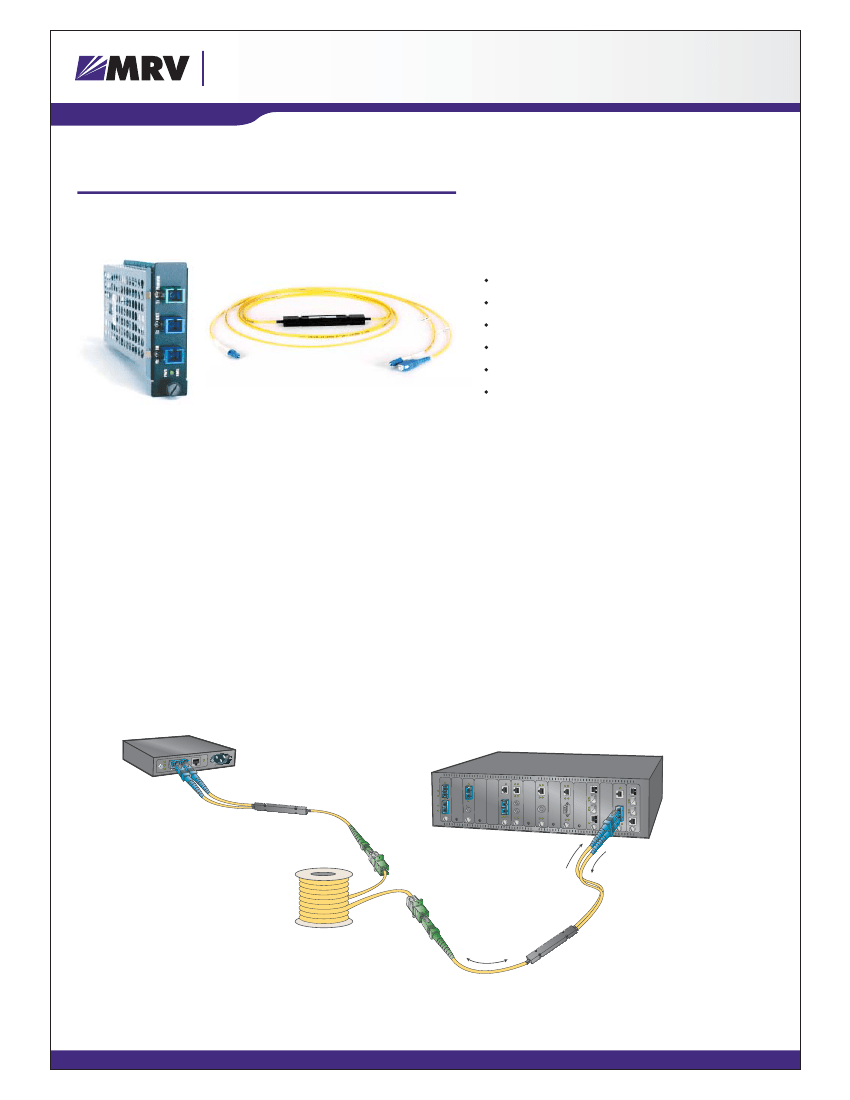

Optical Communications Systems™

Datasheet

Passive Splitter/Combiners

(Dual-Fiber to Bi-directional Single-Fiber)

HIghlights

Double fiber capacity between single-fiber sources

Transition between dual-fiber and single-fiber

Protocol and network operation transparency

Fully passive (no power needed)

Low insertion loss (3.5 dB maximum per cable)

APC connectors for low 3.5 dB insertion loss

Overview

A Splitter/Combiner cable of module connect between dual-fiber and single-fiber optical signals, potentially doubling

the data capacity of the installed fiber plant. Separate Tx and Rx signals from a dual-fiber optical device using the same

wavelength over two fibers can be combined through the Splitter/Combiner onto a single bi-directional strand of fiber

for the long and expensive run to the remote site.

Another Splitter/Combiner at the remote site splits and combines the signals for the dual-fiber device at that location.

Splitter/Combiners are fully passive, and they operate at a specific wavelength. They are transparent to networks and

protocols. A pair of cables, as in the example above, attenuates an optical signal by no more than 7 dB on either single-

mode or multi-mode fiber. Signal reflections are effectively eliminated with angled polished connector (APC) at the

single-fiber “common” interface.

Central Office

Dual-Fiber

40 km

Single-Fiber

	EM316SC	MRV-FD-SPLTCMB	PASCLCAS3S	PASCLCAS5S	PASCSCAS3S	PASCSCAS5S	PASCSCASMS
Description	Passive Splitter/Combiners	Passive Splitter/Combiners	Passive Splitter/Combiners	Passive Splitter/Combiners	Passive Splitter/Combiners	Passive Splitter/Combiners	Passive Splitter/Combiners
