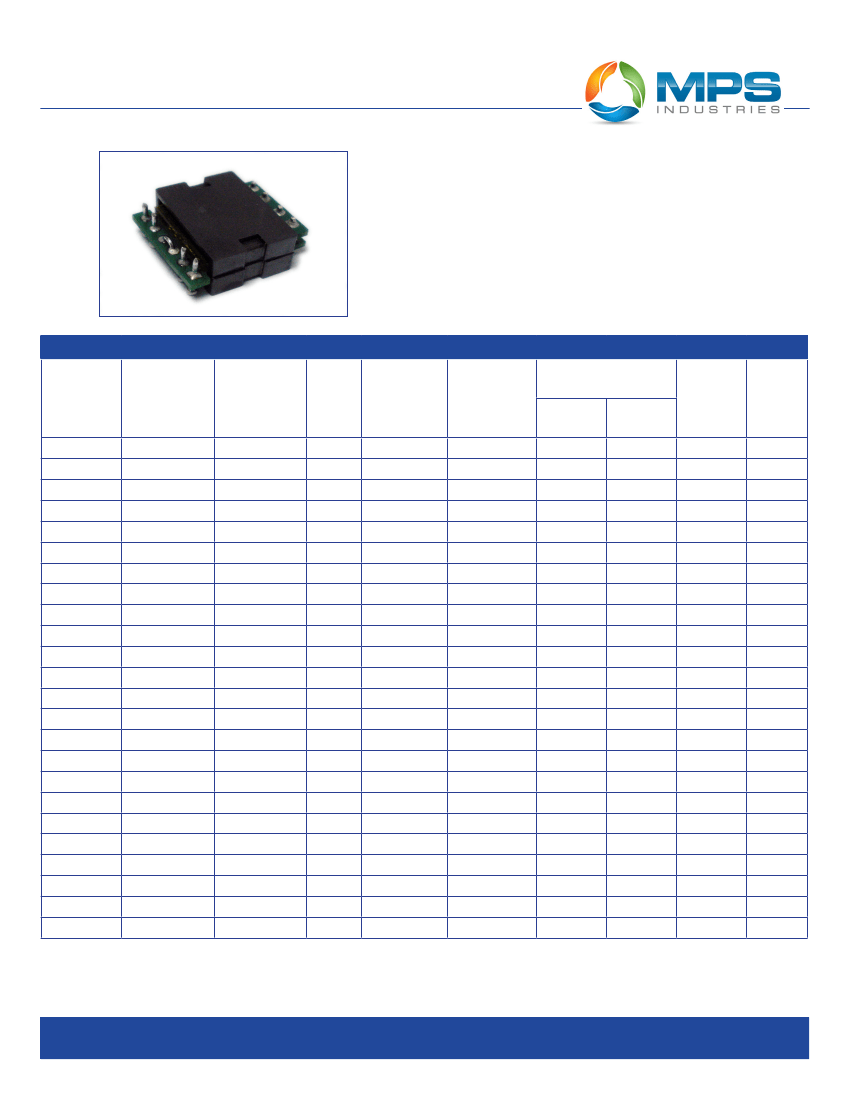

SMT HIGH CURRENT
PLANAR INDUCTORS
PI25 SERIES
•
•
•
•
•
•
•
High Thermal Efficiency & Energy Storage
High Current Rating Up to 73 Amps
Lower Profile of 7.4 mm Max.
Wider Flexibility of Inductances
Footprint 19.50 mm X 19.50 mm
Operating Temperature -40ºC to +130ºC
Custom Design Available
ELECTRICAL PARAMETERS @25°C
Part Number
PI25-
D221
D222
D223
D224
D225
D226
S121
S122
S123
S124
S125
S126
S131
S132
S133
S134
S135
S136
S141
S142
S143
S144
S145
S146
Inductance
@ 0 A
DC
(uH±10%)
0.46
0.67
0.90
1.12
1.36
1.56
0.46
0.67
0.90
1.12
1.36
1.56
1.00
1.50
2.00
2.50
3.00
3.50
1.78
2.66
3.55
4.45
5.33
6.21
Inductance
@ I
rated
(uH±15%)
0.45
0.63
0.85
1.05
1.25
1.45
0.45
0.63
0.85
1.05
1.25
1.45
0.95
1.45
1.95
2.45
2.85
3.45
1.65
2.45
3.35
4.00
4.85
5.80
I
rated
(A
DC
)
73.0
55.0
39.0
30.0
25.0
21.0
53.0
52.0
39.0
30.0
26.0
22.0
42.0
36.0
25.0
20.0
15.0
12.0
37.0
30.0
17.0
14.0
11.0
9.0
DC Resistance
(mΩ MAX)
0.40
0.40
0.40
0.40
0.40
0.40
0.80
0.80
0.80
0.80
0.80
0.80
1.20
1.20
1.20
1.20
1.20
1.20
1.60
1.60
1.60
1.60
1.60
1.60
Turns
I
saturation
(A)
@25ºC
2T
2T
2T
2T
2T
2T
2T
2T
2T
2T
2T
2T
3T
3T
3T
3T
3T
3T
4T
4T
4T
4T
4T
4T
95
63
46
35
29
24
95
63
46
35
29
24
68
43
29
23
18
15
55
35
20
16
13
11
@100ºC
80
53
37
30
26
22
80
53
37
30
26
22
54
35
25
21
16
13
43
27
18
15
12
10
73
73
73
73
73
73
52
52
52
52
52
52
42
42
42
42
42
42
37
37
37
37
37
37
A
A
A
A
A
A
A
A
A
A
A
A
B
B
B
B
B
B
C
C
C
C
C
C
I
heating
Figure
NOTES:
1. The I
rated
is either 85% of the I
saturation
or the I
heating
depending which is lower.
2. The I
saturation
is the current which causes the inductance to drop by 15% of its nominal value.
3. The I
heating
is the current which causes the temperature of the part to increase by approximately 45°C.
Product performance is limited to specified parameters. Data is subject to change without prior notice.
Tel: 310-325-1043
Fax: 310-325-1044
www.mpsind.com
sales@mpsind.com
SMT HIGH CURRENT
PLANAR INDUCTORS
PI25 SERIES

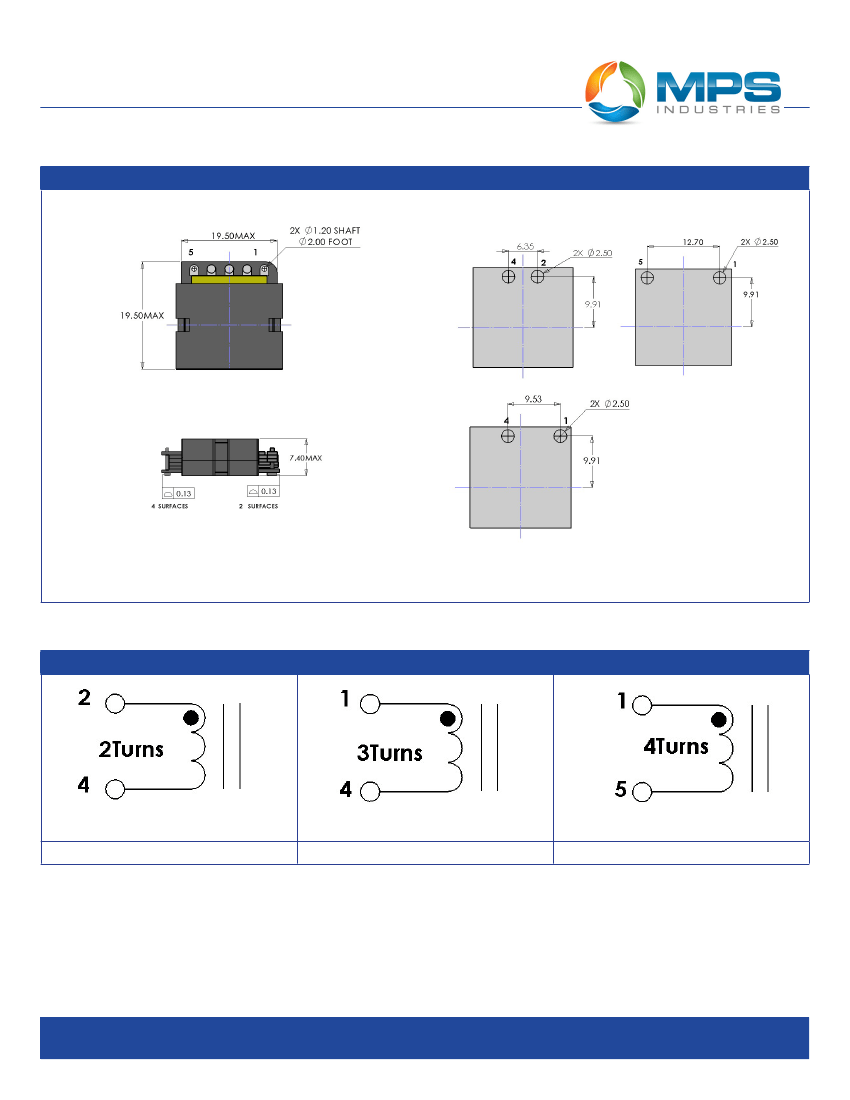

DIMENSIONS (mm)
SUGGESTED PAD LAYOUT
SCHEMATICS
Figure A
Figure B
Figure C
Product performance is limited to specified parameters. Data is subject to change without prior notice.
Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ±0.015 .XXX : ±0.004
mm: X,X : ±0,38 X,XX : ±0,10
Tel: 310-325-1043
Fax: 310-325-1044
www.mpsind.com
sales@mpsind.com
