PSF109222M Overview

MAGNETIC EPOXY SHIELDED SMT POWER INDUCTOR

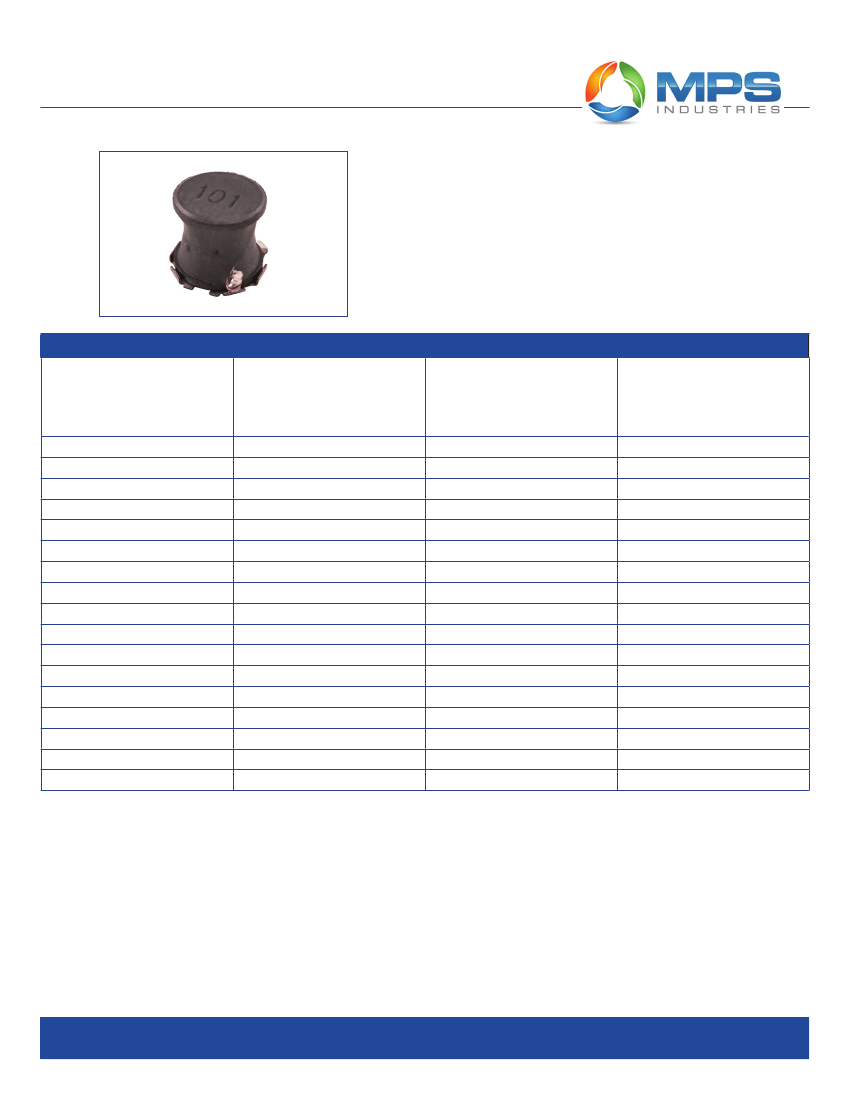

MAGNETIC EPOXY SHIELDED
SMT POWER INDUCTOR
PSF109 SERIES
Magnetic shielding using magnetic epoxy resin results in lower
costs as compared to traditional ferrite shielded inductors
Size: 10.5mm length x 10.3mm width x 10.0mm height
Operating Temperature -40ºC to +120ºC
RoHS Compliant Product
Custom Design Available
ELECTRICAL PARAMETERS @ 25°C
Part Number
PSF109-
101M
121M
151M
181M
221M
271M
331M
391M
471M
561M
681M
821M
102M
122M
152M
182M
222M
Note:
1.
Inductance measured at 100KHz, 1Vrms
2.
Isat: ∆L drops 30% max from its initial value
INDUCTANCE
(μH)
±20%
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
Isat
(Adc)
MAX
1.54
1.14
1.02
0.94
0.86
0.78
0.72
0.66
0.58
0.52
0.47
0.45
0.40
0.37
0.34
0.30
0.20
DCR
(Ω)
MAX
0.19
0.20
0.22
0.25
0.27
0.39
0.49
0.54
0.68
0.86
1.00
1.10
1.43
1.60
2.10
2.30
2.40
Product performance is limited to specified parameters. Data is subject to change without prior notice.
Tel: 310-325-1043
Fax: 310-325-1044
www.mpsind.com
