8700 E. Thomas Road

Scottsdale, AZ 85251

Tel: (480) 941-6300

Fax: (480) 947-1503

USB50403

thru

USB50424

DESCRIPTION (500 watt)

This 4 pin 1 line

unidirectional

ULTRA LOW CAPACITANCE

array is

designed for use in applications requiring board level protection from

voltage transients caused by electrostatic discharge (ESD) as defined

by IEC 1000-4-2, electrical fast transients (EFT) per IEC 1000-4-4 and

effects of secondary lightning.

These arrays are used to protect 1 discrete line utilizing pins (1,4 signal

and 2,3 ground). The S0T-143 product provides board level protection

from static electricity and other induced voltage surges that can

damage sensitive circuitry.

These TRANSIENT VOLTAGE SUPPRESSOR (TVS) Diode Arrays protect 3.3 Volt components such as

DRAM’s, SRAM’s, CMOS, HCMOS, HSIC, and low voltage interfaces up to 24Volts.

TVSarray ™ Series

FEATURES

•

Protects 3.3 up through 24V Components

Protects 1 line bidirectional

Provides electrically isolated protection

SOT-143 Packaging

ULTRA LOW CAPACITANCE 3 pF

MECHANICAL

•

Molded SOT-143 Surface Mount

Weight: .035 grams (approximate)

Body Marked with device marking

code

Pin #1 defined by DOT on top of

package

MAXIMUM RATINGS

•

Operating Temperatures: -55 C to +150 C

Storage Temperature: -55

C to +150

Peak Pulse Power: 500 Watts (8/20

µsec,

Figure 1)

Pulse Repetition Rate: <.01%

PACKAGING

•

Tape & Reel EIA Standard 481-1-A

7 inch reel 3,000 pieces

ELECTRICAL CHARACTERISTICS @ 25

C Unless otherwise specified

STAND

OFF

VOLTAGE

VOLTS

MAX

USB50403

USB50405

USB50412

USB50415

USB50424

3.3

5.0

12.0

15.0

24.0

BREAKDOWN

VOLTAGE

@1 mA

VOLTS

MIN

6.0

13.3

16.7

26.7

CLAMPING

VOLTAGE

@ 1 Amp

(FIGURE 2)

VOLTS

MAX

10.8

CLAMPING

VOLTAGE

@ 5 Amp

(FIGURE 2)

VOLTS

MAX

STAND OFF

CURRENT

@ V

µA

MAX

200

CAPACITANCE

(f=1 MHz)

@0V

MAX

TEMPERATURE

COEFFICIENT

OF V

VBR

mV/°C

MAX

-5

PART

NUMBER

DEVICE

MARKING

NOTE:

Transient Voltage Suppression (TVS) product is normally selected based on its stand off Voltage

. Product selected voltage should be equal to or greater than the continuous peak operating voltage of

the circuit to be protected.

MSC1372.PDF

ISO 9001 CERTIFIED

REV D 9/19/2000

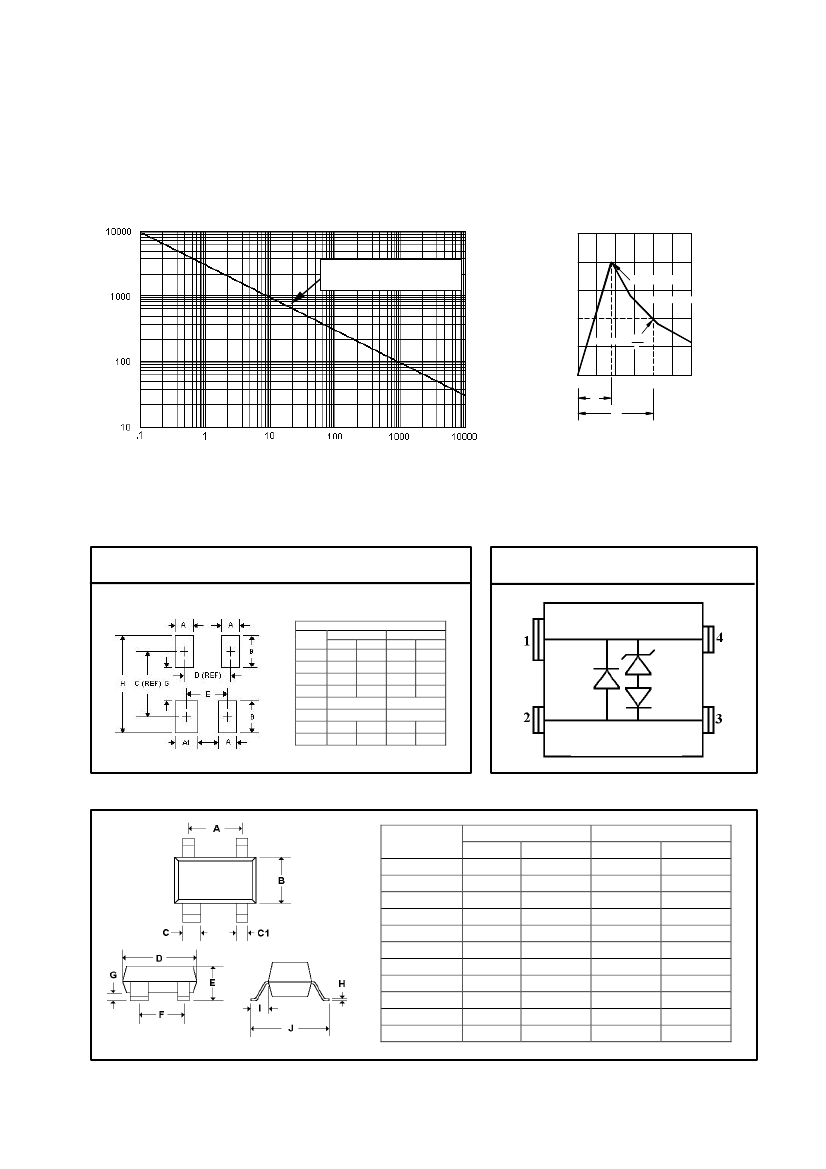

USB50424 Related Products

	USB50424	USB50415	USB50412	USB50405	USB50403
Description	TVSarray ⑩ Series	TVSarray ⑩ Series	TVSarray ⑩ Series	TVSarray ⑩ Series	TVSarray ⑩ Series
Is it lead-free?	-	Contains lead	-	Contains lead	Contains lead
Is it Rohs certified?	-	incompatible	-	incompatible	incompatible
Maker	-	Microsemi	-	Microsemi	Microsemi
package instruction	-	PLASTIC PACKAGE-4	-	PLASTIC PACKAGE-4	PLASTIC PACKAGE-4
Contacts	-	4	-	4	4
Reach Compliance Code	-	unknown	-	unknow	unknow
ECCN code	-	EAR99	-	EAR99	EAR99
Other features	-	ULTRA LOW CAPACITANCE	-	ULTRA LOW CAPACITANCE	ULTRA LOW CAPACITANCE
Minimum breakdown voltage	-	16.7 V	-	6 V	4 V
Shell connection	-	CATHODE	-	CATHODE	CATHODE
Configuration	-	COMMON BIPOLAR TERMINAL, 2 ELEMENTS	-	COMMON BIPOLAR TERMINAL, 2 ELEMENTS	COMMON BIPOLAR TERMINAL, 2 ELEMENTS
Diode component materials	-	SILICON	-	SILICON	SILICON
Diode type	-	TRANS VOLTAGE SUPPRESSOR DIODE	-	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	-	R-PDSO-G4	-	R-PDSO-G4	R-PDSO-G4
JESD-609 code	-	e0	-	e0	e0
Maximum non-repetitive peak reverse power dissipation	-	500 W	-	500 W	500 W
Number of components	-	2	-	2	2
Number of terminals	-	4	-	4	4
Maximum operating temperature	-	150 °C	-	150 °C	150 °C
Minimum operating temperature	-	-55 °C	-	-55 °C	-55 °C
Package body material	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
polarity	-	UNIDIRECTIONAL	-	UNIDIRECTIONAL	UNIDIRECTIONAL
Certification status	-	Not Qualified	-	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	-	15 V	-	5 V	3.3 V
surface mount	-	YES	-	YES	YES
technology	-	AVALANCHE	-	AVALANCHE	AVALANCHE
Terminal surface	-	TIN LEAD	-	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	-	GULL WING	-	GULL WING	GULL WING
Terminal location	-	DUAL	-	DUAL	DUAL
Maximum time at peak reflow temperature	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
