SA5212D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> SA5212D

SA5212D: DescriptionIC SPECIALTY ANALOG CIRCUIT, PDSO8, PLASTIC, SOIC-8, Analog IC:Other; CategoryAnalog mixed-signal IC The signal circuit; File Size428KB，14 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

SA5212D Overview

IC SPECIALTY ANALOG CIRCUIT, PDSO8, PLASTIC, SOIC-8, Analog IC:Other

SA5212D Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G8
length	4.9 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

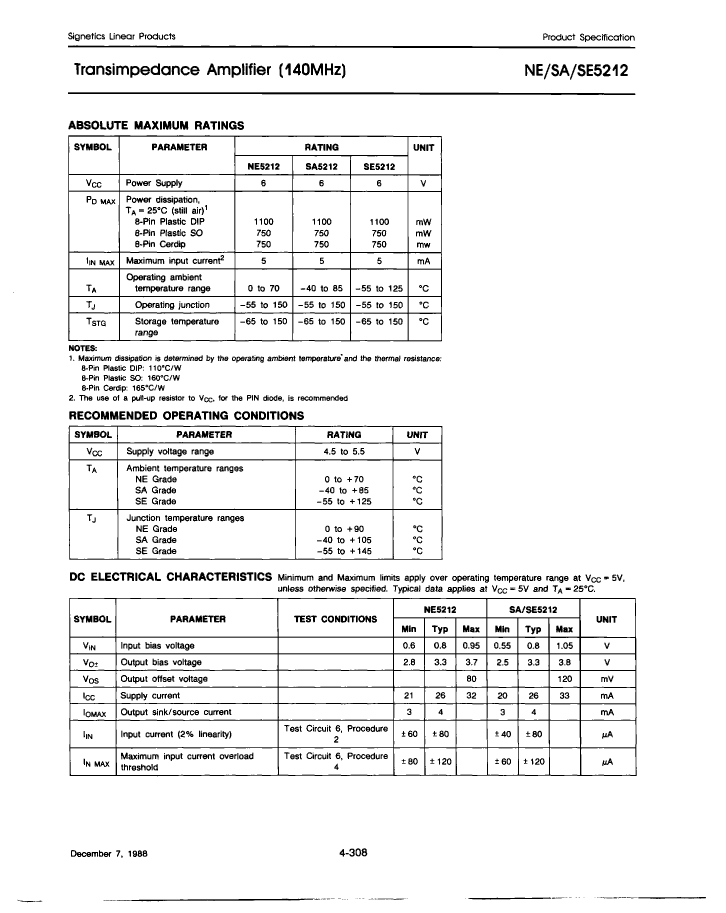

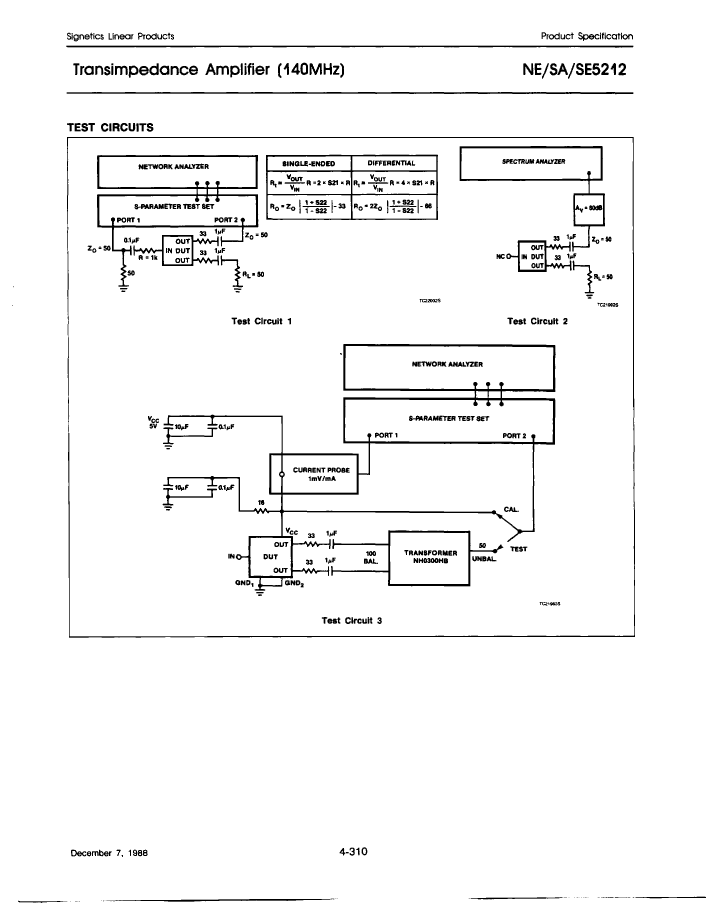

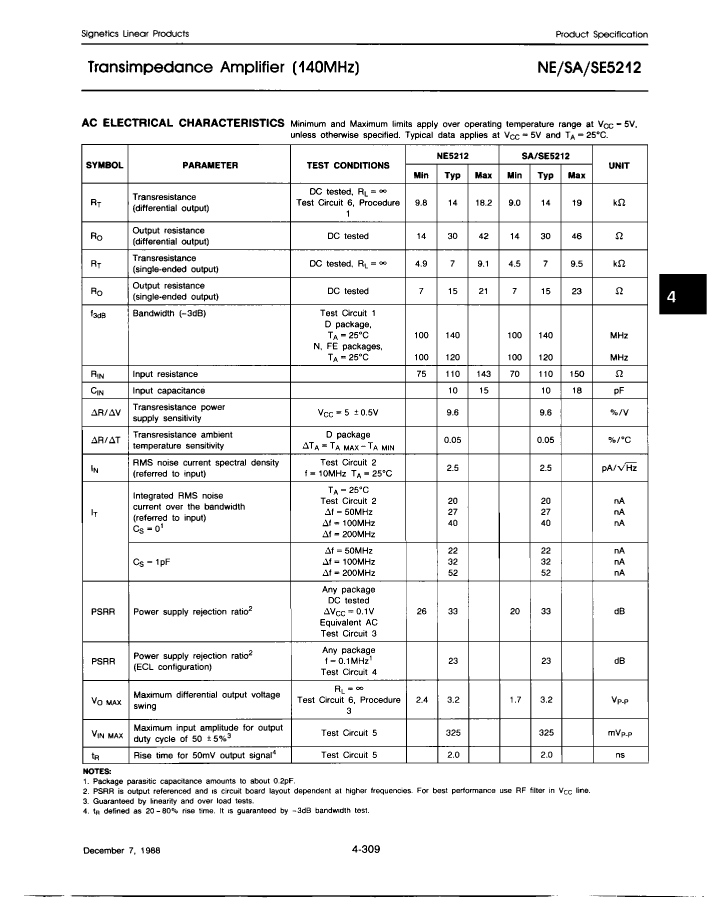

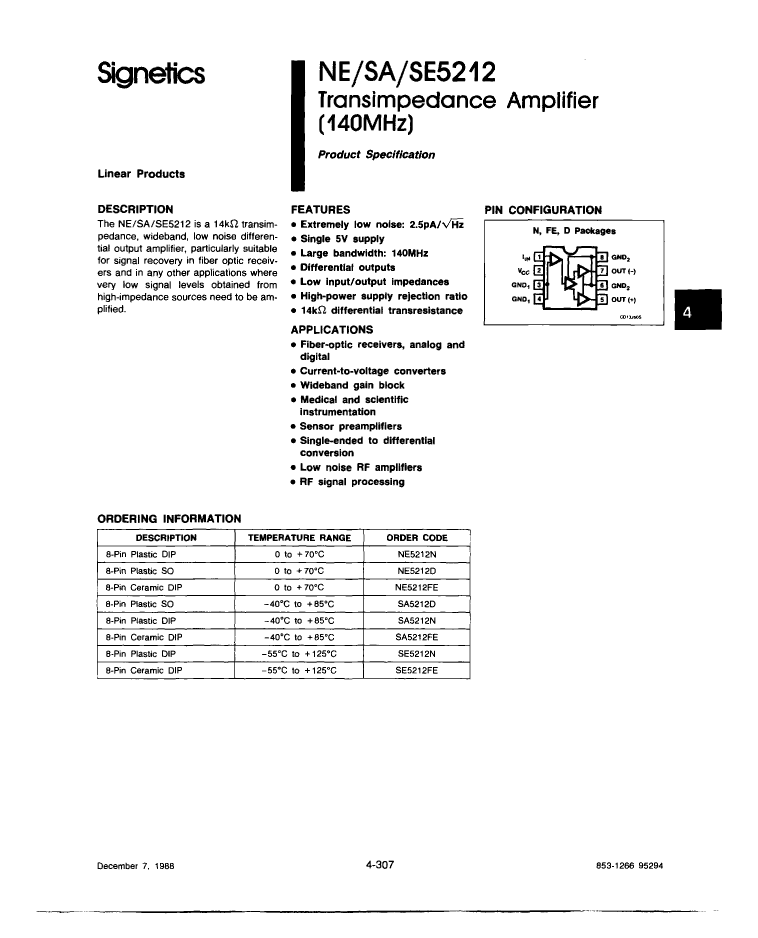

Preview

Download Datasheet

View All

SA5212D Related Products

	SA5212D	SA5212D-T	NE5212N	NE5212D-T	SE5212FE	NE5212D	SA5212FE
Description	IC SPECIALTY ANALOG CIRCUIT, PDSO8, PLASTIC, SOIC-8, Analog IC:Other	IC SPECIALTY ANALOG CIRCUIT, PDSO8, PLASTIC, SOIC-8, Analog IC:Other	IC SPECIALTY ANALOG CIRCUIT, PDIP8, PLASTIC, DIP-8, Analog IC:Other	IC SPECIALTY ANALOG CIRCUIT, PDSO8, PLASTIC, SOIC-8, Analog IC:Other	IC SPECIALTY ANALOG CIRCUIT, CDIP8, CERDIP-8, Analog IC:Other	IC SPECIALTY ANALOG CIRCUIT, PDSO8, PLASTIC, SOIC-8, Analog IC:Other	IC SPECIALTY ANALOG CIRCUIT, CDIP8, CERDIP-8, Analog IC:Other
Parts packaging code	SOIC	SOIC	DIP	SOIC	DIP	SOIC	DIP
package instruction	SOP,	SOP,	DIP,	SOP,	DIP,	SOP,	DIP,
Contacts	8	8	8	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDIP-T8	R-PDSO-G8	R-GDIP-T8	R-PDSO-G8	R-GDIP-T8
length	4.9 mm	4.9 mm	9.425 mm	4.9 mm	9.955 mm	4.9 mm	9.955 mm
Number of functions	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	70 °C	70 °C	125 °C	70 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-	-55 °C	-	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	SOP	SOP	DIP	SOP	DIP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	4.06 mm	1.75 mm	5.08 mm	1.75 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	NO	YES	NO
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	3.9 mm	3.9 mm	7.62 mm	3.9 mm	7.62 mm	3.9 mm	7.62 mm
Maker	NXP	-	-	-	NXP	NXP	NXP
