MIC4424AJB datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> MIC4424AJB

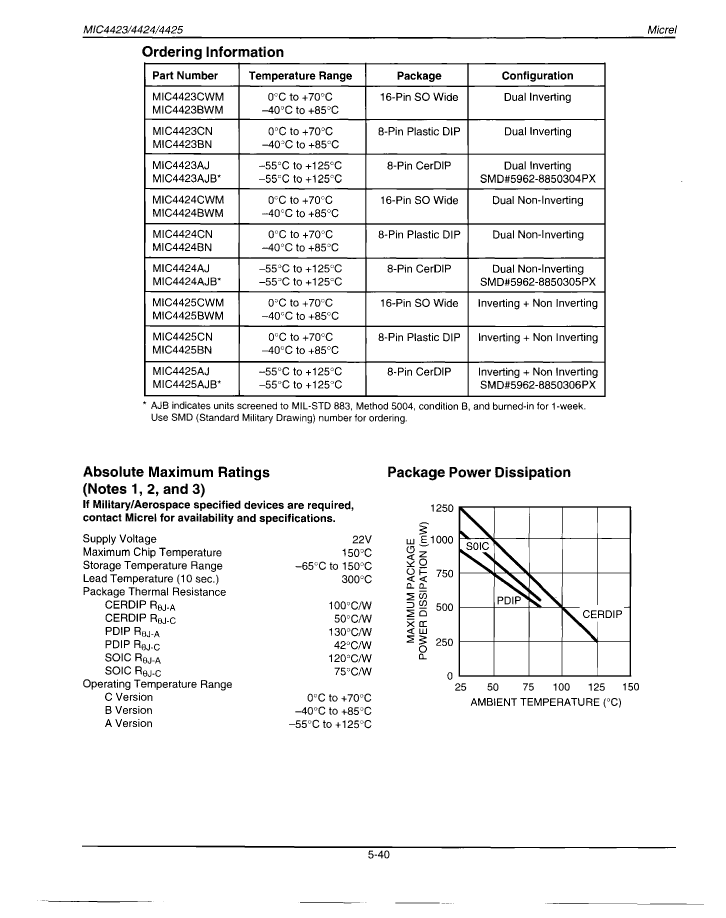

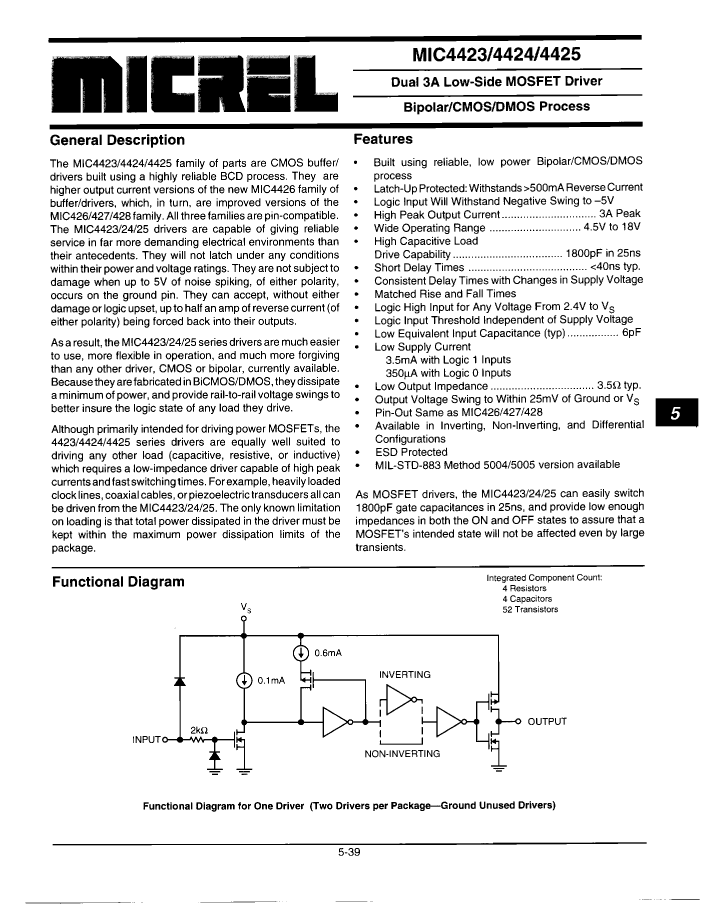

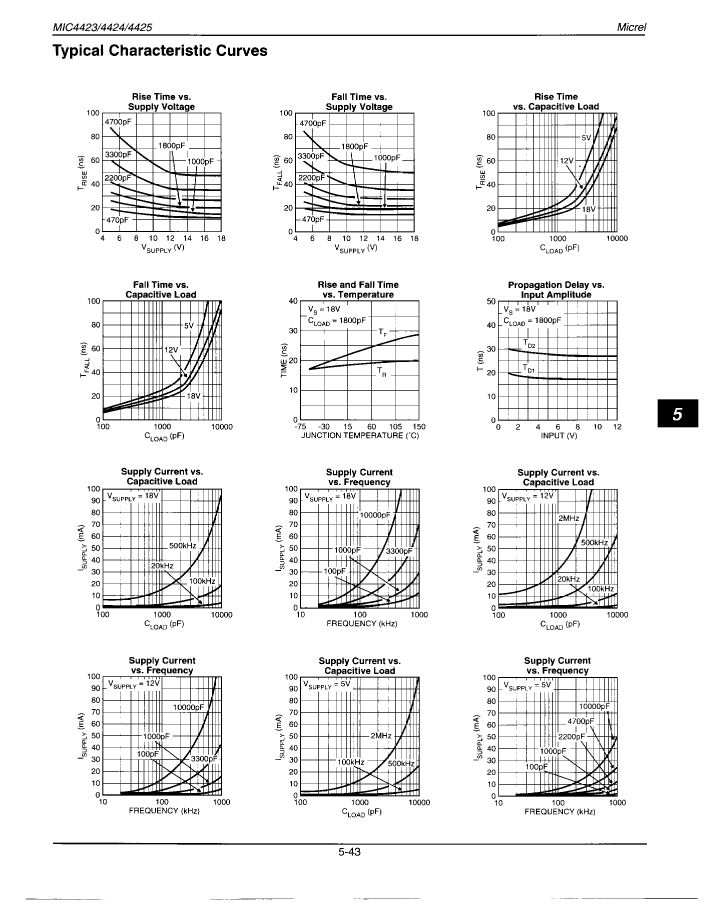

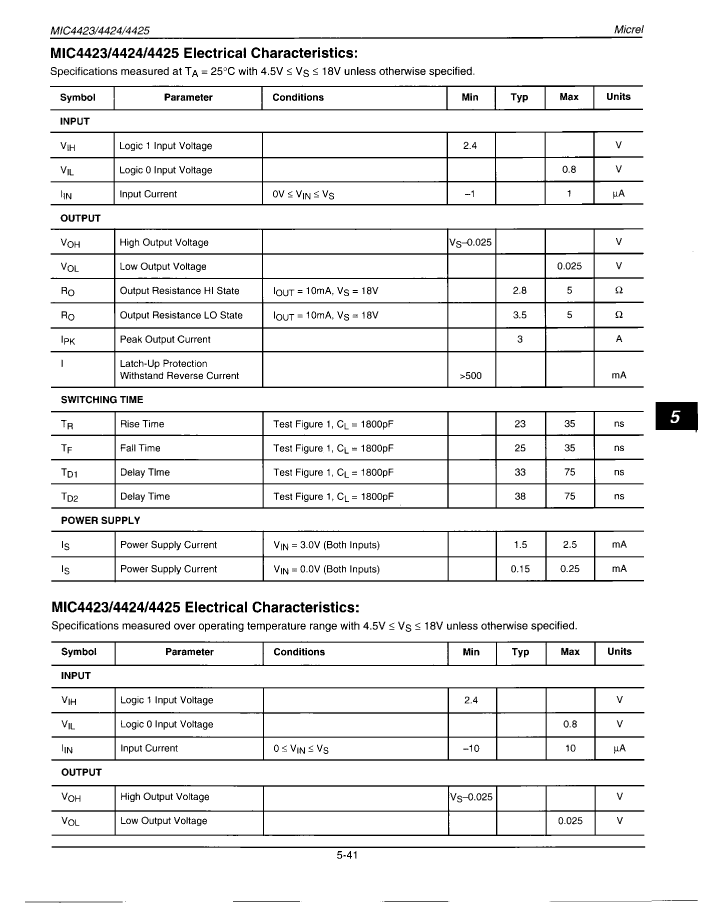

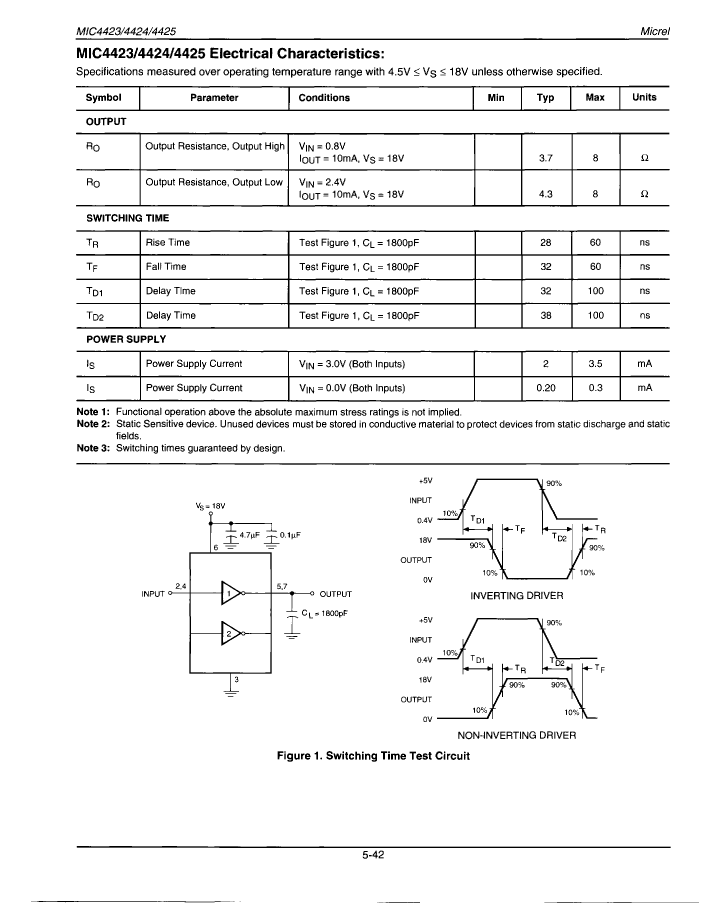

Preview

MIC4424AJB: DescriptionBuffer/Inverter Based MOSFET Driver, 3A, BICMOS, CDIP8, CERDIP-8; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size506KB，11 Pages; ManufacturerMicrel ( Microchip ); Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

MIC4424AJB Overview

Buffer/Inverter Based MOSFET Driver, 3A, BICMOS, CDIP8, CERDIP-8

MIC4424AJB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Micrel ( Microchip )
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
high side driver	NO
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
length	9.652 mm
Number of functions	2
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	TOTEM-POLE
Nominal output peak current	3 A
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	4.5/18 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum slew rate	3.5 mA
Maximum supply voltage	18 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	BICMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Disconnect time	0.1 µs
connection time	0.1 µs
width	7.62 mm

Preview

Download Datasheet

View All

MIC4424AJB Related Products

	MIC4424AJB	MIC4423AJB	MIC4425AJB
Description	Buffer/Inverter Based MOSFET Driver, 3A, BICMOS, CDIP8, CERDIP-8	Buffer/Inverter Based MOSFET Driver, 3A, BICMOS, CDIP8, CERDIP-8	Buffer/Inverter Based MOSFET Driver, 3A, BICMOS, CDIP8, CERDIP-8
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP
package instruction	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3
Contacts	8	8	8
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
high side driver	NO	NO	NO
Input properties	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	R-GDIP-T8	R-GDIP-T8	R-GDIP-T8
JESD-609 code	e0	e0	e0
length	9.652 mm	9.652 mm	9.652 mm
Number of functions	2	2	2
Number of terminals	8	8	8
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE
Nominal output peak current	3 A	3 A	3 A
Output polarity	TRUE	INVERTED	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP8,.3	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	4.5/18 V	4.5/18 V	4.5/18 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	5.08 mm	5.08 mm	5.08 mm
Maximum slew rate	3.5 mA	3.5 mA	3.5 mA
Maximum supply voltage	18 V	18 V	18 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	BICMOS	BICMOS	BICMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Disconnect time	0.1 µs	0.1 µs	0.1 µs
connection time	0.1 µs	0.1 µs	0.1 µs
width	7.62 mm	7.62 mm	7.62 mm
Maker	Micrel ( Microchip )	-	Micrel ( Microchip )
