MT46V32M8TG-5B:G datasheet, PDF

Datasheet> All Categories > storage> storage> MT46V32M8TG-5B:G

MT46V32M8TG-5B:G: DescriptionDDR DRAM, 32MX8, 0.7ns, CMOS, PDSO66, 0.400 INCH, PLASTIC, TSOP-66; Categorystorage storage; File Size3MB，90 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric View All

MT46V32M8TG-5B:G Overview

DDR DRAM, 32MX8, 0.7ns, CMOS, PDSO66, 0.400 INCH, PLASTIC, TSOP-66

MT46V32M8TG-5B:G Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Micron Technology
Parts packaging code	TSOP
package instruction	0.400 INCH, PLASTIC, TSOP-66
Contacts	66
Reach Compliance Code	not_compliant
ECCN code	EAR99
access mode	FOUR BANK PAGE BURST
Maximum access time	0.7 ns
Other features	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	200 MHz
I/O type	COMMON
interleaved burst length	2,4,8
JESD-30 code	R-PDSO-G66
JESD-609 code	e0
length	22.22 mm
memory density	268435456 bit
Memory IC Type	DDR DRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	66
word count	33554432 words
character code	32000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP66,.46
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	235
power supply	2.6 V
Certification status	Not Qualified
refresh cycle	8192
Maximum seat height	1.2 mm
self refresh	YES
Continuous burst length	2,4,8
Maximum standby current	0.004 A
Maximum slew rate	0.47 mA
Maximum supply voltage (Vsup)	2.7 V
Minimum supply voltage (Vsup)	2.5 V
Nominal supply voltage (Vsup)	2.6 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	10.16 mm

Preview

Download Datasheet

View All

256Mb: x4, x8, x16 DDR SDRAM

Features

Double Data Rate (DDR) SDRAM

MT46V64M4 – 16 Meg x 4 x 4 banks

MT46V32M8 – 8 Meg x 8 x 4 banks

MT46V16M16 – 4 Meg x 16 x 4 banks

Features

• V

= +2.5V ±0.2V, V

Q = +2.5V ±0.2V

= +2.6V ±0.1V, V

Q = +2.6V ±0.1V (DDR400)

• Bidirectional data strobe (DQS) transmitted/

received with data, that is, source-synchronous data

capture (x16 has two – one per byte)

• Internal, pipelined double-data-rate (DDR)

architecture; two data accesses per clock cycle

• Differential clock inputs (CK and CK#)

• Commands entered on each positive CK edge

• DQS edge-aligned with data for READs; center-

aligned with data for WRITEs

• DLL to align DQ and DQS transitions with CK

• Four internal banks for concurrent operation

• Data mask (DM) for masking write data

(x16 has two – one per byte)

• Programmable burst lengths (BL): 2, 4, or 8

• Auto refresh

–

64ms, 8192-cycle

• Longer-lead TSOP for improved reliability (OCPL)

• 2.5V I/O (SSTL_2-compatible)

• Concurrent auto precharge option supported

•

RAS lockout supported (

RAP =

RCD)

Options

• Configuration

–

64 Meg x 4 (16 Meg x 4 x 4 banks)

–

32 Meg x 8 (8 Meg x 8 x 4 banks)

–

16 Meg x 16 (4 Meg x 16 x 4 banks)

• Plastic package – OCPL

–

66-pin TSOP

–

66-pin TSOP (Pb-free)

• Plastic package

–

60-ball FBGA (8mm x 12.5mm)

–

60-ball FBGA (8mm x 12.5mm)

(Pb-free)

• Timing – cycle time

–

5ns @ CL = 3 (DDR400)

–

6ns @ CL = 2.5 (DDR333) FBGA only

–

6ns @ CL = 2.5 (DDR333) TSOP only

• Self refresh

–

Standard

–

Low-power self refresh

• Temperature rating

–

Commercial (0°C to +70°C)

–

Industrial (–40°C to +85°C)

• Revision

–

x4, x8, x16

–

x4, x8, x16

Marking

64M4

32M8

16M16

-5B

-6

-6T

None

Notes: 1. DDR400 devices operating at < DDR333

conditions can use VDD/VDDQ = +2.5V

+0.2V.

2. Available only on Revision K.

3. Available only on Revision M.

4. Not recommended for new designs.

Table 1:

Key Timing Parameters

CL = CAS (READ) latency; MIN clock rate with 50% duty cycle at CL = 2 (-75E, -75Z), CL = 2.5 (-6, -6T, -75), and

CL = 3 (-5B)

Clock Rate (MHz)

Speed Grade

-5B

-6

-75E/-75Z

-75

CL = 2

133

100

CL = 2.5

167

133

CL = 3

200

n/a

Data-Out Window

1.6ns

2.1ns

2.0ns

2.5ns

Access

Window

±0.70ns

±0.75ns

DQS–DQ Skew

+0.40ns

+0.45ns

+0.50ns

PDF: 09005aef80768abb/Source: 09005aef82a95a3a

256Mb_DDR_x4x8x16_D1.fm - 256Mb DDR: Rev. P, Core DDR: Rev. D 2/11 EN

Micron Technology, Inc., reserves the right to change products or specifications without notice.

Products and specifications discussed herein are subject to change by Micron without notice.

256Mb: x4, x8, x16 DDR SDRAM

Table of Contents

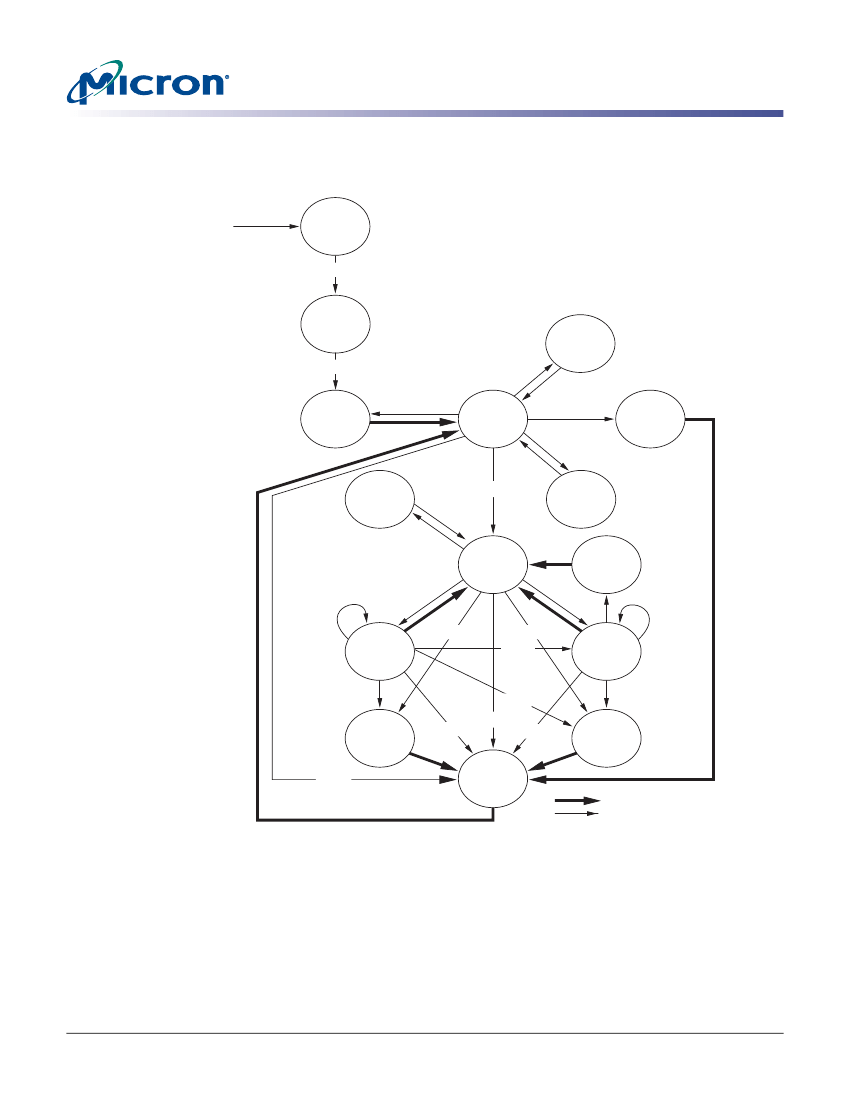

State Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

General Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Functional Block Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Pin and Ball Assignments and Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Package Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Electrical Specifications – DC and AC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

DESELECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

NO OPERATION (NOP). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

LOAD MODE REGISTER (LMR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

ACTIVE (ACT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

READ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

WRITE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

PRECHARGE (PRE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

BURST TERMINATE (BST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

AUTO REFRESH (AR). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

SELF REFRESH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

INITIALIZATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

REGISTER DEFINITION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

ACTIVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

READ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

WRITE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

PRECHARGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

AUTO REFRESH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

SELF REFRESH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Power-down (CKE Not Active) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
