8121SHZGE1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 8121SHZGE1

8121SHZGE1: DescriptionPUSHBUTTON SWITCH, SPDT, MOMENTARY, 1A, 28VDC, PANEL MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size1MB，17 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric Compare View All

8121SHZGE1 Overview

PUSHBUTTON SWITCH, SPDT, MOMENTARY, 1A, 28VDC, PANEL MOUNT, ROHS COMPLIANT

8121SHZGE1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	C&K
package instruction	ROHS COMPLIANT
Reach Compliance Code	not_compliant
ECCN code	EAR99
Actuator type	PLUNGER
body width	6.86 mm
body height	10.41 mm
Body length or diameter	12.7 mm
Contact (AC) maximum rated R load	1A@120VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@28VDC
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Electrical life	60000 Cycle(s)
JESD-609 code	e4
Installation features	PANEL MOUNT
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Termination type	SOLDER

Preview

Download Datasheet

View All

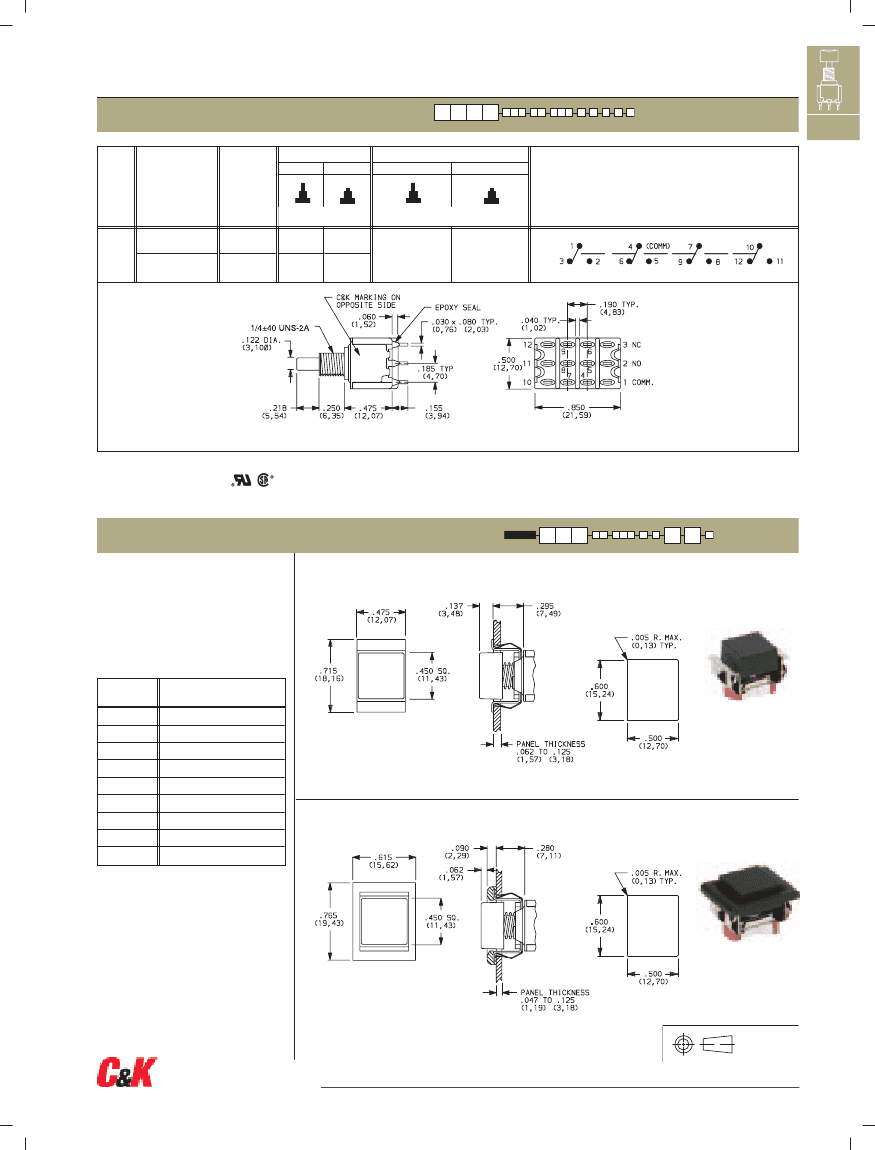

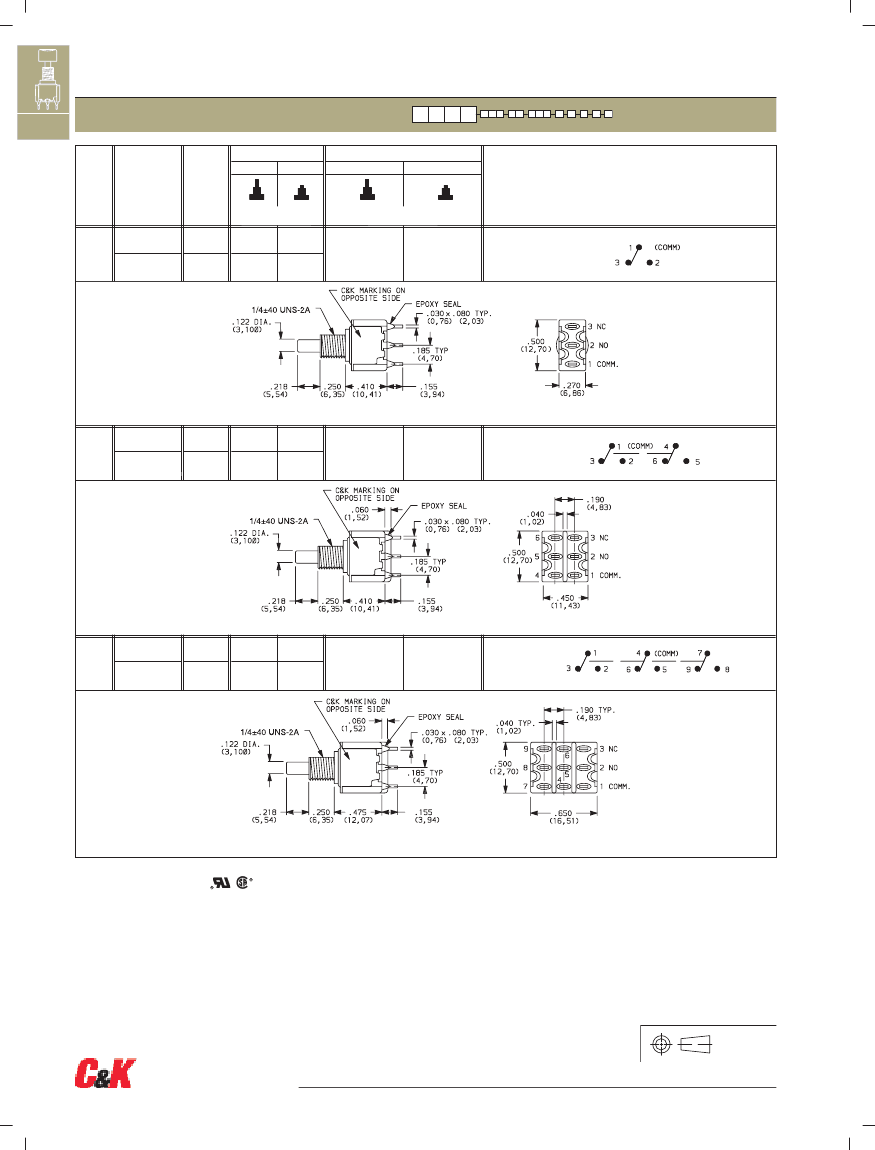

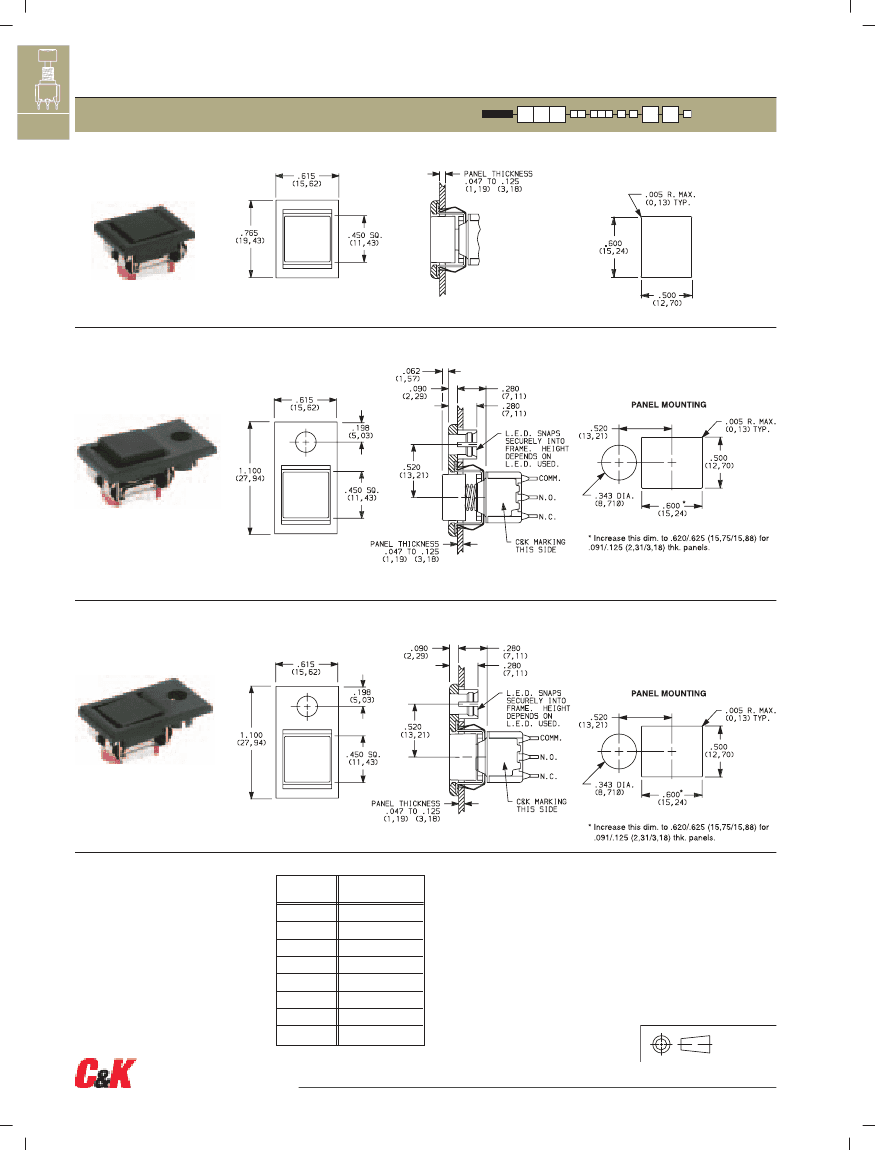

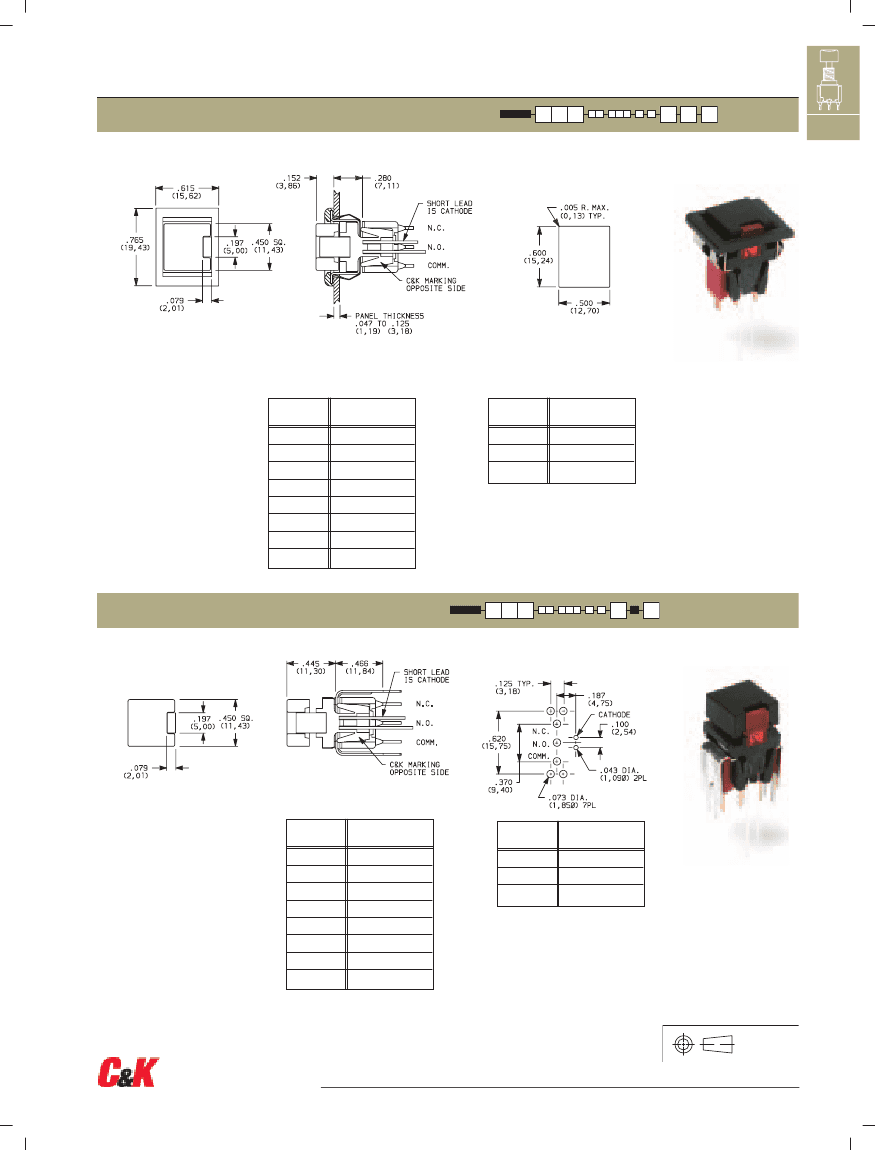

8020 Series

Snap-acting Momentary Pushbutton Switches

Features/Benefits

•

Positive tactile feel

•

Multi-positions available

•

Wide variety of termination options

•

Epoxy terminal seal compatible with

bottom wash cleaning

Typical Applications

•

Instrumentation

•

Computer peripherals

•

Telecommunications equipment

Pushbutton

•

RoHS compliant models available

Models Available

Specifications

CONTACT RATING: B contact material (8X25 Models): 0.4 VA max.

@ 20 V AC or DC maximum. G contact material (8X21, U8X1

Models): 1 AMP @ 120 V AC or 28 V DC or 0.4 VA max. @ 20 V

AC or DC max. Note: Break-before-makecontacts. Multi-pole

contacts do not make and break simultaneously. See page A-43

for additional ratings.

ELECTRICAL LIFE: 60,000 make-and-break cycles at full load.

CONTACT RESISTANCE: Below 50 mΩ typ. initial @

2-4 V DC, 100 mA, for both silver and gold plated contacts.

INSULATION RESISTANCE: 109

Ω

min.

DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.

OPERATING TEMPERATURE: 8X2X MODELS: –30ºC to 75ºC.

U8X1 MODELS: –30ºC to 65ºC.

CAP INSTALLATION FORCE: 10 lbs. max. permissible.

SOLDERABILITY: Per MIL-STD-202F method 208D, or EIA RS-186E

method 9 (1 hour steam aging).

NOTE:

Any models supplied with B, P, R, or G contact material are RoHS compliant.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Materials

CASE: Glass filled nylon 6/6 or diallyl phthalate (DAP),

flame retardant (UL 94V-0).

PLUNGER: Glass filled nylon or glass filled polyester (PBT) (UL 94V-0).

CAP & FRAME: Nylon, black, standard.

BUSHING: Brass or zinc, nickel plated.

HOUSING: Stainless steel.

SWITCH SUPPORT: Brass or steel, matte-tin plated.

N.O. & N.C. CONTACTS: 8X21, U8X1 MODELS: G contact material:

Coin silver, with gold plate over nickel plate. See page A-43 for

additional contact materials.

8X25 MODELS: B contact material: Copper alloy, with gold plate

over nickel plate. See page A-43 for additional contact materials.

COMMON CONTACT & ALL TERMINALS: Copper alloy, with gold

plate over nickel plate.

TERMINAL SEAL: Epoxy. Refer to slodering and cleaning

Technical Data Chapter.

HARDWARE: Nut & Locking Ring: Brass, nickel plated;

Lockwasher: Steel, nickel plated.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown

and described on pages A-30 thru A-45. For additional options not shown in catalog, consult Customer Service Center. All

models have epoxy terminal seal and are compatible with all “bottom-wash” PCB cleaning methods.

Switch Function

8121

SPDT On-Mom. 1 Amp

8125

SPDT On-Mom. 0.4VA

8221

DPDT On-Mom. 1 Amp

8225

DPDT On-Mom. 0.4VA

8321

3PDT On-Mom. 1 Amp

8325

3PDT On-Mom. 0.4VA

8421

4PDT On-Mom. 1 Amp

8425

4PDT On-Mom. 0.4VA

Note:

UL/CSA models

available, see page A-30

and A-31.

Actuator or Plunger

Plunger

NONE

Snap-in

J80

Snap-in

J81

Snap-in w/frame

J82

Snap-in w/frame for LED

J83

Snap-in w/frame &

flush cap

J84

Snap-in w/frame for LED,

flush cap

J85

Snap-in w/frame & LED

J95

PC w/V-bracket & LED

Plunger

Snap-fitting plunger

Bushing

.280" high, keyway

.250" high, flat

NONE

No bushing

choice required

.280" high, keyway

.288" high, flat

.180" high

.288" high, flat

.250" high, flat, hi torque

.350" high, keyway

6.35mm high,

keyway, hi torque

.378" high, flat, hi torque

.350" high, keyway

Contact Material

Gold

Gold, matte-tin

Gold over silver

Gold over silver,

matte-tin

Terminations

Right angle, PC thru-hole

AV2

Vertical right angle, PC thru-hole

PC Thru-hole

Solder lug

Right angle, PC thru-hole

Right angle, snap-in, PC thru-hole

Seal

Epoxy

Epoxy potted

base

Cap Color

Black

NONE

Models

without caps

White

Red

.555" high, V-bracket

.460" high, V-bracket

.630" high, V-bracket

.460" high, V-bracket

.630" high, V-bracket

.953" high, V-bracket

1.150" high, V-bracket

Frame Color

Black

NONE

Models

without frame

White

Red

Yellow

Green

Gray

LED Color

Red

NONE

Models

without LED

Yellow

Green

Orange

Yellow

Green

Blue

Gray

Right angle, PC thru-hole, reversed terminals

Right angle, PC thru-hole

Vertical right angle, PC thru-hole

AV1

Vertical right angle, PC thru-hole

AV3

Vertical right angle, snap-in, PC thru-hole

Right angle with PCB

Right angle with PCB, reversed terminals

V31

.460" high, snap-in V-bracket

V61

.460" high, snap-in V-bracket

.750" long, wire wrap

.964" long, wire wrap

.425" long, wire wrap

1.062" long, wire wrap

Quick connect

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

A–29

www.ck-components.com

8121SHZGE1 Related Products

	8121SHZGE1	8125SD8RBE	8121SHZGE2	8121SDR2GE	8121SD9AGE2
Description	PUSHBUTTON SWITCH, SPDT, MOMENTARY, 1A, 28VDC, PANEL MOUNT, ROHS COMPLIANT	PUSHBUTTON SWITCH, SPDT, MOMENTARY-TACTILE, 0.02A, 20VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT	PUSHBUTTON SWITCH, SPDT, MOMENTARY, 1A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT	PUSHBUTTON SWITCH, SPDT, MOMENTARY-TACTILE, 1A, 28VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT	PUSHBUTTON SWITCH, SPDT, MOMENTARY, 1A, 28VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	C&K	C&K	C&K	C&K	C&K
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	not_compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	PLUNGER	PLUNGER	PLUNGER	PLUNGER	PLUNGER
body width	6.86 mm	9.27 mm	6.86 mm	9.27 mm	12.7 mm
body height	10.41 mm	7.21 mm	10.41 mm	7.21 mm	6.86 mm
Body length or diameter	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm
Contact (AC) maximum rated R load	1A@120VAC	.02A@20VAC	1A@120VAC	1A@120VAC	1A@120VAC
Maximum contact current (AC)	1 A	0.02 A	1 A	1 A	1 A
Maximum contact current (DC)	1 A	0.02 A	1 A	1 A	1 A
Contact (DC) maximum rated R load	1A@28VDC	.02A@20VDC	1A@28VDC	1A@28VDC	1A@28VDC
Maximum contact voltage (AC)	120 V	20 V	120 V	120 V	120 V
Maximum contact voltage (DC)	28 V	20 V	28 V	28 V	28 V
Electrical life	60000 Cycle(s)	60000 Cycle(s)	60000 Cycle(s)	60000 Cycle(s)	60000 Cycle(s)
JESD-609 code	e4	e4	e4	e4	e4
Installation features	PANEL MOUNT	THROUGH HOLE-RIGHT ANGLE	PANEL MOUNT-THREADED	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
seal	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED
surface mount	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY-TACTILE	MOMENTARY	MOMENTARY-TACTILE	MOMENTARY
switch function	SPDT	SPDT	SPDT	SPDT	SPDT
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
