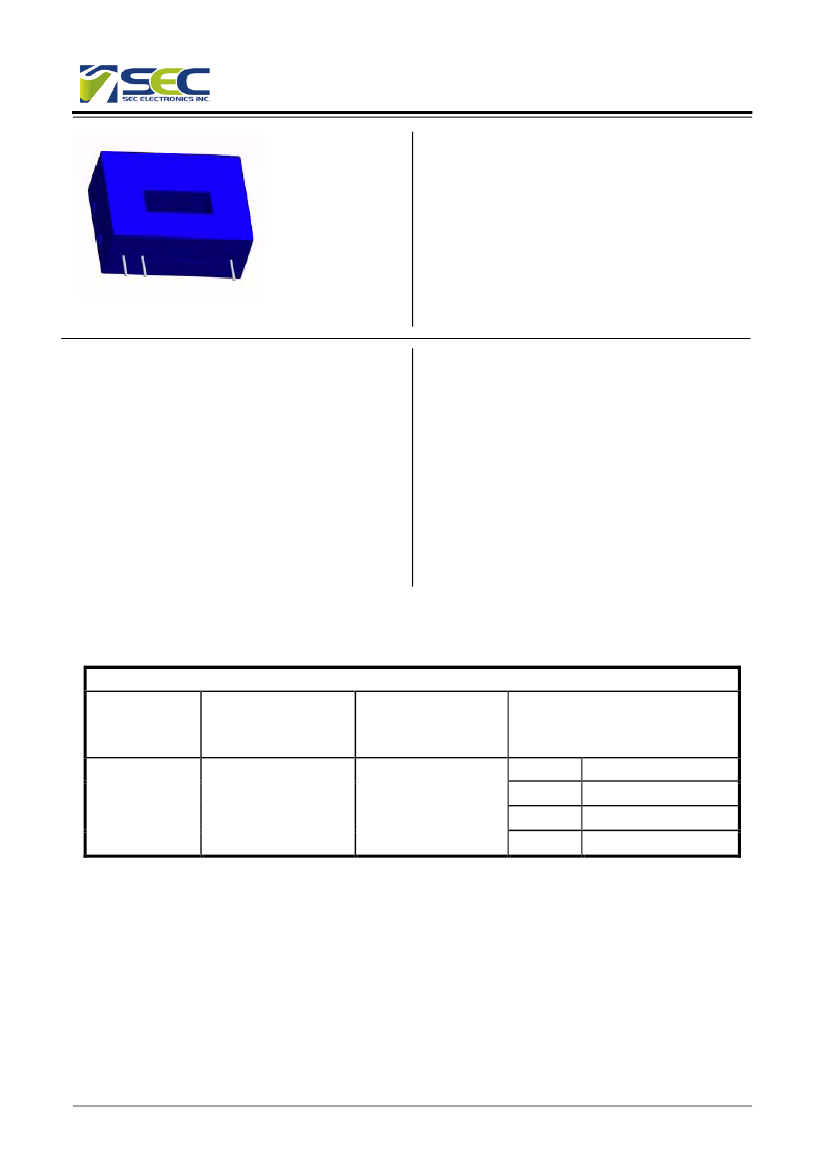

SICDS50V6
Current Sensors
Features
Hall effect measuring principle
Galvanic isolation between primary and
secondary circuit
Low power consumption
Extended measuring range
Insulated plastic case recognized according
to UL 94-V0
I
PN
= 50A
Advantages
Very good linearity
Excellent accuracy
Low temperature drift
Wide frequency bandwidth
Optimized response time
No insertion losses
High immunity against external
Interference
Excellent performance and price
Industrial applications
AC variable speed drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Power supplies for welding applications
Static converters for DC motor drives
Switched-Mode Power Supplies (SMPS)
Type
TYPES OF PRODUCTS
Primary nominal
Primary current
Measuring resistance (@70℃)
current
measuring range
R
M
(Ω)
r. m. s I
PN
(A)
I
P
(A)
10~100
with±12V@±50Amax
with±12V@±70Amax
with±15V@±50Amax
with±15V@±70Amax
10 ~ 50
50~160
50 ~ 90
SICDS50V6
50
0~±70
General Description
For the electronic measurement of currents: DC, AC, pulsed, mixed, with a galvanic isolation between
the primary circuit (high power) and the secondary circuit (electronic circuit)
1
V2.00 May 1, 2012
SICDS50V6
Current Sensors
Parameters Table
PARAMETERS
Supply voltage(±5%)
Current consumption
Secondary nominal r.m.s.
current
Conversion ratio
Linearity
Accuracy
Offset current
Thermal drift of Io
Response time
di/dt accurately followed
Frequency bandwidth (1)
Ambient operating temperature
Ambient storage temperature
Secondary coil resistance
R. m. s voltage for AC isolation
test
Impulse withstand voltage
1.2/50us
Creepage distance
Clearance distance
Comparative Tracking Index
SYMBOL
V
C
I
C
I
SN
K
N
ε
L
X
G
I
O
I
OT
t
r
d
i
/dt
BW
T
A
T
S
Rs
%
%
mA
mA
µS
A/µS
kHz
General data
℃
℃
Ω
-40 ~ +85
-40 ~ +90
80
@ T
A
= 70°C
UNIT
V
mA
mA
VALUE
±12…15
10(@±15)+I
s
50
1:1000
<±0.15
<±0.65
<±0.90
<±0.20
Typ
±0.1
±0.2
<1
>200
DC~200
@-1dB
Max
±0.6
±1.0
@ I
P
= 0,-25°C½+85°C
@ I
P
= 0,-40°C½-25°C
@ 90% of I
PN
step
@ I
PN
, V
C
= ±15V, T
A
= 25°C
@ I
PN
, V
C
= ±12…15V,
T
A
= 25°C
@ I
P
= 0,T
A
= 25°C
@I
PN
CONDITIONS
Electrical data
Accuracy - Dynamic performance data
Isolation characteristics
V
d
V
w
dCp
dCI
CTI
KV
KV
mm
mm
2.5
5.7
5
5
175
Group IIIa
@50Hz, 1 min
Notes:
Please refer to derating curves in the technical file to avoid excessive core heating at high frequency.
2
V2.00 May 1, 2012
SICDS50V6
Current Sensors

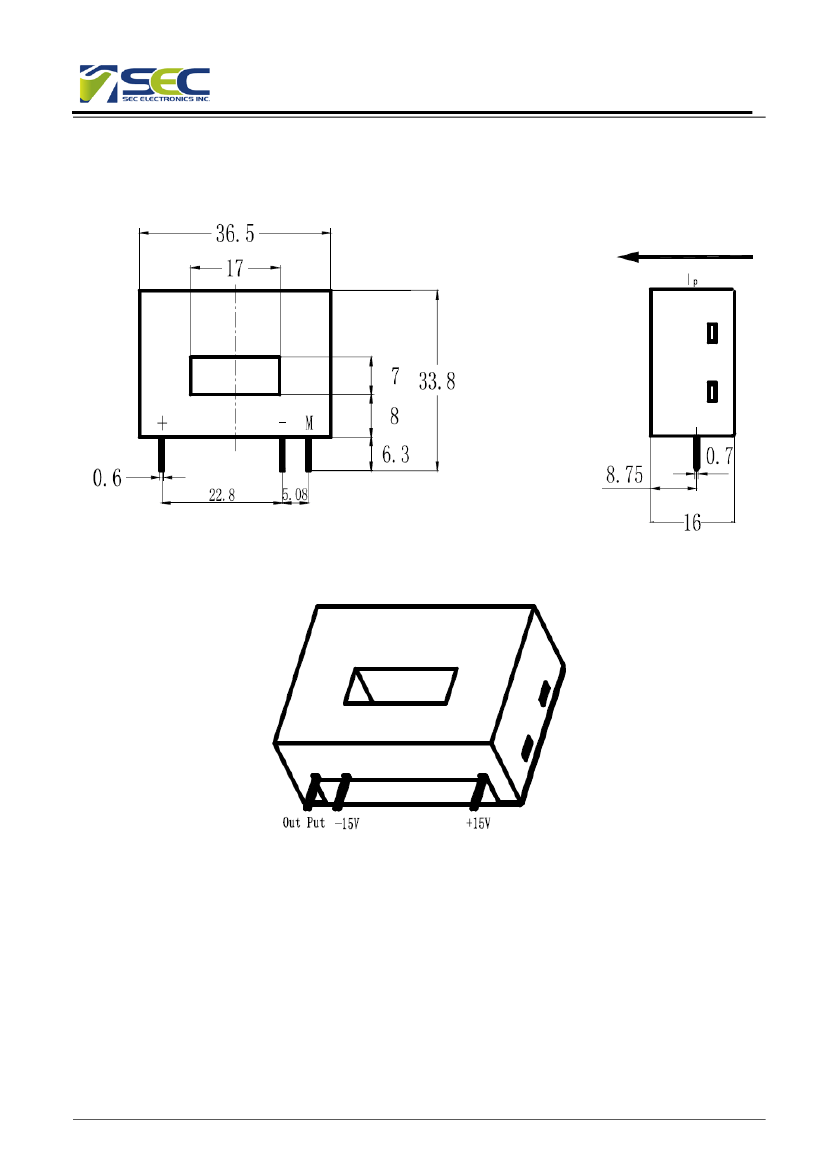

Dimensions SICDS50V6
(
in mm. 1 mm = 0.0394 inch
)
Instructions of use
1
When the test current passes through the sensor, you can get the size of the output current. (Warning: wrong
connection may lead to sensors damage.)
2
I
s
is positive when I
p
flows in the direction of the arrow.
3
In order to achieve the best magnetic coupling, the primary windings have to be wound over the top edge of the
device.
4
According to user needs, different rated input currents and output currents of the sensors can be customized.
3
V2.00 May 1, 2012
SICDS50V6
Current Sensors
RESTRICTIONS ON PRODUCT USE
The information contained herein is subject to change without notice.
SEC ELECTRONICS INC. (for short SEC) exerts the greatest possible effort to ensure high quality
and reliability. Nevertheless, semiconductor devices in general can malfunction or fail due to their
inherent electrical sensitivity and vulnerability to physical stress. It is the responsibility of the buyer,
when utilizing SEC products, to comply with the standards of safety in making a safe design for the
entire system, including redundancy, fire-prevention measures, and malfunction prevention, to prevent
any accidents, fires, or community damage that may ensue. In developing your designs, please ensure
that SEC products are used within specified operating ranges as set forth in the most recent SEC
products specifications.
The SEC products listed in this document are intended for usage in general electronics applications
(computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic
appliances, etc.). These SEC products are neither intended nor warranted for usage in equipment that
requires extraordinarily high quality and/or reliability or a malfunction or failure of which may cause
loss of human life or bodily injury (“Unintended Usage”). Unintended Usage include atomic energy
control instruments, airplane or spaceship instruments, transportation instruments, traffic signal
instruments, combustion control instruments, medical instruments, all types of safety devices, etc..
Unintended Usage of SEC products listed in this document shall be made at the customer’s own risk.
4
V2.00 May 1, 2012
