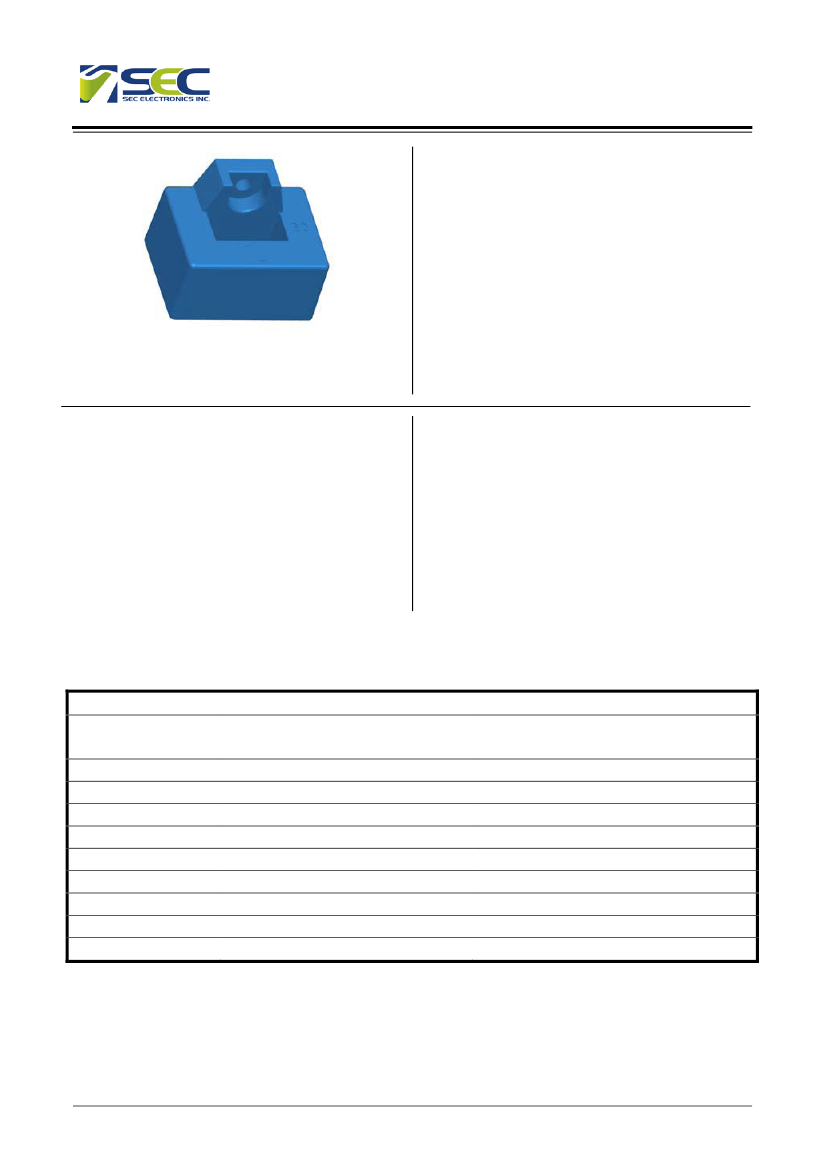

SIOY2CV2
Current Sensors
Features
Hall effect measuring principle
Galvanic isolation between primary and
secondary circuit
Compact design for PCB mounting
Low power consumption
Extended measuring range(3*I
PN
)
Insulated plastic case recognized
according to UL 94-V0
I
PN
= 50…600A,V
out
=±4V
Advantages
Easy installation
Excellent accuracy
No insertion losses
Excellent performance and price
Only one design for wide current
ratings range
High immunity to external interference
Industrial applications
Static converters for DC motor drives
Switched Mode Power Supplies(SMPS)
AC variable speed drives
Uninterruptible Power Supplies(UPS)
Battery supplied applications
Power supplies for welding application
Type
SIOY2C50V2
SIOY2C75V2
SIOY2C100V2
SIOY2C150V2
SIOY2C200V2
SIOY2C300V2
SIOY2C400V2
SIOY2C500V2
SIOY2C600V2
TYPES OF PRODUCTS
Primary nominal current
Primary current measuring range
I
P
(A)
r. m. s I
PN
(A)
50
75
100
150
200
300
400
500
600
±150
±225
±300
±450
±600
±900
±900
±900
±900
General Description
For the electronic measurement of currents: DC, AC, pulsed, mixed, with a galvanic isolation between
the primary circuit (high power) and the secondary circuit (electronic circuit)
1
V2.00 May 1, 2012
SIOY2CV2
Current Sensors
Parameters Table
PARAMETERS
Supply voltage(±5%)
(1)
Current consumption
Output voltage
Overload capability(1ms)
Isolation resistance
Output internal resistance
Load resistance
(2)
R. m. s voltage for AC isolation
test
R. m. s rated voltage、safe
separation
Linearity
(3)
(0…±I
PN
)
Accuracy
Electrical offset voltage
Hysteresis offset voltage
Temperature coefficient of V
OE
Temperature coefficient of V
OUT
Response time
d
i
/d
t
accurately followed
Frequency bandwidth
(4)
Ambient operating temperature
Ambient storage temperature
Mass
SYMBOL
V
C
I
C
V
out
I
PC
R
IS
R
OUT
R
L
V
d
V
b
UNIT
VALUE
±15
±15
±4V±40
50* I
PN
>1000
100
>10
3
500
@50Hz, 1 min
@ ± I
PN
, R
L
= 10 kΩ,
T
A
= 25°C
@ ± I
PN
, R
L
= 10 kΩ,
T
A
= 25°C
@ 500 VDC
approx
CONDITIONS
Electrical data
V
mA
mV
A
t
MΩ
Ω
KΩ
KV
V
Accuracy - Dynamic performance data
ε
L
X
V
OE
V
OH
TCV
OE
TCV
OUT
t
r
d
i
/d
t
BW
T
A
T
S
m
% of I
PN
%
mV
mV
mV/K
%/K
μS
A/μS
kHz
General data
°C
°C
g
<±1
<±1
<±20
<±20
<±2
<±1
<±0.1
<3
>50
DC~50
-40 ~ +85
-40 ~ +105
approx 60
@-3dB
@ I
PN
, T
A
= 25°C
(without offset)
@T
A
= 25°C
@ IP= 0;
after an excursion of 1* I
PN
@SIOY2C50-75V2
@SIOY2C100-600V2
@% of reading
@ 90% of I
PN
step
Notes:
1)
2)
3)
Operating at ±12V
≤VC<±15V will reduce
the measuring range.
If the customer uses 1KΩ
of the load resistor, the primary current has to be limited as
the nominal.
To measure
the full defined measuring range, the load resistor should be at
minimum 10 KΩ.
Linearity data exclude the electrical offset.
4)
Please refer to derating curves in the technical file to avoid excessive core heating at high frequency.
2
V2.00 May 1, 2012
SIOY2CV2
Current Sensors

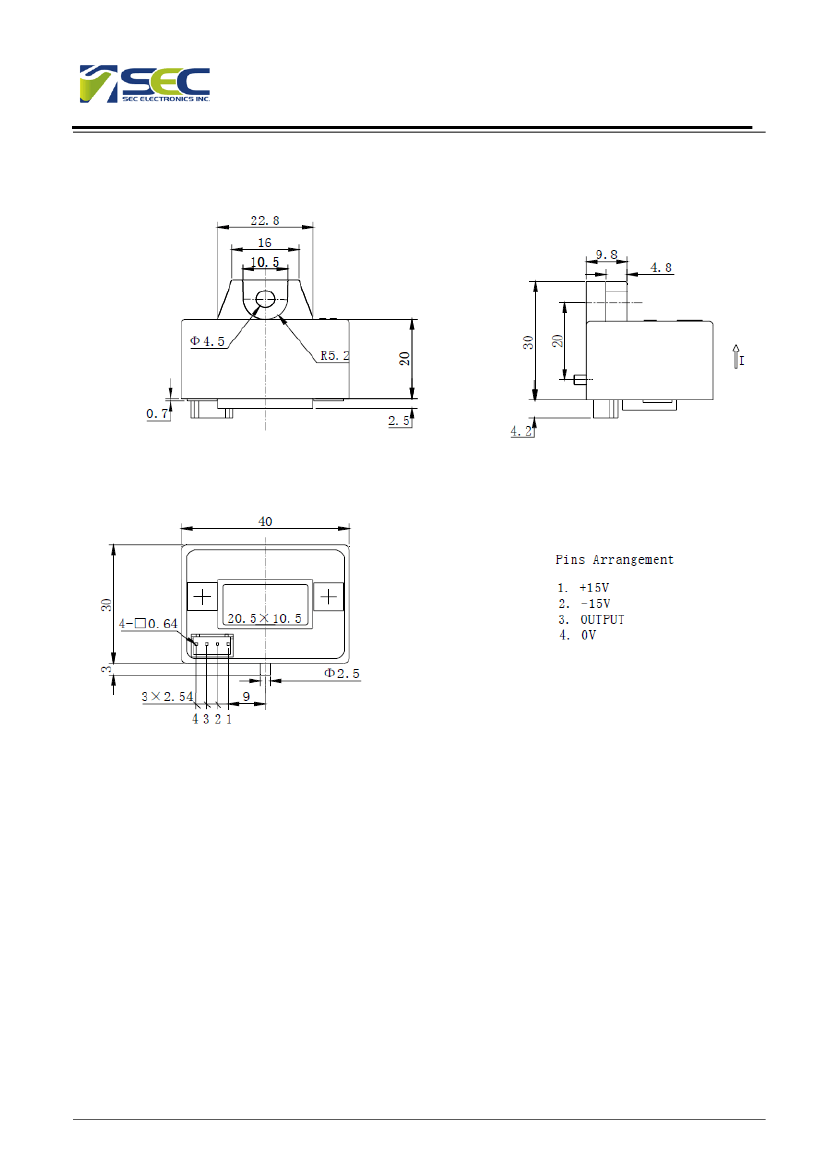

Dimensions SIOY2CV2
(
in mm. 1 mm = 0.0394 inch
)
Instructions of use
1) When the test current passes through the sensors you can get the size of the output voltage.
(Warning: wrong connection may lead to sensors damage)
2) Based on user needs, the sensors output range can be appropriately regulated.
3) According to user needs, different rated input currents and output voltages of the sensors can be
customized.
3
V2.00 May 1, 2012
SIOY2CV2
Current Sensors
