L10C23KC20: DescriptionCorrelator, 1-Bit, CMOS, CQCC28, 0.450 X 0.450 INCH, CERAMIC, LCC-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size782KB，8 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric Compare View All

L10C23KC20 Overview

Correlator, 1-Bit, CMOS, CQCC28, 0.450 X 0.450 INCH, CERAMIC, LCC-28

L10C23KC20 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LOGIC Devices
Parts packaging code	QLCC
package instruction	QCCN, LCC28,.45SQ
Contacts	28
Reach Compliance Code	unknown
ECCN code	3A001.A.3
Other features	SELECTIVE BIT MASK; ICC SPECIFIED @ 5MHZ
boundary scan	NO
maximum clock frequency	50 MHz
External data bus width	1
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.4935 mm
low power mode	NO
Humidity sensitivity level	3
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Output data bus width	7
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum slew rate	100 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.4935 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, CORRELATOR

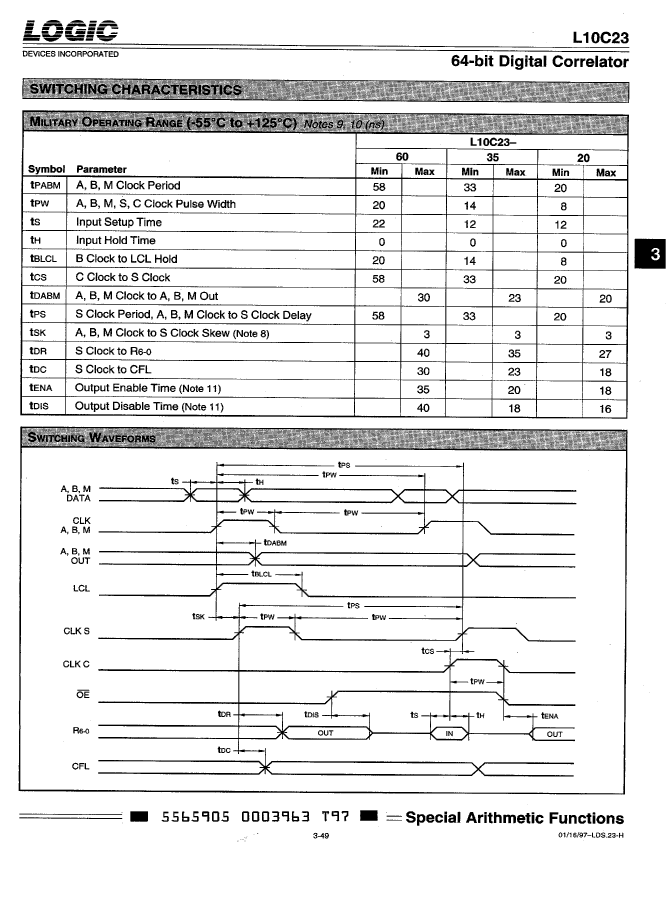

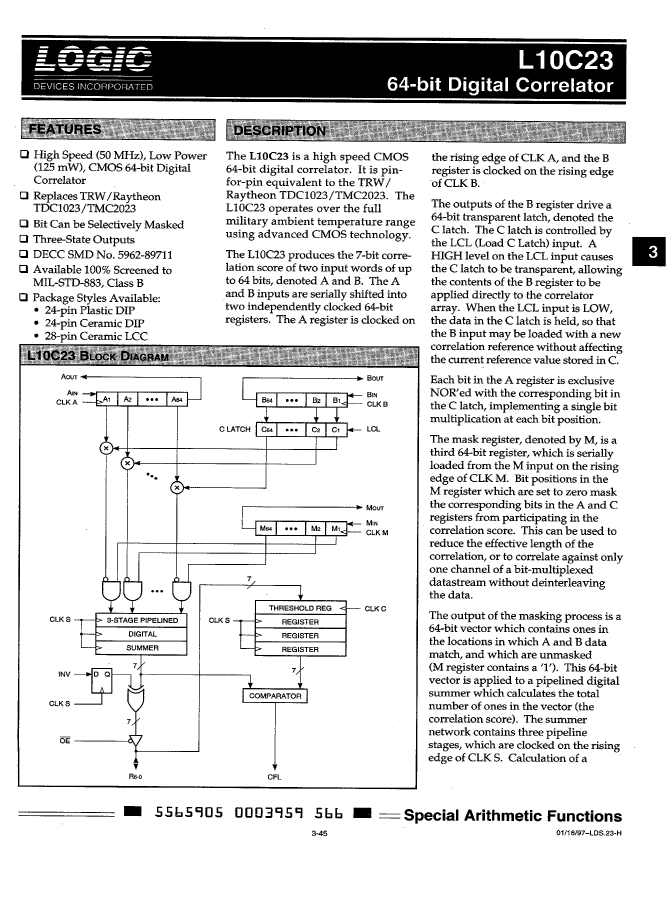

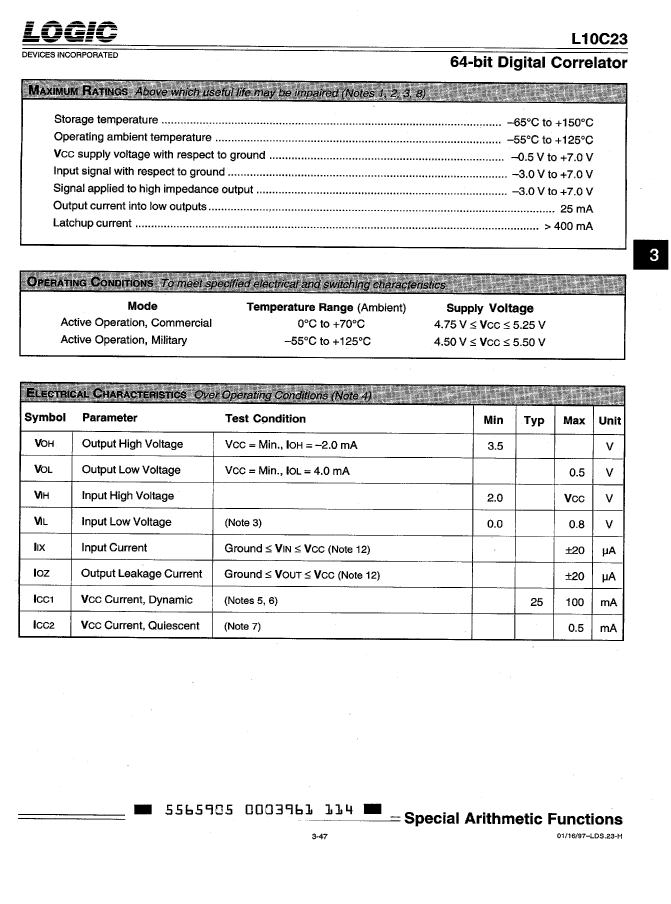

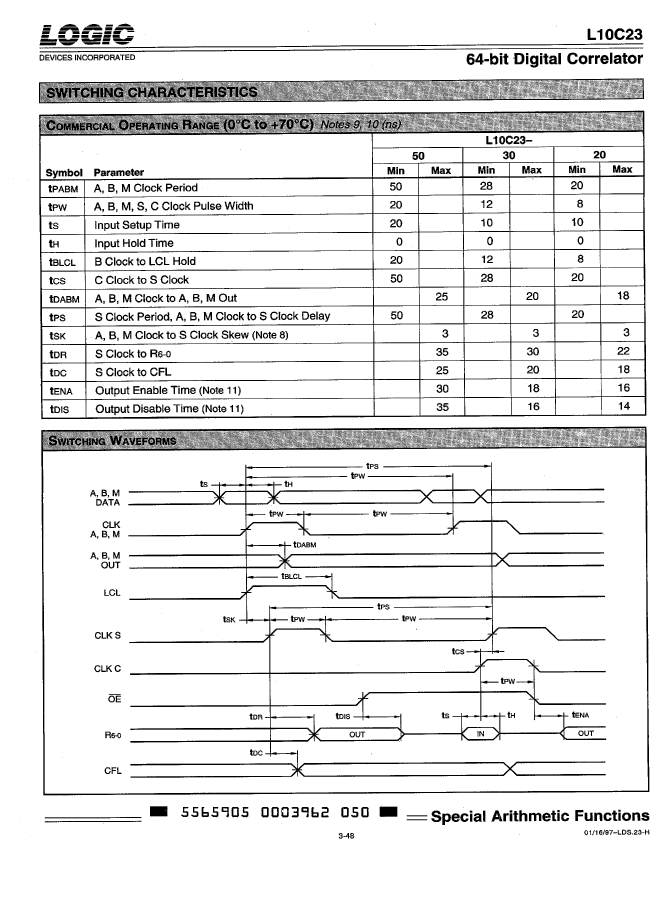

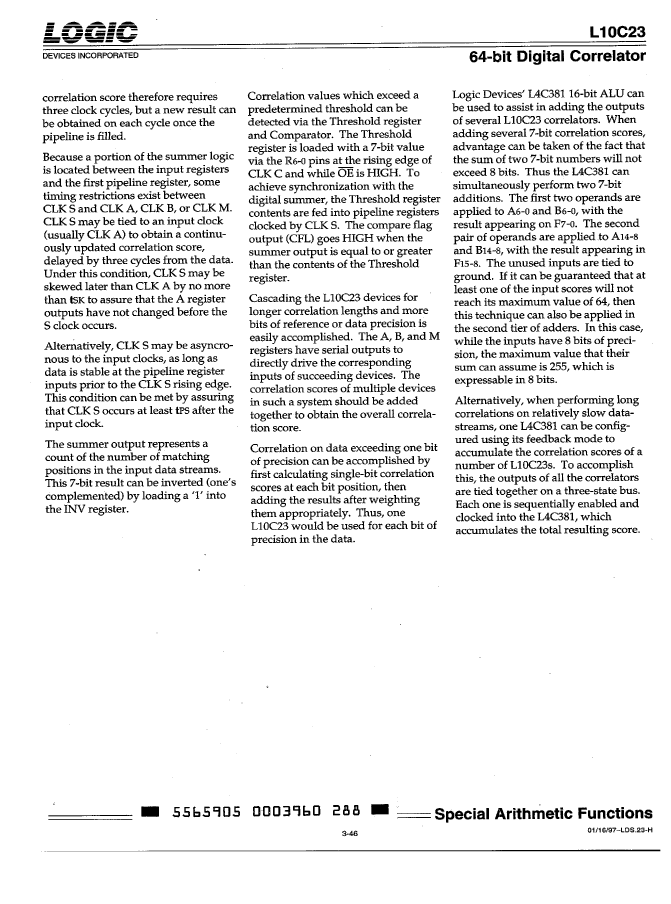

Preview

Download Datasheet

View All

L10C23KC20 Related Products

	L10C23KC20	L10C23KC50	L10C23KMB35	L10C23KMB60
Description	Correlator, 1-Bit, CMOS, CQCC28, 0.450 X 0.450 INCH, CERAMIC, LCC-28	Correlator, 1-Bit, CMOS, CQCC28, 0.450 X 0.450 INCH, CERAMIC, LCC-28	Correlator, 1-Bit, CMOS, CQCC28, 0.450 X 0.450 INCH, CERAMIC, LCC-28	Correlator, 1-Bit, CMOS, CQCC28, 0.450 X 0.450 INCH, CERAMIC, LCC-28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QLCC	QLCC	QLCC	QLCC
package instruction	QCCN, LCC28,.45SQ	QCCN, LCC28,.45SQ	QCCN, LCC28,.45SQ	QCCN, LCC28,.45SQ
Contacts	28	28	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	SELECTIVE BIT MASK; ICC SPECIFIED @ 5MHZ	SELECTIVE BIT MASK; ICC SPECIFIED @ 5MHZ	SELECTIVE BIT MASK; ICC SPECIFIED @ 5MHZ	SELECTIVE BIT MASK; ICC SPECIFIED @ 5MHZ
boundary scan	NO	NO	NO	NO
maximum clock frequency	50 MHz	20 MHz	30.3 MHz	17.2 MHz
External data bus width	1	1	1	1
JESD-30 code	S-CQCC-N28	S-CQCC-N28	S-CQCC-N28	S-CQCC-N28
JESD-609 code	e0	e0	e0	e0
length	11.4935 mm	11.4935 mm	11.4935 mm	11.4935 mm
low power mode	NO	NO	NO	NO
Humidity sensitivity level	3	3	3	3
Number of terminals	28	28	28	28
Maximum operating temperature	70 °C	70 °C	125 °C	125 °C
Output data bus width	7	7	7	7
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	QCCN	QCCN
Encapsulate equivalent code	LCC28,.45SQ	LCC28,.45SQ	LCC28,.45SQ	LCC28,.45SQ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225	225	225	225
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Maximum slew rate	100 mA	100 mA	100 mA	100 mA
Maximum supply voltage	5.25 V	5.25 V	5.5 V	5.5 V
Minimum supply voltage	4.75 V	4.75 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	11.4935 mm	11.4935 mm	11.4935 mm	11.4935 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, CORRELATOR	DSP PERIPHERAL, CORRELATOR	DSP PERIPHERAL, CORRELATOR	DSP PERIPHERAL, CORRELATOR
Maker	LOGIC Devices	LOGIC Devices	-	LOGIC Devices
ECCN code	3A001.A.3	-	3A001.A.2.C	3A001.A.2.C
