MBRF1060C0G

Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 10A, 60V V(RRM), Silicon, TO-220AC, GREEN, PLASTIC, ITO-220AC, 3/2 PIN
CategoryDiscrete semiconductor    diode
File Size220KB,4 Pages
ManufacturerTaiwan Semiconductor
Websitehttp://www.taiwansemi.com/
Environmental Compliance
Download Datasheet Parametric View All

MBRF1060C0G Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 10A, 60V V(RRM), Silicon, TO-220AC, GREEN, PLASTIC, ITO-220AC, 3/2 PIN

MBRF1060C0G Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTaiwan Semiconductor
package instructionGREEN, PLASTIC, ITO-220AC, 3/2 PIN
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresLOW POWER LOSS, UL RECOGNIZED
applicationEFFICIENCY
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.8 V
JEDEC-95 codeTO-220AC
JESD-30 codeR-PSFM-T2
Maximum non-repetitive peak forward current150 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Maximum output current10 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Maximum repetitive peak reverse voltage60 V
Maximum reverse current100 µA
surface mountNO
technologySCHOTTKY
Terminal formTHROUGH-HOLE
Terminal locationSINGLE

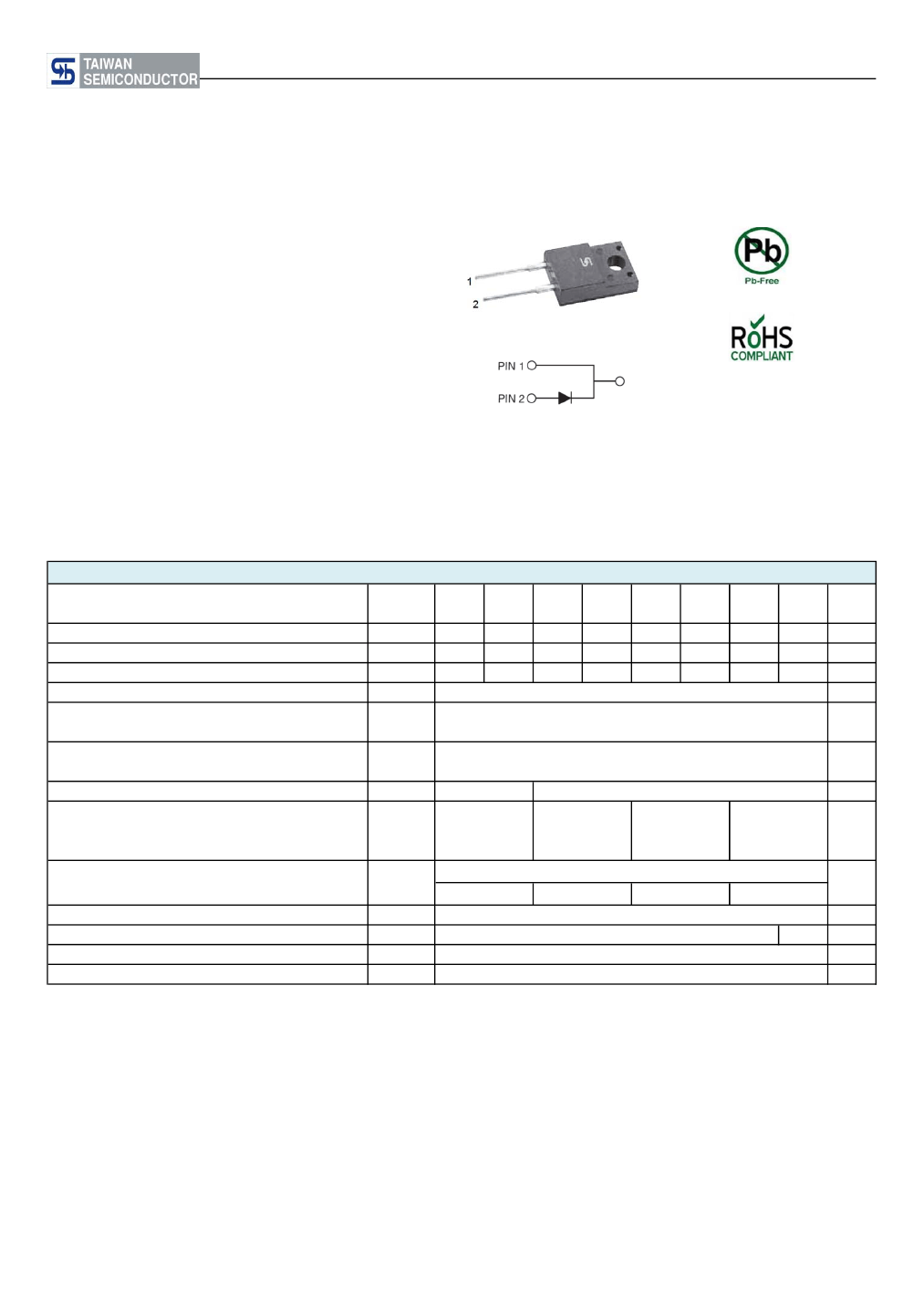

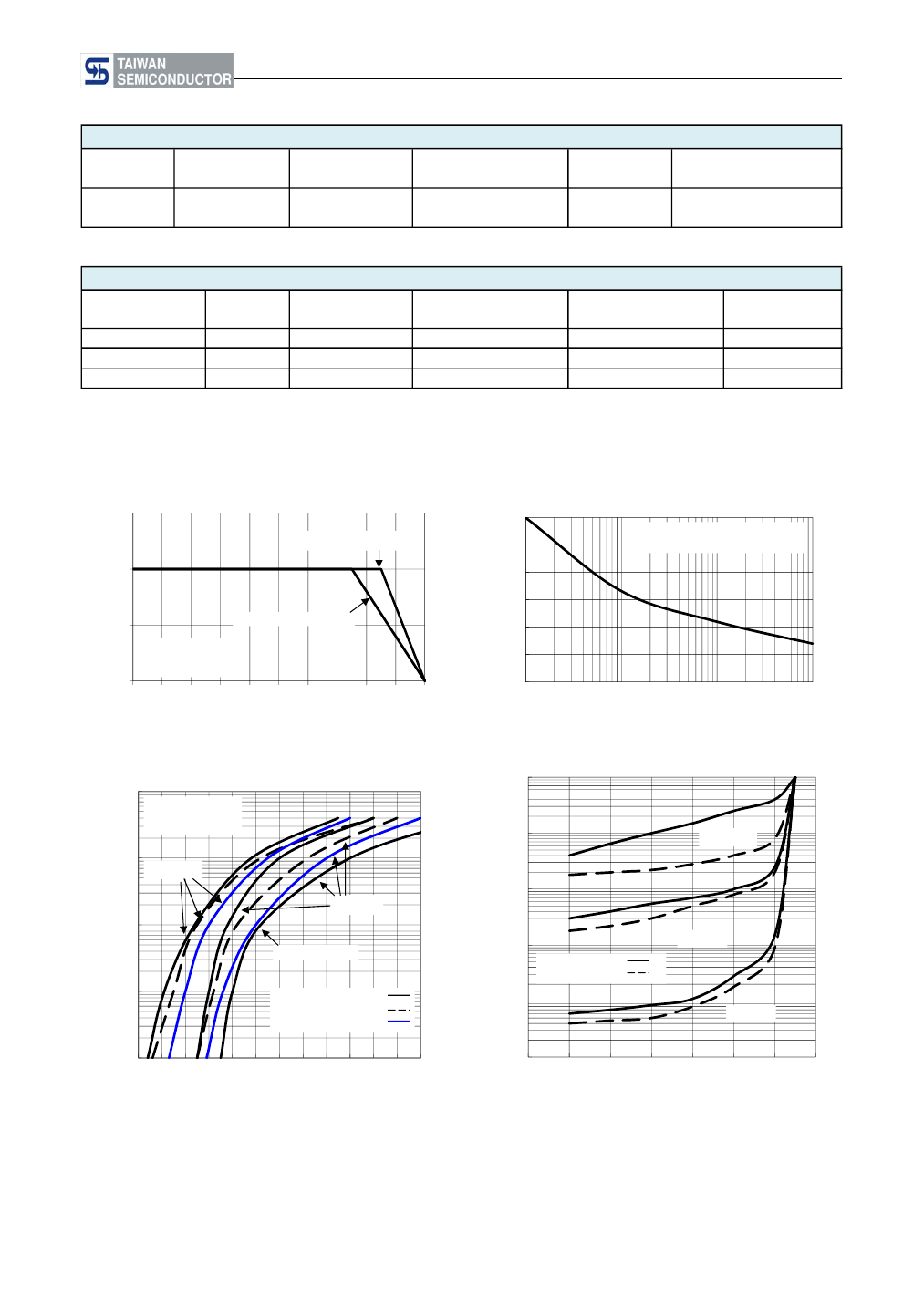

MBRF1035 thru MBRF10200
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Low power loss, high efficiency
- Guardring for overvoltage protection
- High surge current capability
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Isolated Schottky Barrier Rectifiers
MECHANICAL DATA
Case:
ITO-220AC
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test,
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
5 in-lbs maximum
Weight:
1.7 g (approximately)
ITO-220AC
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak repetitive forward current
(Rated VR, square wave, 20KHz)
Peak forward surge current, 8.3 ms single half
sine-wave superimposed on rated load
Peak repetitive reverse surge current (Note 1)
Maximum instantaneous forward voltage (Note 2)
I
F
=10A, T
J
=25℃
I
F
=10A, T
J
=125℃
Maximum reverse current @ Rated V
R
Voltage rate of change (Rated V
R
)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: tp = 2.0
μs,
1.0KHz
Note 2: Pulse test with PW=300μs, 1% duty cycle
T
J
=25
T
J
=125
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FRM
I
FSM
I
RRM
V
F
1
0.70
0.57
I
R
dV/dt
R
θJC
T
J
T
STG
3
- 55 to +150
- 55 to +175
15
0.80
0.70
0.1
10
10000
4
6
2
MBRF MBRF MBRF MBRF MBRF MBRF MBRF MBRF
1035
35
24
35
1045
45
31
45
1050
50
35
50
1060
60
42
60
10
20
150
0.5
0.85
0.71
1.05
-
mA
V/μs
O
1090 10100 10150 10200
90
63
90
100
70
100
150
105
150
200
140
200
UNIT
V
V
V
A
A
A
A
V
C/W
O
O
C
C
Document Number: DS_D1309008
Version: K13
