ZMSH00130P00JRC datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> ZMSH00130P00JRC

ZMSH00130P00JRC: DescriptionSNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 0.1A, 30VDC, 0.82mm, PANEL MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size195KB，4 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric Compare View All

ZMSH00130P00JRC Overview

SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 0.1A, 30VDC, 0.82mm, PANEL MOUNT, ROHS COMPLIANT

ZMSH00130P00JRC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	C&K
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator stroke	0.82 mm
Actuator type	PIN PLUNGER
body width	5.4 mm
body height	7.5 mm
Body length or diameter	14.7 mm
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@30VDC
Maximum contact voltage (DC)	30 V
JESD-609 code	e3
Installation features	PANEL MOUNT
Maximum operating force	1.27 N
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Maximum pre-travel	0.62 mm
seal	IP67
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal surface	Tin (Sn)
Termination type	WIRE

ZMSH00130P00JRC Preview

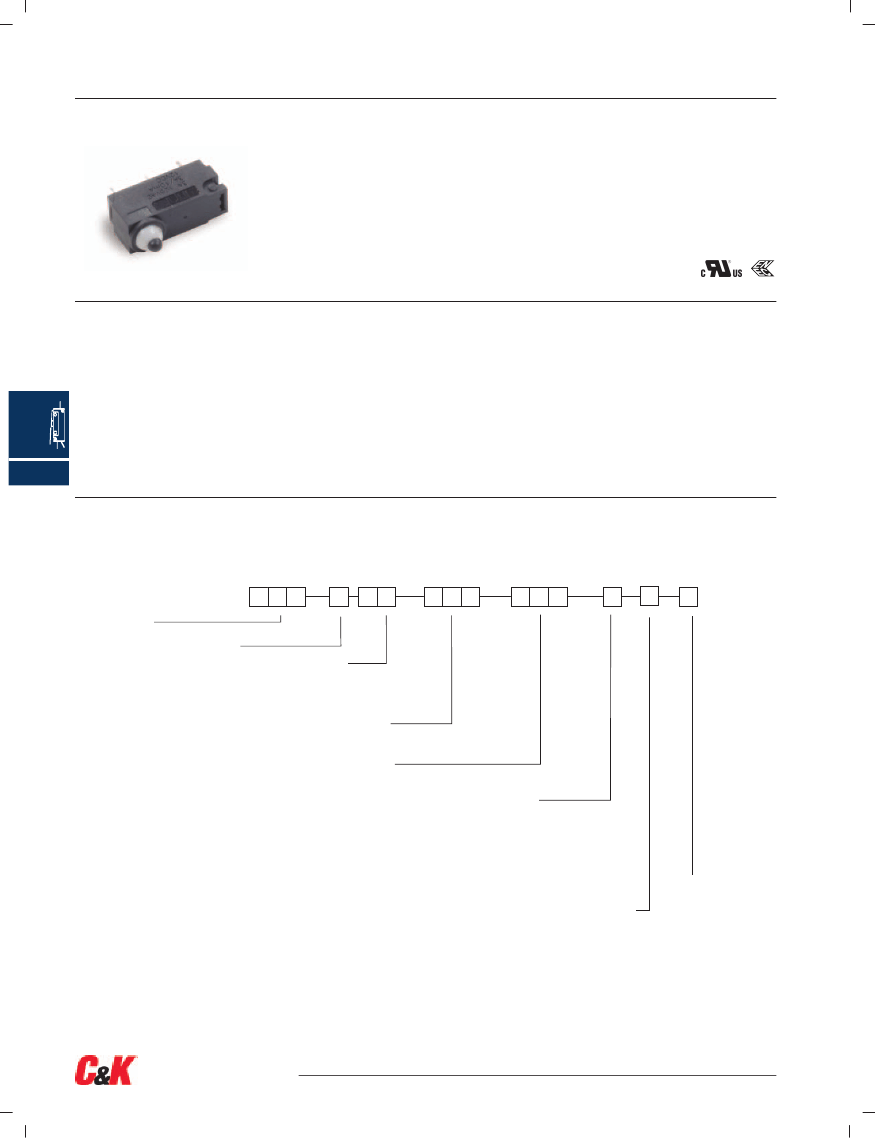

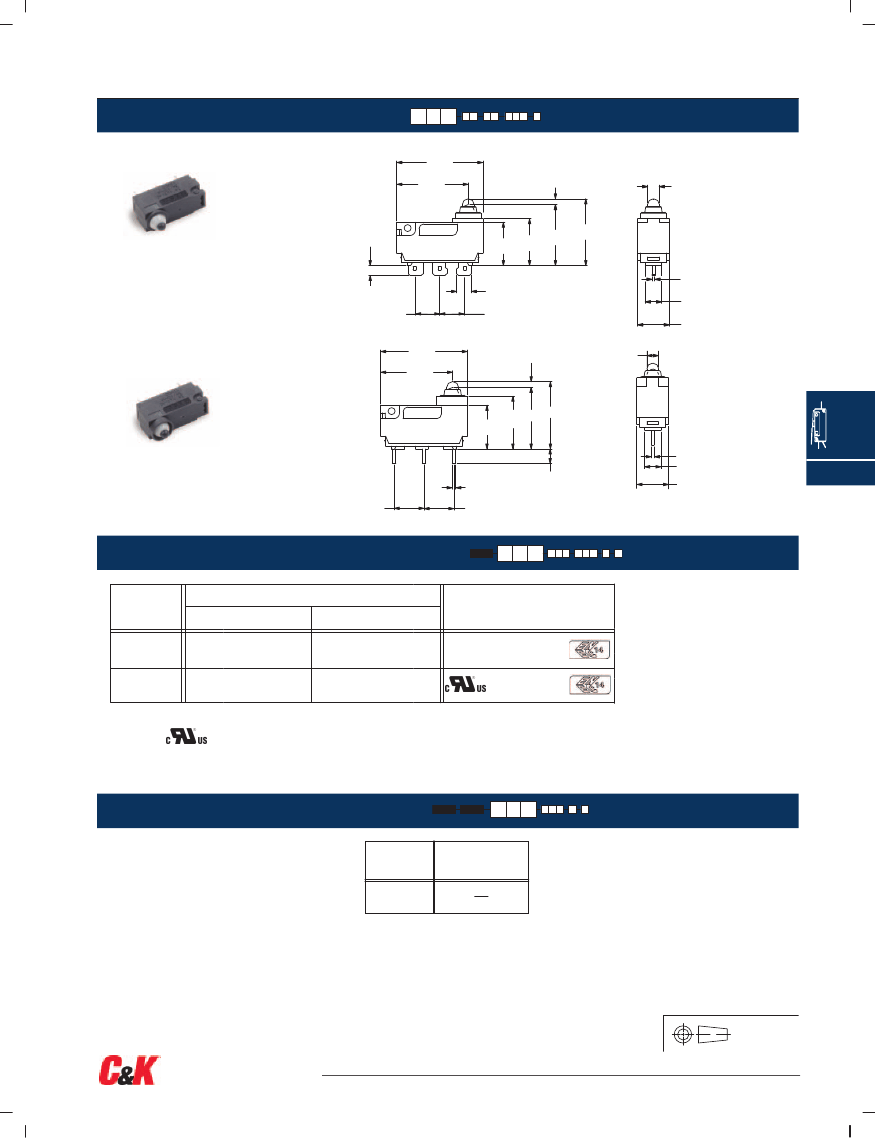

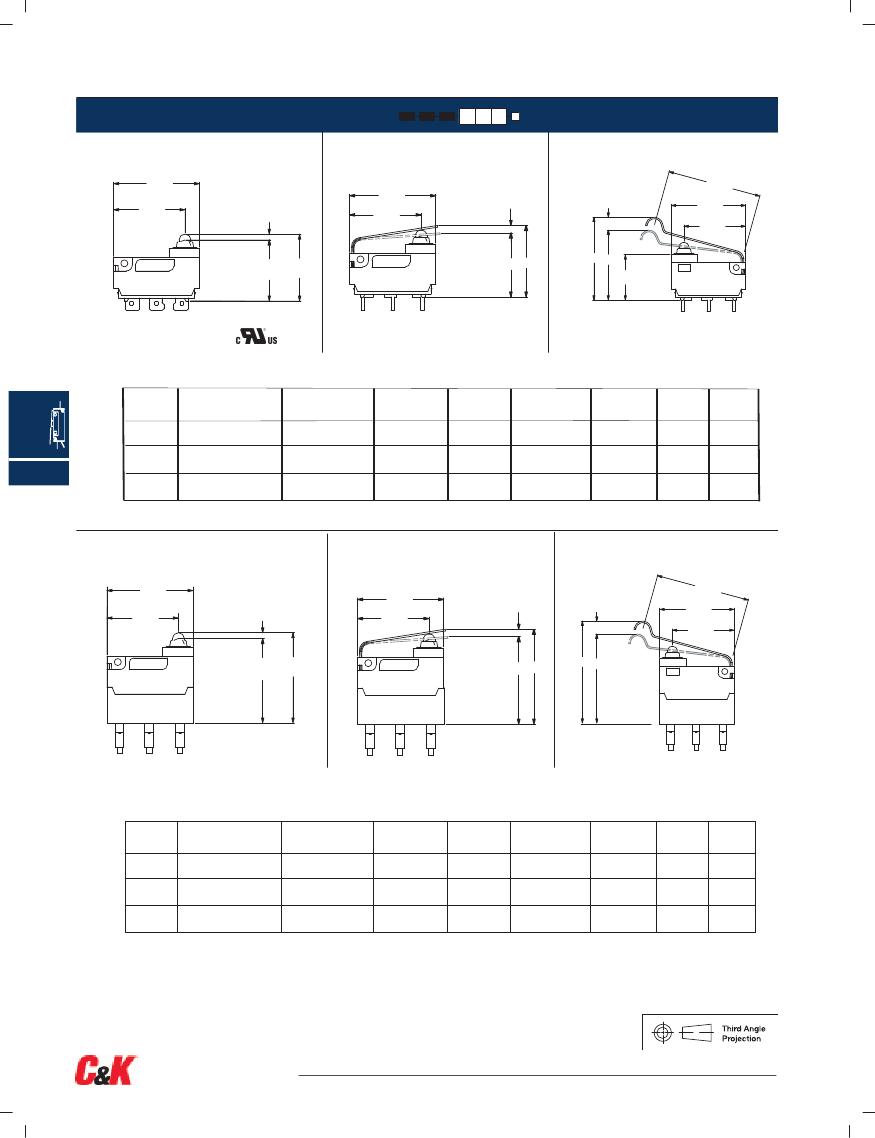

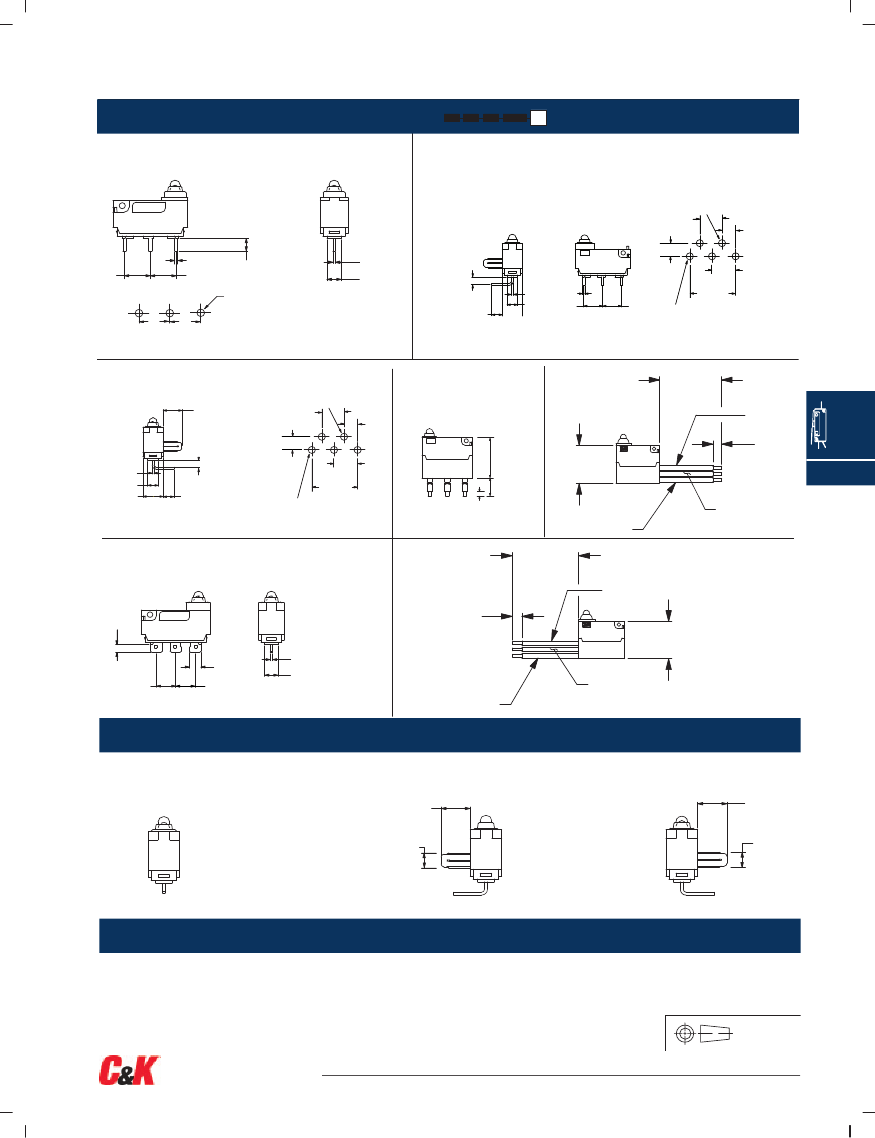

ZMS Series

Subminiature Snap-acting Switches (IP65)

Features/Benefits

•

Reliable snap-acting mechanism

•

Long electrical and mechanical life

•

Compact size—Ideal when space is limited

•

Various PCB terminals and actuators

•

RoHS compatible

•

IP67 with potted wires only

Typical Applications

•

PCB detection switch

•

Communication devices

•

Testing equipment

•

Security/Alarm systems

•

Consumer electronics

Models Available

Specifications

CONTACT RATING: 3A@ 125 V AC/ 3A@ 12 V DC, 0.1A @ 12 V DC

ELECTRICAL LIFE: 300,000 cycles @ 0.1A 12VDC

100,000 cycles @ 3A 12 VDC

6,000 cycles @ 3A 125 VAC

MECHANICAL LIFE: 500,000 cycles

INSULATION RESISTANCE: 100 M ohm min.

DIELECTRIC STRENGTH: 500 Vrms.

OPERATING TEMPERATURE: see chart below.

OPERATING FORCE: 130 grams.

Materials

CASE: Nylon

COVER/ACTUATOR: PBT

MOVABLE CONTACTS: Silver*

STATIONARY CONTACTS: Silver*

TERMINALS: Brass, tin plated.

LEVER: Stainless steel

* Gold plated terminal available contact Customer Service.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

* Low Level=conditions where no arcing occurs during switching, i.e., 0.4 VA max.

@ 20 V AC or DC max.

Snap-acting

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages J-40 and J-42. For additional options not shown in catalog, consult Customer Service Center.

Z M S

Series

ZMS

SP, Mom.

Over Travel

High Travel

Low Travel

Electrical Rating

0.1 A @ 12 V DC

3A 125 V AC

3A 12 V DC

Operating Force

130

130 grams / 4.59

Actuator

P00

Pin plunger

T10

.25 lever

Terminations

T11

.28 simulated roller

PC Thru-hole

Left form, PC Thru-hole

Right form, PC Thru-hole

Solder type

Wire leads out bottom *

Wire leads out right side *

Wire leads out left side *

* Standard Wire: 20 AWG UL 1007

Available options - must specify

22AWG UL1430

24AWG UL1061

26AWG UL1330

** See ZMSM series for data and termination style

OPERATING TEMPERATURE

-40˚C to + 120˚C (without wire)

-40˚C to + 85˚C (with UL1007 wire)

-40˚C to + 105˚C (with UL1015 wire)

-40˚C to + 105˚C (with UL1430 wire)

-40˚C to + 80˚C (with UL1061 wire)

-40˚C to + 120˚C (with UL1330 wire)

Mounting Styles

Std (No support post)

Support post left

Support post right

Mounting hole **

Circuitry

SPDT

SPST N.C.

SPST N.O.

Dimensions are shown: Inch (mm)

Specifications and dimensions subject to change

J–40

www.ck-components.com

ZMS Series

Subminiature Snap-acting Switches (IP65)

SERIES

ZMSH

HIGH OVER TRAVEL

Switch option shown: ZMSH00P00SSC

Z M S

14,7

( .579 )

12,2

( .480 )

ø2

( .079 )

1,7

( .067 )

8,1

7,5

( .295 ) ( .319 )

COM

2,5

( .10 )

4,13

( .16 )

0,5

( .020 )

2,8

( .110 )

5,4

( .213 )

Ø2

( .079 )

4,13

(.163 )

14,7

( .579 )

12,2

( .480 )

ZMSL

LOW OVER TRAVEL

Switch option shown: ZMSL00P00PSC

9,05 OP

7,5 ( .356 )

( .295 )

COM

0,6 ±0,1

( .024 ±.003 )

5,08

( .200 )

5,08

( .200 )

2,5

( .098 )

0,5 ±0,05

( .020 ±.001 )

2,8

( .110 )

5,4

( .213 )

Snap-acting

ELECTRICAL RATING

CONTACT MATERIAL

OPTION

CODE

MOVABLE CONTACT

STATIONARY CONTACT

ELECTRICAL RATING

00A

03A*

Silver plated

0.1 AMP @ 12 V DC

Fine Silver

Fine silver

3 AMPS @ 125 V AC

3 AMPS @ 125 V DC

Model

with option “S” (solder type) only.

Consult Customer Service center for availability and delivery of nonstandard ratings.

OPERATING FORCE

BASIC SWITCH

OPERATING FORCE

(OZ./GRAMS)

130

4.59

OPTION CODE

130

Third Angle

Projection

Dimensions are shown: mm (inch)

Specifications and dimensions subject to change

J–41

www.ck-components.com

ZMS Series

Subminiature Snap-acting Switches (IP65)

ACTUATOR

P00

PIN PLUNGER (IP65)

T10

.25 LEVER (IP65)

T11

LEVER (IP65)

14,7

( .579 )

12,2

( .480 )

14,7

( .579 )

12,2

( .480 )

18,6

( .7323 )

14,7

( .5787 )

12,2

( .4803 )

OP FP

FP OP

9,05

( .3563 )

approved

SWITCH CHARACTERISTICS

Actuator

code

P00

T10

Maximum Operate

Force (grams/oz.)

130

4.59

195

6.88

160

5.64

Minimum Release

Force (grams/oz.)

0.45

1.93

1.58

Free Position

Max

.472

(12)

.604

(15.35)

.726

(18.45)

Maximum

Pre-travel

0.032

(0,8)

0.152

(3.85)

0.186

(4.8)

Operate

Position

.415 ± .012

(10.55 ± .3)

.440 ± .020

(11.2 ±.5)

.539 ± .032

(13.7 ± .8)

Maximum

Differential

.012

(0.3)

0.020

(0,5)

0.030

(0,7)

Low

Overtravel

min. (L)

0.031

(0,8)

0.053

(1,35)

0.062

(1,65)

High

Overtravel

min. (H)

0.068

(1,72)

0.084

(2,14)

0.101

(2,57)

T11

Snap-acting

P00

PIN PLUNGER (IP67)

T10

.25 LEVER (IP67)

T11

.28 LEVER (IP67)

14,7

( .579 )

12,2

( .480 )

14,7

( .579 )

12,2

( .480 )

18,6

( .7323 )

14,7

( .5787 )

12,2

( .4803 )

OP FP

FP OP

Gray

Blue

(NO)

Black

(COM)

SWITCH CHARACTERISTICS “J” TERMINATION ONLY

Actuator

code

P00

T10

Maximum Operate

Force (grams/oz.)

130

4.59

195

6.88

Minimum Release

Force (grams/oz.)

0.45

1.93

Free Position

Max

.650

(16.50)

.781

(19.85)

Maximum

Pre-travel

0.032

(0,8)

0.152

(3.85)

Operate

Position

Maximum

Differential

.012

(0.3)

0.020

(0.5)

Low

Overtravel

min. (L)

0.031

(0.8)

0.053

(1.35)

High

Overtravel

min. (H)

0.068

(1,72)

0.084

(2,14)

0.101

(2,57)

.593 ± .020

(15.05 ±

0.5)

.618 ± .028

(15.7 ± .7)

T11

160

5.64

1.58

.904

(22.95)

0.188

(4.8)

.717 ± .039

(18.2 ±

1.0)

0.030

(0.7)

0.062

(1.65)

Dimensions are shown: mm (inch)

Specifications and dimensions subject to change

J–42

www.ck-components.com

ZMS Series

Subminiature Snap-acting Switches (IP65)

TERMINATIONS

PC THRU-HOLE

LEFT FOOTED, PC THRU-HOLE

PC MOUNT

(2) 2.5 holes

(.098)

9.53

(.375)

5.85

(0.230)

0.23

(.010)

0,6 ± 0,1

( .024±.003)

5,08

( .200)

5,08

( .200)

2,5

( .098)

1,35/1,50

(.053) (.059)

5,08

(.200)

0,5±0,05

( .020±.001)

2,8

( .110)

To center 2,05

of terminal (.081 )

2,85

(.1122 )

0,5

0,6

(.0197 ) (.0236)

2,8

(.1102 ) 5,08

(.2000 )

5.08

(.200)

5,08

(.2000 )

10.16

(.400 )

(3) 1.35 to 1.50 holes

(.053) to (.059)

5,08

(.200)

PC MOUNTING HOLE

RIGHT FOOTED, PC THRU-HOLE

(.197)

2,05

(.081)

To center

of terminal

0,5

(.020)

2,8

(.110 )

5,4

(.213 )

PC MOUNT

(2) 2.5 holes

9.53

(.098)

(.375)

5.85

0.23

(0.230)

(.010)

5.08

(.200)

10.16

(.400)

(3) 1.35 to 1.50 holes

(.053) to (.059)

WIRE LEADS BOTTOM

(IP67)

RIGHT SIDE

(IP67)

304,8

(12.00)

GREY (NC)

3.17

(0.125)

STRIP ENDS

12.0

(472)

304.8

(12.00)

Black Blue Grey 3.17

(COM) (NO) (NC) (.125) Strip Ends

(.472)

Snap-acting

2,85

(.112 )

BLUE (NO)

BLACK (COM)

SOLDER TYPE

LEFT SIDE

(IP67)

304,8

(12.00)

GREY (NC)

Standard Wire: 20 AWG UL 1007

Available options - must specify

22AWG UL1430

24AWG UL1061

26AWG UL1330

1,7

( .067 )

3,17

(0.125)

STRIP ENDS

2,5

( .098 )

4,13

( .163 )

0,5

( .0197 )

2,8

( .1102 )

(.472)

4,13

( .163 )

BLUE (NO)

BLACK (COM)

MOUNTING STYLES

STD (NO SUPPORT POST)

SUPPORT POST LEFT

SUPPORT POST RIGHT

( .197 )

2X 5

( .197 )

2.60

(.102)

ø2.60

(1,02)

CIRCUITRY

SPDT (Single Pole, Double Throw)

SPST, NC (Single Pole, Single Throw, Normally Closed)

SPST, NO (Single Pole, Single Throw, Normally Open)

Third Angle

Projection

Dimensions are shown: mm (inch)

Specifications and dimensions subject to change

J–43

www.ck-components.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

ZMSH00130P00JRC Related Products

	ZMSH00130P00JRC	ZMSH00130T10JRC	ZMSH00130T11JLC
Description	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 0.1A, 30VDC, 0.82mm, PANEL MOUNT, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 0.1A, 30VDC, 3.6mm, PANEL MOUNT, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 0.1A, 30VDC, 1.82mm, PANEL MOUNT, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	C&K	C&K	C&K
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Actuator stroke	0.82 mm	3.6 mm	1.82 mm
Actuator type	PIN PLUNGER	LEVER	SIMULATED ROLLER
body width	5.4 mm	5.4 mm	5.4 mm
body height	7.5 mm	7.5 mm	7.5 mm
Body length or diameter	14.7 mm	14.7 mm	14.7 mm
Maximum contact current (DC)	0.1 A	0.1 A	0.1 A
Contact (DC) maximum rated R load	.1A@30VDC	.1A@30VDC	.1A@30VDC
Maximum contact voltage (DC)	30 V	30 V	30 V
JESD-609 code	e3	e3	e3
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating force	1.27 N	0.49 N	0.44 N
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C
Maximum pre-travel	0.62 mm	3 mm	1.02 mm
seal	IP67	IP67	IP67
surface mount	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY
switch function	SPDT	SPDT	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)
Termination type	WIRE	WIRE	WIRE
Manufacturer's serial number	-	ZMS	ZMS

Recommended Resources

XP Power launches high-efficiency adapter power supply

Street light control circuit 11

Blocking sensor

Flower pot water shortage alarm circuit

Circuit diagram of voltage-stabilized and flow-stabilized DC power supply using transistors

Computer motherboard circuit diagram 820 2_12

Help, USB-RNDIS Programming: I have received an urgent task: I need to make a program on my PC to communicate with the USB-RNDIS device. Since I have never been exposed to it before, I don't know where to start. Please give me so...; bin8888 Embedded System

Wince + S3C2440 sleep wakeup problem: 1. After my Wince+2440 is woken up from hibernation, the system runs slower and slower until it freezes. Could you please guess what the possible reason is? 2. Can I set multiple sources for waking up...; hdjun1983 Embedded System

Download the latest version of TI Standard Linear Guide: [b][size=4][color=#000][font=arial, verdana, sans-serif]TI's guide includes a variety of standard analog products with small package size, high cost performance and other excellent features, which can...; qwqwqw2088 Analogue and Mixed Signal

Using FPGAs to implement energy-efficient motor control in the next generation of smart home appliances: Home appliances are at the heart of modern lifestyles. Consumers want appliances that are not only “smart”, “green”, but also, of course, affordable. All these demands are driving today’s home applian...; 水牛 FPGA/CPLD

DIY mobile phone + DX14 + hotsauce1861: I've been very busy recently. I estimate that I will have some time to realize the following functions after July: Camera ov7670 + GSM + TFT touch screen + SD card + STM-Crotex. I mustered up a lot of...; hotsauce1861 DIY/Open Source Hardware

Showing off my products + the Analog Discovery 2 I just got today: I have saved up E coins from the forum for several years, and I have spent almost all of them this time. It was sent by Mouser, and FedEx arrived at China at a very slow speed (luckily I received it b...; cruelfox Special Edition for Assessment Centres

Shortcut: 00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components
