The
ABC60 Series
of AC-DC open-frame power supplies, with its
wide universal 90-264 VAC input range and high power density, is
available at 60 W of output power and a variety of single and multiple
output voltages.
The high efficiency and high power density of the ABC family ensures
minimal power loss in end-use equipment, thereby facilitating higher
reliability, easier thermal management and meets regulatory
approvals for environmentally-friendly end products.
These power supplies are ideal for telecom, datacom, industrial
equipment and other applications.
50 - 65 W Convection Cooled
90 - 264 VAC Input
-20 to 50°C Full Load Operation
Form Factor 4 x 2 x 1.2 inches (101.6 x 50.8 x 30.48 mm)
Single to Triple Outputs
No Load Power < 0.3 W
IEC Protection Class Options:
o
Class I: Earth pin J4 (no suffix)
o
Class II: No Earth pin (-2 suffix)
Conducted EMI EN 55022-B, FCC Part 15 Level B
ITE Safety Agency Approvals
RoHS Compliant
Cover Kit Accessory Available
Instrumentation
Lighting
Industrial Applications
Applied Computing
Renewable Energy
Test and Measurement
Robotics
Wireless Communication
2
ABC60 Series
MODEL
1
ABC60-1005G
ABC60-1012G
ABC60-1015G
ABC60-1024G
ABC60-1048G
OUTPUT VOLTAGE
(VDC)
2
5.2
12
15
24
48
5.2
OUTPUT CURRENT
MAX (A)
10.0
5.4
4.33
2.7
1.35
8.0
3.0
0.5
8.0
1.5
0.5
8.0
2.5
0.5
6.0
3.0
0.5
MINIMUM
LOAD (A)
3
0.0
0.0
0.0
0.0
0.0
0.5
0.1
0.0
0.5
0.1
0.0
0.5
0.1
0.0
1.0
0.1
0.0
RIPPLE & NOISE
4
1.25%
1%
1%
1%
1%
1.25%
1%
1%
1.25%
1%
1%
1.25%
1%
1%
1.5%
1%
1%
TOTAL
REGULATION
± 0.8%
± 0.8%
± 0.8%
± 0.8%
± 0.8%
± 0.8%
± 5.3%
± 5.3%
± 0.8%
± 5.3%
± 5.3%
± 0.8%
± 5.3%
± 5.3%
± 0.8%
± 5.3%
± 5.3%
ABC60-3000G
12.5
-12.5
5.2
ABC60-3001G
23.8
-12.5
5.2
ABC60-3002G
14.6
-16.2
3.3
ABC60-3003G
5.2
-12.8
Cover-60-XCB
Metal cover kit accessory
NOTES:
1
2
3
4
Single output models deliver 65 W, except ABC60-1005G (50 W).
Triple output models deliver 60 W, except ABC60-3003G (45 W).
Maximum outputs for each output. Max power rating should not be exceeded.
Minimum load specified to meet cross regulation.
Ripple is peak to peak with 20 MHz bandwidth and 10
μF
(Tantalum capacitor) in parallel with a 0.1
μF
capacitor
at rated line voltage and load ranges.
Specifications are for nominal input voltage, 25°C unless otherwise stated.
PARAMETER
Input Voltage
Input Frequency
5
Input Current
No Load Power
Inrush Current
Leakage Current
Switching Frequency
5
DESCRIPTION / CONDITION
Universal
SPECIFICATION
90 - 264 VAC
47 to 400 Hz
120 VAC:
230 VAC:
Single output models
Multi output models
120 VAC:
230 VAC:
120 VAC:
230 VAC:
Typical
Safety Approved: 47 to 63 Hz
67
1.5 A max.
0.75 A max.
< 0.3 W
< 0.5 W
30 A max.
60 A max.
< 500 uA
<1000
μA
67 Hz
tech.support@psbel.com
ABC60 Series
PARAMETER
Efficiency
6
Hold Up Time
Output Power
7
Line Regulation
Load Regulation
Transient Response
Rise Time
Set Point Tolerance
Output Voltage Adjustment
Over Current Protection
Over Voltage Protection
Short Circuit Protection
6
7
3
DESCRIPTION / CONDITION
Typical
@ 120 VAC typical
SPECIFICATION
85%
>10 ms
50 - 65 W
+/-0.3%
V1:
V2 & V3:
50% to 100% load change, 50/60 Hz, 50% duty cycle, 0.1 A/μs
+/-0.5%
+/-5%
< 10%,
recovery time < 5 ms
< 100 ms
± 3%
± 5%
± 10%
130%
130%
V1:
V2 & V3:
V1
Typical above rating
Typical for V1 only
Short term, autorecovery
For ABC60-3003G efficiency is 75% typical.
Derate output power linearly to 80% from 90 VAC to 80 VAC input.
PARAMETER
Operating Temperature
Storage Temperature
Relative Humidity
Altitude
Reliability
Cooling
DESCRIPTION / CONDITION
Refer to derating curve, Fig. 1
Start-up is guaranteed
SPECIFICATION
-20 to 70°C
-20 to 0°C
-40 to +85°C
Non Condensing
Operating:
Non-Operating:
MTBF according to Telcordia -SR332-Issue 3
Convection
95%
10,000 ft.
40,000 ft.
1.87 million hours
Figure 1. Output Power Vs. Temperature
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
North America
+1 408 785 5200
BCD.00282_AD
© 2017 Bel Power Solutions & Protection
4
ABC60 Series
DESCRIPTION / CONDITION
EN55022-B, CISPR22-B, FCC PART15-B
EN55022-B, CISPR22-B, FCC PART15-B
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
To be controlled in end system
Class A
Pass
Level 3
Level 3
Level 3
Level 3
SPECIFICATION
PARAMETER
Conducted Emissions
Radiated Emissions
Harmonic Current
AC Flicker
Static Discharge
RF Field Susceptibility
Fast Transients/Bursts
Surge Susceptibility
PARAMETER
Isolation Voltage
Safety Standards
Agency Approvals
CE mark
DESCRIPTION / CONDITION
Input to Output:
Approved to the latest edition of the following standards:
CSA/UL60950-1, EN60950-1 and IEC60950-1; Class1 SELV.
Nemko, UL, C-UL
Complies with LVD Directive
SPECIFICATION
4242 VDC
CONNECTOR
AC Input Connector
PIN
J1
DESCRIPTION / CONDITION
Pin 1
Pin 2
Pin 1,2
Pin 3,4
Pin 5
Pin 6
Pin 1
Pin 2
AC Neutral
AC Line
V1
RTN
V3
V2
+V1 Sense
-V1 Sense
MANUFACTURER / PN
Molex: 26-60-4030 or equivalent
Mating: 09-50-3031; Pins: 08-50-0106
Tyco: 640445-6 or equivalent
Mating: 647402-6; Pins: 3-647409-1
Molex: 22-23-2021 or equivalent
Mating: 22-01-2021
Molex: 19705-4301
Mating: 190030001
DC Output Connector
J2
Signal Connector
Earth
J3
J4
PARAMETER
Weight
Dimensions
DESCRIPTION / CONDITION
150 g (0.33 lbs.)
101.6 x 50.8 x 30.48 mm (4 x 2 x 1.2 inch)
tech.support@psbel.com
ABC60 Series
5

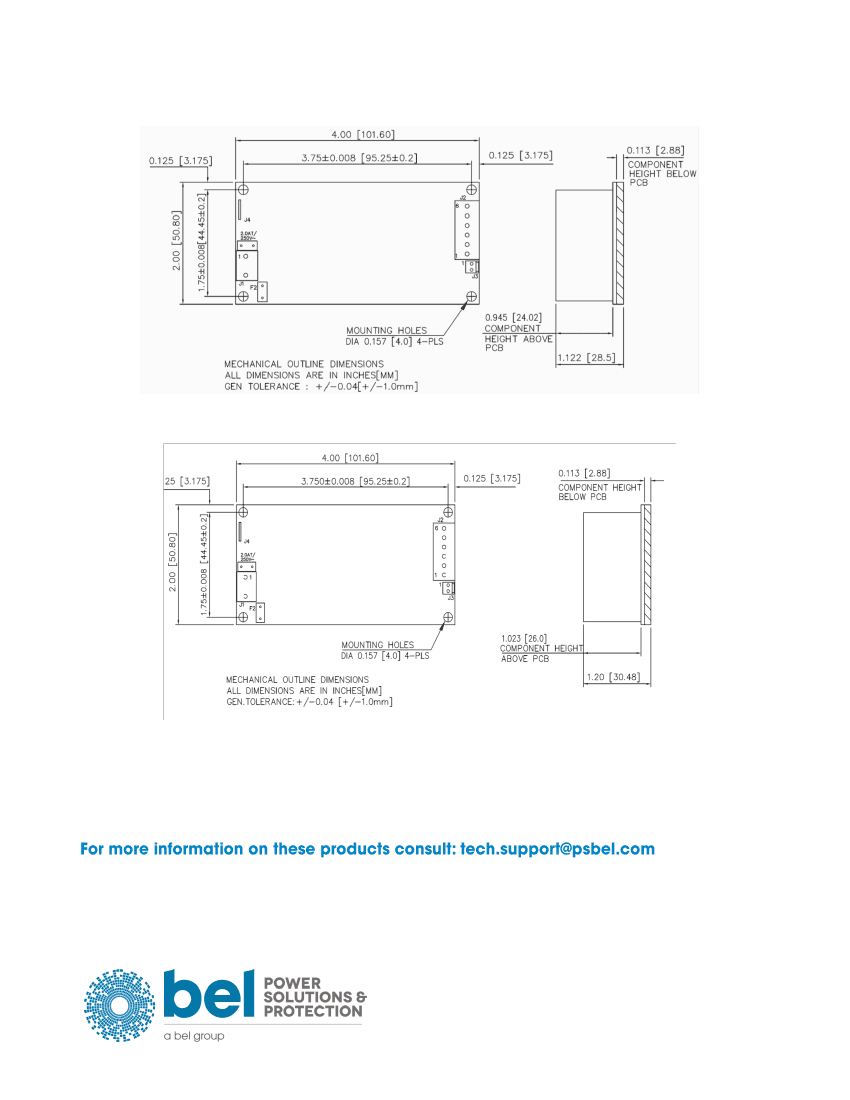

Figure 2. Mechanical Drawing ABC60-1xxxG
Figure 3. Mechanical Drawing ABC60-3xxxG
NOTES:
In case the PCB is mounted in a metal enclosure, using metal hardware ensure the following:
1
Stand off, used to mount PCB has OD of 5.4 mm max.
2
Screws, used to fix PCB on stand off, have head dia of 6.0 mm max.
3
Washer, if used, to have dia of 6.5 mm max.
NUCLEAR AND MEDICAL APPLICATIONS
- Products are not designed or intended for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems.
TECHNICAL REVISIONS
- The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
North America
+1 408 785 5200
BCD.00282_AD
© 2017 Bel Power Solutions & Protection
