APC78142 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> APC78142

APC78142: DescriptionTelecom Transformer; CategoryPower management transformer; File Size244KB，2 Pages; ManufacturerBel Fuse

Download Datasheet Parametric View All

APC78142 Overview

Telecom Transformer

APC78142 Parametric

Parameter Name	Attribute value
Maker	Bel Fuse
Reach Compliance Code	compliant
ECCN code	EAR99
Certification	UL
high	10.67 mm
length	53.3 mm
Manufacturer's serial number	APC78142
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	53.3mm X 17.8mm X 10.67mm
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	17.8 mm

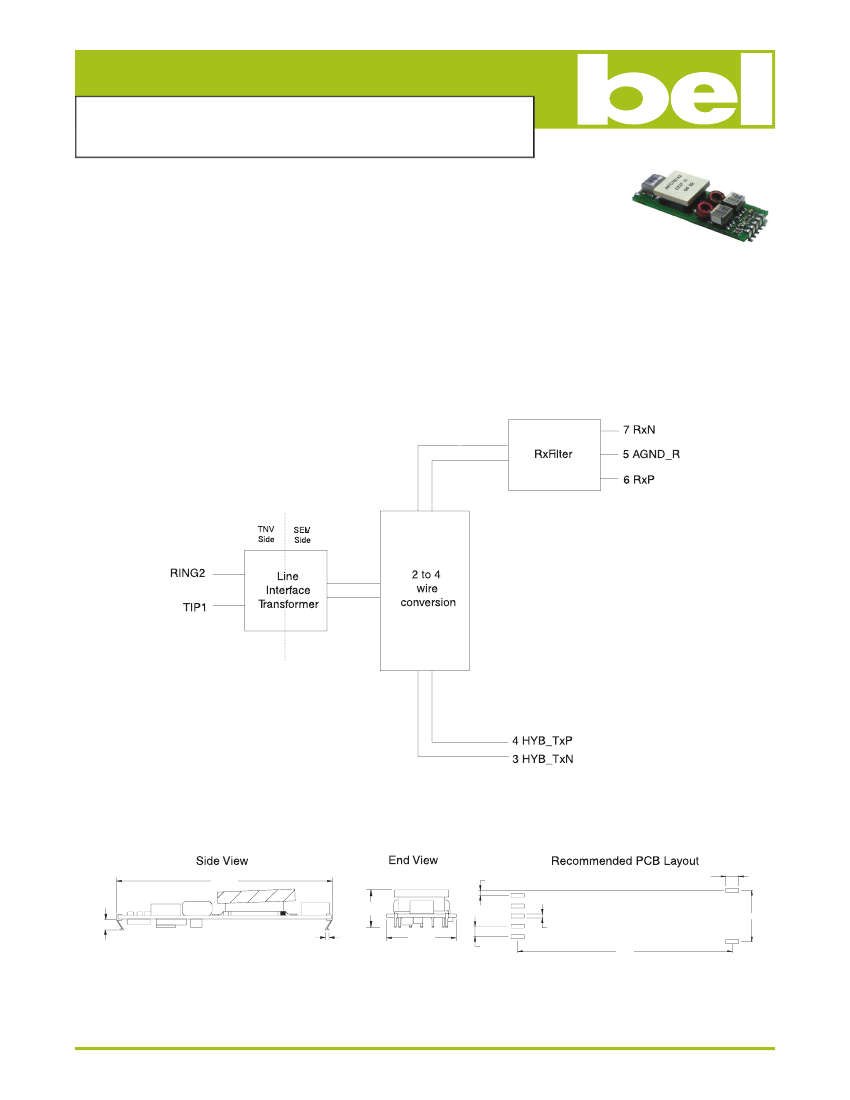

APC78142 Preview

ADSL SMD Line Interface Hybrid

APC78142

OPERATING TEMPERATURE -40°C TO +85°C

FEATURES

•

APC78142 is designed to interface with Alcatel’s MTK20150 ADSL transceiver chipset. The

SMD mechanical form is designed to optimize Central Office (CO) high density line card

applications. The hybrid contains every component required between the analog front end chip and the connector,

including line interface transformer and receive filters (excluding the line driver and associated resistor network).

Approval is pending for BS EN60950 / IEC60950 / TS 001 / AS/NZS 3260 / CAN/CSA C22.2 Np. 950-95 / UL1950 / UL

Component Recognition and CB Certificate.

•

BLOCK DIAGRAM

MECHANICAL

53.3±0.15

1.27

3.2

xxxxxxx

10.67Maximum

seatedheight.

1.0

2.50±0.10

1.65+/-0.1

17.8±0.15

2.54pitchin

4places

12.7

53.15

NOTES:

ALL DIMENSIONS IN MM +/- 0.5

Bel Fuse Inc.

206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com

Page 1

ADSL SMD Line Interface Hybrid

APC78142

REFLOW PROFILE

Recommended Reflow profile of Host PCB for APC SMT Parts

The maximum temperature reached by the PCB was 214° C and was within 1° of this for 16 seconds.

250

The maximum rate of temperature change was

1.6° C / sec

200

Temp Centigrade

150

100

200

300

Time Seconds

PCB

400

500

600

CORPORATE

Bel Fuse Inc.

206 Van Vorst Street

Jersey City, NJ 07302

Tel 201-432-0463

Fax 201-432-9542

www.belfuse.com

FAR EAST

Bel Fuse Ltd.

8F / 8 Luk Hop Street

San Po Kong

Kowloon, Hong Kong

Tel 852-2328-5515

Fax 852-2352-3706

www.belfuse.com

EUROPE

Bel Stewart Connector

45/46 Riverside

Medway City Estate

Rochester, Kent ME2 4DP U.K.

Tel 44-1634-722890

Fax 44-1634-716677

www.belfuse.com

Page 2
