BC Energy Series
BOOSTCAP
®
Ultracapacitors
e
>
Series: BC Energy
Round, Terminal Type
Features:
»
Dimensions similar to EN 60086-2 & EN 60285
»
Over 500,000 duty cycles
»
10 year life capability
»
Higher energy vs. electrolytic
»
Higher power vs. batteries
»
Aluminum construction
»
Round, double ended design
»
Ultra-low internal resistance
»
Resistant against reverse polarity
»
UL Recognized
>
Applications:
»
Automotive subsystems
»
Consumer electronics
»
Short term UPS and telecom
»
Renewable energy systems
»
Portable power tools
>
Overview:
The Energy-type ultracapacitor product line gives industrial customers a much wider range of choices to meet
their energy storage and power delivery requirements. The cells are specifically engineered to provide cost-
effective solutions for automotive subsystems, UPS, renewable energy and portable consumer products.
In addition to meeting or exceeding demanding industrial application requirements for both watt-hours of
energy storage and watts of power delivery per kilogram, all of these products will perform reliably for more
than five hundred-thousand discharge-recharge cycles.
The proprietary architecture and material science of the BOOSTCAP® products enable continued leadership
in controlling costs, flexibility in product offerings and allow application specific performance tailoring.
BC Energy Series
BOOSTCAP
®
Ultracapacitors
|
Page 1
| Doc. #1009473 | Rev. 3 |
BC Energy Series
BOOSTCAP
®
Ultracapacitors
>
BC
Energy Series Specifications:
Item
Operating Temperature Range
Storage Temperature Range
Rated Voltage
Capacitance Tolerance
Resistance Tolerance
Temperature Characteristics
Capacitance Change
Internal Resistance
Capacitance Change
Internal Resistance
Shelf Life
Product Specification
-40 °C to +65 °C
-40 °C to +70 °C
2.5 V DC
+20%
+/- 25%
Within ± 5% of initial measured value at 25 °C ( at -40 °C)
Within 150% of initial measured value at 25 °C (at -40 °C)
Within 20% of initial specified value
Within 25% of initial specified value
After 1000 hours application of rated voltage at 65 °C
Endurance
After 1000 hours storage at 65 °C without load shall meet specification for endurance
After 10 years at rated voltage and 25 °C
Capacitance Change
Internal Resistance
Within 20% of initial specified value
Within 100% of initial specified value
Life Test
Cycle Test
Capacitors cycled between specified voltage and half rated voltage under constant
current at 25 °C (500,000 Cycles)
Capacitance Change
Internal Resistance
Within 20% of initial specified value
Within 100% of initial specified value
>
BC
Energy Product Specifications:
Part Number
BCAP0140 E250
BCAP0350 E250
Capacitance
(F)
140
350
ESR, DC
(mohm)
7.20
3.20
ESR, 1khz
(mohm)
3.60
1.60
Ic
(mA)
0.10
0.30
>
BC
Energy Product Properties:
Maxwell Part No.
BCAP0140 E250
BCAP0350 E250
Rth
(C/W)
13.0
13.0
Isc
(A)
530
1100
Emax
(Wh/kg)
4.19
5.10
Pmax
(W/kg)
14,900
16,275
Pd
(W/kg)
3,500
3,900
BC Energy Series
BOOSTCAP
®
Ultracapacitors
|
Page 2
| Doc. # 1009473 | Rev. 3 |
BC Energy Series
BOOSTCAP
®
Ultracapacitors
>

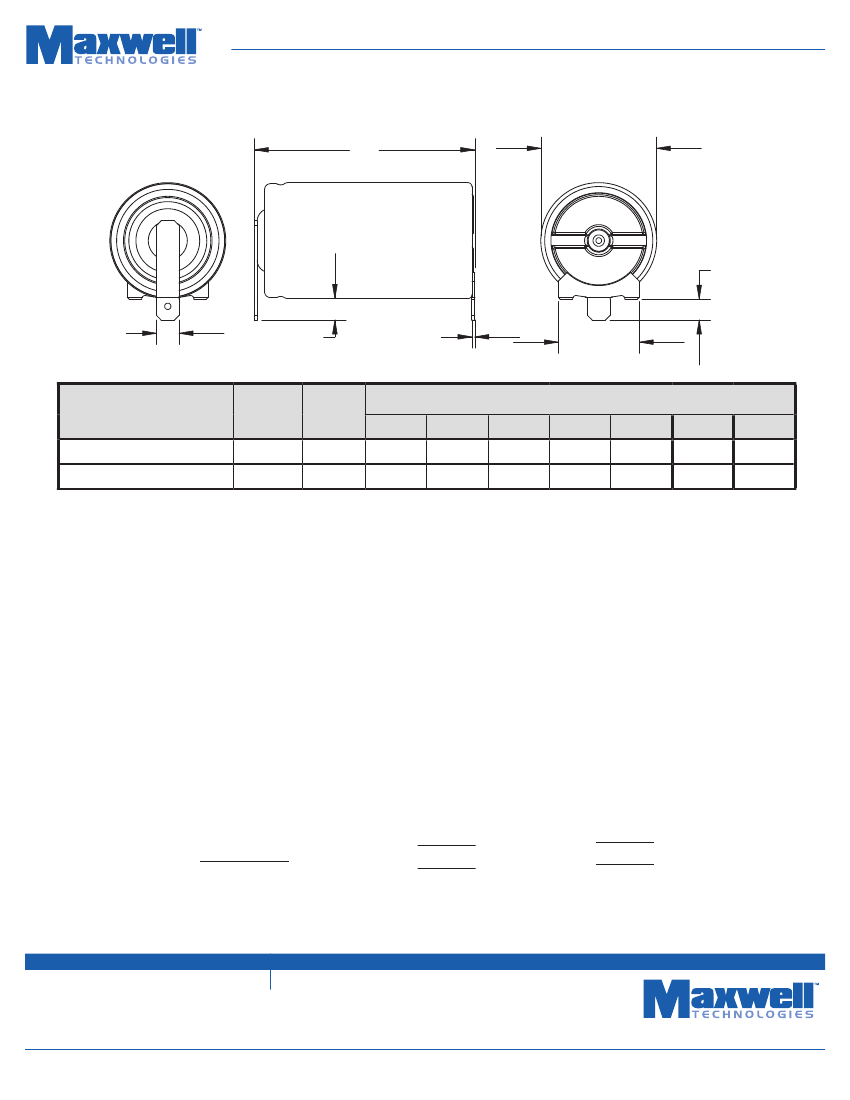

Dimensions:
L
D
c
a
Vol
(I)
s
Mass
(g)
29.0
60.0
t
b
Size (mm)
Part Number
BCAP0140 E250
BCAP0350 E250
.027
.053
L
51
62
D
26
33
a
4.75
6.40
b
16.0
22.9
c
5.9
5.9
s
6.9
6.2
t
0.5
0.8
Product dimensions are for reference only unless otherwise identified. Product dimensions and specifications may change
without notice. Please contact Maxwell Technologies directly for any technical specifications critical to application.
>
Mounting Recommendations:
Markings
Solder tabs to PCB. See application note for further information and slot spacing recommendations
>
Rated capacitance, rated voltage, part number, manufacturer, positive and negative terminal, warning
marking, UL symbol, lot number
>
Additional Technical Information:
Capacitance and ESR, DC measured per document 1007239
ic= Leakage current after 72 hours, 25˚C
Rth = Thermal resistance
E
max
=
½
CV
2
3600 x
mass
V
2
P
max
=
4R
(1khz)
mass
Patent Pending
0.12V
2
P
d
=
R (DC)
mass
lsc = short circuit current (maximum peak current)
