AB26TRB-FREQ-6--7: DescriptionQUARTZ CRYSTAL RESONATOR, 0.03 MHz - 0.1 MHz, ROHS COMPLIANT, SMD, 3 PIN; CategoryPassive components Crystal/resonator; File Size138KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AB26TRB-FREQ-6--7 Overview

QUARTZ CRYSTAL RESONATOR, 0.03 MHz - 0.1 MHz, ROHS COMPLIANT, SMD, 3 PIN

AB26TRB-FREQ-6--7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, SMD, 3 PIN
Reach Compliance Code	compliant
Other features	BULK
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1 µW
frequency stability	0.0144%
frequency tolerance	15 ppm
load capacitance	6 pF
Manufacturer's serial number	AB26TRB
Installation features	SURFACE MOUNT
Maximum operating frequency	0.1 MHz
Minimum operating frequency	0.03 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L6.0XB1.9XH1.9 (mm)/L0.236XB0.075XH0.075 (inch)
Series resistance	50000 Ω
surface mount	YES
Terminal surface	NOT SPECIFIED

Preview

Download Datasheet

View All

LOW FREQUENCY REFLOWABLE

CYLINDRICAL WATCH CRYSTAL

AB26TRB

FEATURES:

• Formed leads for low cost SMD type

• Excellent shock resistance

• Reflow Capable

• Low cost for consumer applications

APPLICATIONS:

• Real time clock

• Measuring instruments

• Blue-tooth and wireless applications

Pb

RoHS

Compliant

6.0 x 2.5mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operating Temperature

Turn-over Temperature

Storage Temperature

Frequency Tolerance

Frequency Stability

Equivalent Series Resistance

Shunt Capacitance C0

Load Capacitance CL

Quality Factor

Drive Level

Aging at 25°C first year

Insulation Resistance

AB26TRB Series

32.768kHz / 30kHz to 100kHz

-40°C to + 85°C

25°C to ± 5°C

-55°C to +125°C

± 20 ppm max. for 32.768KHz / ± 30 ppm max. for 30kHz to 100kHz

(See Options)

-0.034 ± 0.006ppm/°C

2

50kohms max. (32.768kHz / 30kHz to 100kHz)

1.35pF typ. For 32.768kHz / 0.8 to 1.7pF for 30kHz to 100kH

12.5pF (see options)

70,000 typ. for 32.768kHz / 70,000 to 100,000 for 30kHz to 100kHz

1

µ

W max.

± 3 ppm max. for 32.768kHz / ± 5 ppm max. for 30kHz to 100kHz

500 MW min. at 100 Vdc ± 15V

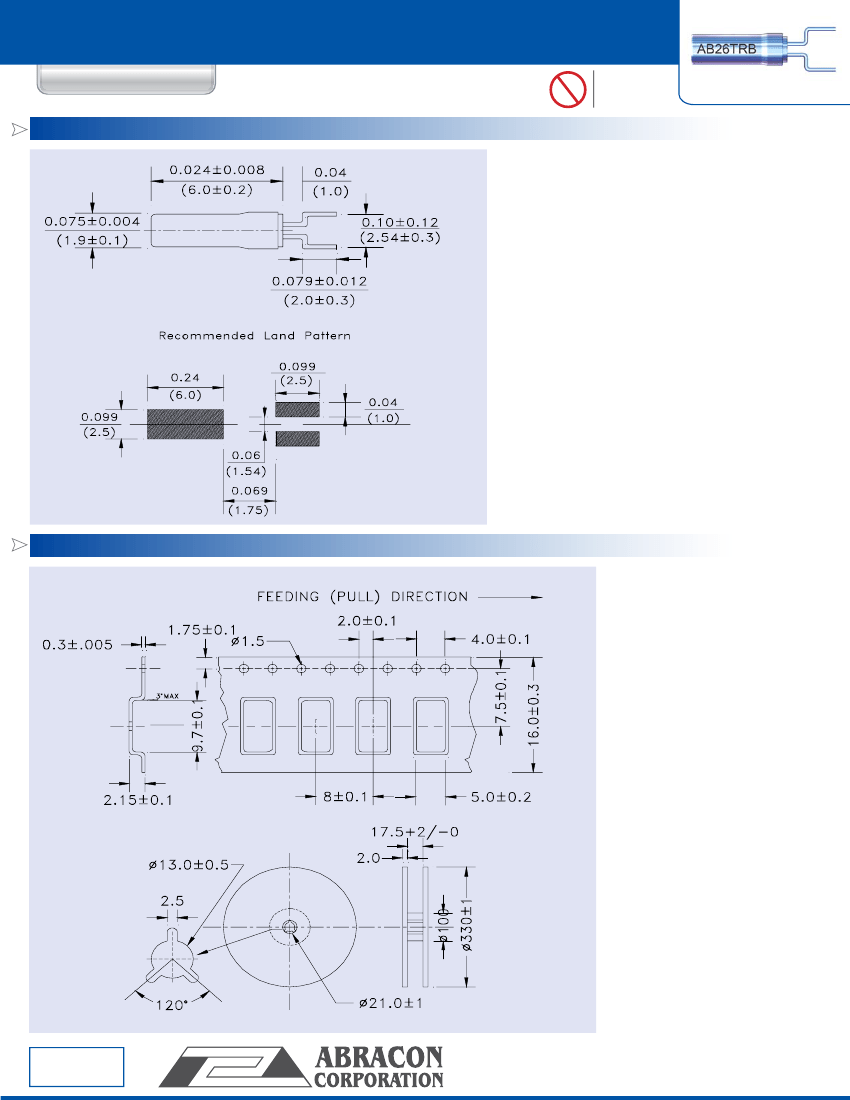

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

AB26TRB-Frequency- - -

Load Capacitance

Blank

12.5pF

6

6pF

*Contact ABRACON for

non-standard load

Frequency Tolerance

Blank

Standard

1

± 10 ppm

7

± 15 ppm

Blank

T

Packaging

Bulk

Tape and Reel

capacitance

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 07.09.07

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
