OD-BP1511-23LE6: DescriptionTransceiver, 1260nm Min, 1360nm Max, 156Mbps(Tx), 156Mbps(Rx), SC Connector, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Optical fiber; File Size207KB，2 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric View All

OD-BP1511-23LE6 Overview

Transceiver, 1260nm Min, 1360nm Max, 156Mbps(Tx), 156Mbps(Rx), SC Connector, ROHS COMPLIANT PACKAGE

OD-BP1511-23LE6 Parametric

Parameter Name	Attribute value
Maker	NEC Electronics
Reach Compliance Code	unknown

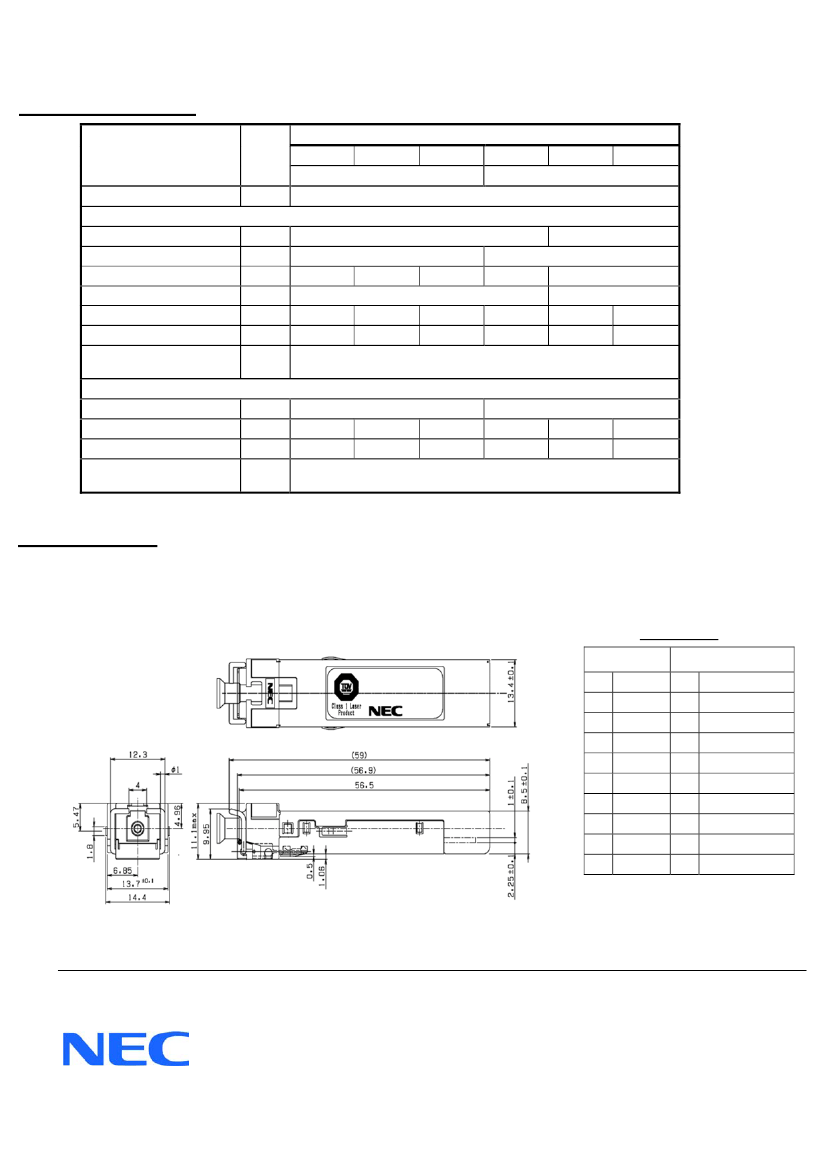

body width	13.4 mm
body height	8.5 mm
Body length or diameter	56.5 mm
Communication standards	SDH, SONET
Connection Type	SC CONNECTOR
Data rate (receive)	156 Mbps
Data rate (send)	156 Mbps
Fiber optic equipment types	TRANSCEIVER
Maximum operating wavelength	1360 nm
Minimum operating wavelength	1260 nm
Nominal operating wavelength	1310 nm
Sensitivity	-31 dBm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V

Preview

Download Datasheet

View All

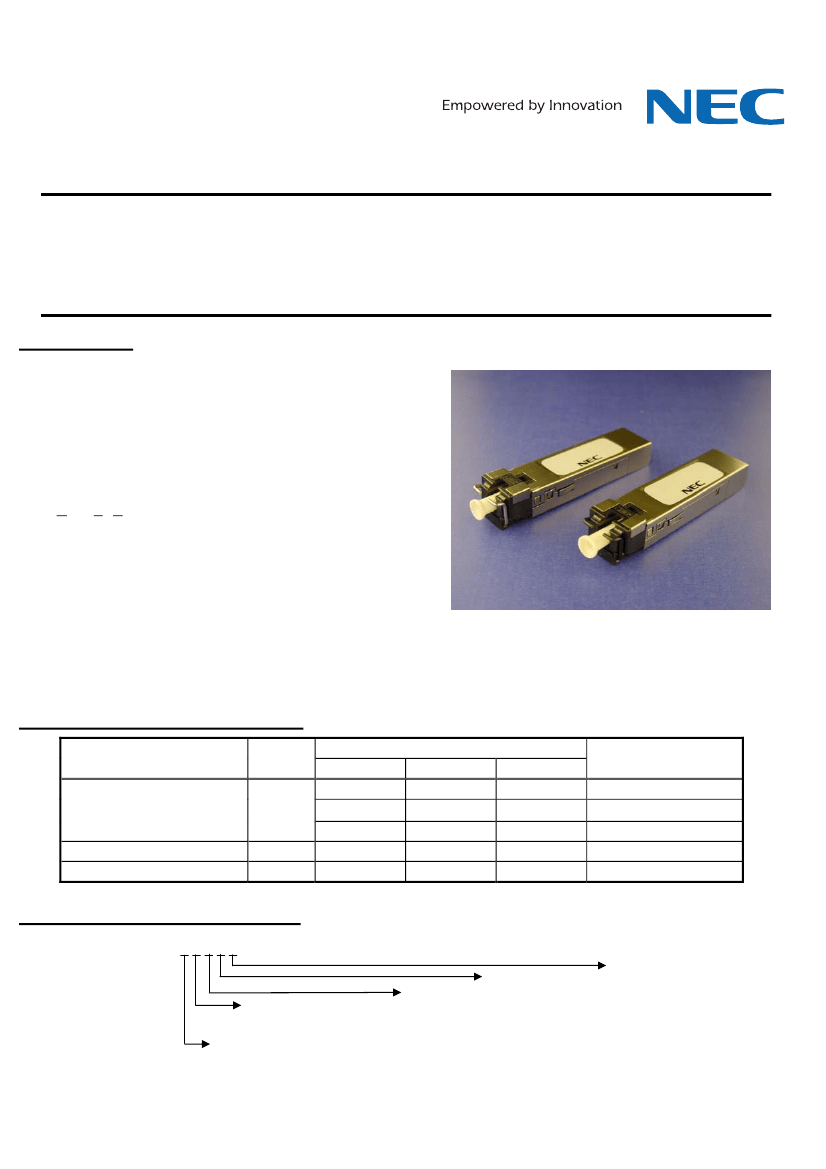

OD-BP1511

156Mbps 1.3µm/1.5µm WDM

Bi-directional SFP Transceiver

FEATURES

Single fiber Bi-directional Optical Transceiver

consists of

- Transmitter

- Receiver with 2R function

- 1.3/ 1.5

µ

m WDM function

using Planar Lightwave Circuit (PLC)

- Bail latch type

- LC receptacle type

SFP Transceiver MSA

125 to 156Mbps Data Rates

Loss of Signal (LOS) function

Transmitter disable (TX_DISABLE) function

Single Power Supply Voltage of +3.3V

Differential AC100 ohms Data Input/Output

Hot-pluggable electrical interface

Serial identification

LC and SC receptacle

Bail latch type and Lever latch type

Lead-free and RoHS compliant

Applied to Fast Ethernet, SDH/SONET

OPERATING CONDITIONS

Parameter

Case Temperature

Power Supply Voltage

Power Supply Current

Unit

o

C

V

mA

Min.

0

-5

-40

+ 3.135

–

Values

Typ.

–

+ 3.300

–

Max.

+ 70

+ 85

+ 3.465

300

Remarks

-1xxxx

-2xxxx

-3xxxx

PRODUCT INFORMATION

OD-BP1511-x x x x x

Transmitter wavelength

3 : 1.3µm band

5 : 1.5µm band

Temperature

o

1 : 0 ~ +70 C

2 : -5 ~ +85

o

C

3 : -40 ~ +85

o

C

Loss budget

S : 16dB

M : 21dB

L : 26dB

Connector

L : LC receptacle

E : SC receptacle

Latch structure

4 : Lever Latch

6 : Bail Latch

Recommended Resources

217 basic working circuit

Installation diagram of electric water distillation device with water cutoff protection circuit

Magnetometer circuit diagram

Sine-square-triangle wave generator circuit diagram with linear logarithmic sweep

Maximum absolute value comparison circuit diagram
