FT6169-15PC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> FT6169-15PC

FT6169-15PC: DescriptionStandard SRAM, 4KX4, 15ns, CMOS, PDIP20, 0.300 INCH, PLASTIC, DIP-20; Categorystorage storage; File Size536KB，16 Pages; ManufacturerForce Technologies Ltd.

Download Datasheet Parametric View All

FT6169-15PC Overview

Standard SRAM, 4KX4, 15ns, CMOS, PDIP20, 0.300 INCH, PLASTIC, DIP-20

FT6169-15PC Parametric

Parameter Name	Attribute value
Maker	Force Technologies Ltd.
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	15 ns
JESD-30 code	R-PDIP-T20
length	25.908 mm
memory density	16384 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of terminals	20
word count	4096 words
character code	4000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4KX4
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	5.33 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

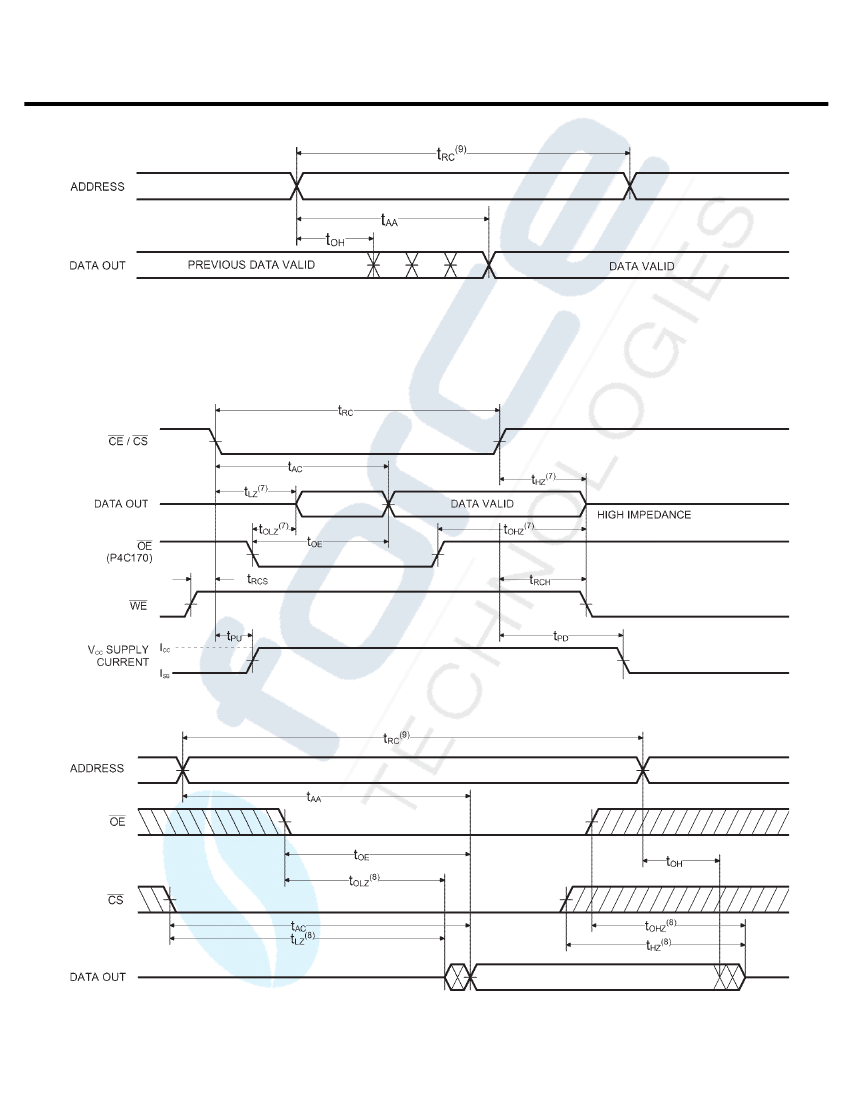

Preview

Download Datasheet

View All

FT6168, FT6169, FT6170

FEATURES

Full CMOS, 6T Cell

High Speed (Equal Access and Cycle Times)

– 12/15/20/25/35ns (Commercial)

– 20/25/35/45/55/70ns (FT6168 Military)

Low Power Operation (Commercial)

– 715 mW Active

– 193 mW Standby (TTL Input)

FT6168

– 83 mW Standby (CMOS Input)

FT6168

Single 5V±10% Power Supply

ULTRA HIGH SPEED 4K x 4

STATIC CMOS RAMS

Fully TTL Compatible, Common I/O Ports

Three Options

–

FT6168

Low Power Standby Mode

–

FT6169

Fast Chip Select Control

–

FT6170

Fast Chip Select, Output Enable

Controls

Standard Pinout (JEDEC Approved)

–

FT6168:

20-pin DIP, SOJ, LCC, SOIC,

CERPACK, and Flat Pack

–

FT6169:

20-pin DIP and SOIC

–

FT6170:

22-pin DIP

DESCRIPTION

The

FT6168, FT6169

and

FT6170

are a family of

16,384-bit ultra high-speed static RAMs organised as 4K

x 4. All three devices have common input/output ports.The

FT6168

enters the standby mode when the chip enable

(CE) control goes HIGH; with CMOS input levels, power

consumption is only 83mW in this mode. Both the

FT6169

and the

FT6170

offer a fast chip select access time that

is only 67% of the address access time. In addition, the

FT6170

includes an output enable (OE) control to elimi-

nate data bus contention. The RAMs operate from a

single 5V ± 10% tolerance power supply.

Access times as fast as 12 nanoseconds are available,

permitting greatly enhanced system operating speeds.

CMOS is used to reduce power consumption to a low 715

mW active, 193 mW standby.

The

FT6168

and

FT6169

are available in 20-pin (FT6170

in 22-pin) 300 mil DIP packages providing excellent

board level densities. The

FT6168

is also available in 20-

pin 300 mil SOIC, SOJ, CERPACK, and Flat Pack

packages.

The

FT6169

is also available in a 20-pin 300 mil SOIC

package.

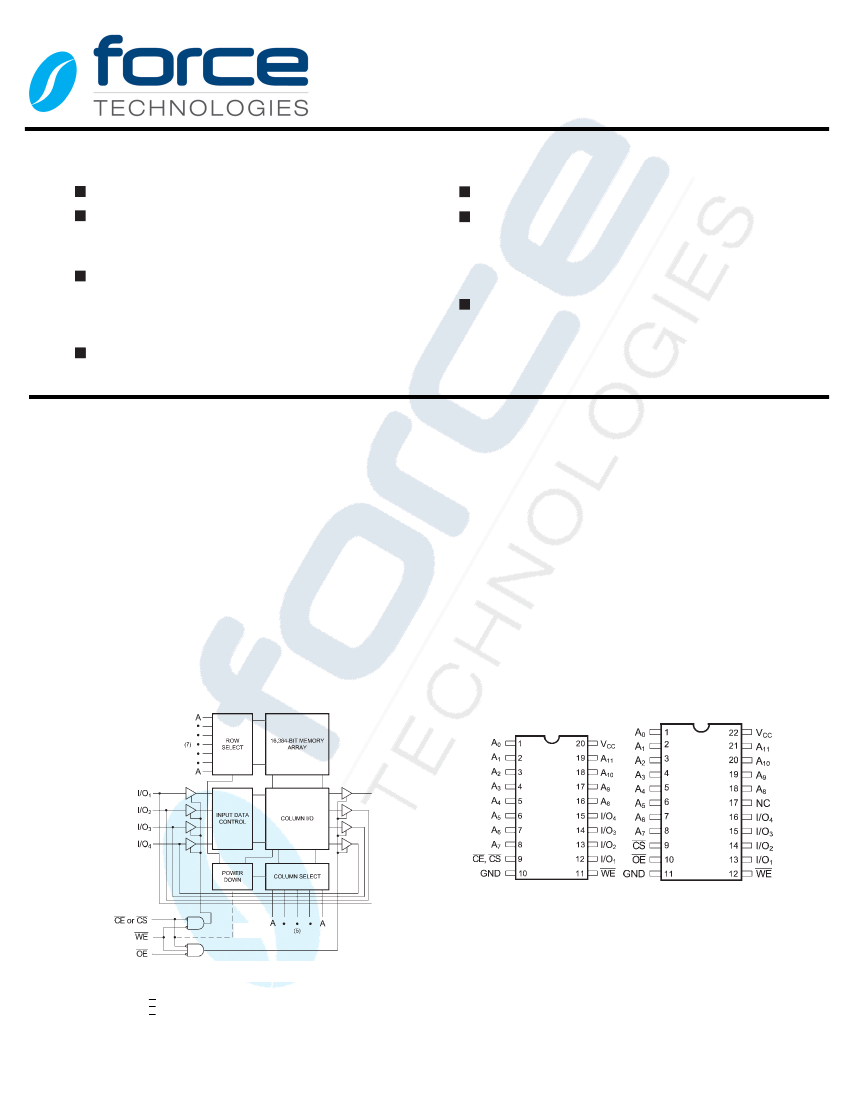

FUNCTIONAL BLOCK DIAGRAM

PIN CONFIGURATIONS

FT6168

FT6169

DIP (P2, C6, D2)

DIP (P2)

SOIC (S2)

SOJ (J2)

CERPACK (F2)

SOLDER SEAL FLAT PACK (FS-2)

FT6170

DIP (P3)

FT6168

CE USED ON FT6168 ALSO FOR POWER DOWN FUNCTIONS

CE USED ON FT6169 FAST CHIP SELECT

OE OUTPUT ENABLE FUNCTION ON FT6170

1997

1/16

Rev A
