2698B/BZA datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 2698B/BZA

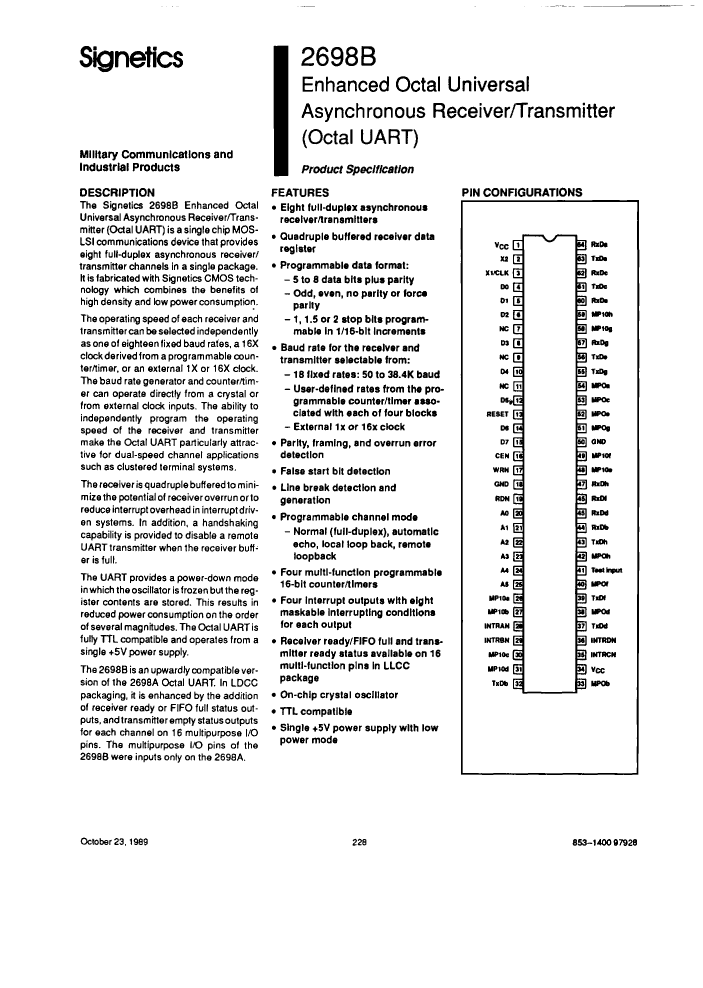

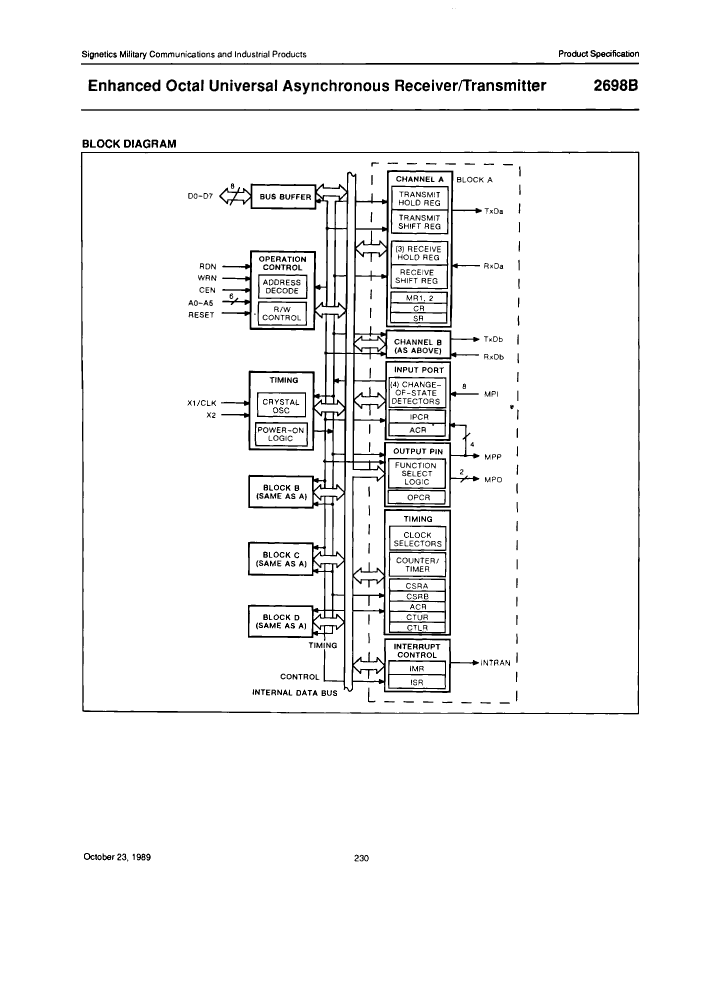

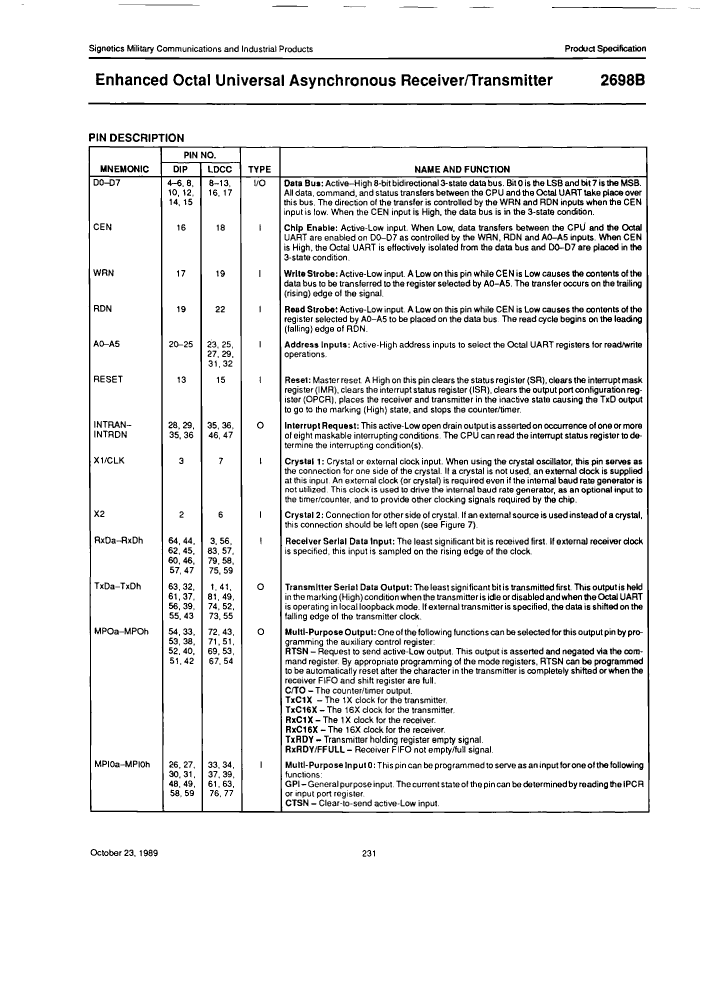

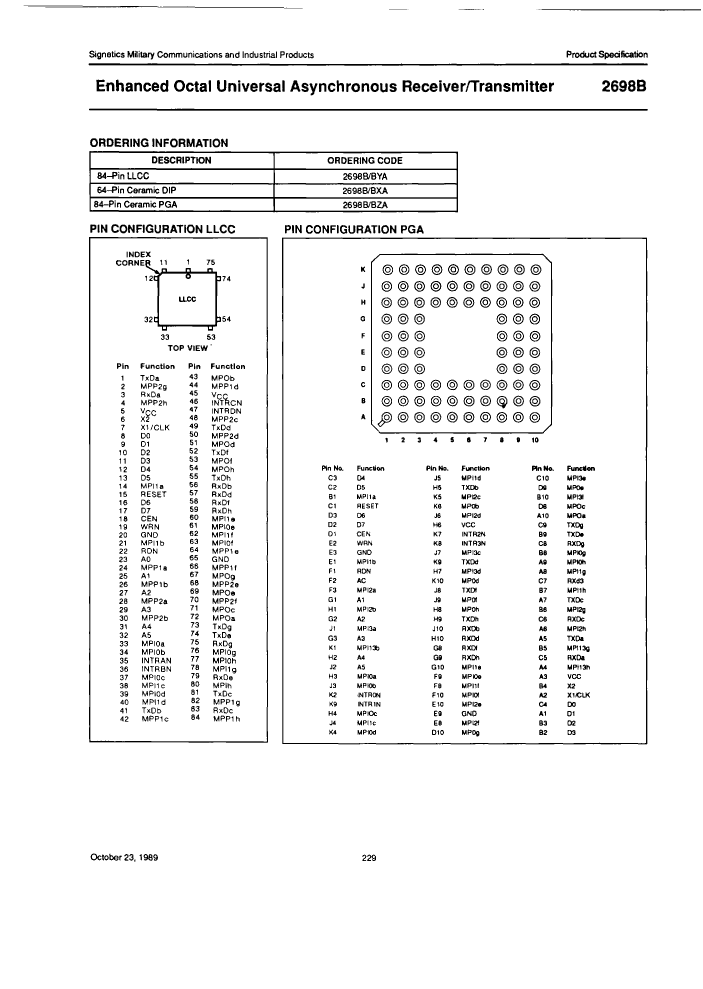

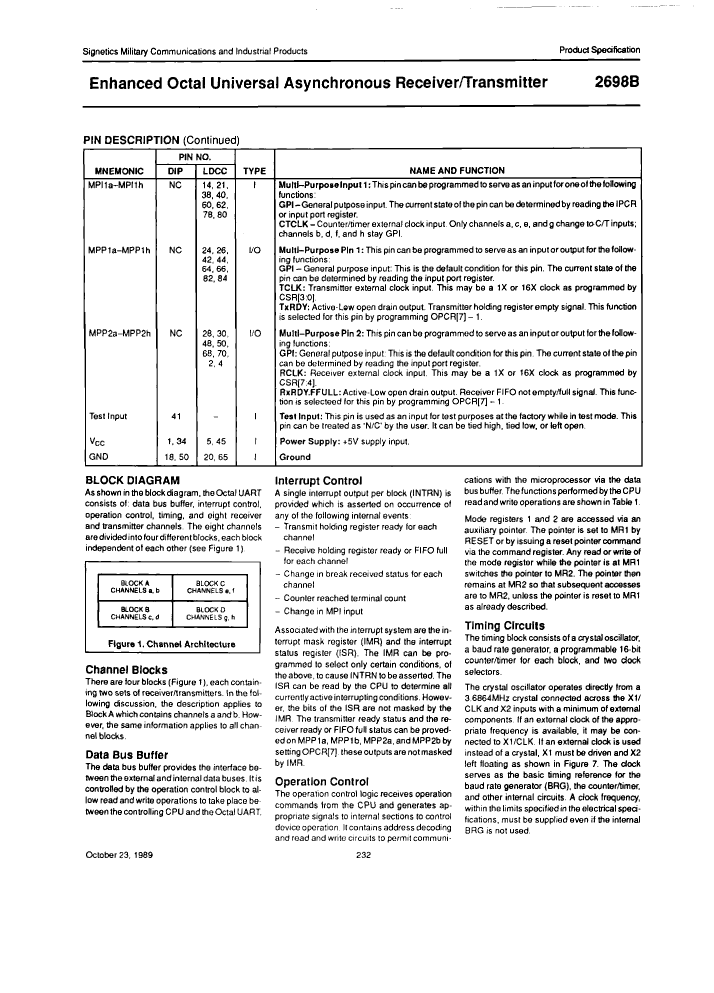

Preview

2698B/BZA: DescriptionSerial I/O Controller, 8 Channel(s), 0.0046875MBps, CMOS, CPGA84; CategoryThe embedded processor and controller Microcontrollers and processors; File Size980KB，21 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

2698B/BZA Overview

Serial I/O Controller, 8 Channel(s), 0.0046875MBps, CMOS, CPGA84

2698B/BZA Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
Address bus width	6
boundary scan	NO
Maximum data transfer rate	0.0046875 MBps
External data bus width	8
JESD-30 code	S-CPGA-P84
low power mode	NO
Number of serial I/Os	8
Number of terminals	84
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	GRID ARRAY
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal location	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1

Preview

Download Datasheet

View All

2698B/BZA Related Products

	2698B/BZA	2698B/BYA-T	2698B/BYA	2698B/BXA
Description	Serial I/O Controller, 8 Channel(s), 0.0046875MBps, CMOS, CPGA84	Serial I/O Controller, 8 Channel(s), 0.0046875MBps, CMOS, CQCC84	Serial I/O Controller, 8 Channel(s), 0.0046875MBps, CMOS, CQCC84	Serial I/O Controller, 8 Channel(s), 0.0046875MBps, CMOS, CDIP64
Reach Compliance Code	unknow	unknow	unknow	unknow
Address bus width	6	6	6	6
boundary scan	NO	NO	NO	NO
Maximum data transfer rate	0.0046875 MBps	0.0046875 MBps	0.0046875 MBps	0.0046875 MBps
External data bus width	8	8	8	8
JESD-30 code	S-CPGA-P84	S-CQCC-N84	S-CQCC-N84	R-CDIP-T64
low power mode	NO	NO	NO	NO
Number of serial I/Os	8	8	8	8
Number of terminals	84	84	84	64
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	SQUARE	SQUARE	RECTANGULAR
Package form	GRID ARRAY	CHIP CARRIER	CHIP CARRIER	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	PIN/PEG	NO LEAD	NO LEAD	THROUGH-HOLE
Terminal location	PERPENDICULAR	QUAD	QUAD	DUAL
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1	1	1	1
