FP5136PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP5136PM

FP5136PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size39KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP5136PM Overview

RF AMPLIFIER MODEL

FP5136PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	19 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	200 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

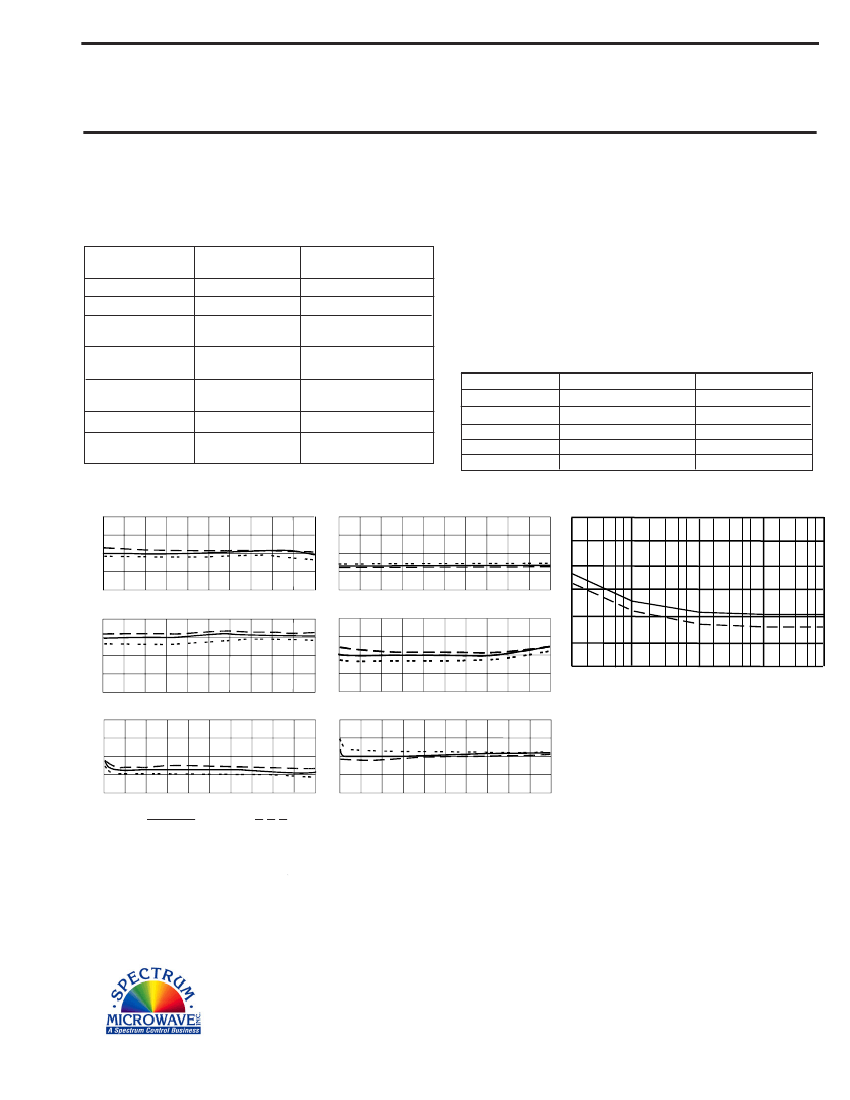

RF AMPLIFIER

MODEL

TM5136PM

Features

Superior Phase Noise Performance

High Gain: 20 dB Typical

High Output Power: +21 dBm Typical

Operating Temp. -40 ºC to +85 ºC

TYPICAL

Ta= 25 ºC

10 - 200 MHz

20.0

+21

-26

1.5:1

4.0

+15

MIN/MAX

Ta = -40 ºC to +85 ºC

10 - 200 MHz

19.0 Min.

+19 Min.

-25 Min.

1.5:1 Max.

2.0:1 Max.

4.4 Max.

+15

70 Max.

Available as:

TM5136PM, 4 Pin TO-8 (T4)

TN5136PM, 4 Pin Surface Mount (SM3)

FP5136PM, 4 Pin Flatpack (FP4)

BX5136PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +52 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +45 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +33 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)

Power

Vdc

VSWR

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-155

-168

-172

-173

Guarantee (Min.)

-151

-164

-168

-169

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 10 MHz

Stop 200 MHz

Gain (dB)

-10

-20

-30

-40

Reverse Isolation (dB)

-130

-140

-150

-160

Start 10 MHz

Stop 200 MHz

Phase Noise (dBc/Hz)

2.0

1.5

1.0

Start 10 MHz

1 dB Comp. (dBm)

Noise Figure (dB)

-170

-180

-190

100

10k

100k

_________Guarantee __ __ __ __Typical

Start 10 MHz

Stop 200 MHz

Input VSWR

2.0

1.5

1.0

Output VSWR

Phase Noise Test Conditions:

Carrier Frequency: 160 MHz

Power Output: +22 dBm

Temperature: 25 ºC

Agilent ES5500 System

Stop 200 MHz

Start 10 MHz

Stop 200 MHz

Start 10 MHz

Legend

+25 ºC

+85 ºC - - - - - - -40 ºC

Linear S-Parameters

======================================================================================

-23

.27

- 24

9.55

-168

.054

-167

.22

-19

-177

.25

- 19

9.73

-179

.055

.19

-22

.24

- 28

9.88

166

.054

162

.18

-45

135

100

.22

- 57

10.04

146

.056

.20

-75

.21

-100

10.13

125

.055

113

150

.22

-113

200

.26

-153

9.92

103

.055

.25

-156

.049

250

.38

-165

9.25

.28

Freq.

MHz

----S11----

Mag

Deg

----S21----

Mag

Deg

----S12----

Mag

Deg

----S22----

Mag

Deg

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

3/31/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001
