FP5150PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size56KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP5150PM Overview

RF AMPLIFIER MODEL

FP5150PM Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	19 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	300 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

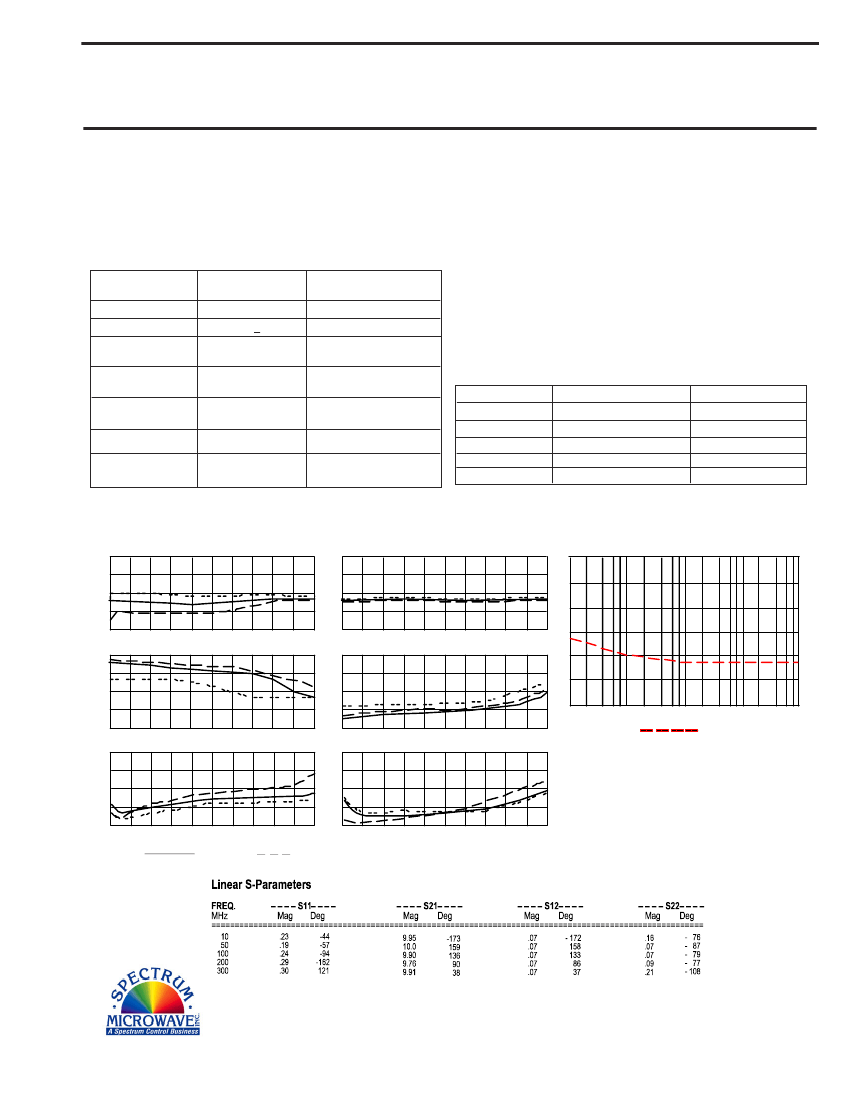

RF AMPLIFIER

MODEL

TM5150PM

Features

Low Noise Figure: 2.5 dB Typical

Output Power: +18 dBm Typical

Operating Temp. -55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM5150PM, 4 Pin TO-8 (T4)

TN5150PM, 4 Pin Surface Mount (SM3)

FP5150PM, 4 Pin Flatpack (FP4)

BX5150PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +48 dBm (Typ.)

Second Order Two Tone Intercept Poin ......... +43 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +32 dBm (Typ.)

Absolute Maximum (No Damage) Ratings

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 300 MHz

19.0 Min.

+17 Min.

-22 Max.

2.5:1 Max.

2.0:1 Max.

3.5 Max.

+15

53 Max.

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

10 - 300 MHz

20.0 +5

+18

-23

1.75:1

1.5:1

2.5

+15

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power ............. 50 mW (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Guaranteed @

25 ºC

(160 MHz) Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

- 162

- 170

- 172

- 173

Guarantee (min.)

- 158

- 168

- 170

Note: Care should always be taken to effectively ground the case of each unit.

*Note: Phase Noise Performance typically tested at midband.

Bandedge performance may vary.

Typical Performance Data

+20

+19

+18

+17

+16

3.0

2.0

1.0

Start 10 MHz

Gain (dB)

-10

-20

-30

-40

Reverse Isolation (dB)

-1 30

-140

-15 0

Start 10 MHz

Stop 30 0 MHz -16 0

-17 0

-18 0

Phase Noise (dBc/Hz)

Start 10 MHz

1 dB Comp. (dBm)

Stop 30 0 MHz

Noise Figure (dB)

- 19 0

1 00

10 k

10 0k

Typical

Sta rt 10 MHz

Input VSWR

Sto p 3 00 MHz

Output VSWR

Stop 30 0 MHz

2.0

1.5

1.0

Sta rt 10

Noise

Conditions:

Carrie Frequency:

Phase

rOutput:

Test

160 mHz

Power

+18 dBm

Temperature: 25 ºC

Agilent ES5500 System

MHz

Stop 30 0 MHz

Start 1 0 MH z

Stop 300 MHz

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

4/22/09

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP5150PM Related Products

	FP5150PM	BX5150PM	TM5150PM	TN5150PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	19 dB	19 dB	19 dB	19 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	300 MHz	300 MHz	300 MHz	300 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Base Number Matches	1	-	1	1
