FP5152: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size68KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP5152 Overview

RF AMPLIFIER MODEL

FP5152 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	16 dB
Maximum input power (CW)	20 dBm
Maximum operating frequency	300 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

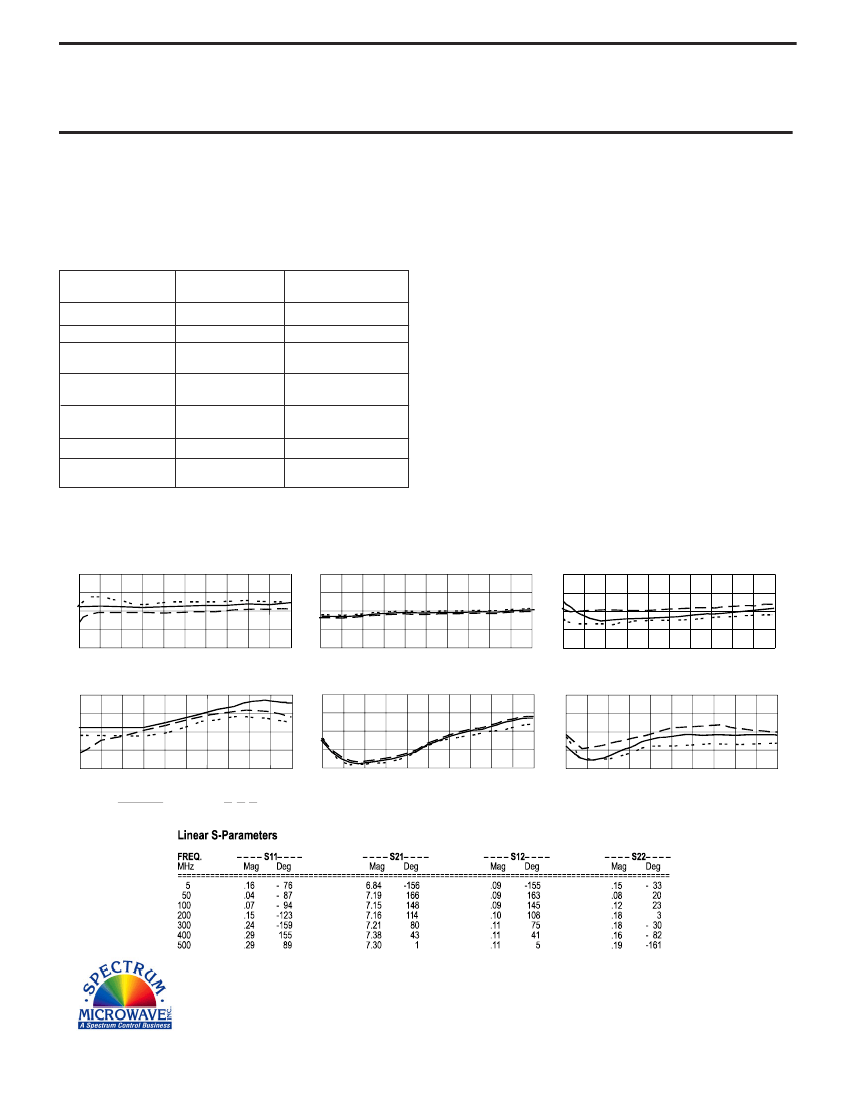

RF AMPLIFIER

MODEL

TM5152

Features

Higher Gain: 17 dB Typical

Higher Output Power: +20 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM5152, 4 Pin TO-8 (T-4)

TM5152, 4 Pin Surface Mount (SM3)

FP5152, 4 Pin Flatpack (FP4)

BX5152, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....... +53 dBm (Typ.)

Second Order Two Tone Intercept Point........ +47 dBm (Typ.)

Third Order Two Tone Intercept Point............ +33 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

10 - 300 MHz

17.0

+20

-20

<1.75:1

<1.5:1

<3.5

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 300 MHz

16.0 Min.

+17.5 Min.

-19 Max.

2.0:1 Max.

3.8 Max.

+15 Min.

60 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 20 dBm

Short Term RF Input Power.... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Reverse Isolation (dB)

Noise Figure (dB)

Start 10 MHz

-10

-20

-30

Stop 300 MHz

-40

Start 10 MHz

Stop 300 MHz

Start 10 MHz

Stop 300 MHz

+22

+21

+20

+19

+18

Start 10 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Start 10

Output VSWR

Stop 300 MHz

Start 10 MHz

Stop 300 MHz

MHz

Stop 300 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

6/17/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP5152 Related Products

	FP5152	BX5152	TM5152
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	-
Reach Compliance Code	compli	compliant	-
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-
structure	COMPONENT	COAXIAL	-
Gain	16 dB	16 dB	-
Maximum input power (CW)	20 dBm	20 dBm	-
Maximum operating frequency	300 MHz	300 MHz	-
Minimum operating frequency	10 MHz	10 MHz	-
Maximum operating temperature	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-55 °C	-
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-
Maximum voltage standing wave ratio	2	2	-
