FP5152PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP5152PM

FP5152PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size69KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP5152PM Overview

RF AMPLIFIER MODEL

FP5152PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	16 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	300 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

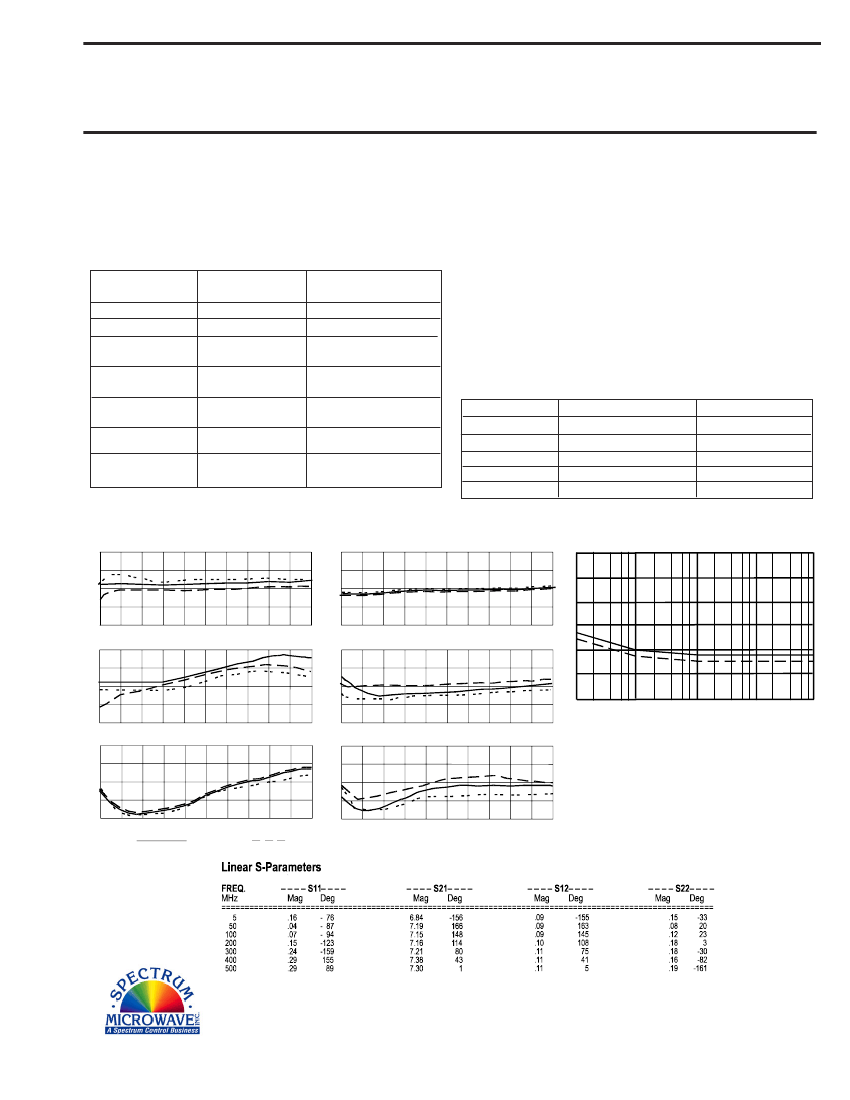

RF AMPLIFIER

MODEL

TM5152PM

Features

High Gain: 17 dB Typical

High Output Power: +20 dBm Typical

Operating Temp. -55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM5152PM, 4 Pin TO-8 (T4)

TN5152PM, 4 Pin Surface Mount (SM3)

FP5152PM, 4 Pin Flatpack (FP4)

BX5152PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +53 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +47 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +33 dBm (Typ.)

Maximum Ratings

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

10 - 300 MHz

17.0

+20

-20

<1.75:1

<1.5:1

<3.5

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 300 MHz

16.0 Min.

+17.5 Min.

-19 Max.

2.0:1 Max.

3.8 Max.

+15

60 Max.

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power ............. 50 mW (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

- 166

- 172

- 174

Guarantee (min.)

- 164

- 170

- 172

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

+22

+21

+20

+19

+18

2.0

1.5

1.0

Start 10 MHz

Gain (dB)

-10

-20

-30

Reverse Isolation (dB)

-130

-140

-150

-160

-170

-180

-190

100

Start 10 MHz

Stop 300 MHz

Phase Noise (dBc/Hz)

1 dB Comp. (dBm)

Stop 300 MHz

-40

2.0

1.5

Start 10 MHz

Stop 300 MHz

Noise Figure (dB)

10k

100k

_________Guarantee __ __ __ __Typical

Input VSWR

Stop 300 MHz

Output VSWR

MHz

Stop 300 MHz

Start 10 MHz

Stop 300 MHz

1.0

Start 10

Phase Noise Test Conditions:

Carrier Frequency: 80 MHz

Power Output: +20 dBm

Temperature: 25 ºC

Agilent ES5500 System

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

03/31/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP5152PM Related Products

	FP5152PM	BX5152PM	TM5152PM	TN5152PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compliant	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	16 dB	16 dB	16 dB	16 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	300 MHz	300 MHz	300 MHz	300 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Base Number Matches	-	1	1	1
