FP5182: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size41KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP5182 Overview

RF AMPLIFIER MODEL

FP5182 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	12 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

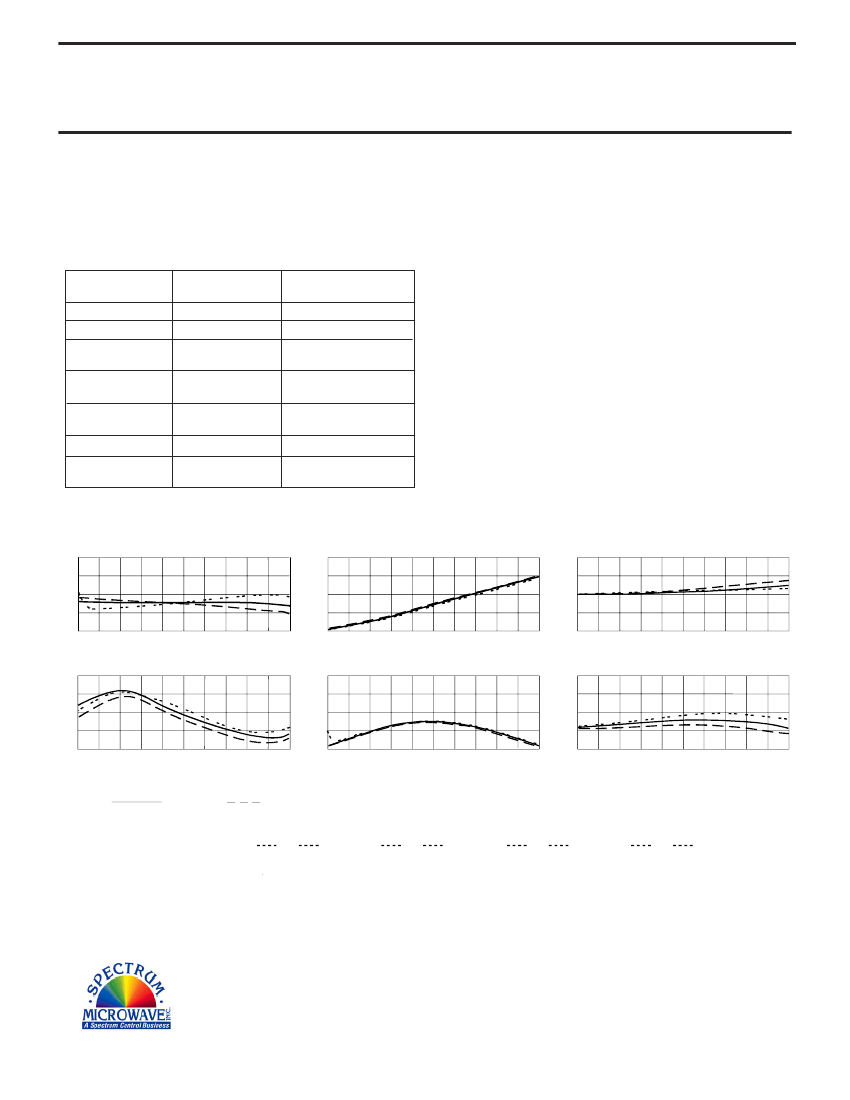

RF AMPLIFIER

MODEL

TM5182

Features

Output Power: +25 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM5182, 4 Pin TO-8 (T4)

TN5182, 4 Pin Surface Mount (SM3)

FP5182, 4 Pin Flatpack (FP4)

BX5182, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+50 dBm (Typ.)

Second Order Two Tone Intercept Point.........+45 dBm (Typ.)

Third Order Two Tone Intercept Point.............+36 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Vdc

TYPICAL

Ta= 25 ºC

10-500 MHz

12.5

+25

22.5

1.4:1

6.0

+15

145

MIN/MAX

Ta = -55 ºC to +85 ºC

10-500 MHz

12.0 Min.

+23 Min.

22 Min.

1.5:1 Max.

8.0 Max.

+15 Min.

150 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 10 MHz

Stop 500 MHz

Reverse Isolation (dB)

- 17

- 22

- 27

- 32

- 37

Start 10 MHz

Stop 500 MHz

Noise Figure (dB)

Start 10 MHz

Stop 500 MHz

1 dB Comp (dBm)

Start 10 MHz

Stop 500 MHz

2.0

1.5

1.0

Start 10 MHz

Input VSWR

Output VSWR

2.0

1.5

1.0

Stop 500 MHz

Start 10 MHz

Stop 500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Linear S-Parameters

S11

S21

S12

S22

FREQ.

MHz

Mag.

Deg.

Mag.

Deg.

Mag.

Deg.

Mag.

Deg.

========================================================================================

100

200

300

400

500

.04

.11

.15

.10

.03

-28

-102

-137

-164

171

116

4.21

4.26

4.27

4.15

-179

155

129

102

.015

.016

.022

.035

.054

.076

.13

.15

.17

.16

.13

-172

180

171

147

108

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

06/03/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP5182 Related Products

	FP5182	BX5182	TM5182	TN5182
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	12 dB	12 dB	12 dB	12 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	1.5	1.5	1.5	1.5
Maker	-	API Technologies	API Technologies	API Technologies
