SF1640FCT-H

Description
Rectifier Diode, 1 Phase, 2 Element, 8A, 400V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN
CategoryDiscrete semiconductor    diode
File Size98KB，6 Pages
ManufacturerFORMOSA
Websitehttp://www.formosams.com/
Download Datasheet Parametric Compare View All

SF1640FCT-H Overview

Rectifier Diode, 1 Phase, 2 Element, 8A, 400V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN

SF1640FCT-H Parametric

Parameter NameAttribute value
MakerFORMOSA
package instructionR-PSFM-T3
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresLOW POWER LOSS
applicationSUPER FAST RECOVERY
Shell connectionISOLATED
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.3 V
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
Maximum non-repetitive peak forward current125 A
Number of components2
Phase1
Number of terminals3
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Maximum output current8 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Maximum repetitive peak reverse voltage400 V
Maximum reverse current5 µA
Maximum reverse recovery time0.035 µs
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE

SF1640FCT-H Preview

Super Fast Recovery Rectifiers
SF1605FCT THRU SF1660FCT
List
Formosa MS
List................................................................................................. 1
Package outline............................................................................... 2
Features.......................................................................................... 2
Mechanical data............................................................................... 2
Maximum ratings .............................................................................. 2
Rating and characteristic curves........................................................ 3
Pinning information........................................................................... 4
Marking........................................................................................... 4
Tube packing.................................................................................... 4
Suggested thermal profiles for soldering processes............................. 5
High reliability test capabilities........................................................... 6
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2014/03/14
Revision
C
Page.
6
Page 1
DS-222416
Super Fast Recovery Rectifiers
SF1605FCT THRU SF1660FCT
16A Super Fast Recovery
Rectifiers - 50V-600V
Package outline
Features
•
Dual rectifier construction, positive centetap, offer 8.0A
half wave and 16.0A full wave rectification
•
High surge current capability.
•
Super fast recovery time for switching mode application.
•
Low power loss
.
•
Glass passivated chip junctions.
•
Lead-free parts meet environmental standards of
MIL-STD-19500/228
•
Suffix "-H" indicates Halogen-free parts, ex. SF1605FCT-H.
0.406(10.3)
0.381(9.7)
Formosa MS
0.189(4.8)
0.165(4.2)
0.130(3.3)
0.099(2.5)
ITO-220AB
0.272(6.9)
0.248(6.3)
0.606(15.4)
0.583(14.8)
0.134(3.4)
0.118(3.0)
1
2
3
0.161(4.1)MAX
Mechanical data
•
Epoxy : UL94-V0 rated flame retardant
•
Case : JEDEC ITO-220AB molded plastic body over
passivated chip
0.028(0.7)
0.019(0.50)
0.548(13.9)
0.512(13.0)
0.1(2.55)
.032(0.8)MAX
•
Lead : Axial leads, solderable per MIL-STD-202,
Method 208 guranteed
•
Polarity:
As marked
•
Mounting Position : Any
•
Weight : Approximated 1.70 gram
PIN 1
PIN 3
PIN 2
Dimensions in inches and (millimeters)
Maximum ratings and Electrical Characteristics
(AT
PARAMETER
Forward rectified current
Forward surge current
See Fig.1
CONDITIONS
T
A
=25
o
C unless otherwise noted)
Symbol
I
O
I
FSM
I
R
R
θJC
T
STG
-65
2.5
+175
MIN.
TYP.
MAX.
16.0
125
5.0
250
O
UNIT
A
A
8.3ms single half sine-wave (JEDEC methode)
V
R
= V
RRM
T
J
= 25
O
C
V
R
= V
RRM
T
J
= 125
O
C
Junction to case
Reverse current
Thermal resistance
Storage temperature
µA
C/W
O
C
SYMBOLS
SF1605FCT
SF1610FCT
SF1620FCT
SF1640FCT
SF1660FCT
*1
V
RRM
(V)
50
100
200
400
600
V
RMS
*2
(V)
35
70
140
280
420
*3
V
R
(V)
50
100
200
400
600
*4
V
F
(V)
*5
t
rr
(ns)
Operating
temperature
T
J
, (
O
C)
*1 Repetitive peak reverse voltage
*2 RMS voltage
*3 Continuous reverse voltage
0.95
35
1.25
1.70
-55 to +150
*4 Maximum forward voltage@I
F
=8.0A
*5 Maximum Reverse Recovery Time, note 1
Note: 1. Reverse recovery time test condition, I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2014/03/14
Revision
C
Page.
6
Page 2
DS-222416

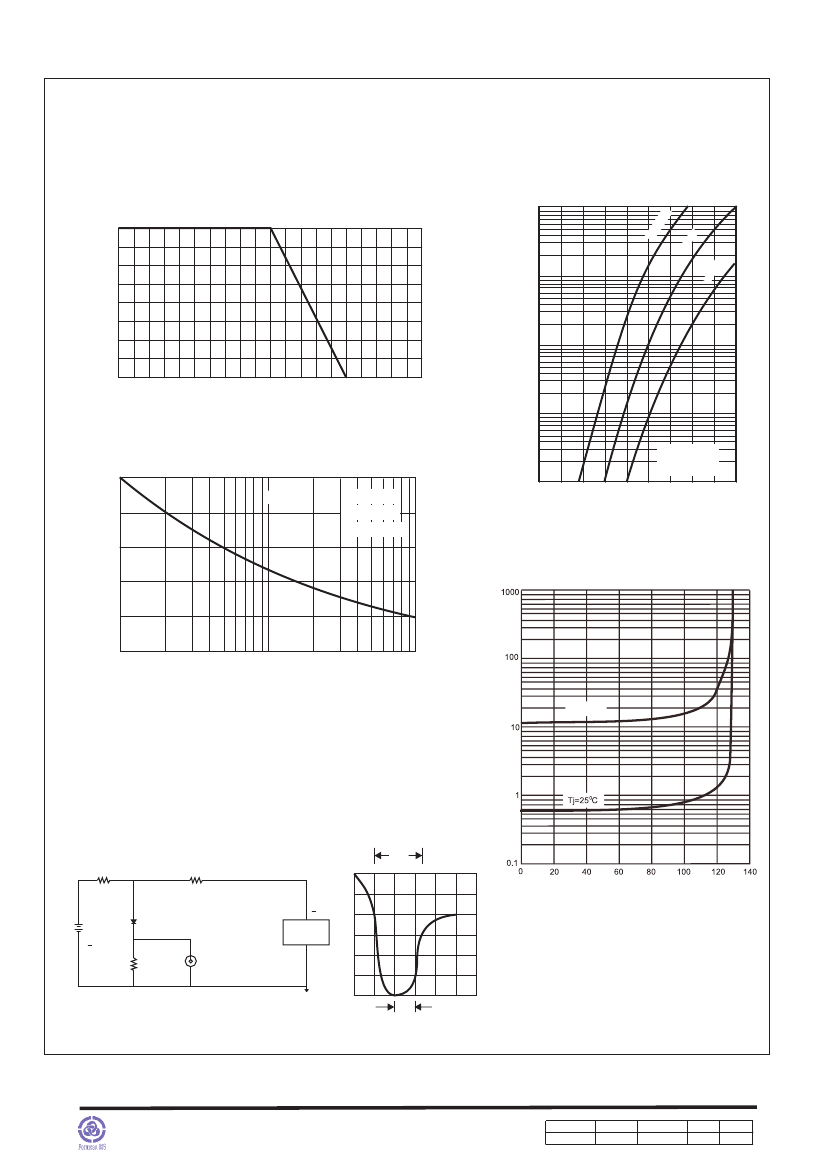

Rating and characteristic curves (SF1605FCT THRU SF1660FCT)
FIG.2-TYPICAL FORWARD
FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE
16
AVERAGE FORWARD CURRENT,(A)
14
12
10
8
6
4
2
0
0
20
40
60
80
100
120
140
160
180
200
CHARACTERISTICS
V~
20
50
0V
100
INSTANTANEOUS FORWARD CURRENT,(A)
40
0V
10
1.0
CASE TEMPERATURE,(°C)
0.1
TJ=25 C
Pulse Width 300us
1% Duty Cycle
o
FIG.3-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
125
PEAK FORWARD SURGE CURRENT,(A)
.01
TJ=25°C
8.3ms Single Half
Sine Wave
JEDEC method
0
.2
.4
.6
.8 1.0 1.2 1.4 1.6 1.8
100
FORWARD VOLTAGE,(V)
75
FIG.4 - TYPICAL REVERSE
50
CHARACTERISTICS
25
0
NUMBER OF CYCLES AT 60Hz
REVERSE LEAKAGE CURRENT, (uA)
1
5
10
50
100
Tj=125°C
FIG.5- TEST CIRCUIT DIAGRAM AND REVERSE
RECOVERY TIME CHARACTERISTICS
trr
50
W
NONINDUCTIVE
10
W
NONINDUCTIVE
+0.5A
|
|
|
|
|
|
|
|
PERCENT OF RATED PEAK REVERSE VOLTAGE,(%)
(+)
25Vdc
(approx.)
( )
1
W
NON-
INDUCTIVE
OSCILLISCOPE
(NOTE 1)
D.U.T.
( )
0
PULSE
GENERATOR
-0.25A
(NOTE 2)
(+)
NOTES: 1. Rise Time= 7ns max., Input Impedance= 1 megohm.22pF.
2. Rise Time= 10ns max., Source Impedance= 50 ohms.
-1.0A
1cm
SET TIME BASE FOR
50 / 10ns / cm
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2014/03/14
Revision
C
60
Page.
6
DS-222416
Page 3
0V
Super Fast Recovery Rectifiers
SF1605FCT THRU SF1660FCT
Pinning information
Pin
Simplified outline
Formosa MS
Symbol
Pin1
Pin2
Pin3
anode
cathode
anode
1
2
3
PIN 1
PIN 3
PIN 2
Marking
Type number
SF1605FCT
SF1610FCT
SF1620FCT
SF1640FCT
SF1660FCT
Marking code
SF1605FCT
SF1610FCT
SF1620FCT
SF1640FCT
SF1660FCT
Tube packing
PACKAGE
TUBE
(pcs)
50
TUBE SIZE
(m/m)
535*32*7.0
BOX
(pcs)
2000
INNER
BOX
(m/m)
550*167*75
CARTON
SIZE
(m/m)
570*345*170
CARTON
(pcs)
8,000
APPROX.
GROSS WEIGHT
(kg)
23.0
ITO-220AB
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2014/03/14
Revision
C
Page.
6
Page 4
DS-222416
Super Fast Recovery Rectifiers
SF1605FCT THRU SF1660FCT
Formosa MS
Suggested thermal profiles for soldering processes
1.Lead free temperature profile wave-soldering
280
260
240
220
200
Temperature(°C)
Peak soldering temperature not
to exceed 260ºC
180
160
140
120
100
80
60
40
20
0
0
20
Preheat
Max gradient 2ºC/s
Peak
Max well
time 5 Max
Cool Down
Max gradient-4ºC/s
Suggested gradient - 2ºC/s or
less
40
60
80
100 120 140 160 180 200 220 240
Time(Sec)
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2014/03/14
Revision
C
Page.
6
Page 5
DS-222416
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

SF1640FCT-H Related Products

SF1640FCT-H SF1605FCT SF1605FCT-H SF1640FCT SF1660FCT SF1660FCT-H SF1610FCT-H SF1610FCT SF1620FCT-H SF1620FCT
Description Rectifier Diode, 1 Phase, 2 Element, 8A, 400V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN Rectifier Diode, 1 Phase, 2 Element, 8A, 50V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN Rectifier Diode, 1 Phase, 2 Element, 8A, 50V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN Rectifier Diode, 1 Phase, 2 Element, 8A, 400V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN Rectifier Diode, 1 Phase, 2 Element, 8A, 600V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN Rectifier Diode, 1 Phase, 2 Element, 8A, 600V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN Rectifier Diode, 1 Phase, 2 Element, 8A, 100V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN Rectifier Diode, 1 Phase, 2 Element, 8A, 100V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN Rectifier Diode, 1 Phase, 2 Element, 8A, 200V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN Rectifier Diode, 1 Phase, 2 Element, 8A, 200V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN
Maker FORMOSA FORMOSA FORMOSA FORMOSA FORMOSA FORMOSA FORMOSA FORMOSA FORMOSA FORMOSA
package instruction R-PSFM-T3 ITO-220AB, 3 PIN ITO-220AB, 3 PIN R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 ITO-220AB, 3 PIN ITO-220AB, 3 PIN ITO-220AB, 3 PIN ITO-220AB, 3 PIN
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features LOW POWER LOSS LOW POWER LOSS LOW POWER LOSS LOW POWER LOSS LOW POWER LOSS LOW POWER LOSS LOW POWER LOSS LOW POWER LOSS LOW POWER LOSS LOW POWER LOSS
application SUPER FAST RECOVERY SUPER FAST RECOVERY SUPER FAST RECOVERY SUPER FAST RECOVERY SUPER FAST RECOVERY SUPER FAST RECOVERY SUPER FAST RECOVERY SUPER FAST RECOVERY SUPER FAST RECOVERY SUPER FAST RECOVERY
Shell connection ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED
Configuration COMMON CATHODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 1.3 V 0.98 V 0.98 V 1.3 V 1.7 V 1.7 V 0.98 V 0.98 V 0.98 V 0.98 V
JEDEC-95 code TO-220AB TO-220AB TO-220AB TO-220AB TO-220AB TO-220AB TO-220AB TO-220AB TO-220AB TO-220AB
JESD-30 code R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 R-PSFM-T3
Maximum non-repetitive peak forward current 125 A 125 A 125 A 125 A 125 A 125 A 125 A 125 A 125 A 125 A
Number of components 2 2 2 2 2 2 2 2 2 2
Phase 1 1 1 1 1 1 1 1 1 1
Number of terminals 3 3 3 3 3 3 3 3 3 3
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Maximum output current 8 A 8 A 8 A 8 A 8 A 8 A 8 A 8 A 8 A 8 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Maximum repetitive peak reverse voltage 400 V 50 V 50 V 400 V 600 V 600 V 100 V 100 V 200 V 200 V
Maximum reverse current 5 µA 5 µA 5 µA 5 µA 5 µA 5 µA 5 µA 5 µA 5 µA 5 µA
Maximum reverse recovery time 0.035 µs 0.035 µs 0.035 µs 0.035 µs 0.035 µs 0.035 µs 0.035 µs 0.035 µs 0.035 µs 0.035 µs
surface mount NO NO NO NO NO NO NO NO NO NO
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE

Recommended Resources

BT9404 type excitation switch control circuit

Simple decoding circuit

Grain pest detection alarm circuit counting circuit

Low-rate TTL level noise detection circuit

Simple self-locking switch circuit

Application of microwave sensing module RD627A

Shortcut:   L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components

  1. 1812J0100273JXR
  2. FYS-5615AX/BX-XX
  3. P8-836523D
  4. SJT06RT1835SD023
  5. Z8018006VEG
  6. KSA029-80GT
  7. CCDE622P2A06553R
  8. RNC60K2911DMRSL
  9. MBR20150CT
  10. PJP7N60
  11. C4201WV-F1-2x4P-V0-BL
  12. P6KE20CA

Popular Articles

  1. Use of Freescale CodeWarrior compiler
  2. Deepin Medical's AI medical imaging diagnosis solution effectively improves diagnostic efficiency
  3. 【STM8S】 AWU low power mode
  4. Why is it so difficult for domestic electric cars to catch up with Tesla? What kind of magic does Musk have?
  5. Versatile IP67 sealed interlocking solution for AC or DC applications
  6. Apple releases three new short videos showing off the iPhone 13 Pro’s video shooting capabilities
  7. ARMv8-A architecture basics - system control registers
  8. Design of FM radio system based on iTop4412 (Part 3)
  9. PIC16F877A microcontroller (ADC)
  10. Are the security features of smart locks full of loopholes?

Technical ResourceMore

  1. Research and application of semiconductor integrated circuit device production wastewater treatment technology
  2. LCD1602 Data
  3. Thevenin\'s Theorem Lesson Plan
  4. Analysis and application of analog circuits for biomedical instruments
  5. Lebang 18A3 induction cooker circuit diagram
  6. Analog Electronic Technology Experiment Courseware
  7. Physical Level Modeling and Simulation of Constant Modulus Blind Equalization Algorithm
  8. VIDEO interface EMC design standard circuit
  9. The formation and characteristics of PN junction ppt
  10. USB device driver development

ForumMore

  1. LM567cn
  2. Problems with peekmessage
  3. Pingtou Ge RVB2601 Review: Console and CDK
  4. What system components can be used with wince6 core authorization?
  5. LED dot matrix electronic clock screen
  6. Ginkgo USB-SPI nRF24L01 host computer debugging software source code download
  7. New Technology for Air Quality Monitors and Smoke Detectors
  8. Love pillow exchanged for E coins, thanks to EE
  9. Help, an error occurred when using Qsys to generate a DDR3 controller with UniPHY
  10. Implementation of RTOS on MSP430 MCU

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 321  2550  500  2067  435  7  52  11  42  9
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
