FP5304 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP5304

FP5304: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size67KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP5304 Overview

RF AMPLIFIER MODEL

FP5304 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	18.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	200 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM5304

Features

High Gain: 19.5 dB Typical

Low Noise Figure: <2.5 dB Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM5304, 4 Pin TO-8 (T4)

TN5304, 4 Pin Surface Mount (SM3)

FP5304, 4 Pin Flatpack (FP4)

BX5304, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +39 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +33 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +25 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

5-200 MHz

19.5

+10.5

-26

<1.75:1

<2.5

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5-200 MHz

18.5 Min.

+9.5 Min.

-25 Max.

2.0:1 Max.

3.0 Max.

+15 Min.

25 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage .......................................................... + 17Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

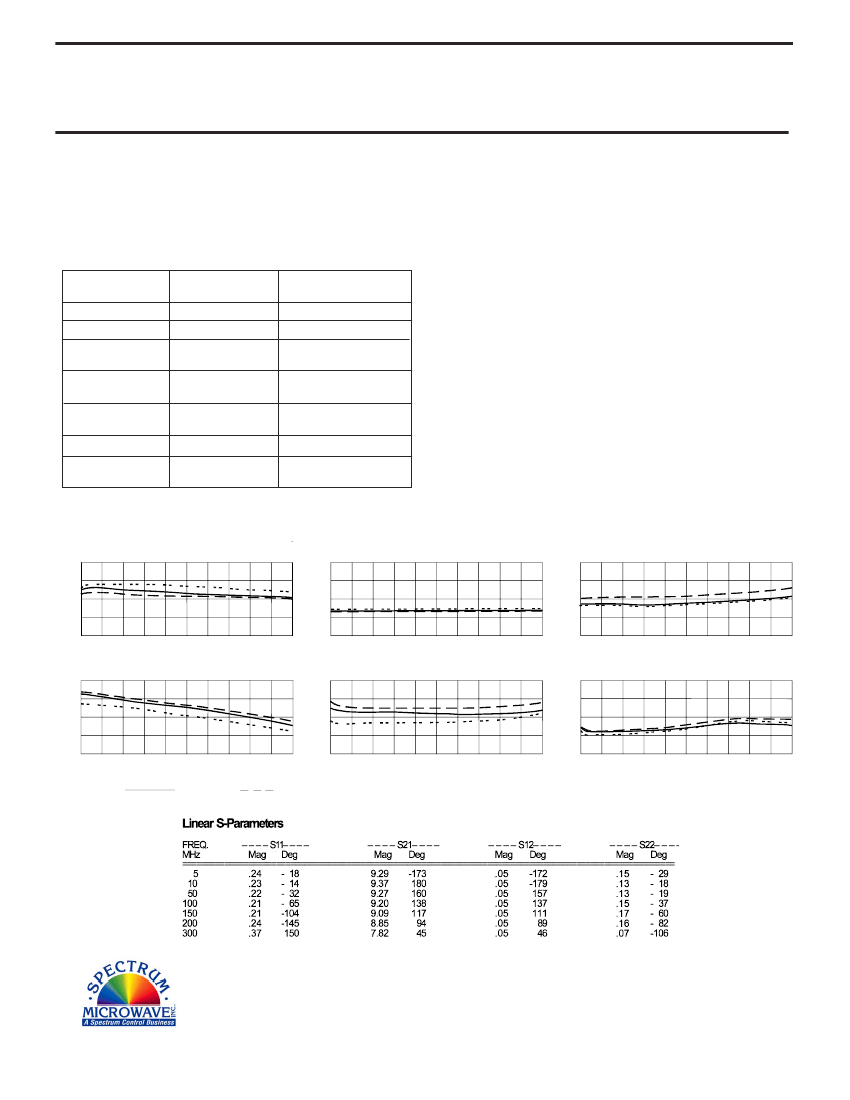

Typical Performance Data

Start 5 MHz

Stop 200 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Noise Figure (dB)

Start 5 MHz

Stop 200 MHz

Start 5 MHz

Stop 200 MHz

+13

+12

+11

+10

+ 9

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 5 MHz

Stop 200 MHz

Start 5 MHz

Stop 200 MHz

Start 5 MHz

Stop 200 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

6/17/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP5304 Related Products

	FP5304	BX5304	TM5304	TN5304
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	-	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	-	COMPONENT
Gain	18.5 dB	18.5 dB	-	18.5 dB
Maximum input power (CW)	13 dBm	13 dBm	-	13 dBm
Maximum operating frequency	200 MHz	200 MHz	-	200 MHz
Minimum operating frequency	5 MHz	5 MHz	-	5 MHz
Maximum operating temperature	85 °C	85 °C	-	85 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	-	2
Base Number Matches	1	1	-	1
