SMV0300C-LF
PHASE NOISE (1 Hz BW, typical)
14118 Stowe Drive, Suite B
Poway, CA 92064
TEL: (858) 621-2700 | FAX: (858) 486-1927
URL: www.zcomm.com
EMAIL: applications@zcomm.com
Rev A1
Applications
• Portable Radios
• Satellite Communication Equipment
•
Application Notes
• AN-101: Mounting and Grounding
• AN-102: Output Loading
• AN-107: Manual Soldering
OFFSET (Hz)
Performance Specifications
Oscillation Frequency Range
Phase Noise @ 10 kHz offset (1 Hz BW)
Harmonic Suppression (2nd)
Tuning Voltage
Tuning Sensitivity (avg.)
Power Output
Load Impedance
Input Capacitance
Pushing
Pulling (20. dB Return Loss, Any Phase)
Operating Temperature Range
Package Style
£(f) (dBc/Hz)
Voltage-Controlled Oscillator
Surface Mount Module
Min
270
Typ
-92
-12
Max
330
-10
4.5
Units
MHz
dBc/Hz
dBc
Vdc
MHz/V
dBm
pF
MHz/V
MHz
°C
0.5
25
6
9
50
12
500
5
10
-40
SUB-L
85
Power Supply Requirements
Supply Voltage (Vcc, nom.)
Supply Current (Icc)
Min
Typ
5
27
Max
33
Units
Vdc
mA
Additional Notes
LFSuffix = RoHS Compliant. All specifications are subject to change without notice.
© Z-Communications, Inc. All Rights Reserved.
Page 1 of 2
FRM-S-002 B
Voltage-Controlled Oscillator
Surface Mount Module

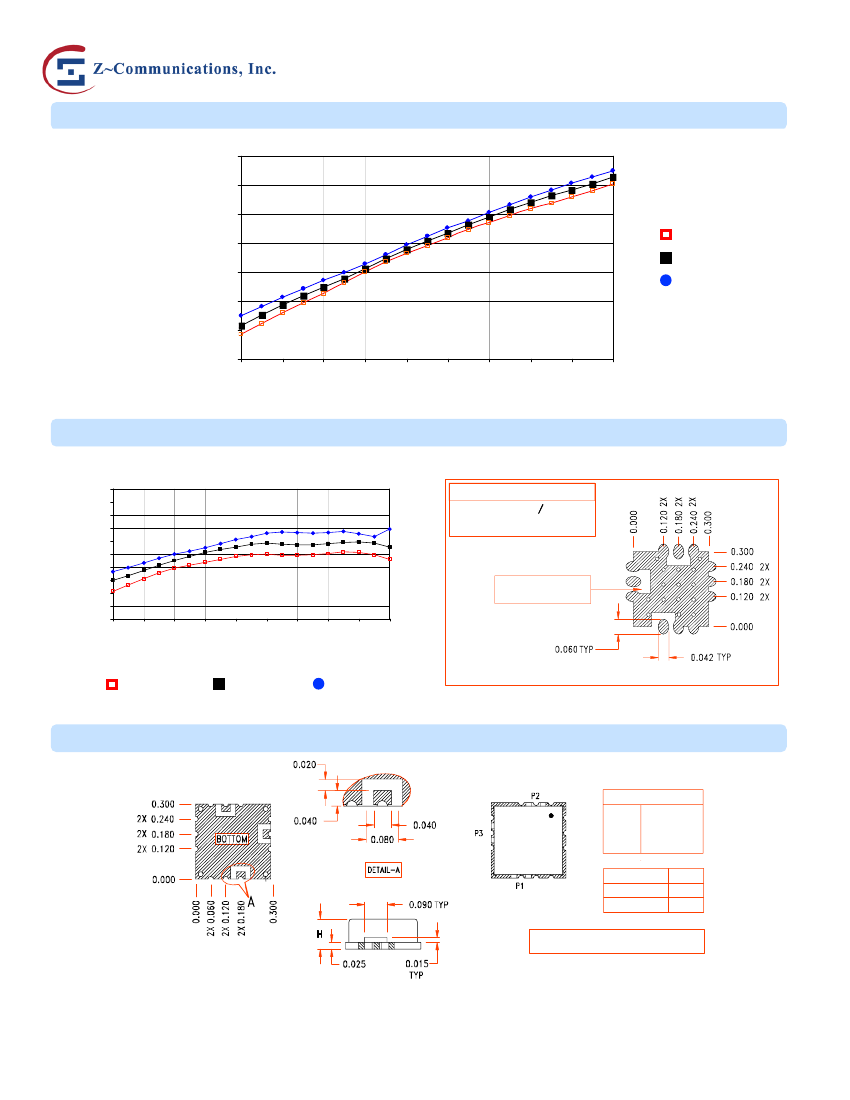

Tuning Curve, typ.
360
SMV0300C-LF
Rev A1
FREQUENCY (MHz)
340
320
300
280
260
240
220
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
85 °C
25 °C
-40 °C
TUNING VOLTAGE (Vdc)
Power Curve, typ.
POWER OUTPUT (dBm)
Footprint
14
13
12
11
10
9
8
7
6
5
4
243
257
270
282
296
307
318
328
337
345
RECOMMENDED FOOTPRINT
SEVERAL HOLES OF O0.015 ON
GND. PLANE ARE RECOMMENDED
FOR GOOD GROUNDING.
0.030 MIN. CUTBACK
FROM LIVE PADS
FREQUENCY (MHz)
85 °C
25 °C
-40 °C
Physical Dimensions
PIN CONFIGURATION
Z-COMM
XXXXXXXX-LF
W/O#
D/C
P1
P2
P3
REST
Vt
RF Out
Vcc
GROUND
PACKAGE
SUB MINI
SUB MINI-L
H
0.110
0.080
NOTE: ALL DIMENSIONS ARE IN INCHES
TOL: XXX: +/- 0.010
LFSuffix = RoHS Compliant. All specifications are subject to change without notice.
© Z-Communications, Inc. All Rights Reserved.
Page 2 of 2
FRM-S-002 B
