F10474FC datasheet, PDF - EEWORLD Datasheet

F10474FC: DescriptionStandard SRAM, 1KX4, 10ns, ECL, CQFP24, CERPACK-24; Categorystorage storage; File Size48KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

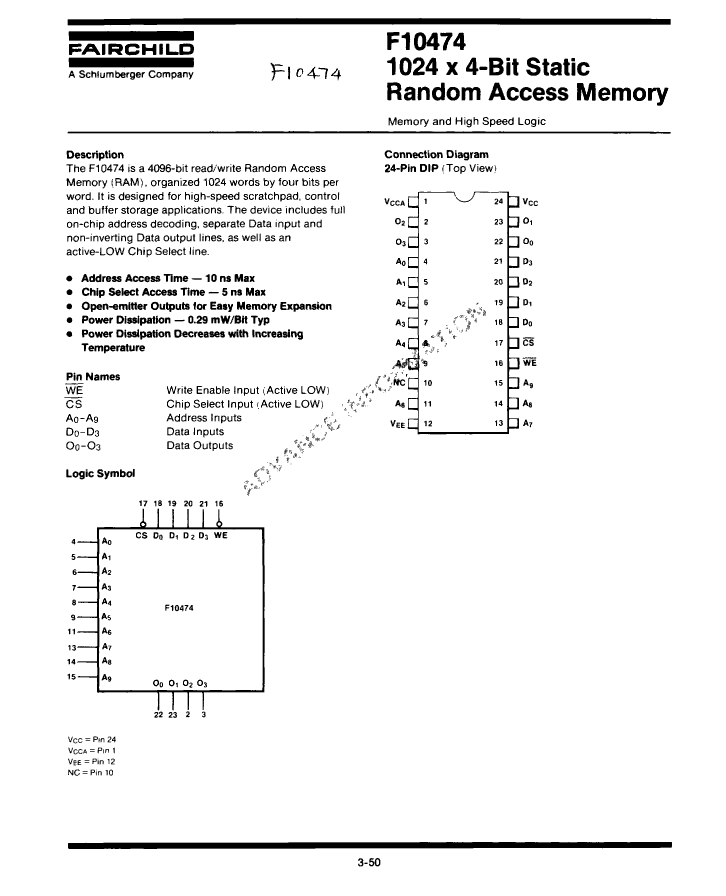

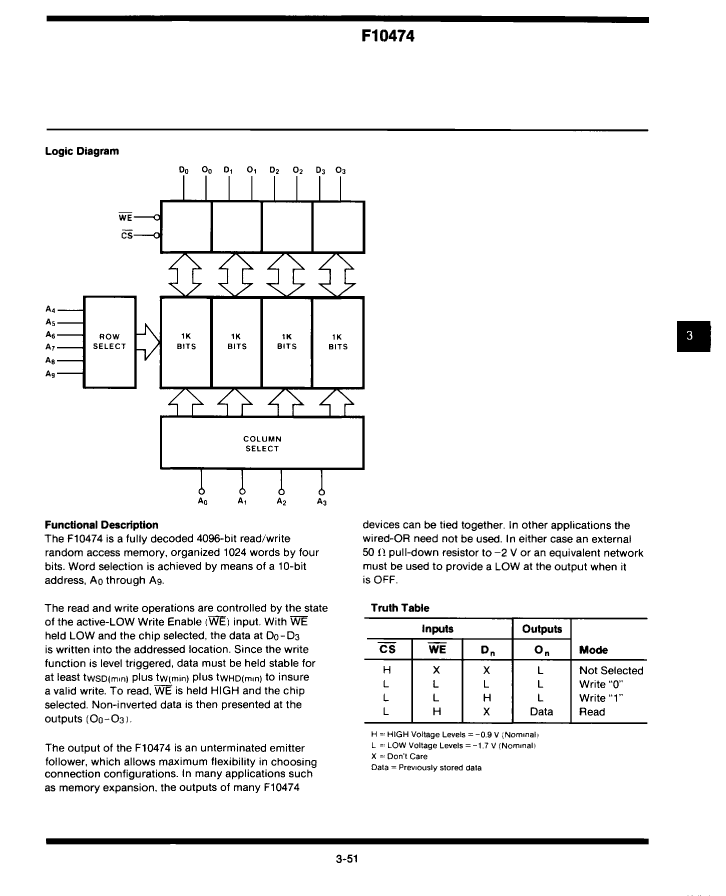

F10474FC Overview

Standard SRAM, 1KX4, 10ns, ECL, CQFP24, CERPACK-24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	QFP
package instruction	CERPACK-24
Contacts	24
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	10 ns
I/O type	SEPARATE
JESD-30 code	S-GQFP-F24
JESD-609 code	e0
length	9.78 mm
memory density	4096 bit
Memory IC Type	STANDARD SRAM
memory width	4
Negative supply voltage rating	-5.2 V
Number of functions	1
Number of ports	1
Number of terminals	24
word count	1024 words
character code	1000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	75 °C
Minimum operating temperature
organize	1KX4
Output characteristics	OPEN-EMITTER
Exportable	NO
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	QFF
Encapsulate equivalent code	QFL24,.4SQ
Package shape	SQUARE
Package form	FLATPACK
Parallel/Serial	PARALLEL
power supply	-5.2 V
Certification status	Not Qualified
Maximum seat height	2.16 mm
Maximum slew rate	0.2 mA
surface mount	YES
technology	ECL
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	QUAD
width	9.78 mm

	F10474FC	F10474DC
Description	Standard SRAM, 1KX4, 10ns, ECL, CQFP24, CERPACK-24	Standard SRAM, 1KX4, 10ns, ECL, CDIP24, 0.400 INCH, CERDIP-24
Is it Rohs certified?	incompatible	incompatible
Maker	Fairchild	Fairchild
Parts packaging code	QFP	DIP
package instruction	CERPACK-24	0.400 INCH, CERDIP-24
Contacts	24	24
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Maximum access time	10 ns	10 ns
I/O type	SEPARATE	SEPARATE
JESD-30 code	S-GQFP-F24	R-GDIP-T24
JESD-609 code	e0	e0
length	9.78 mm	30.57 mm
memory density	4096 bit	4096 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM
memory width	4	4
Negative supply voltage rating	-5.2 V	-5.2 V
Number of functions	1	1
Number of ports	1	1
Number of terminals	24	24
word count	1024 words	1024 words
character code	1000	1000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	75 °C	75 °C
organize	1KX4	1KX4
Output characteristics	OPEN-EMITTER	OPEN-EMITTER
Exportable	NO	NO
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QFF	DIP
Encapsulate equivalent code	QFL24,.4SQ	DIP24,.4
Package shape	SQUARE	RECTANGULAR
Package form	FLATPACK	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL
power supply	-5.2 V	-5.2 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.16 mm	5.08 mm
Maximum slew rate	0.2 mA	0.2 mA
surface mount	YES	NO
technology	ECL	ECL
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
width	9.78 mm	10.16 mm
